Electric Actuators
Reduced cycle time
Positioning repeatability:±0.05 mm
Max. pushing force：180 N
Max. acceleration/deceleration: 5,000 mm/s2 Max. speed: 400 mm/s

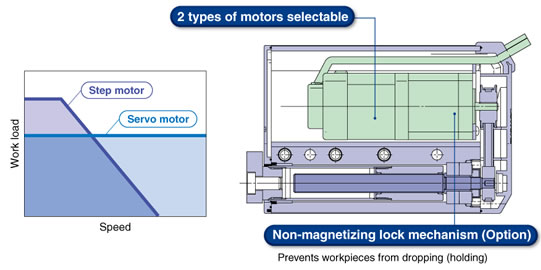

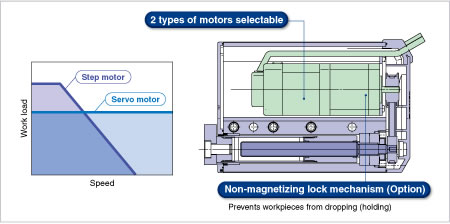

2 types of motors selectable/
Step motor (Servo/24 VDC),
Servo motor (24 VDC)
|

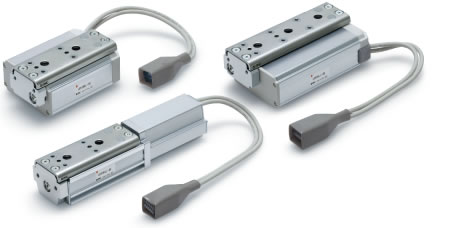

Compact Type Series LES /Size: 8, 16, 25
|High Rigidity Type Series LESH / Size: 8, 16, 25

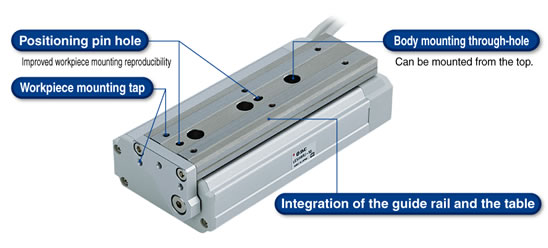

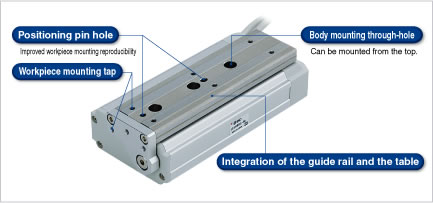

Uses a circulating linear guide.

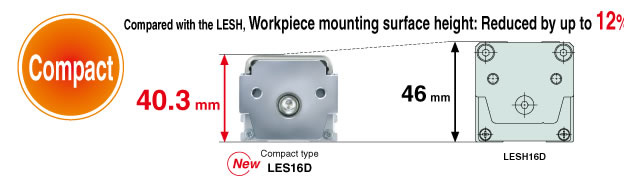

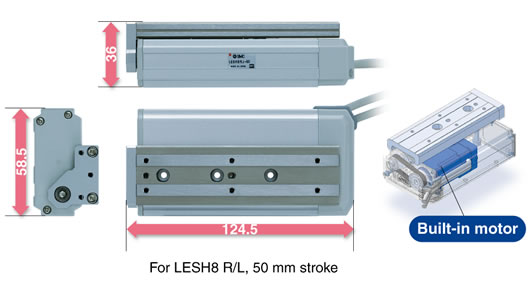

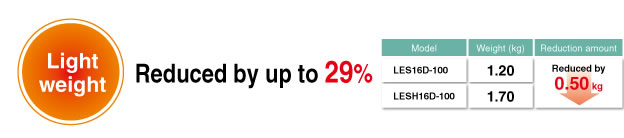

・Reduced by 61% in volume*
* Compared with
the LESH16-50/LESH-50
* For R/L type
Motor integrated into the body

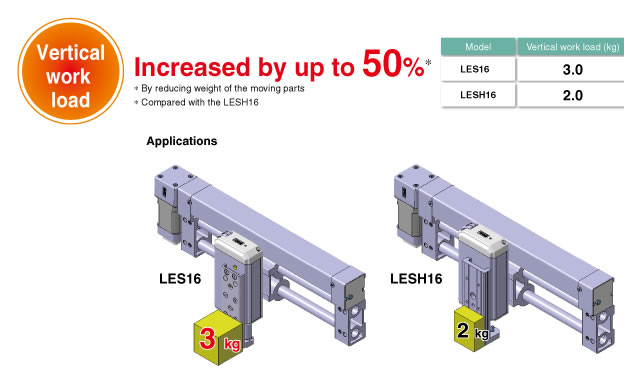

Ideal for transfer of high load at a low speed and pushing operation
Stable at high speed and silent operation

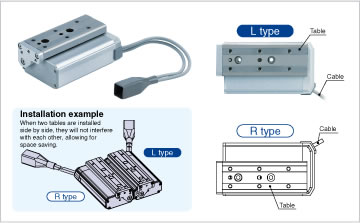

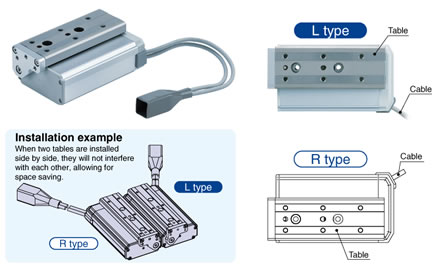

The locations of the table and cable are opposite those of the basic type (R type), expanding design applications.

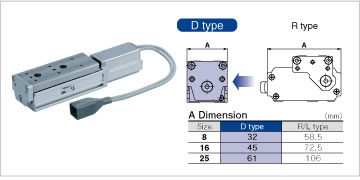

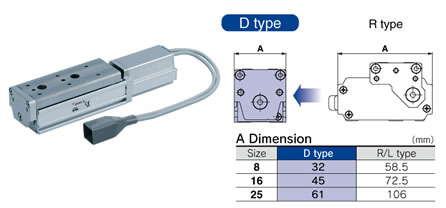

Width dimension shortened by up to 45%
|Application Examples
Positioning of pallets on a conveyer
Z motion for pick and place
|How to Mount
Through-hole mounting (R/L/D type)
Side holder mounting (D type)
Body tapped mounting (R/L/D type)
|Controller/Driver
Controller
Step data input type
Series LECP6/LECA6
- 64 points positioning
- Input using controller setting kit or teaching box
- 14 points positioning
- Control panel setting
* Only available for the step motor
(Servo/24 VDC)
- A driver that uses pulse signals to allow positioning at any position.
- Return-to-origin command signal
- With force limit function
* Only available for the step motor
(Servo/24 VDC)
CC-Link direct input type
Series LECPMJ
- CC-Link Ver. 1.10 compliant
- 3 types of operation mode available.
- The position and speed can be monitored by the PLC.
- Step data can be edited from the PLC.
- (Except single numerical data instructions)
* Only available for the step motor
(Servo/24 VDC)
Controller4 Axis Step Motor Controller
(Parallel I/O)
Series JXC73/83/93
- 4 axis synchronous control
- Linear/circular interpolation
- Positioning/pushing operation
- Absolute/relative position coordinates instructions
- Step data input (Max. 2048 points)
- Space saving, Reduced wiring
Step Motor Controller
Series JXCE1/91/P1/D1
- EtherCAT™, EtherNet/IP™,PROFINET compatible, DeviceNet™
- Two types of operation command Step no. defining operation, Numerical data defining operation
- Transition wiring of communication cable
- Numerical monitoring available
