» High Rigidity Slider Type Series LEJS/LEJB - Product Features

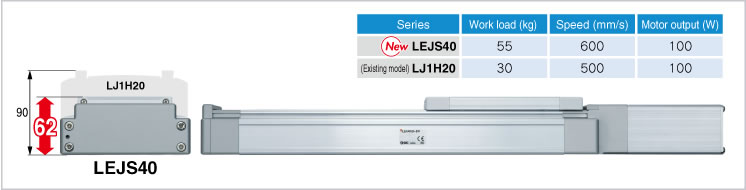

Low-profile/Low center of gravity
Height dimension reduced by approx. 36% (Reduced by 28 mm)
|

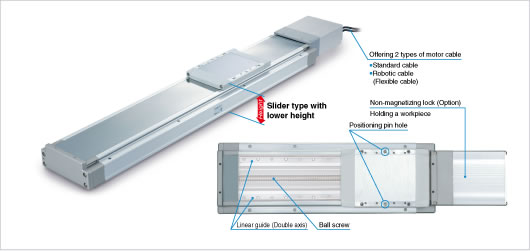

Ball Screw Drive Series LEJS / Size: 40, 63
- Max. work load: 85 kg
- Positioning repeatability: ±0.02 mm
- Max. acceleration/deceleration: 20,000 mm/s2

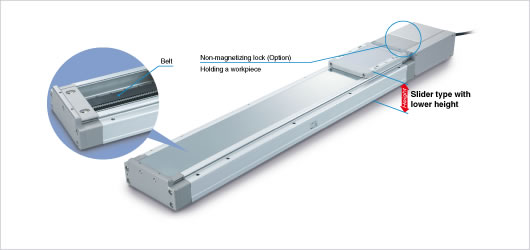

|Belt Drive Series LEJB / Size: 40, 63
- Max. stroke: 3,000 mm
- Max. speed: 3,000 mm/s
- Max. acceleration / deceleration:20,000 mm/s2

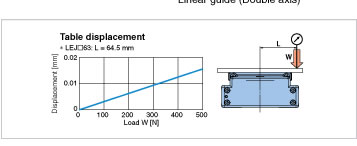

High precision/High rigidity
- Double axis linear guide reduces deflection

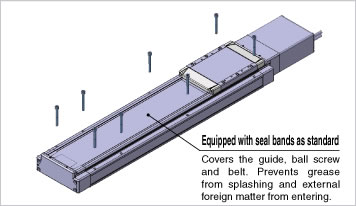

Reduction of the installation labor
- Possible to mount the main body without removing the external cover, etc.
Weight reduction
- Weight reduced by approx. 37% * Stroke: 600 mm

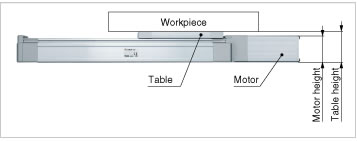

Workpiece does not interfere with the motor
- Table height > Motor height

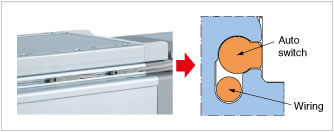

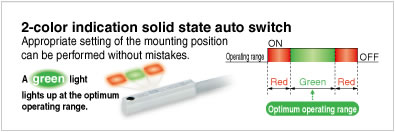

Solid state auto switch can be mounted
- Switch wiring can be placed in the body
- D-M9□W (2-color indication), D-M9□

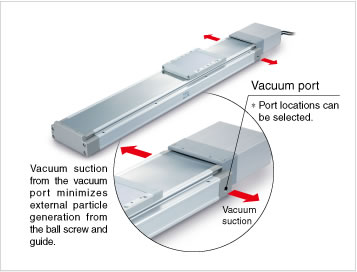

|Clean Room Specification Ball Screw Drive Series 11-LEJS
ISO Class 4*1, *2
- Built-in vacuum piping
- Possible to mount the main body without removing the external cover, etc.
*1 ISO14644-1
*2 The particle generation characteristics change
depending on the suction flow rate. Refer to Catalog
for details.

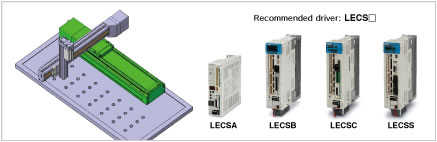

|Application Examples
Pick and place
Glue dispensing/High speed trajectory is available

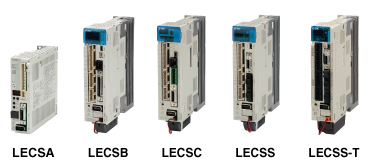

|Controller/Driver
ControllerAC Servo Motor Driver Series LECS□
- Compatible encoder: Incremental type/Absolute type
- Servo adjustment using auto gain tuning
- With display setting function
AC servo motor driver
Series LECYM/LECYU
- Position control, speed control and orque control can be used.
- Control encoder: Absolute 20-bit encoder
- Applicable Fieldbus protocol: MECHATROLINK-Ⅱ/MECHATROLINK-Ⅲ
