Rotary Table Series LER

Shock-less/High speed actuation
Max. speed: 420°/sec (7.33 rad/sec)
Max. acceleration/deceleration: 3,000°/sec2
(52.36 rad/sec2)
Positioning repeatability: ± 0.05°
Repeatability at the end: ± 0.01°
(Pushing control/With external stopper)

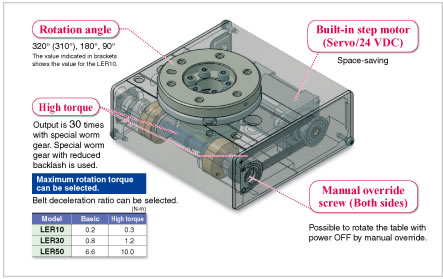

Rotation angle
320°(310°), 180°, 90° The value indicated in brackets shows the value for the LER10.
Possible to set speed, acceleration/deceleration, and position. Max. 64 points
Energy-saving product
Automatic 50% power reduction after the table has stopped.

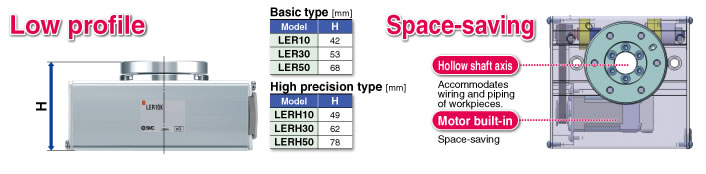

Low profile/Space-saving

Basic and high precision types are available.
Basic type/LER

High precision type/LERH

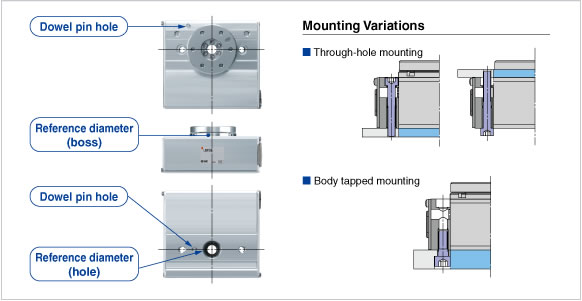

Easy mounting of workpieces

- Tolerance between table’s inside and outside diameter: H8/h8
- Dowel pin hole
- Hollow shaft axis
Accommodates wiring and piping of workpieces.
Easy mounting of the main body

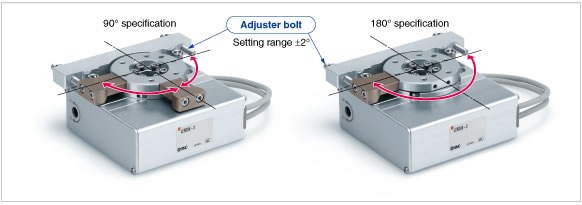

With external stopper/Rotation angle: 90°/180° specification
Repeatability at the end: ±0.01°

|Application Examples
Rotation transfer after gripping in combination with a gripper

Vertical transfer: No change in speed due to load fluctuation

|Continuous Rotation Specification
Rotation angle:360°


|Controller/Driver


Step data input type
Series LECP6
- 64 points positioning
- Input using controller setting kit or teaching box

Step Motor Controller
Series JXCE1/91/P1/D1
- EtherCAT™, EtherNet/IP™,PROFINET compatible, DeviceNet™
- Two types of operation command Step no. defining operation, Numerical data defining operation
- Transition wiring of communication cable
- Numerical monitoring available

CC-Link direct input type
Series LECPMJ
- CC-Link Ver. 1.10 compliant
- 3 types of operation mode available.
- The position and speed can be monitored by the PLC.
- Step data can be edited from the PLC.
(Except single numerical data instructions)
