» Rod Type/Guide Rod Type Series LEY/LEYG - Product Features

|

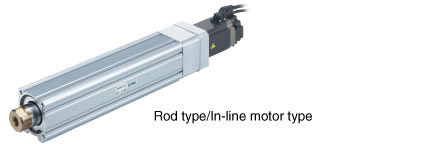

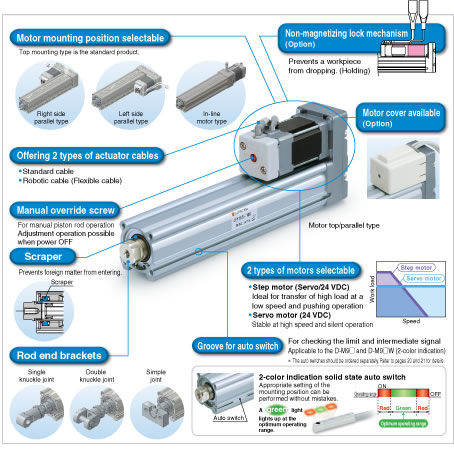

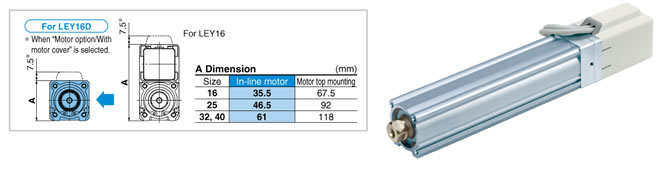

Rod Type Series LEY/ Size: 16, 25, 32

Control of intermediate positioning
and pushing is possible.
High precision with ball screws
- Speed control and positioning: Max. 64 points
- Long stroke: MAX.500 mm (LEY32)
- Either positioning or pushing control can
be selected.

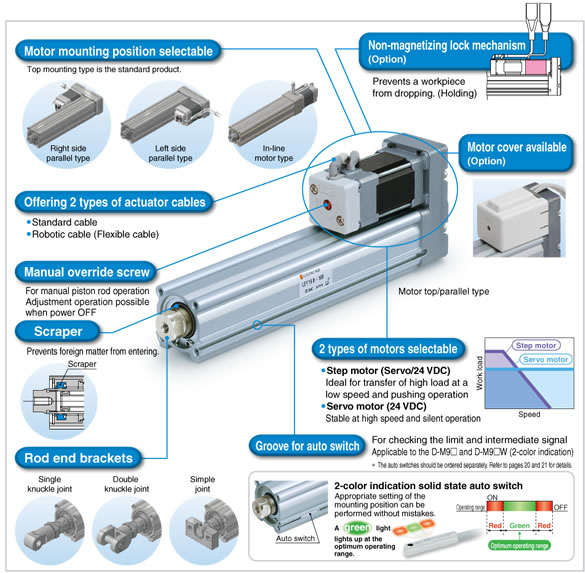

Possible to hold the actuator with the rod
pushing to a workpiece, etc. - Auto switch mountable
|

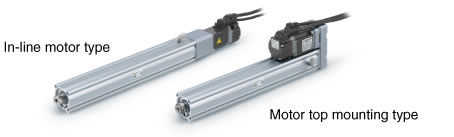

Rod Type Series LEY/ Size: 25, 32

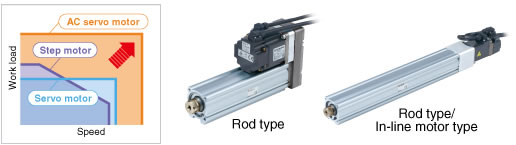

- High output motor (100 W/200 W)
- Improved high speed transfer ability
- High acceleration/deceleration compatible (5,000 mm/s2)
- Pulse input type
- With internal absolute encoder
(For LECSB/LECSC/LECSS)

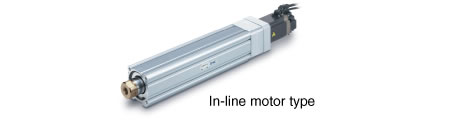

Added large bore size 63!

- Work load Horizontal 80 kg/Vertical 72 kg
- High output motor: 400 W
- Max. speed: 1,000 mm/s *500 stroke
- Max. pushing force: 1,910 (N)

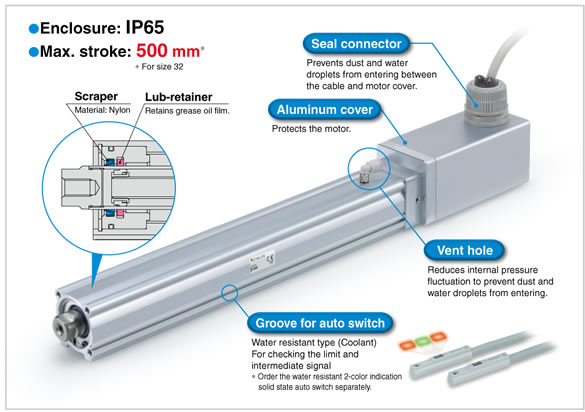

- Dust/Drip Proof Specification (IP65)
|

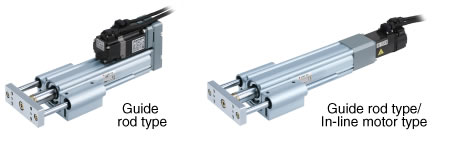

Guide Rod Type Series LEYG / Size: 16, 25, 32

Compact integrated guide rods
Lateral load resistance and high
non-rotating accuracy
Improved rigidity Lateral end load: 5 times more
* Compared with rod type, size 25 and 100
stroke

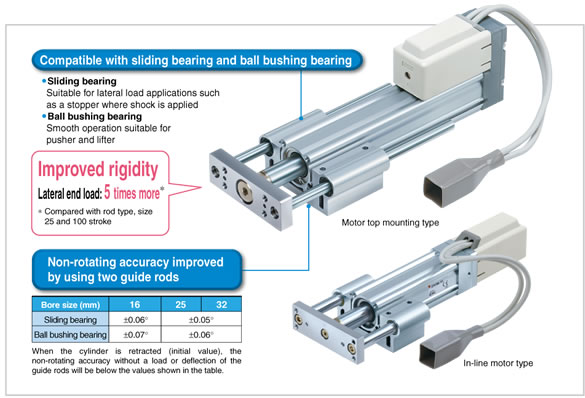

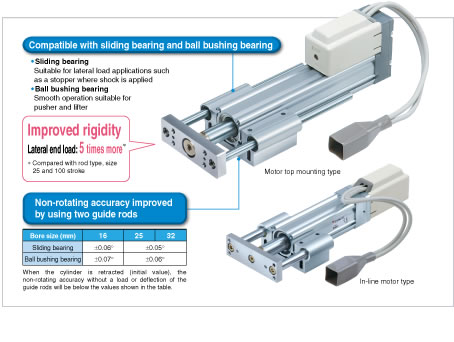

- Compatible with sliding bearing and ball bushing bearing
- Compatible with moment load and stopper (sliding bearing).
- Non-rotating accuracy improved by using two guide rods
|
Guide Rod Type Series LEYG / Size: 25, 32

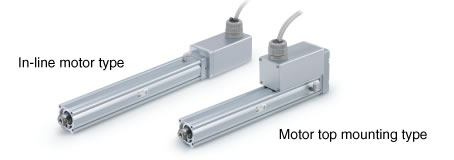

LEY-X5/Size: 25, 32

LEY-X5/Size: 25, 32

LEY63D□□-□P/Size: 63

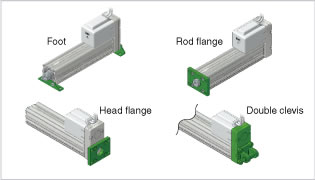

|Mounting Variations

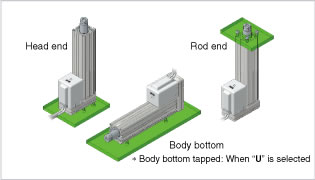

Direct Mounting

Bracket Mounting

|Application Examples
Lifter

Pushing operation

Delivery

Press fitting

Stopper

Rotation

|Controller/Driver


Step data input type
Series LECP6/LECA6
- 64 points positioning
- Input using controller setting kit or teaching box

CC-Link direct input type
Series LECPMJ
- CC-Link Ver. 1.10 compliant
- 3 types of operation mode available.
- The position and speed can be monitored by the PLC.
- Step data can be edited from the PLC.
(Except single numerical data instructions)
* Only available for the step motor
(Servo/24 VDC)

4 Axis Step Motor Controller
(Parallel I/O)
Series JXC73/83/93
- 4 axis synchronous control
- Linear/circular interpolation
- Positioning/pushing operation
- Absolute/relative position coordinates instructions
- Step data input (Max. 2048 points)
- Space saving, Reduced wiring
Step Motor Controller
Series JXCE1/91/P1/D1
- EtherCAT™, EtherNet/IP™,PROFINET compatible, DeviceNet™
- Two types of operation command Step no. defining operation, Numerical data defining operation
- Transition wiring of communication cable
- Numerical monitoring available

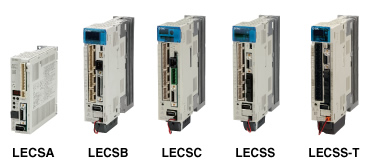

AC servo motor driver
Series LECS□
- Compatible encoder: Incremental type/Absolute type
- Servo adjustment using auto gain tuning
- With display setting function

AC servo motor driver
Series LECYM/LECYU
- Position control, speed control and orque control can be used.
- Control encoder: Absolute 20-bit encoder
- Applicable Fieldbus protocol: MECHATROLINK-Ⅱ/MECHATROLINK-Ⅲ
