Electric Actuators » Guide Rod Slider Series LEL - Product Features

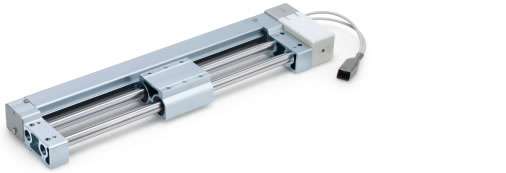

|Guide Rod Slider Series LEL / Size: 25
- Max. stroke: 1,000 mm
- Transfer speed: 1,000 mm/s

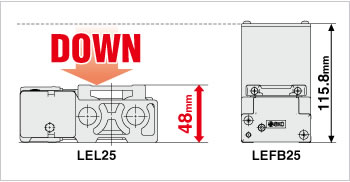

Low-profile/Flat height 48 mm

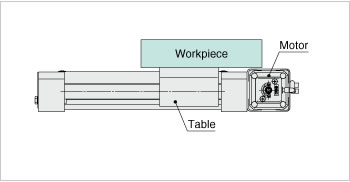

Profile reduced by side mounting of motor
No interference with motor, even with large workpieces!

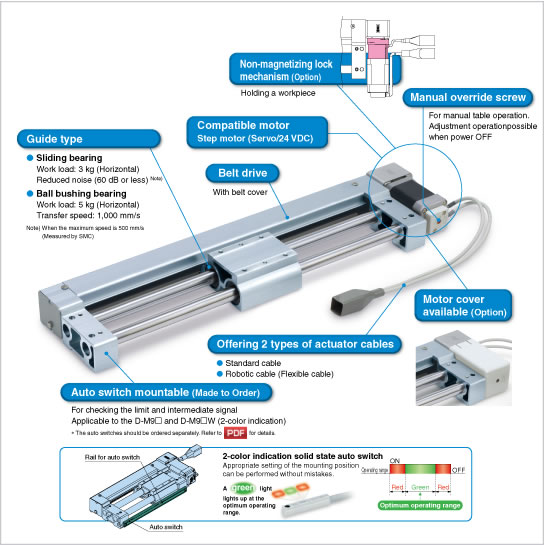

Simple construction. Guide type can be selected.
- Sliding bearing
Max. work load: 3 kg (Horizontal)
Reduced noise (60 dB or less) Note)
Note) When the maximum speed is 500 mm/s (Measured by SMC)
- Ball bushing bearing
Max. work load: 5 kg (Horizontal)
Transfer speed: 1,000 mm/s
- With belt cover

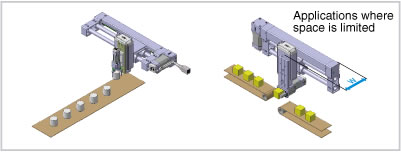

Load and unload transfer of workpieces
Pick and place
- 64 points positioning
- Input using controller setting kit or teaching box
- EtherCAT™, EtherNet/IP™,PROFINET compatible, DeviceNet™
- Two types of operation command Step no. defining operation, Numerical data defining operation
- Transition wiring of communication cable
- Numerical monitoring available
- 14 points positioning
- Control panel setting
- CC-Link Ver. 1.10 compliant
- 3 types of operation mode available.
- The position and speed can be monitored by the PLC.
- Step data can be edited from the PLC. (Except single numerical data instructions)
