Allows you to select an optimal system model to efficiently operate the air cylinder, etc.
This software is the download version. After downloading the software, install it into your personal computer.
Ver. 4.0.28 2020/10/20 Update

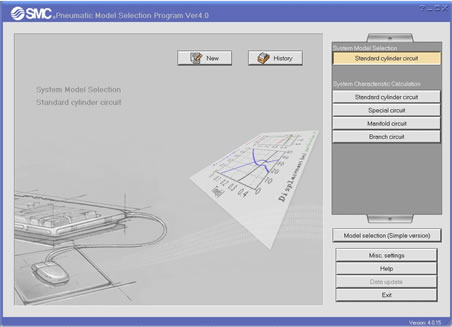

Overview of Model Selection Software
●Major selection items
- ■Pneumatic System Model Selection
- Cylinder, solenoid valve, speed controller, fitting, piping, or silencer, etc.
●Selectable cylinder drive circuit
- ■General cylinder drive circuit
- Selection of circuit model that one solenoid valve drives one cylinder
- ■2-pressure drive circuit
- Selection of circuit model that the pressure levels on the cylinder rod and head sides are changed
- ■Synthetic model circuit
- Selection of circuit model with a model other than the speed controller added to someplace of the piping
- ■Solenoid valve manifold circuit
- Selection of circuit model that multiple solenoid valves mounted on the manifold drive multiple cylinders
- ■Piping branch confluence circuit
- Selection of circuit model that one solenoid valve drives multiple cylinders
- The general cylinder drive circuit can select the part number of an optimal model from the inputs of the operating conditions.
Caution
- The sizing and calculation results obtained from this Software can differ from those obtained using actual equipment.
- When using any equipment contained in this Software, please read the "Safety Instructions", "Precautions", "Specific Product Precautions" and "Specifications" described in the manual for the equipment.
- This Software and the equipment contained in it are subject to change without prior notice.
- SMC does not warrant the quality of this Software, including the accuracy of any sizing and calculation results obtained from this Software.
- SMC is not responsible for any damage incurred in the use of this Software.
- The copyright and any other rights of this Software are owned by SMC, and protected by Japanese copyright laws and international treaty provisions.
