|Vacuum Equipment

I want to know how to wire the pressure sensor/vacuum pressure switch of the ZK2 series.

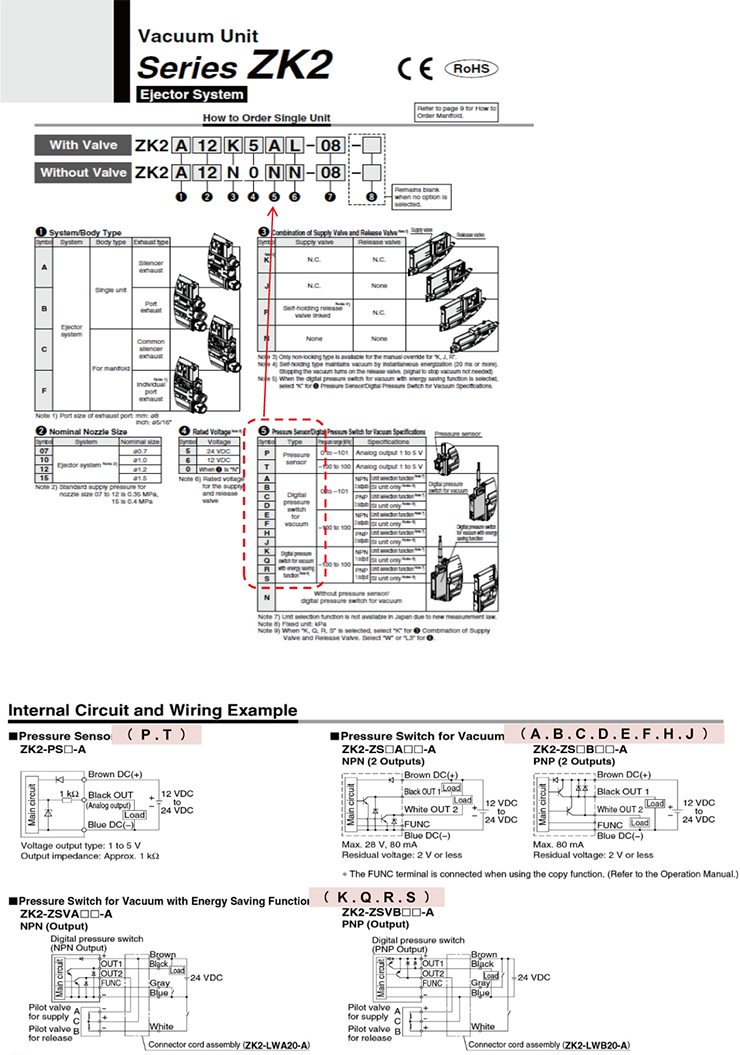

Please refer to the following internal circuit and wiring examples. For details, refer to the operation manual. In the operation manual, the pressure sensor is indicated as PSE54□, the vacuum pressure switch as ZSE10(F), and the vacuum pressure switch with energy saving function as ZK2-ZSV□.
Operation manuals are here. PSE54□　ZSE10(F)　ZK2-ZSV□
