|Electric Actuators

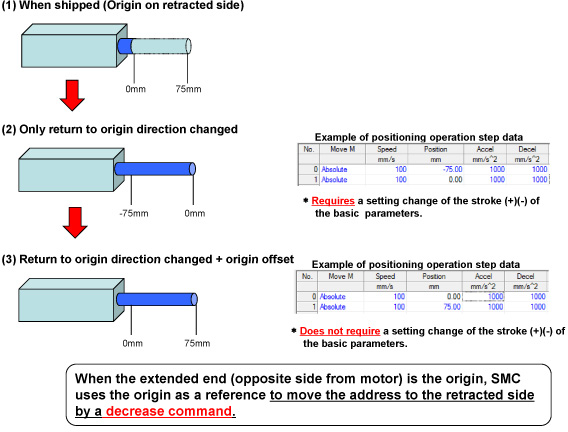

How can I change the basic parameters after changing the electrical actuator's direction of return to origin? (Even if an address is specified, it doesn't operate and an alarm is generated.)

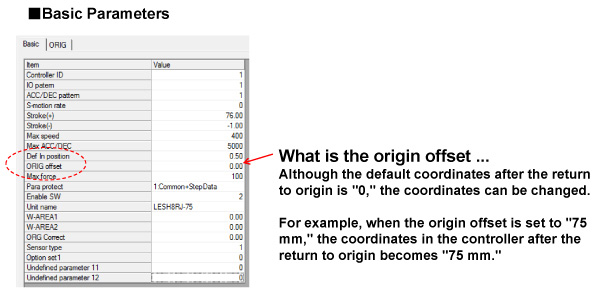

Even if the direction of return to origin is changed, the relationship between positive and negative positions won't change. Therefore, you need to review the basic parameters to determine the stroke+ and stroke- range when changing the direction of return to origin. Refer to the document below.
