How can I change the electrical actuator 's original point from the return end (motor side) to the starting one (Opposite to the motor side)?

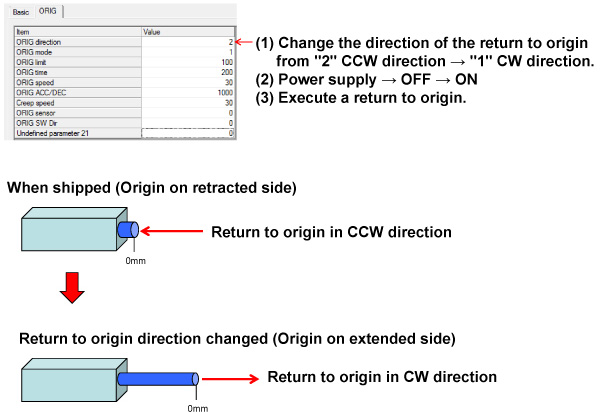

Change the parameter for 'Return to origin direction'. All actuators delivered have '2' CCW direction set as factory default. Please change this to '1' CW direction.
If the direction of return to origin is changed, the motion range will also change. Therefore review the 'Stroke (+)' and 'Stroke (-) values in the basic parameters.　　　　
Review the step data according to the new motion range.
∗It is necessary to cycle the power to the controller to make the parameter change effective.
