Standard Air Cylinders (Square Cover）

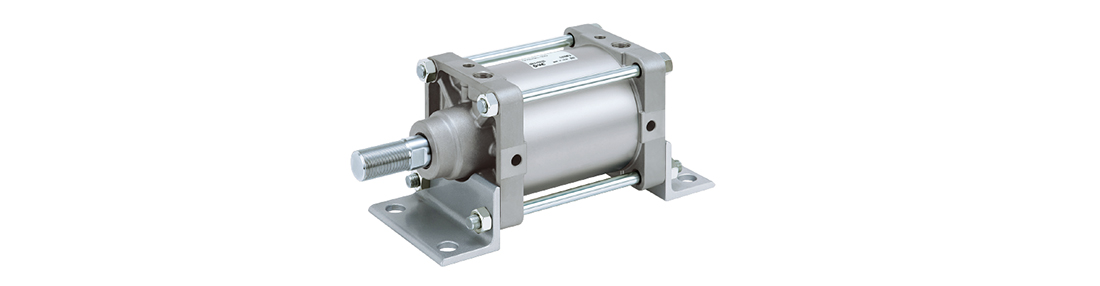

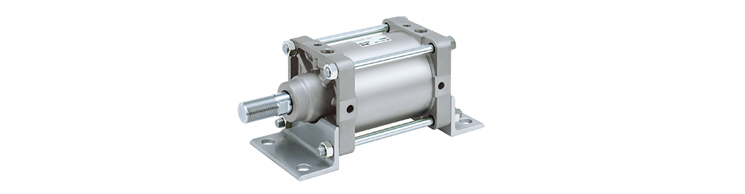

Air Cylinder CS2/CDS2

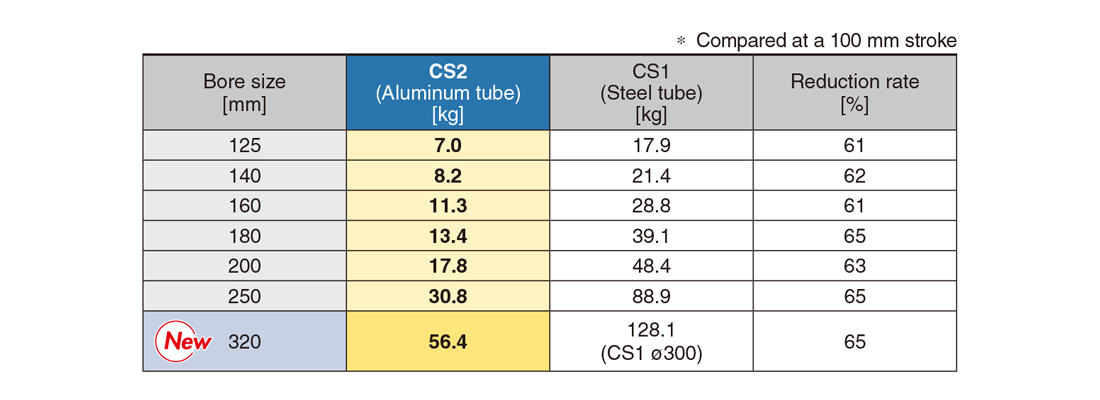

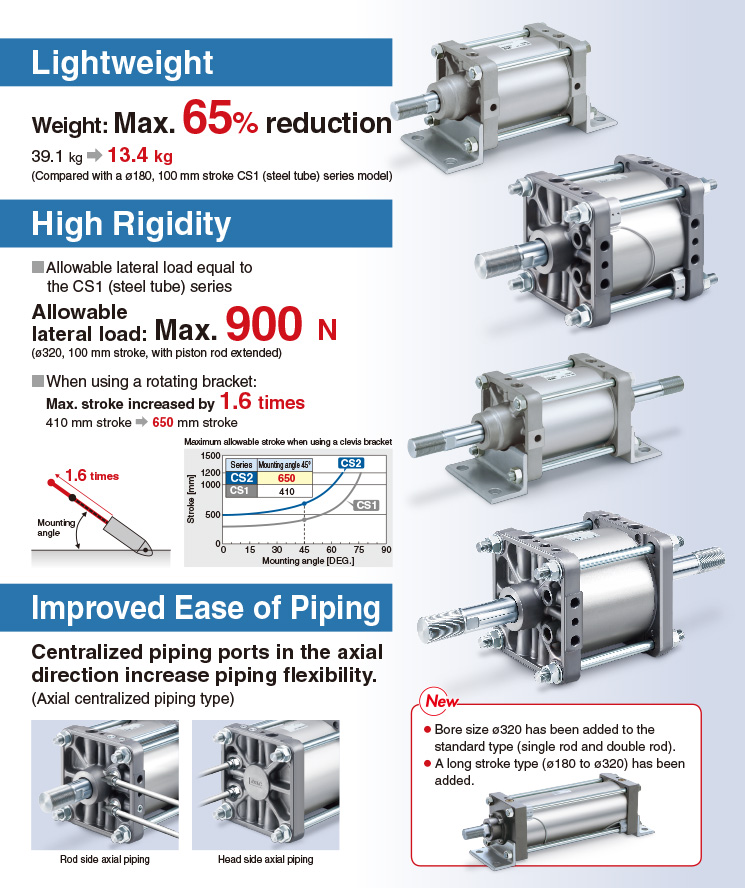

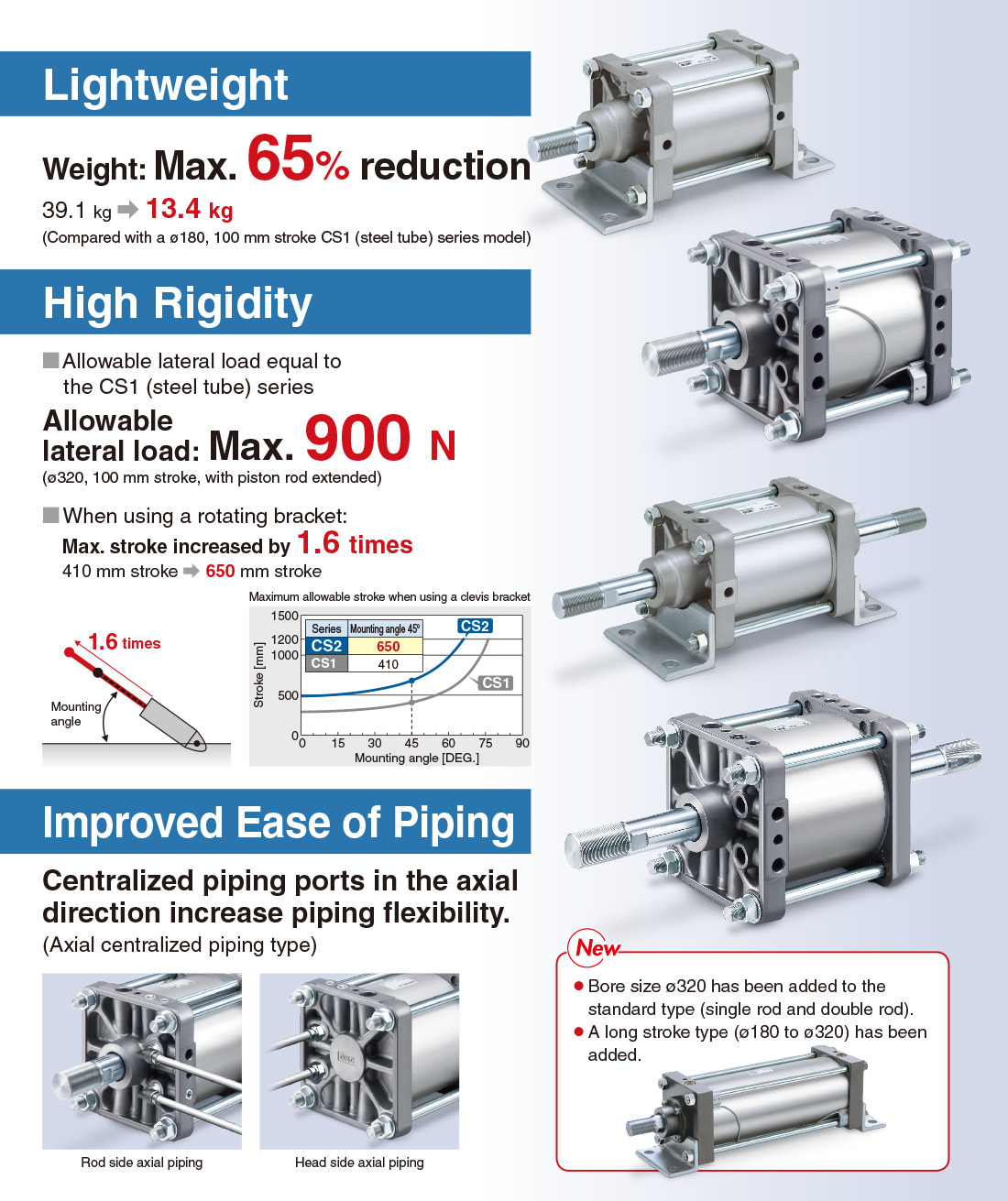

    ・Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)

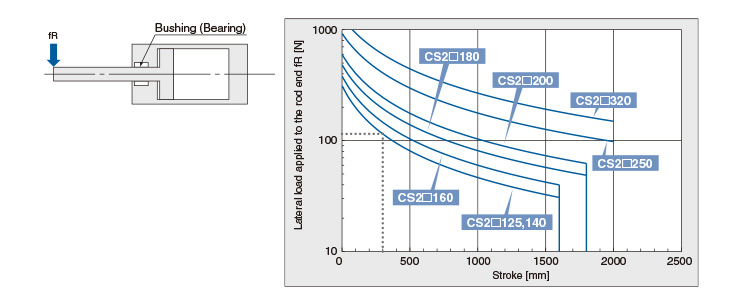

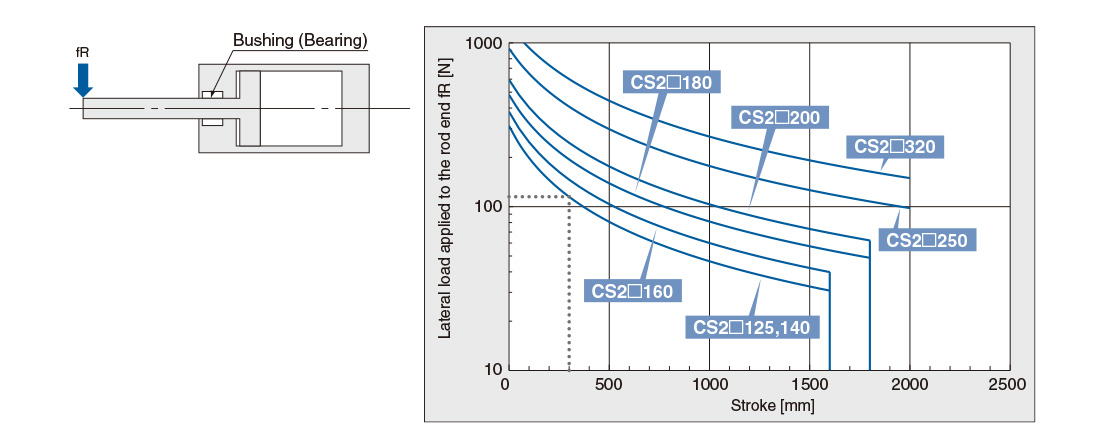

    ・High rigidity (Allowable lateral load: Max. 900 N)

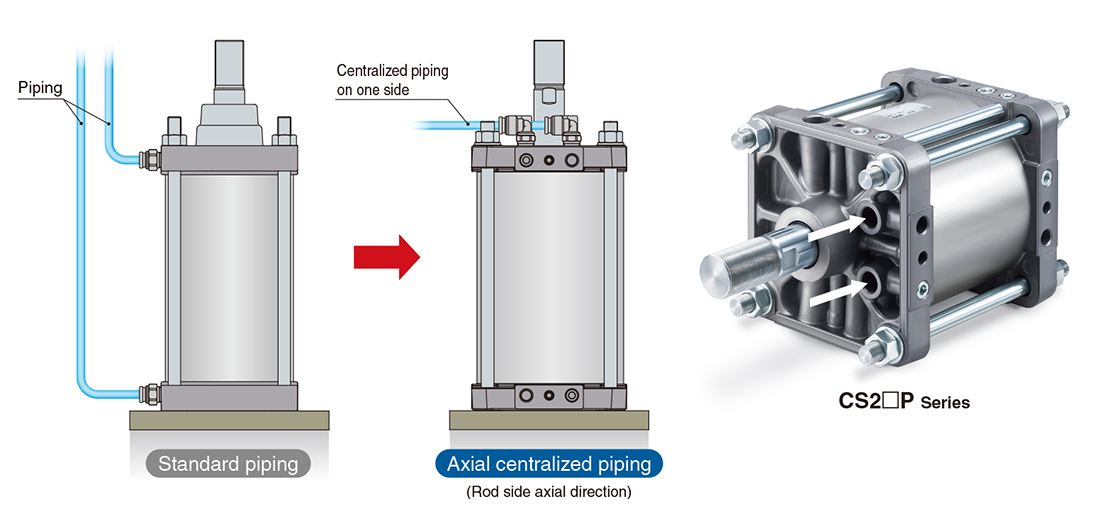

    ・Improved ease of piping:
    　Centralized piping ports in the axial direction increase piping flexibility.
    　(Axial centralized piping type)

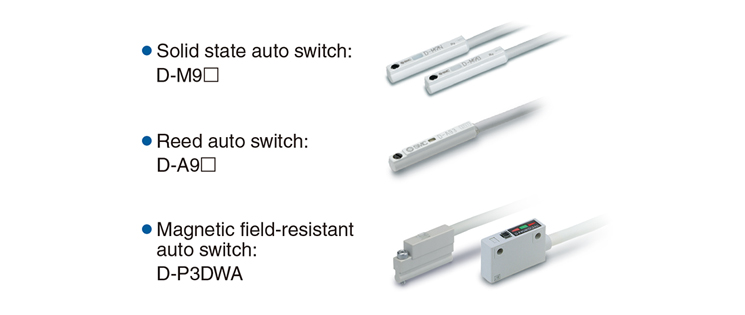

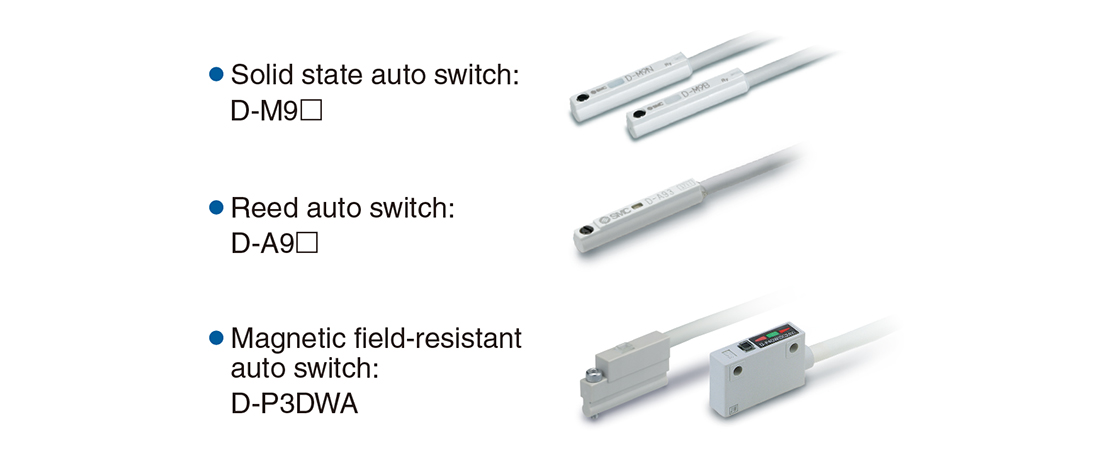

    ・With auto switch (CDS2 series: CDS2)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Air Cylinder CS2/CDS2
    Manual

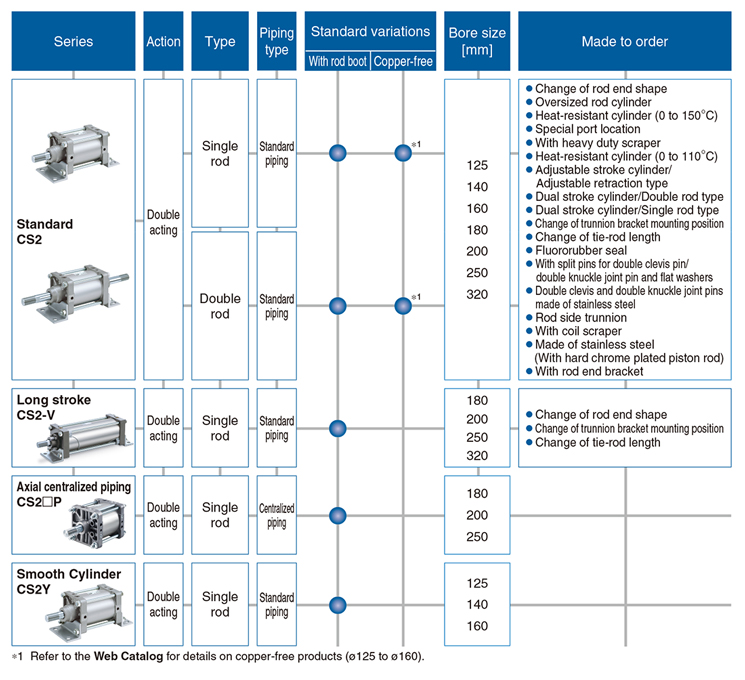

    Type Series Action Bore size (mm) View search result
    StandardCS2Double acting, Single rod125，140，160，180，200，250View search result
    StandardCS2WDouble acting, Double rod125，140，160，180，200，250View search result
    A long strokeCS2-VDouble acting, Double rod180，200，250，320View search result
    Axial centralized pipingCS2□PDouble acting, Single rod180，200，250View search result
  • Air Cylinder CS2/CDS2
    Symbol Specifications Download
    -XA0 to XA30 Simple Specials Change of rod end shape PDF
    -XC14 Simple Specials Change of trunnion bracket mounting position PDF
    -XC15 Simple Specials Change of tie-rod length PDF
  • Air Cylinder CS2/CDS2
    Symbol Specifications Download
    -XB6 Made to Order Common Specifications Heat resistant cylinder (－10 to 150℃) PDF
    -XC3 Made to Order Common Specifications Special port location PDF
    -XC4 Made to Order Common Specifications With heavy duty scraper PDF
    -XC5 Made to Order Common Specifications Heat resistant cylinder (－10 to 110℃) PDF
    -XC9 Made to Order Common Specifications Adjustable stroke cylinder/Adjustable retraction type PDF
    -XC10 Made to Order Common Specifications Dual stroke cylinder/Double rod type PDF
    -XC11 Made to Order Common Specifications Dual stroke cylinder/Single rod type PDF
    -XC22 Made to Order Common Specifications Fluororubber seals PDF
    -XC26 Made to Order Common Specifications With split pins for double clevis pin/double knuckle joint pin and flat washers PDF
    -XC27 Made to Order Common Specifications Double clevis and double knuckle joint pins made of stainless steel PDF
    -XC30 Made to Order Common Specifications Rod side trunnion PDF
    -XC35 Made to Order Common Specifications With coil scraper PDF
    -XC36 Made to Order Common Specifications With boss in rod side PDF
    -XC65 Made to Order Common Specifications Made of Stainless Steel (Combination of XC7 and XC68) PDF
    -XC68 Made to Order Common Specifications Made of stainless steel (with hard chrome plated piston rod) PDF
    -XC86 Made to Order Common Specifications With rod end bracket PDF
Safety Instructions　Actuators/Precautions
Auto Switches/Precautions　Model Selection/Technical Data
Simple Specials　Made to Order Common Specifications　Green Procurement (RoHS)
TypeSeriesActionBore size (mm)
StandardCS2Double acting, Single rod125，140，160，180，200，250
StandardCS2WDouble acting, Double rod125，140，160，180，200，250
A long strokeCS2-VDouble acting, Double rod180，200，250，320
Axial centralized pipingCS2□PDouble acting, Single rod180，200，250

Features
