Standard Air Cylinders (Round Type）

Air Cylinder CG1/CDG1

    ・A single acting type has been added./A direct mount type has been
    　added./An end lock type has been added. [New]
    ・Improved piping flexibility
    ・Piping can be connected every 90 degrees (4 positions). (Made to order:
    　XC3)
    ・Cylinder with rod end bracket is standardized.
    ・Interchangeable in mounting with the existing model
    ・Various mounting bracket options
    ・Part numbers for products with a rod end bracket and/or a pivot bracket
    　It is not necessary to order a bracket for the applicable cylinder
    　separately.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Air Cylinder CG1/CDG1
    Symbol Specifications Download
    -XA0 to XA30 Simple Specials Change of rod end shape PDF
  • Air Cylinder CG1/CDG1
    Symbol Specifications Download
    -XB6 Made to Order Common Specifications Heat resistant cylinder (－10 to 150℃) PDF
    -XB7 Made to Order Common Specifications Cold resistant cylinder (－40 to 70℃) PDF
    -XB9 Made to Order Common Specifications Low speed cylinder (10 to 50 mm/s) PDF
    -XB13 Made to Order Common Specifications Low speed cylinder (5 to 50 mm/s) PDF
    -XC3 Made to Order Common Specifications Special port location PDF
    -XC4 Made to Order Common Specifications With heavy duty scraper PDF
    -XC6 Made to Order Common Specifications Made of stainless steel PDF
    -XC13 Made to Order Common Specifications Auto switch rail mounting type PDF
    -XC20 Made to Order Common Specifications Head cover axial port PDF
    -XC22 Made to Order Common Specifications Fluororubber seals PDF
    -XC27 Made to Order Common Specifications Double clevis and double knuckle joint pins made of stainless steel PDF
    -XC29 Made to Order Common Specifications Double knuckle joint with spring pin PDF
    -XC35 Made to Order Common Specifications With coil scraper PDF
    -XC85 Made to Order Common Specifications Grease for food processing equipment PDF
Safety Instructions　Actuators/Precautions　Auto Switches/Precautions　How to Mount and Move the Auto Switch　Model Selection/Technical Data　Green Procurement (RoHS)
TypeSeriesActionBore size (mm)
StandardCG1-Z1Double acting single rod20，25，32，40，50，63，80，100
StandardCG1-Z1Single acting, Single rod (Spring return/extend)20，25，32，40
Direct mountCG1R-Z1Double acting, Single rod20，25，32，40，50，63
With end lockCBG1-Z1Double acting, Single rod20，25，32，40，50，63，80，100

Features

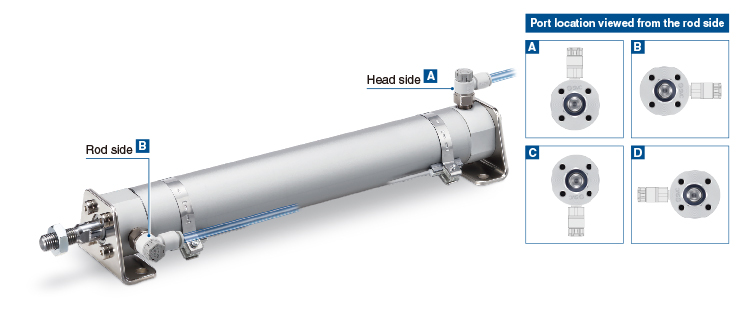

Improved piping flexibility (Made to order: XC3)

・Piping can be connected every 90 degrees (4 positions).
・Suitable piping position can be selected during designing phase.

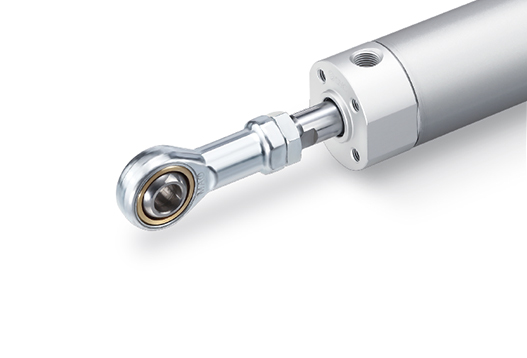

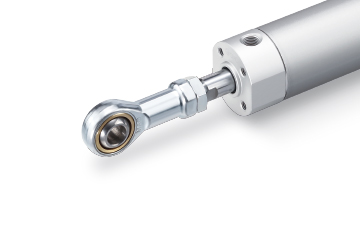

Cylinder with rod end bracket is standardized.

Interchangeable in mounting with the existing model

∗ Excludes long stroke types

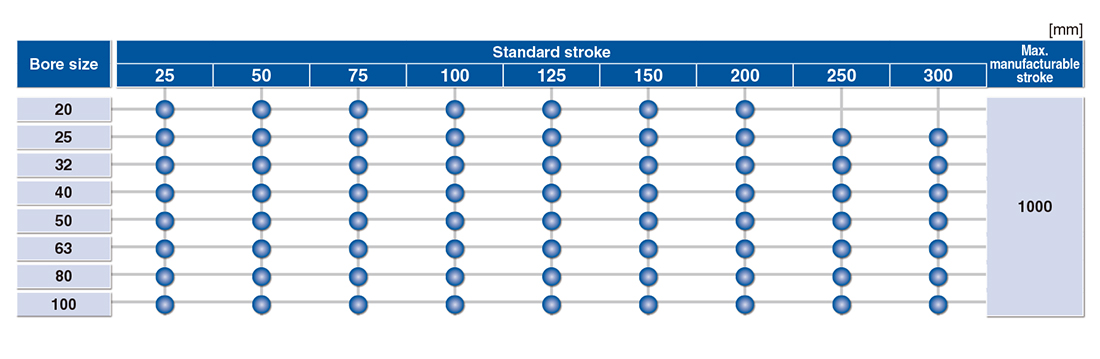

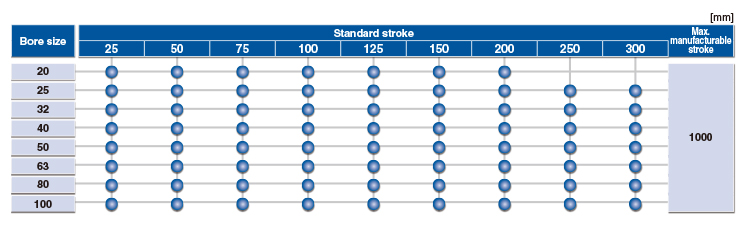

Stroke Variations

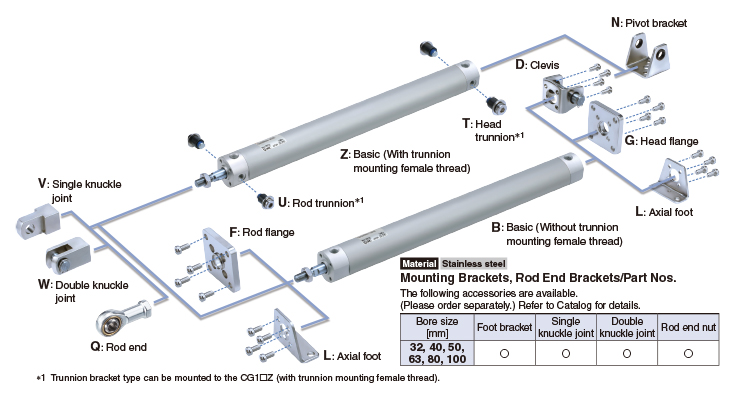

Various mounting bracket options

・Mounting brackets suitable for various installation conditions
・Improved mounting flexibility

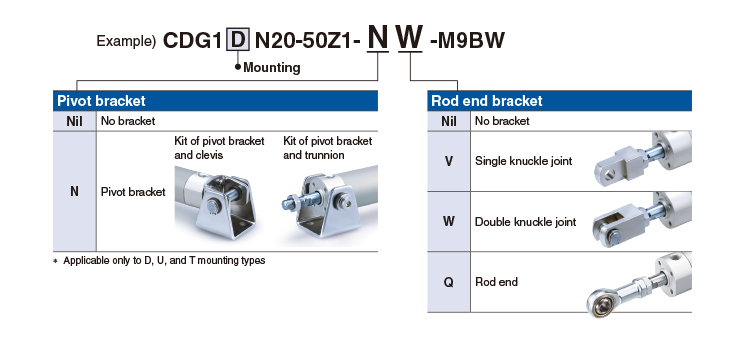

Part numbers for products with a rod end bracket and/or a pivot bracket

It is not necessary to order a bracket for the applicable cylinder separately.
＊ Mounting brackets are shipped together with the product but do not come assembled.

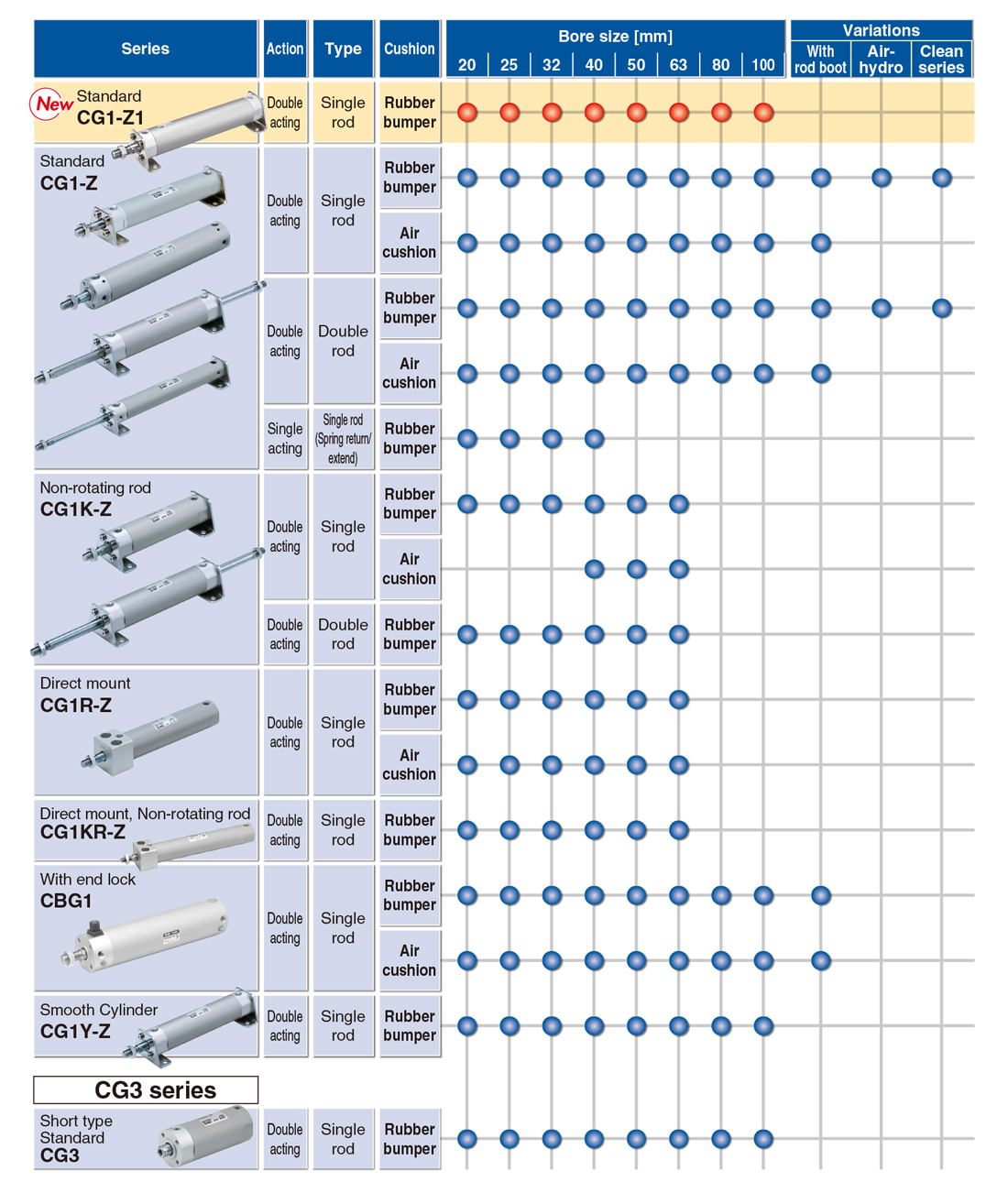

Series Variations

＊ Click here for details on the clean series.
