Related Equipment

Exhaust Flow Control Valve with Silencer ASN2□-A

    ・Integrated restrictor and silencer
    ・Reduced assembly time and number of components
    ・Push-lock type
    　Resin body: Weight reduced by up to 80%
    ・The speed can be adjusted on the valve side.
    ・A type with a compact indicator is available.
    　The flow rate can be controlled numerically.
    　Contributes to reduced setting errors and work hours by managing flow
    　rate figures (indicator)
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)

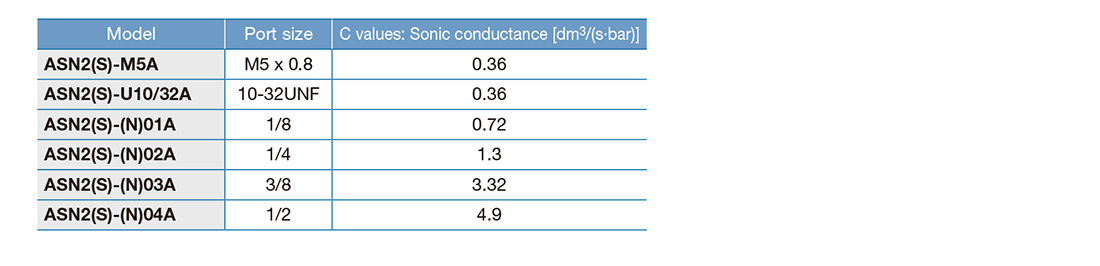

SeriesPort sizeC values: Sonic conductance [dm3/(s·bar)]
ASN2(S)-M5AM5×0.80.36

Features

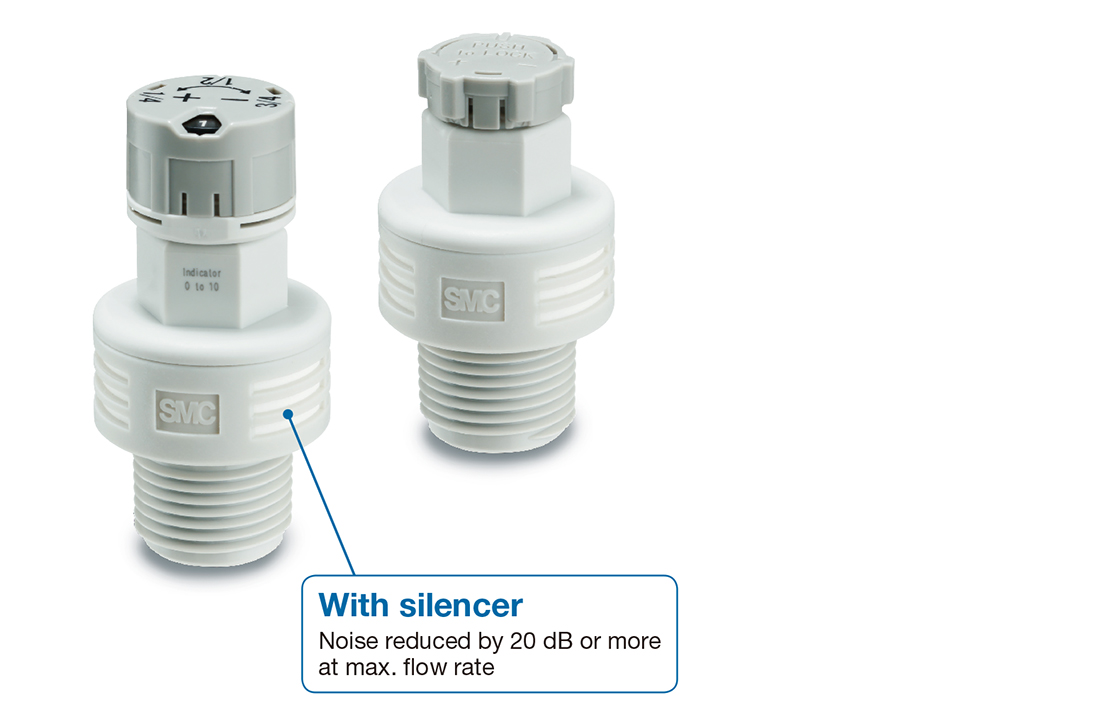

Integrated Restrictor and Silencer



Reduced assembly time and number of components



A push-lock type and a type with a compact indicator are available.



Resin body

Weight reduced by up to 80%, Lightweight (7.6 g ⬅ 34 g)

∗ Comparison between the ASN2-02A and the existing ASN2-02 (metal body)

The body’s outer diameter size is the same as the existing model.

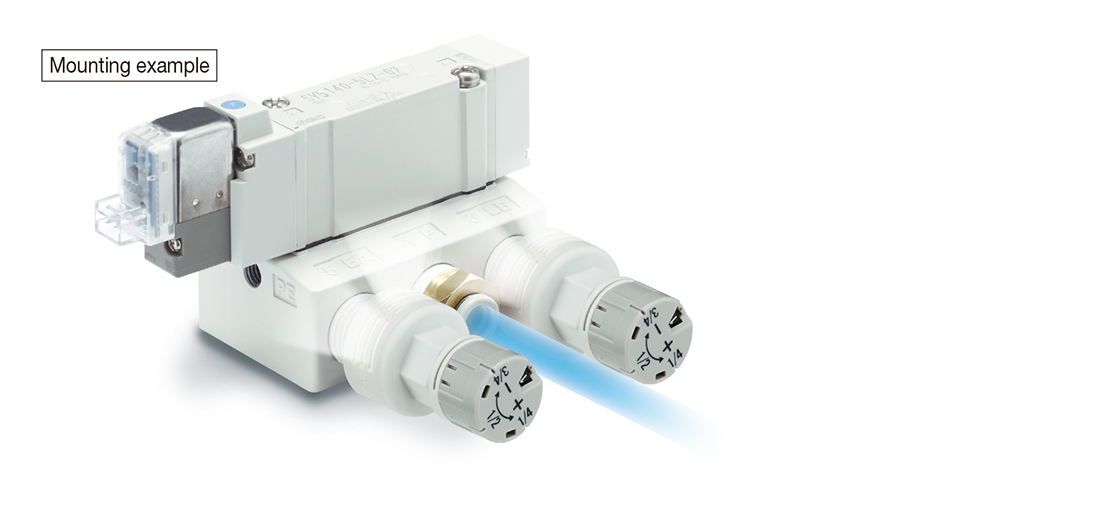

The speed can be adjusted on the valve side.

Speed control is possible even if a cylinder is installed at a high or narrow place where it is not accessible.

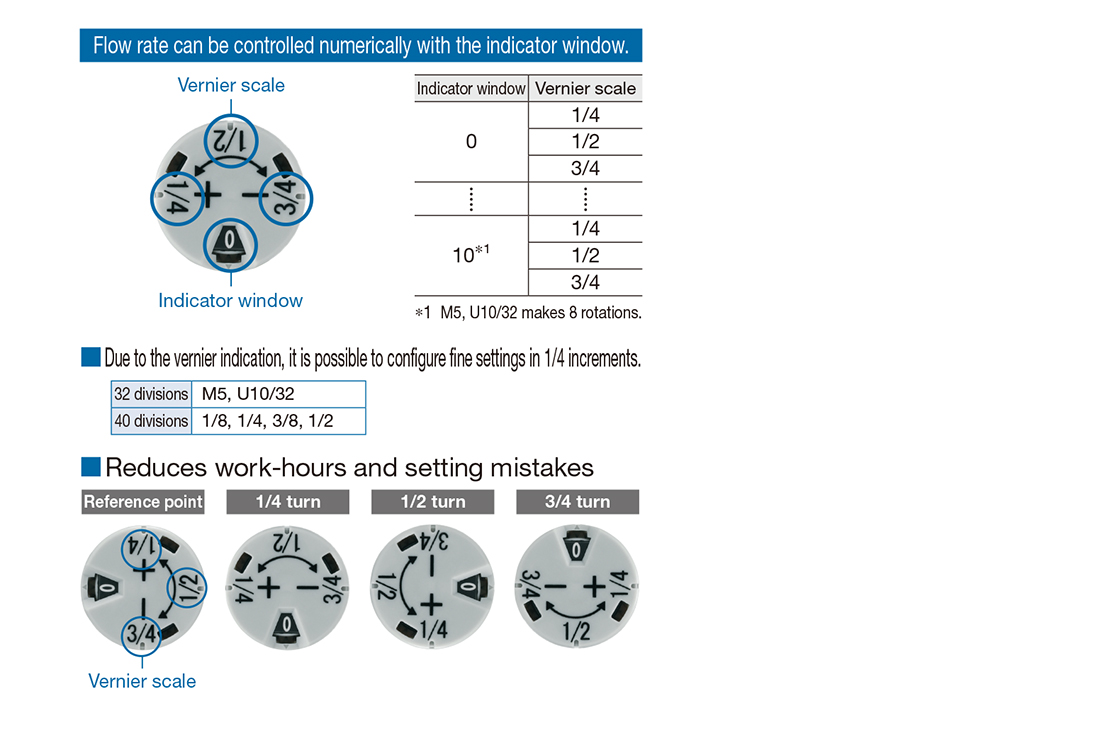

With the compact indicator, the flow rate can be controlled numerically.

Contributes to reduced setting errors and work hours by managing flow rate figures (indicator)

Variations
