e-Actuator

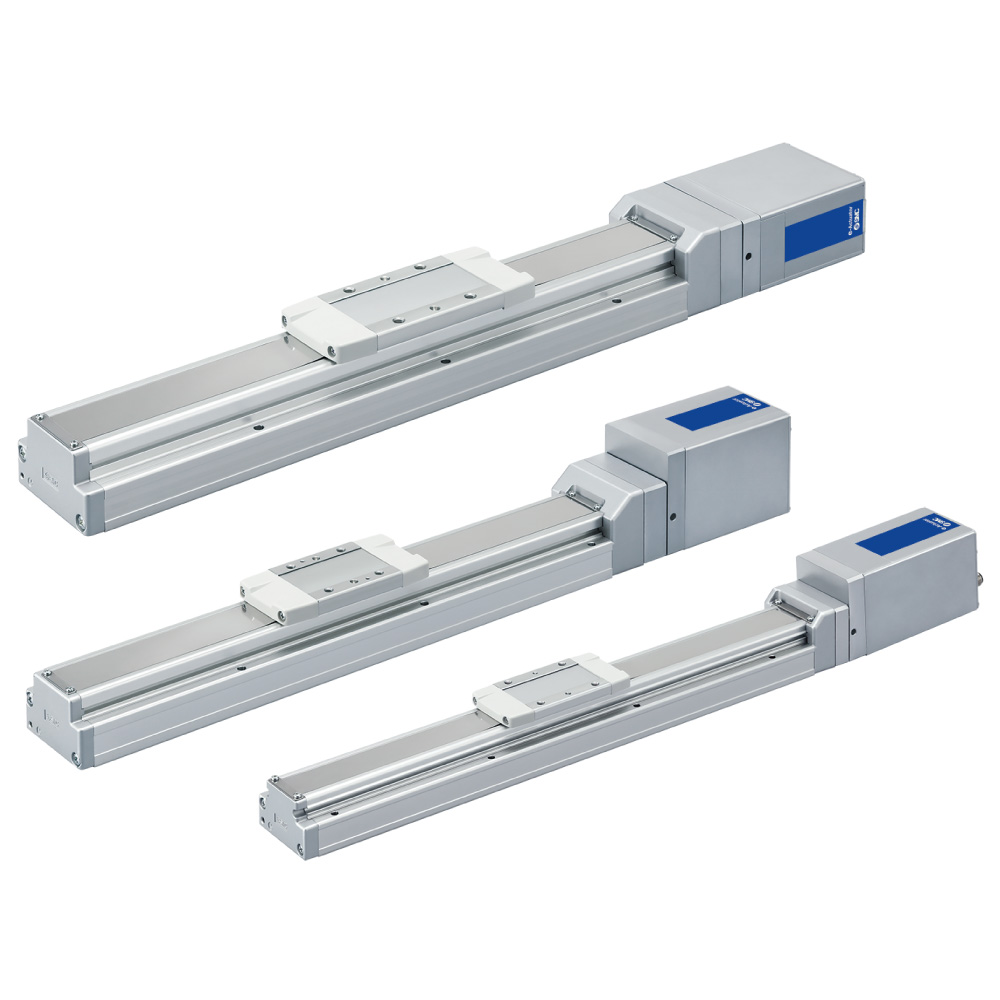

e-Actuator Easy to Operate Integrated Controller/Slider Type EQFS□H
-
・Easy to set up, just like air equipment!
Two position stop with no programming required
Three position stop with no programming required
Cycle time can be set in all operating modes.
・Downsized with Integrated Controller, Wiring saving,
Labor saving · Programless · Reduced adjustment time
・Annual CO2 emissions reduced by up to 60% through motor control
optimization
5.8 ← 14.1 [kg-CO2e/year] ∗ The numerical values vary depending on the
operating conditions.
・With internal battery-less absolute encoder
Restart from the last stop position is possible after recovery of the power
supply.
Reduced maintenance (No need to manage or replace batteries)
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions Green Procurement (RoHS)
| Specification | Model | Stroke （mm） | Work load （kg） Horizontal | Speed （mm/s） | Screw lead （mm） |
|---|---|---|---|---|---|
| Battery-less absolute (Step motor 24 VDC) | EQFS25□H | 50 to 800 | Max. 40 | Max. 1200 | 3, 6, 12, 20 |
| Battery-less absolute (Step motor 24 VDC) | EQFS32□H | 50 to 1000 | Max. 68 | Max. 1100 | 4, 8, 16, 24 |
e-Actuator Easy to Operate Integrated Controller/Rod Type EQY□H
-
・Easy to set up, just like air equipment!
Two position stop with no programming required
Three position stop with no programming required
Cycle time can be set in all operating modes.
・Downsized with Integrated Controller, Wiring saving,
Labor saving · Programless · Reduced adjustment time
・Annual CO2 emissions reduced by up to 60% through motor control
optimization
5.8 ← 14.1 [kg-CO2e/year] ∗ The numerical values vary depending on the
operating conditions.
・With internal battery-less absolute encoder
Restart from the last stop position is possible after recovery of the power
supply.
Reduced maintenance (No need to manage or replace batteries)
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions Green Procurement (RoHS)
| Specification | Model | Stroke （mm） | Max. pushing force （N） | Speed （mm/s） | Screw lead （mm） |
|---|---|---|---|---|---|
| Battery-less absolute (Step motor 24 VDC) | EQY25□H | 30 to 400 | Max. 452 | Max. 900 | 3, 6, 12, 20 |
| Battery-less absolute (Step motor 24 VDC) | EQY32□H | 30 to 500 | Max. 707 | Max. 900 | 4, 8, 16, 24 |
