Table Cylinders

Air Slide Table MXJ

    ・The integrated front mounting part and table results in a highly accurate and rigid top and front mounting surface.
    ・Traveling parallelism: 0.005 mm
    ・Height: 10 mm/Width: 20 mm/Length: 43 mm (MXJ4)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesActionBore size (mm)
StandardMXJDouble acting4,6,8

Features

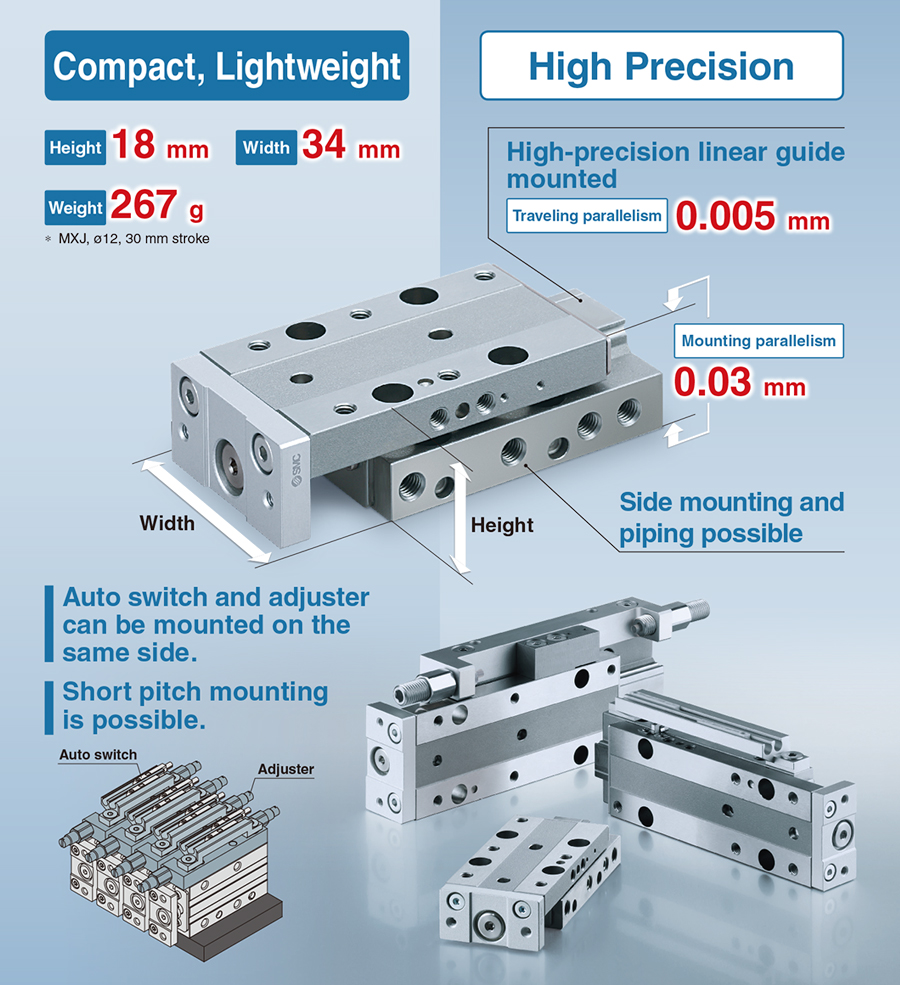

Compact, Lightweight / High Precision

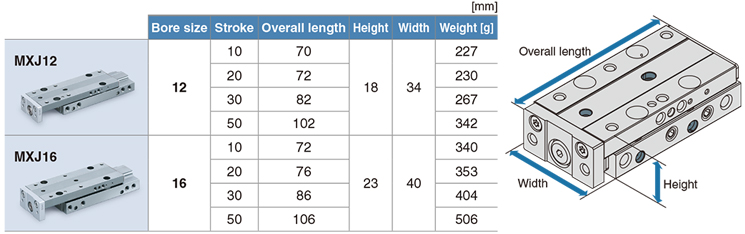

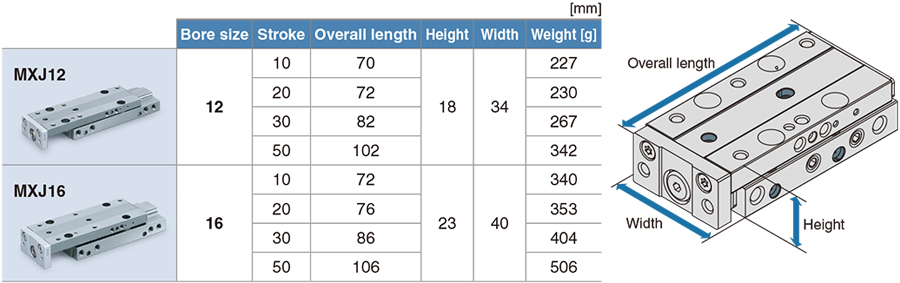

Compact

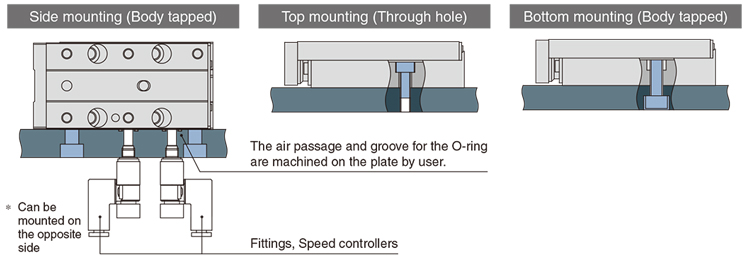

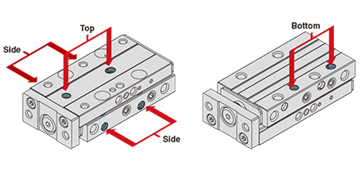

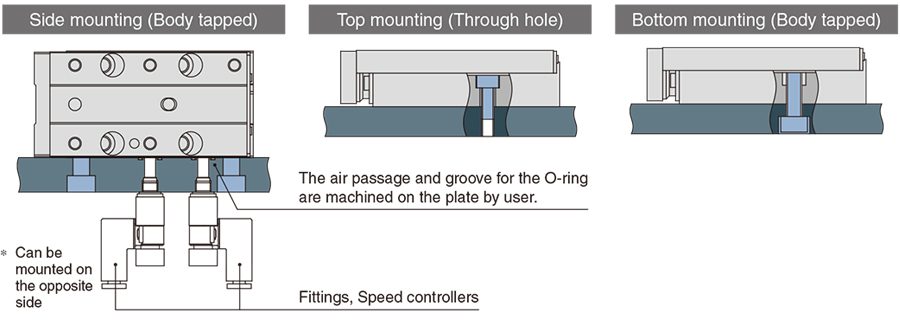

Mounting is possible from 3 directions.

  • Mounting pin holes on 4 surfaces

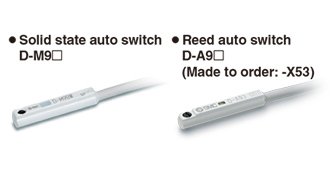

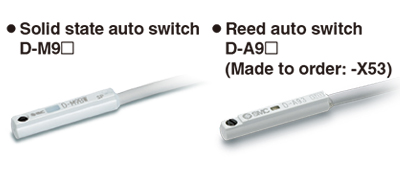

  • Compact auto switches are mountable.

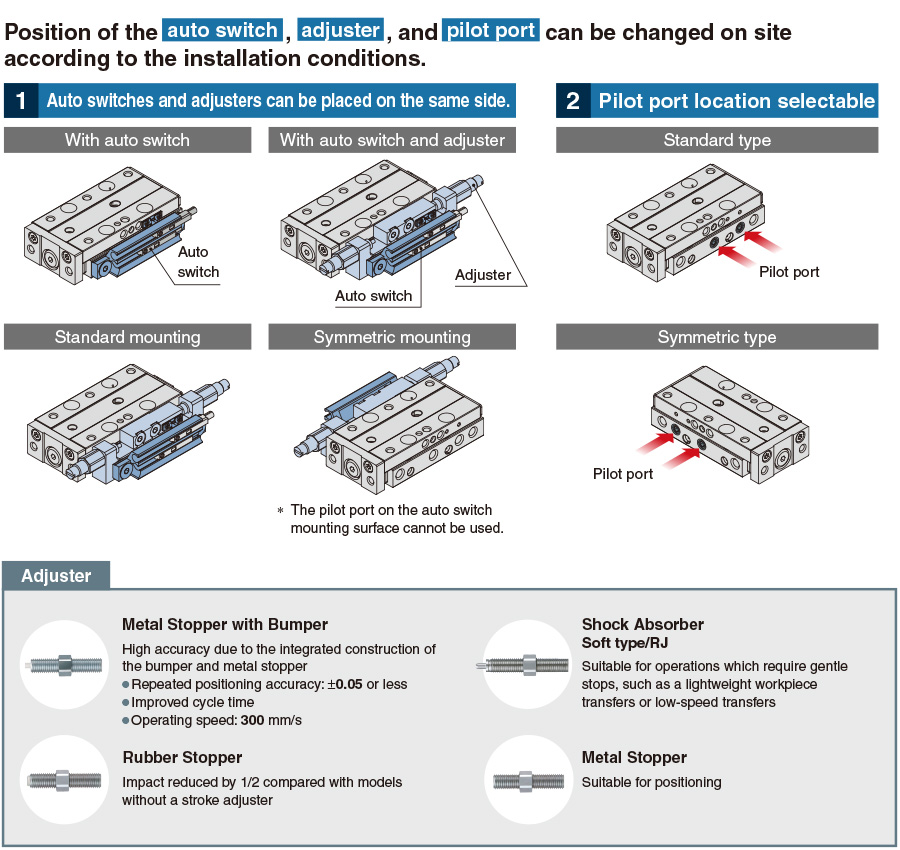

Improved operability

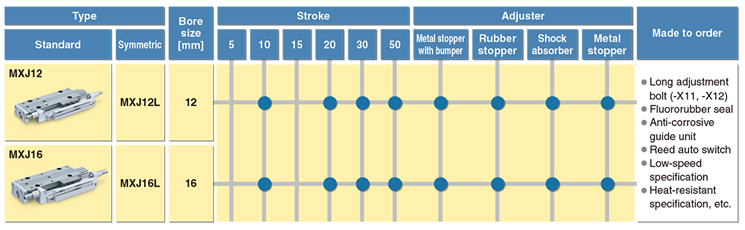

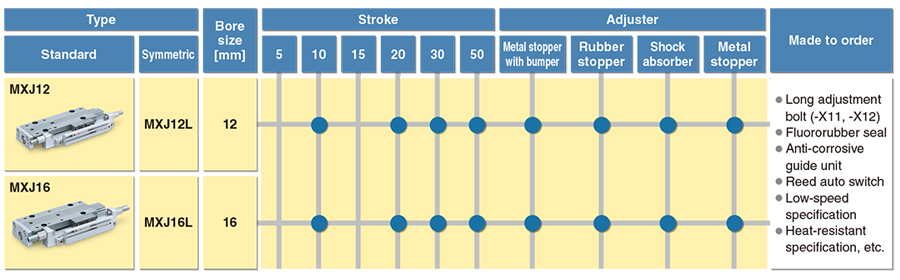

Series Variations
