Air Suction Filters

Vacuum Filter AFJ-D

    ・Prevents vacuum equipment trouble
    ・Nominal filtration rating: 5, 40, 80 μm
    ・Large flow capacity: max. 660 L/min (ANR)

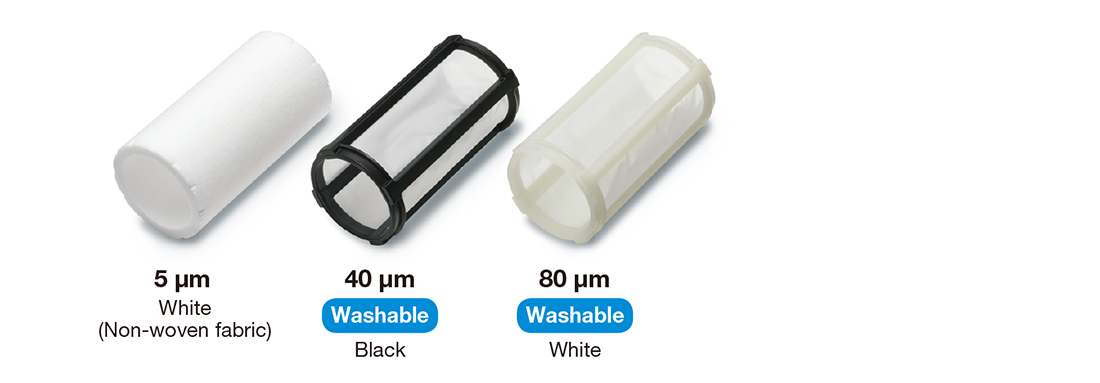

    ・Elements can be reused by washing them.
    ・Water drops can be removed.
    ・The bowl is covered with a transparent bowl guard!
Safety Instructions　Vacuum Equipment/Precautions　Green Procurement (RoHS)
Green Procurement (RoHS)
SeriesPort sizeRecommended flow rate
L/min (ANR)		Nominal filtration rating
AFJ-D1/8，1/4，3/8，1/2180, 380, 6605，40，80

Features

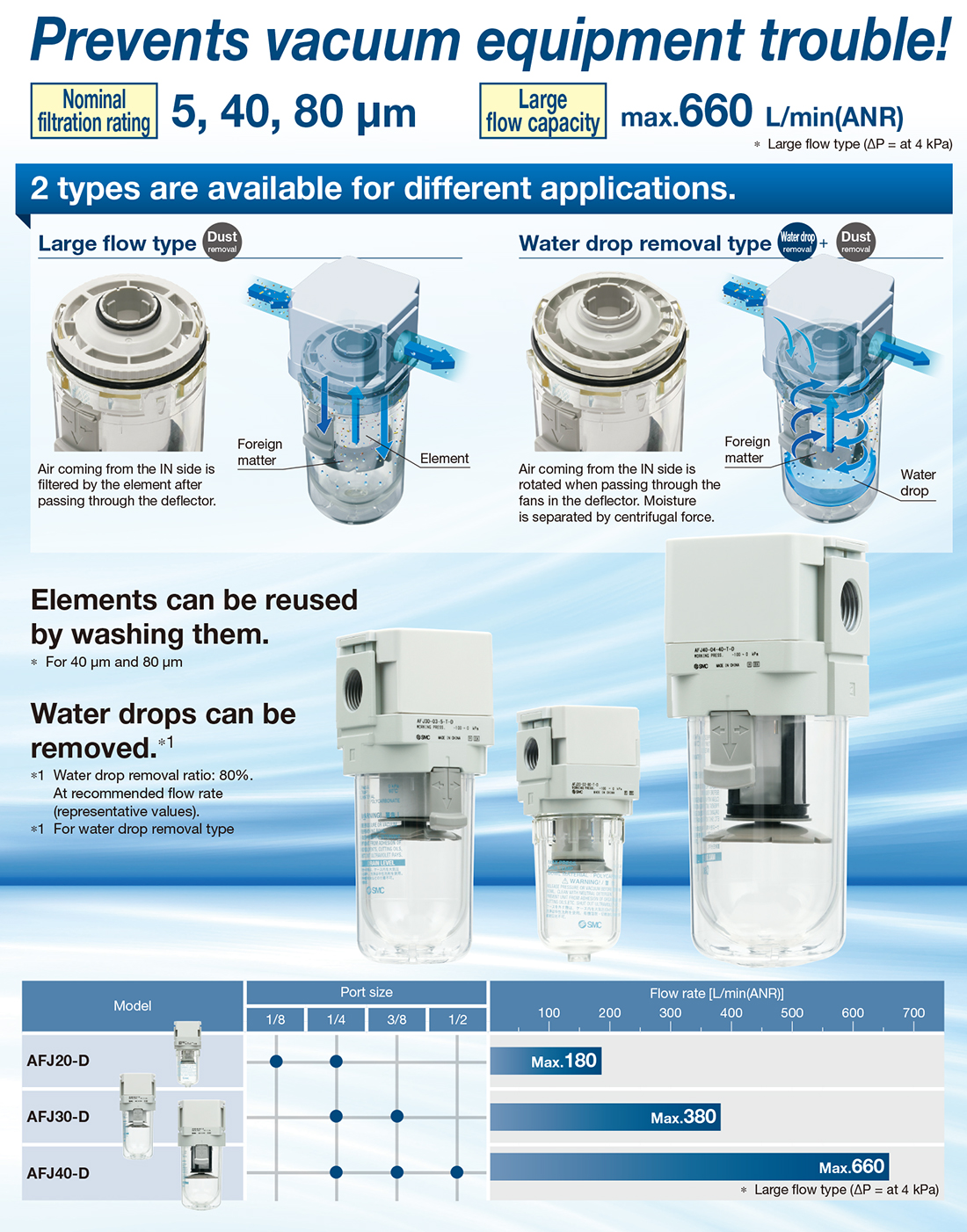

Prevents vacuum equipment trouble!

Selectable filtration rating

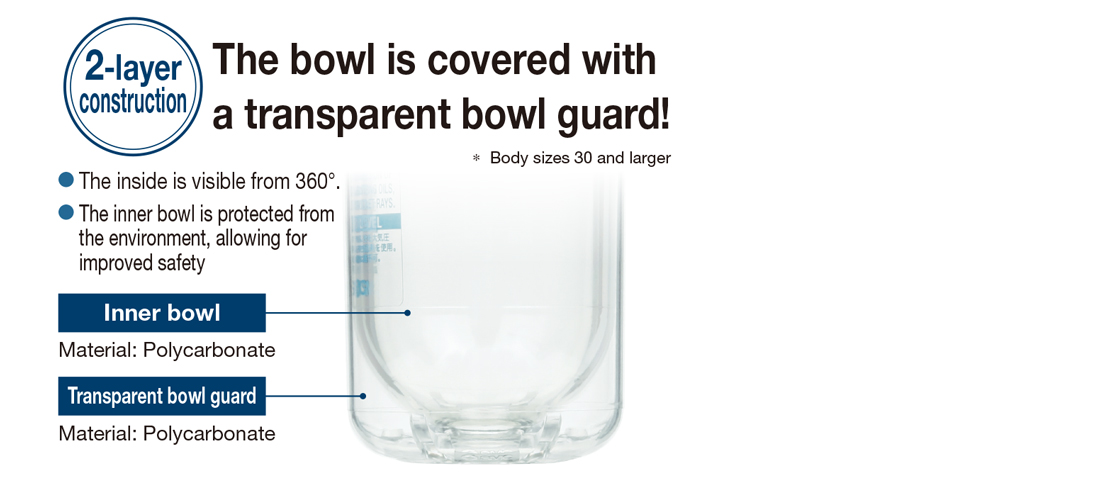

Better visibility & environmental resistance

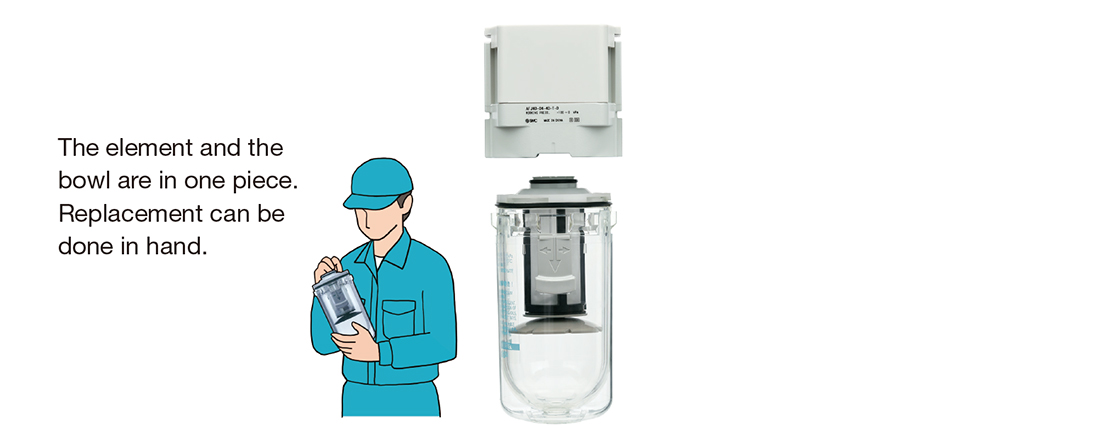

Easy to handle

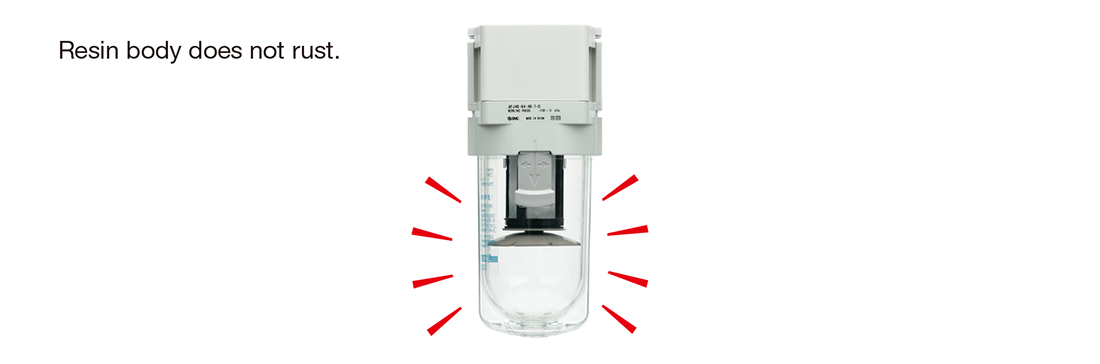

Metal related corrosion does not occur.

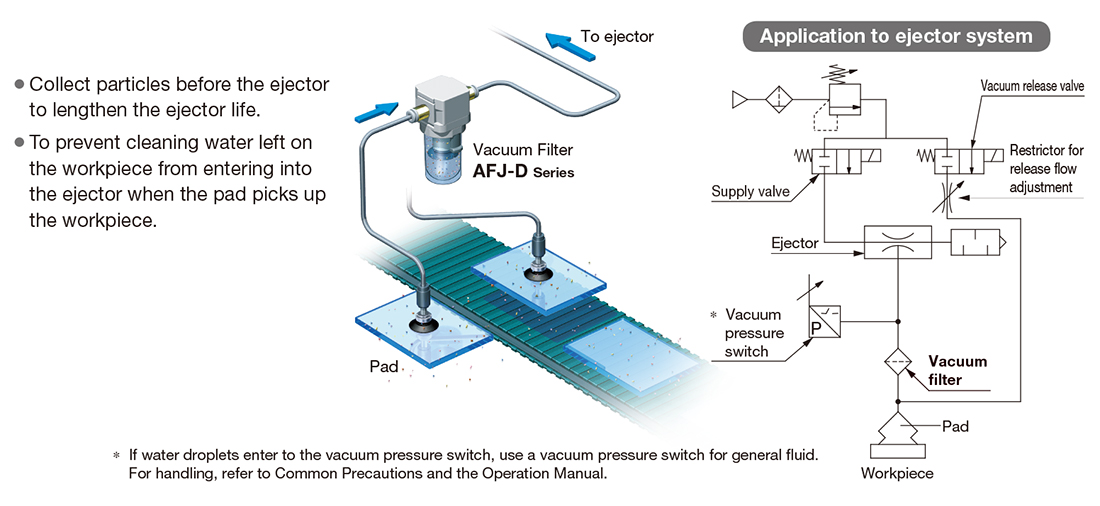

Application Examples
