Static Neutralization Equipment/Ionizers
Nozzle Type Ionizer IZN10E
-

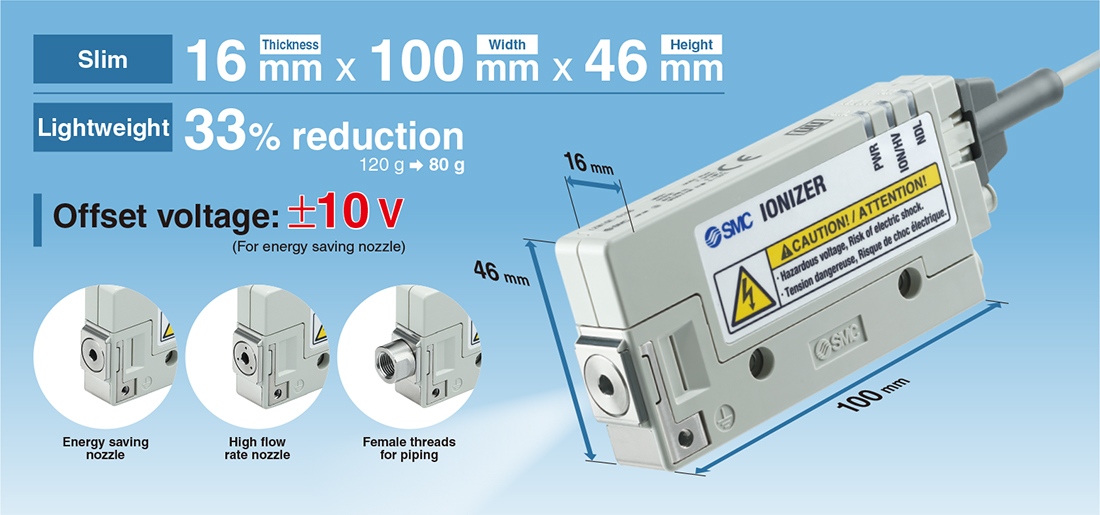

・Slim: 16 mm (Thickness) x 100 mm (Width) x 46 mm (Height)
・Lightweight: 33% reduction (120 g → 80 g)

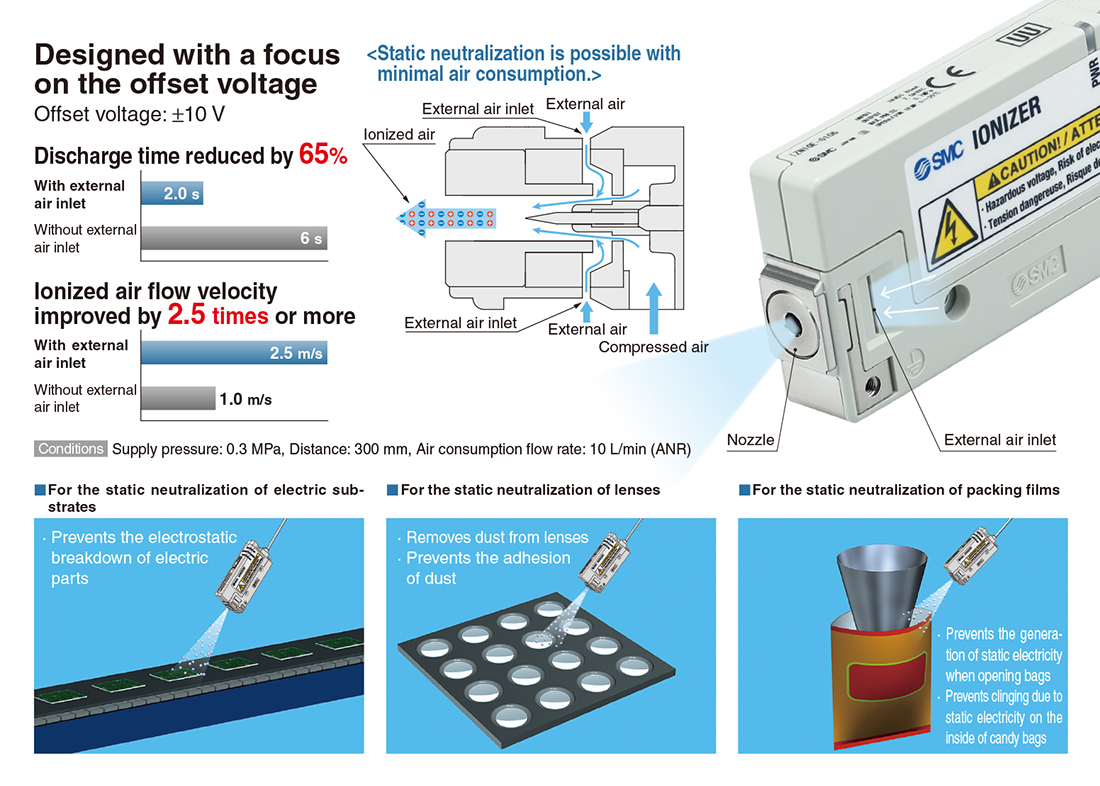

・Offset voltage: ±10 V

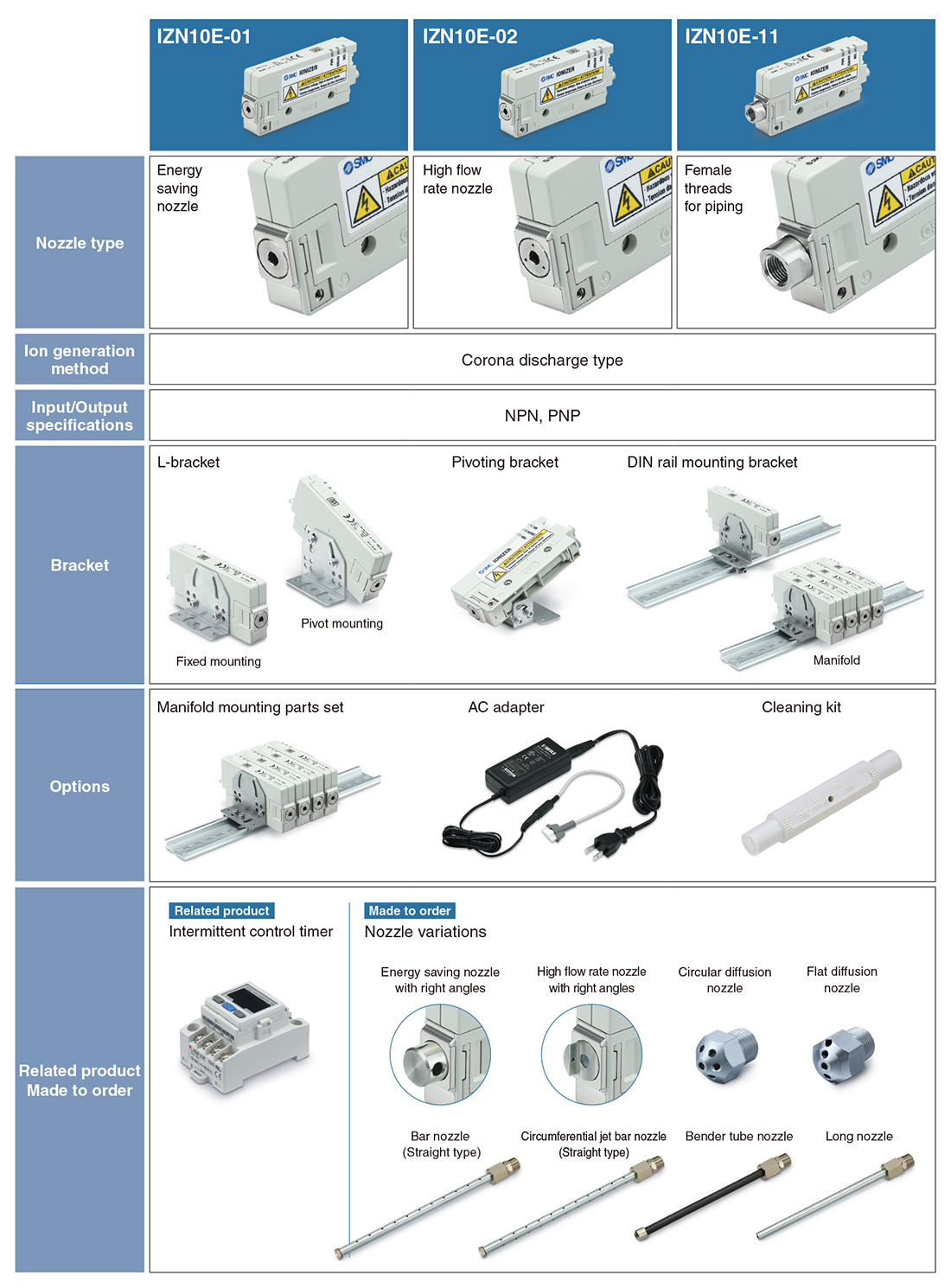

・Nozzle type can be selected according to the application.

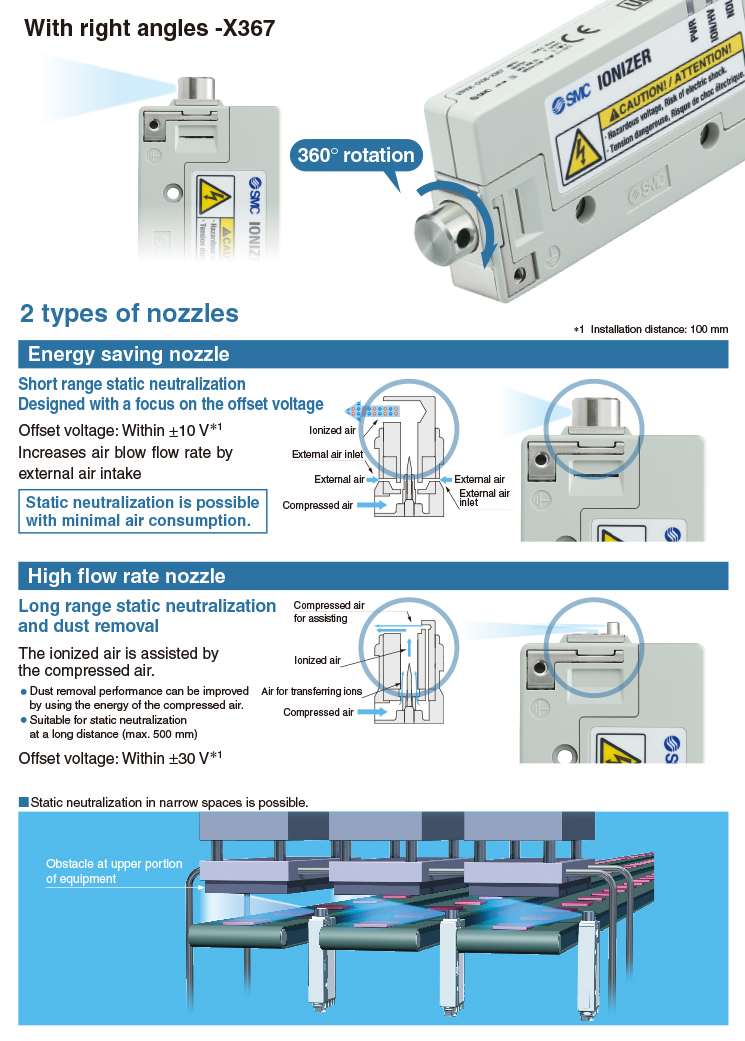

Energy-saving static neutralization nozzle (Short range static neutralization)
High flow rate nozzle (Long range static neutralization)
Safety Instructions Green Procurement (RoHS)
| Series | Ion generation method | Offset voltage (Ion balance) |
|---|---|---|
| IZN10E | Corona discharge type | Energy saving static neutralization nozzle: Within ±10 V High flow rate nozzle: Within ±15 V |
Features
For dust removal and static neutralization by air blow

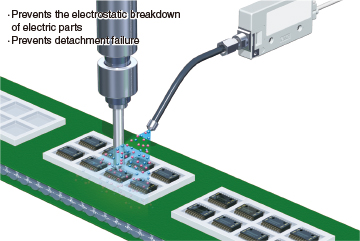

For spot type static neutralization

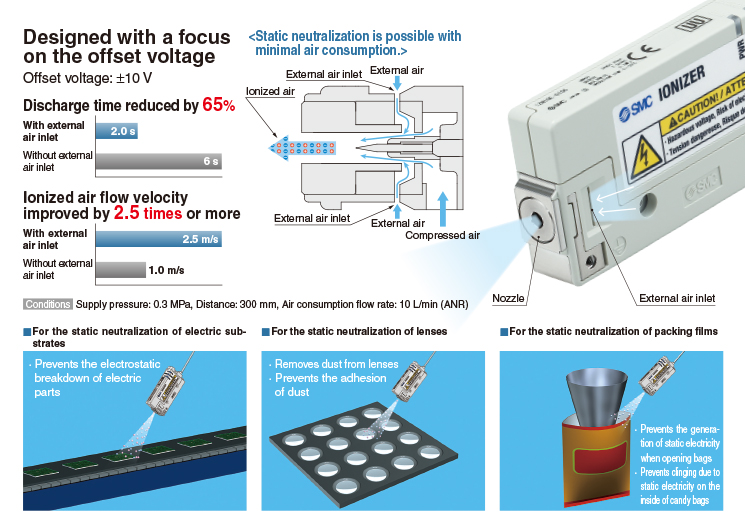

Short range static neutralization: Energy saving nozzle

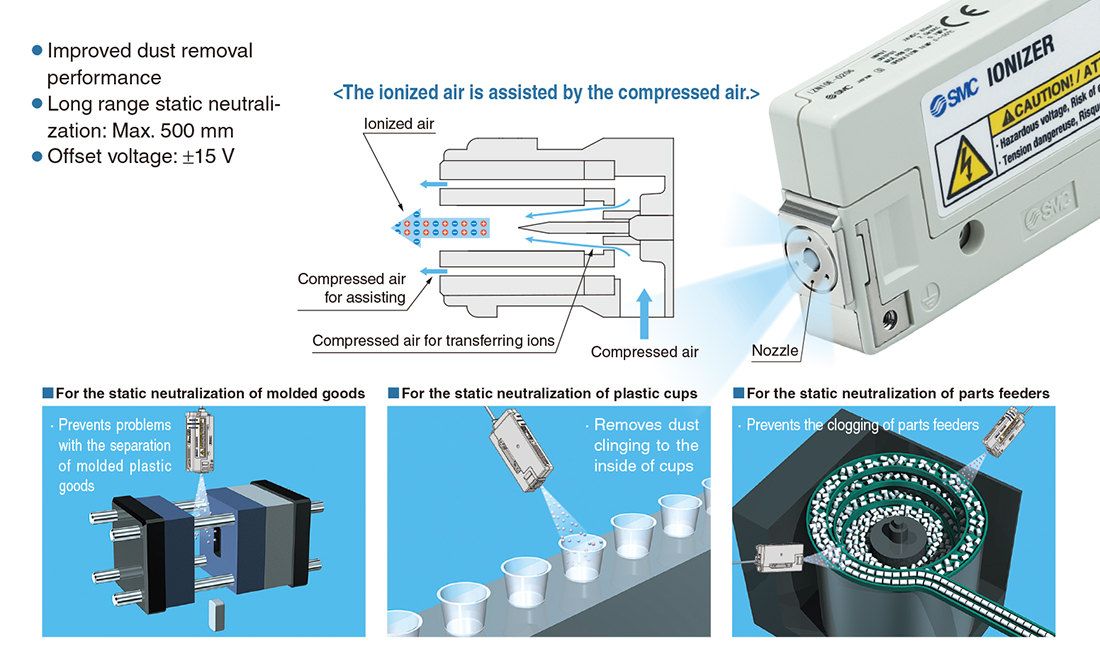

Long range static neutralization: High flow rate nozzle
A high voltage power supply is built in to the product; therefore, an external high voltage power supply or high voltage power supply cable is not required.

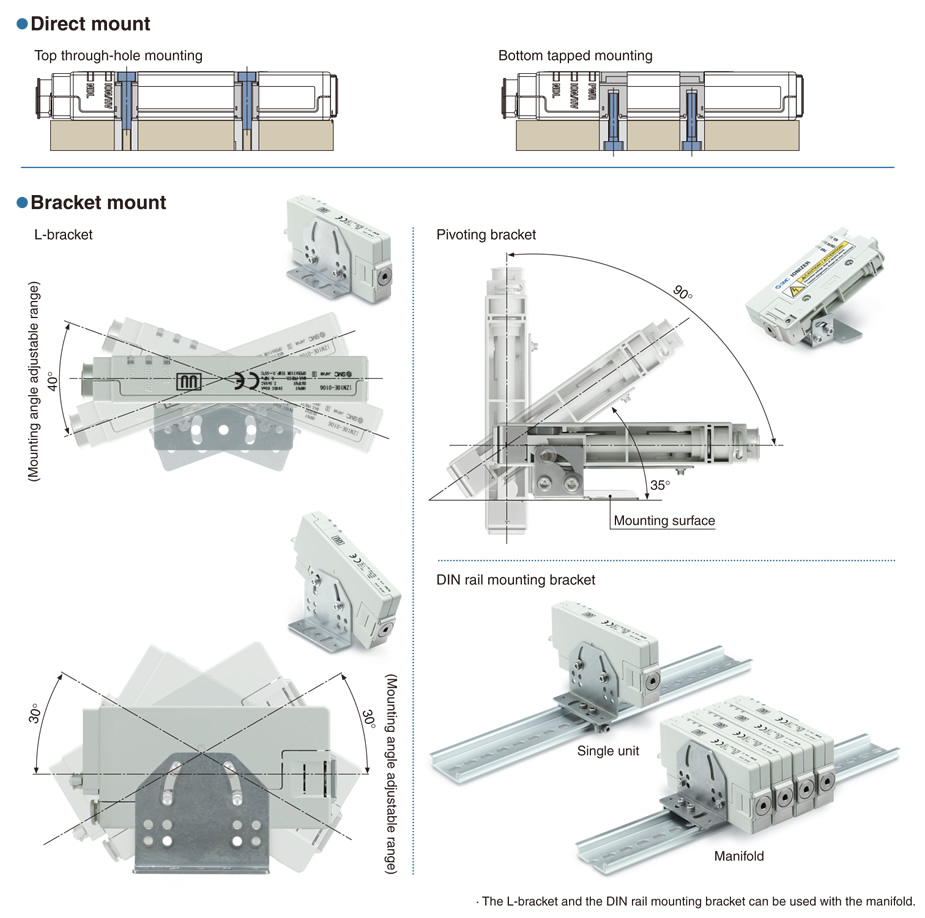

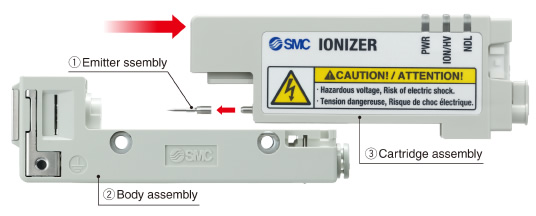

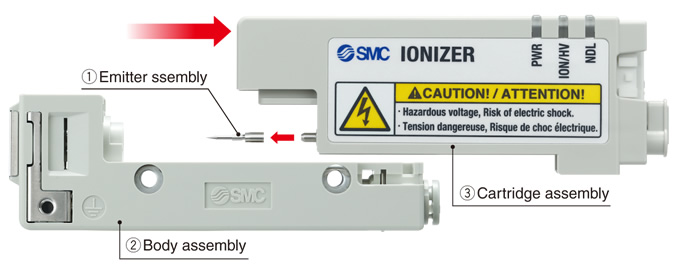

- Can be disassembled into 3 parts Tools are not required for the installation or removal of the assembly.
- It is possible to conduct maintenance on the emitter without removing the body.
- There is no need to readjust the nozzle angle when the ionizer is restarted.

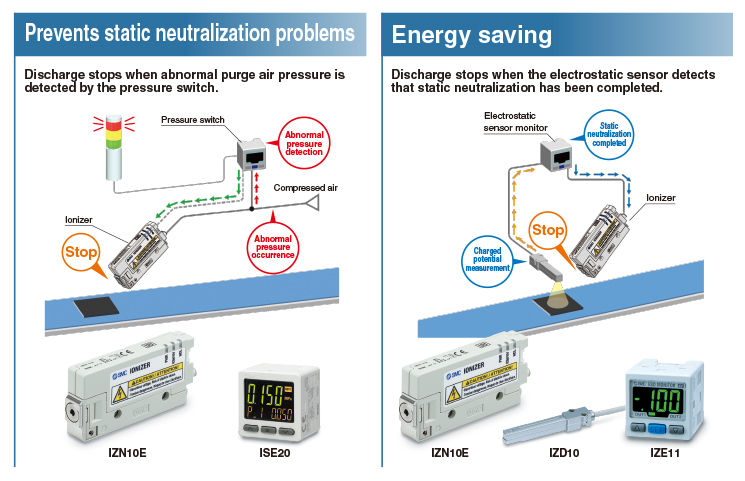

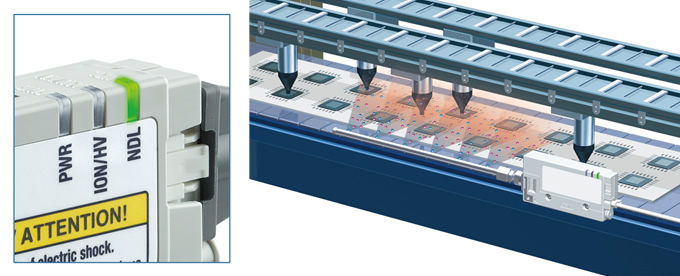

Maintenance warning function
· Monitors emitter contamination and wear continuously
· Notification of abnormalities via LED and output signal
· Detects optimal maintenance time
· Reduced maintenance labor

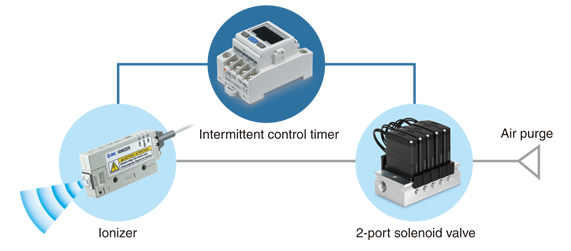

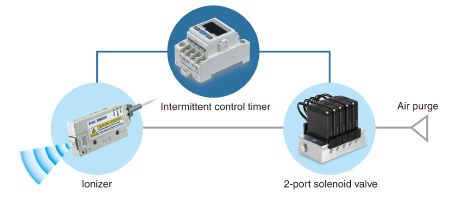

Air saving IZE110-X238
A digital timer that can control the ON/OFF switches of valves, etc.
Intermittent ion discharge reduces air consumption.

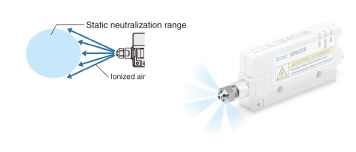

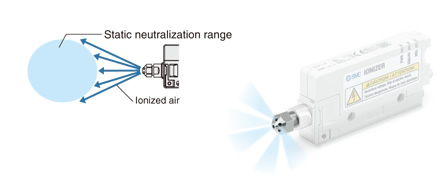

Circular diffusion nozzle

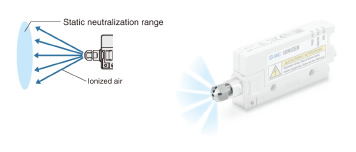

Flat diffusion nozzle

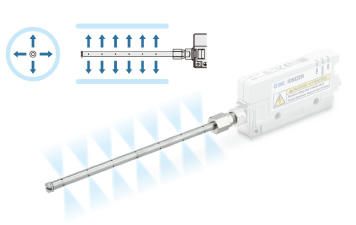

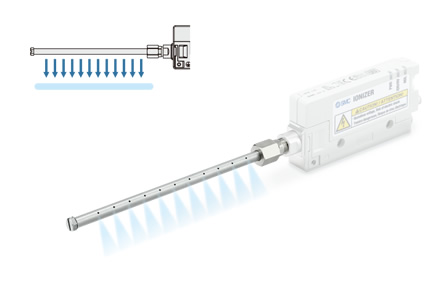

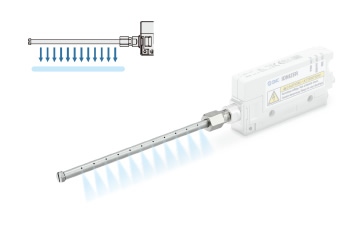

Bar nozzle (straight type)

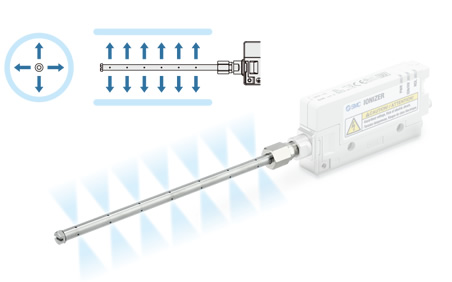

Circumferential jet bar nozzle (straight type)

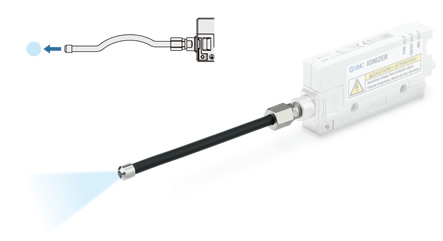

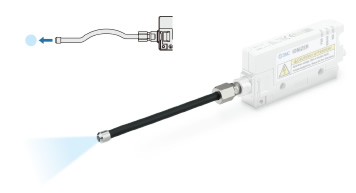

Bender tube nozzle

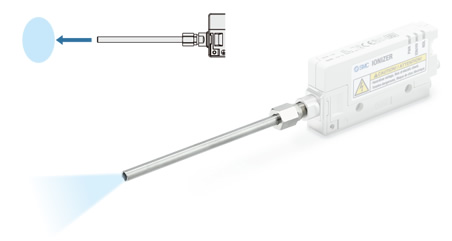

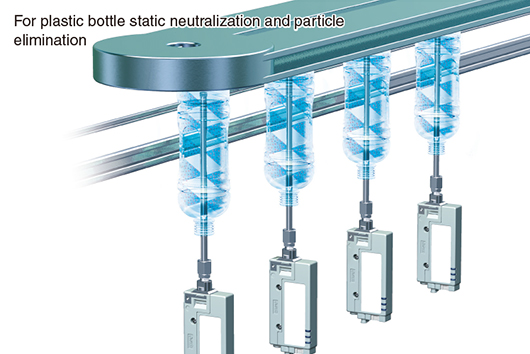

Long nozzle
