Special Pads

Bernoulli Gripper with Coanda Grip ZNC-C

    ・Reduces the impact of air flow on light-weight workpieces and adjacent
    　workpieces
    ・Prevents lateral slide when suctioning the workpiece
    　There is no risk of suctioning of powder matter adhering on the
    　workpiece into the device and pipe, as the workpiece is suctioned while
    　air is blow.
    ・Body material: Stainless steel, Aluminum
    ・With Coanda grip

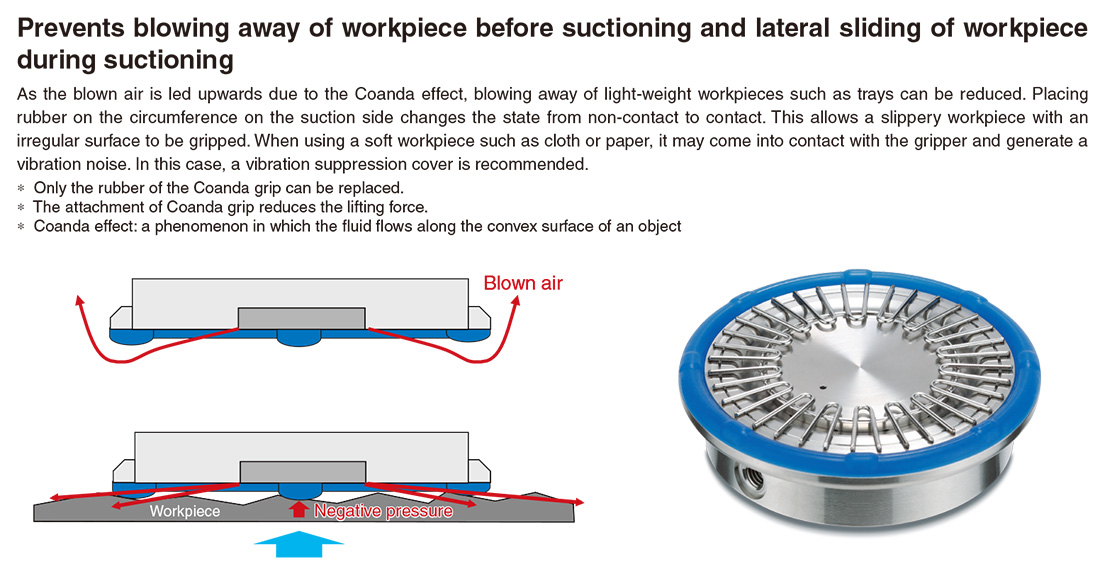

    　Prevents blowing away of workpiece before suctioning and lateral sliding
    　of workpiece during suctioning
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Vacuum Equipment/Precautions　Series Variations/Model Selection
Green Procurement (RoHS)
SeriesMaterialSizeAttachment
ZNC-CAluminum
Stainless steel		ø20, ø30, ø40, ø60, ø80With Coanda grip
With vibration suppression cover

Features

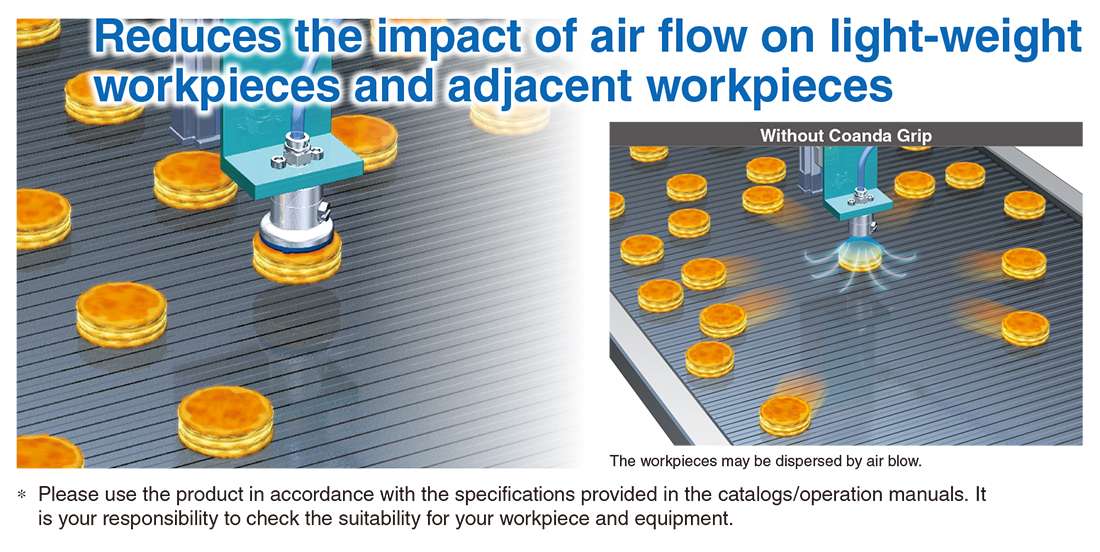

Reduces the impact of air flow on light-weight workpieces and adjacent workpieces

Prevents lateral slide when suctioning the workpiece

There is no risk of suctioning of powder matter adhering on the workpiece into the device and pipe, as the workpiece is suctioned while air is blow.

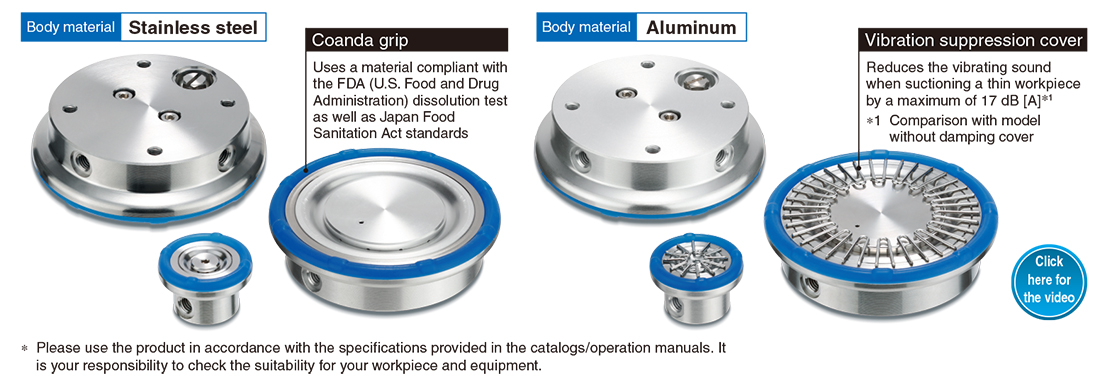

Body material

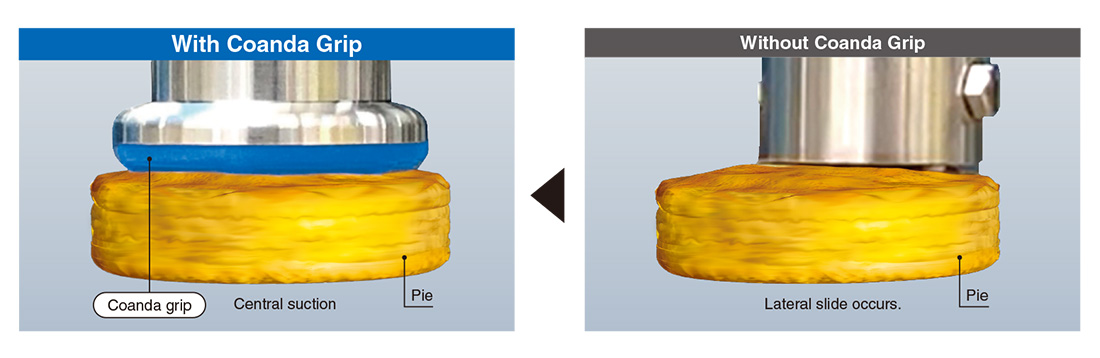

With Coanda Grip

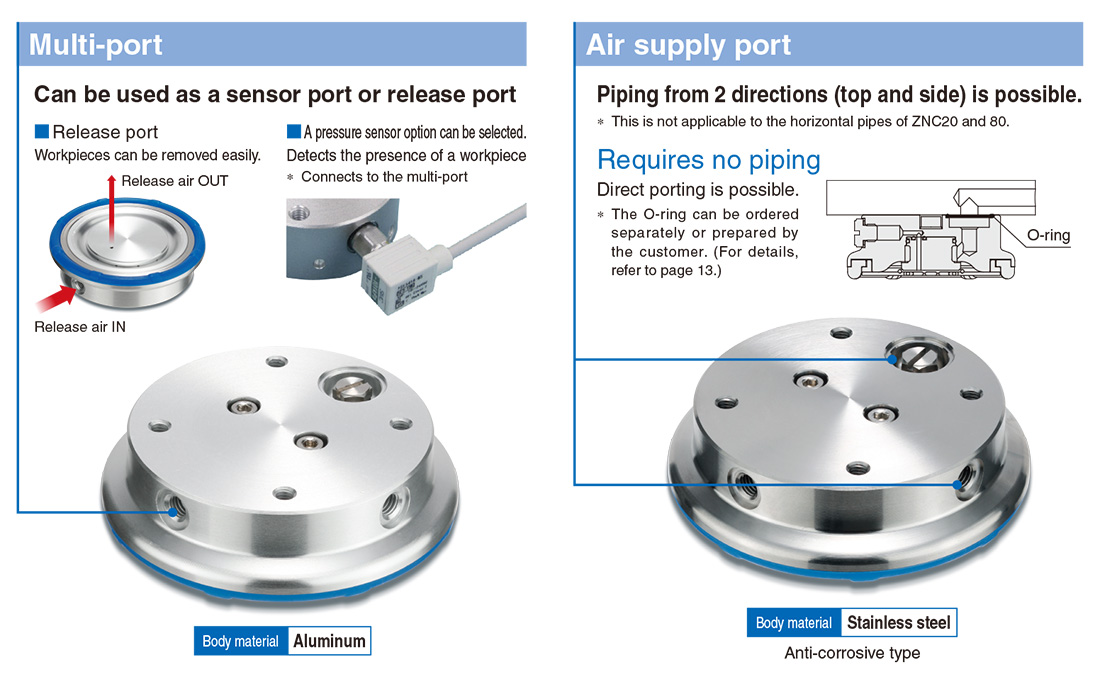

Piping Port

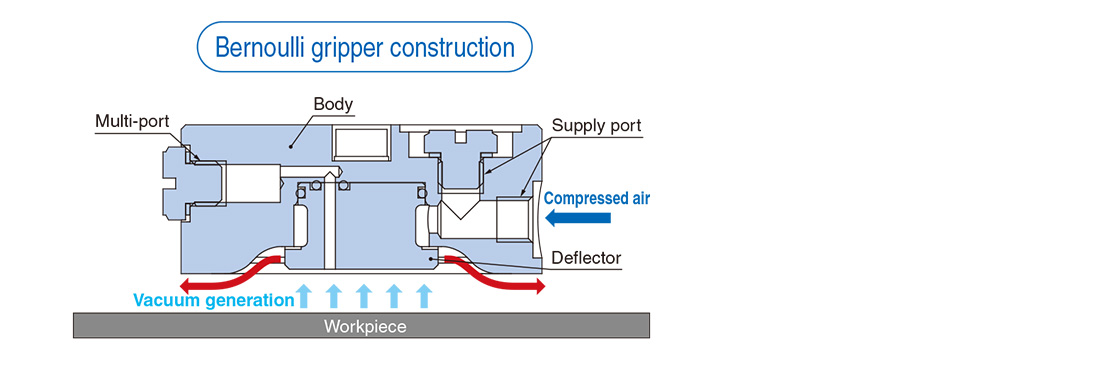

Construction and Working Principle

By supplying clean air, the clogging of foreign matter can be prevented.

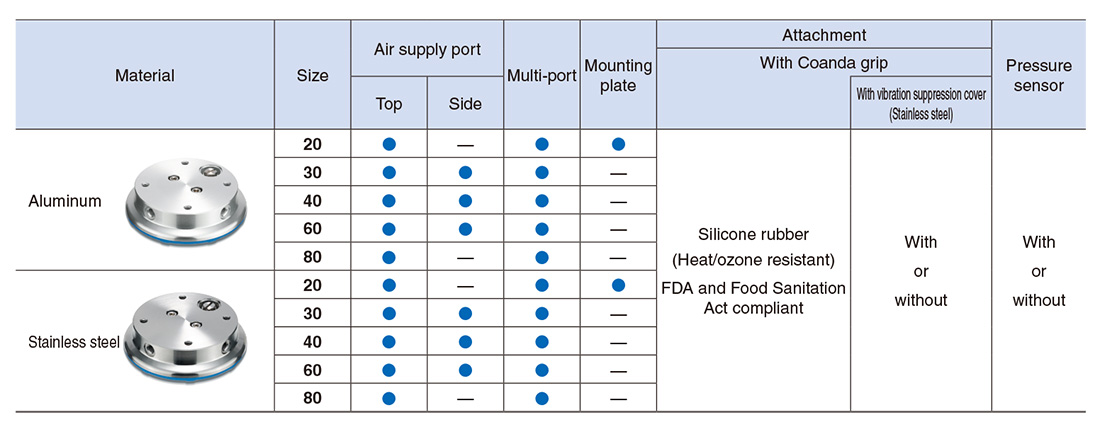

Series Variations
