Fittings for General Purposes

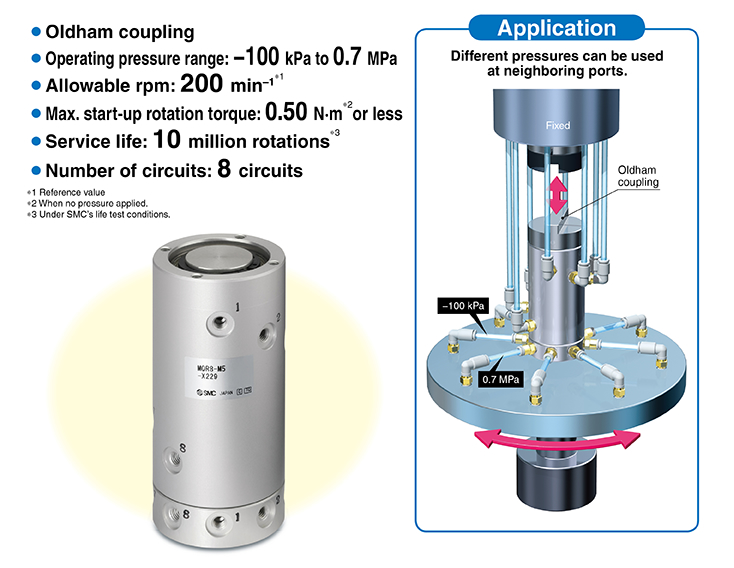

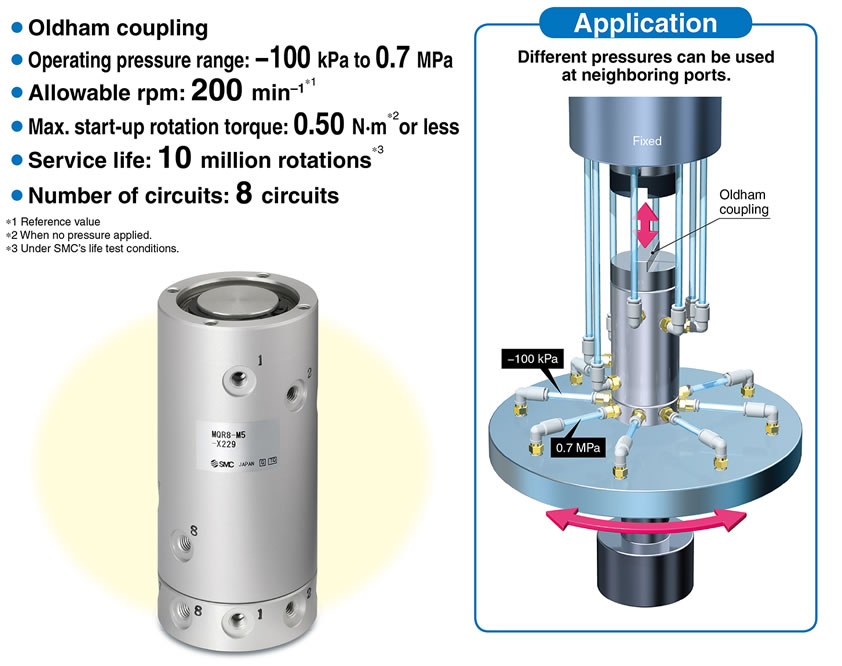

Rubber Seal Rotary Joint MQR-X229

    ・Rubber seal
    ・Oldham coupling
    ・Operating pressure range: −100 kPa to 0.7 MPa
    ・Allowable rpm: 200 min−1 (rpm) *1
    ・Max. start-up rotation torque: 0.50 N・m*2 or less
    ・Service life: 10 million rotations*3
    ・Number of circuits: 8 circuits
    *1 Reference value
    *2 When no pressure is applied
    *3 Under SMC's life test conditions
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesNumber of circuitsPort sizeOperating pressure
MQR-X2298M5×0.8-100 kPa to 0.7 MPa

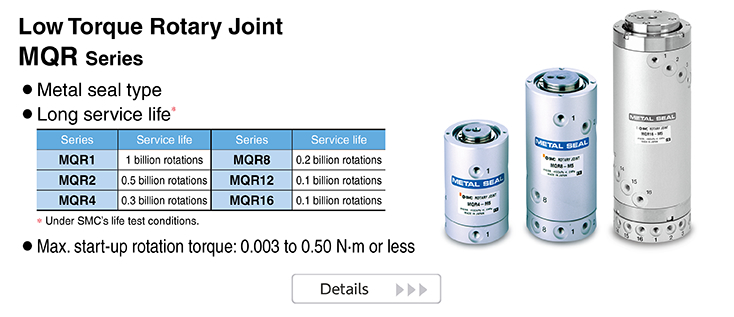

■Related Equipment
