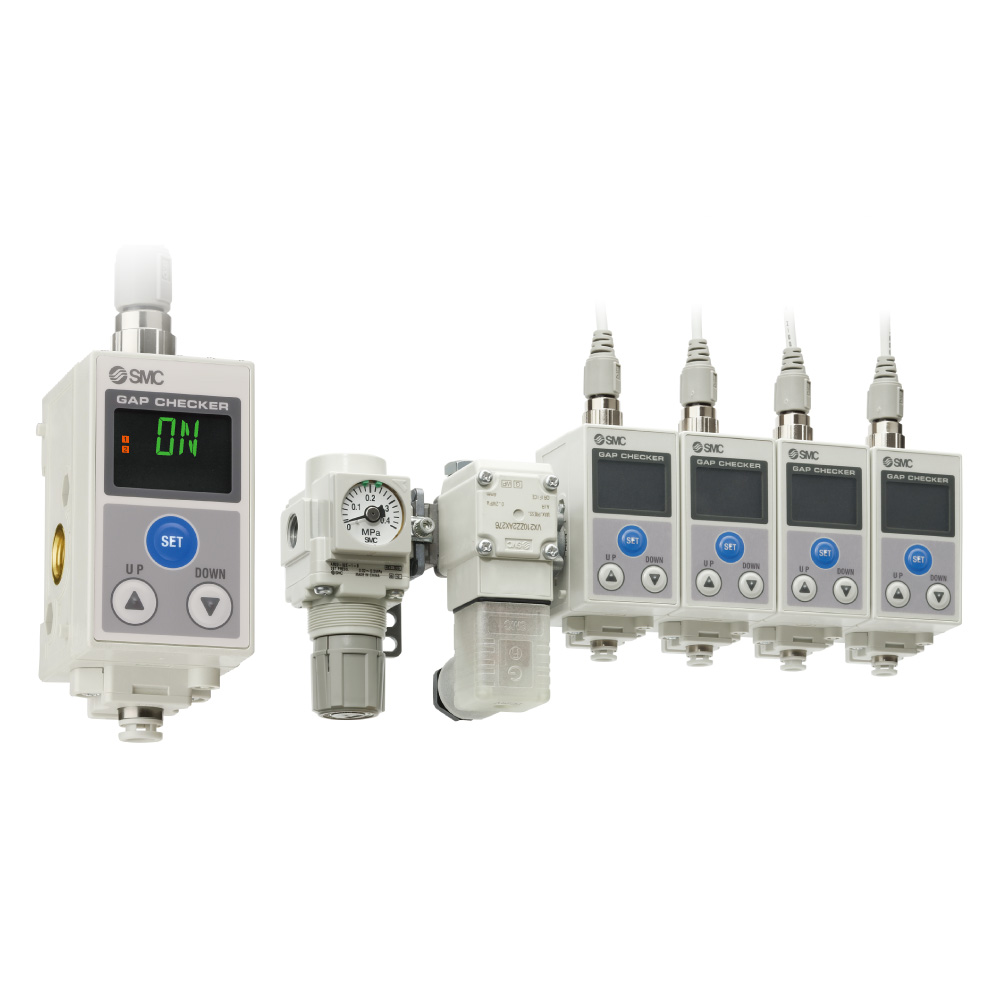

3-Screen Display Digital Gap Checker/IO-Link Compatible ISA3-L

-
・Monitoring the placement condition of the workpiece Indicates failure/abnormality
・Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link
Process data provides Displayed value, Outlet pressure, and Supply pressure value.
・NPN/PNP switch function
・3-screen display (Setting)
・Window comparator type
・Zero cut-off range can be changed.
▶IO-Link Master
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS) IO-Link Master
Series | Rated distance range | Piping specifications: Supply side | Piping specifications: Detection side |
---|---|---|---|
ISA3-F□L | 0.01 to 0.03 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
ISA3-G□L | 0.02 to 0.15 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
ISA3-H□L | 0.05 to 0.30 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
Features
Monitoring the placement condition of the workpiece Indic ate s failure / abnormality

Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link

Process data provides Displayed value , Outlet pressure and Supply pressure value .
Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time

IO-Link
IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.

-
NPN/PNP Switch Function
Both NPN and PNP are available.
-
3-Screen Display (Setting)
-
Window Comparator Type
The gap range is adjustable.
-
Zero cut-off range can be changed.
The lower limit of the display/setting range has been extended.
Sub display improved for ease of use

3-Step Setting (Switch Point Change Mode)

3-Screen Digital Display

Rated Distance Range: 3 types are available.

3 Setting Modes
Select the setting mode that best meets your needs.

2 Outputs Type

Improved Environmental Resistance

Noise reduction, Energy saving, Measures against clogging

Compact & Lightweight

Space saving and man-hour reduction by centralized lead wires

Keylock Function

Manifold

Application Examples
Detection of the table and pallet seating

Workpiece clamp detection

Main Functions
