Industrial Device Communication Equipment: IO-Link Compatible Products

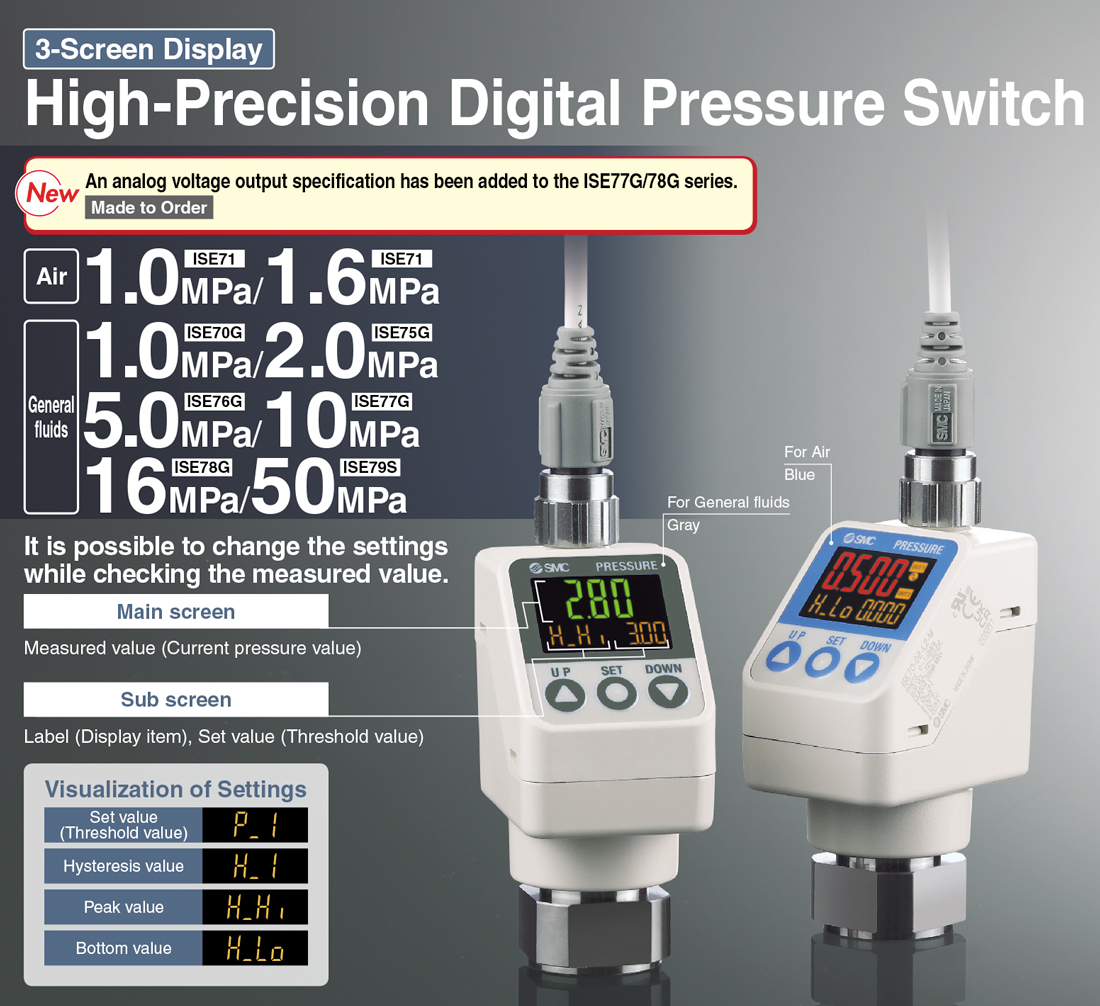

3-Screen Display High-Precision Digital Pressure Switch
ISE7□/7□G/79S
-
・It is possible to change the settings while checking the measured value.
・IO-Link
・Angled display
Good visibility from various mounting positions

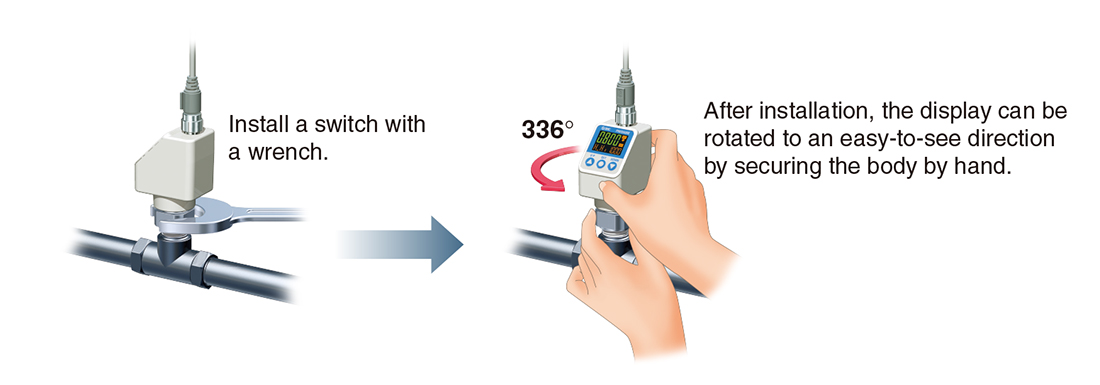

・Rotating display
Display can rotate 336 degrees after installation
・Applicable fluid：Air, Non-corrosive gas, Non-flammable gas (ISE70/71/79S)
：Liquid or gas that will not corrode materials of parts
in contact with fluid (ISE7□G)

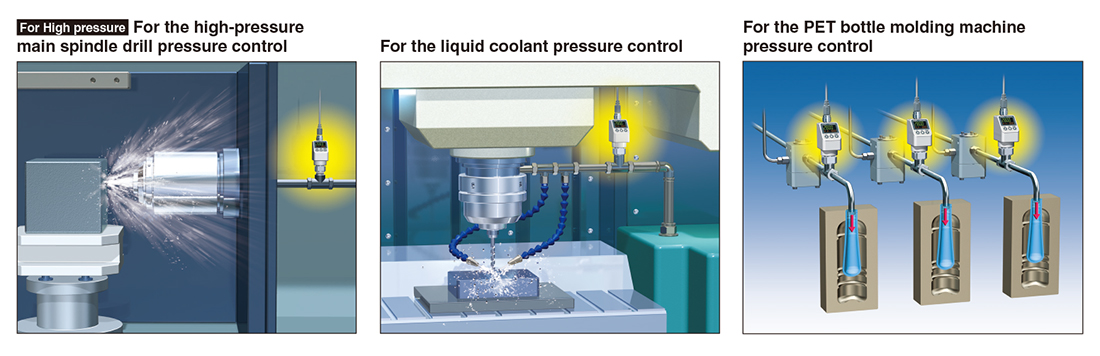

Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)

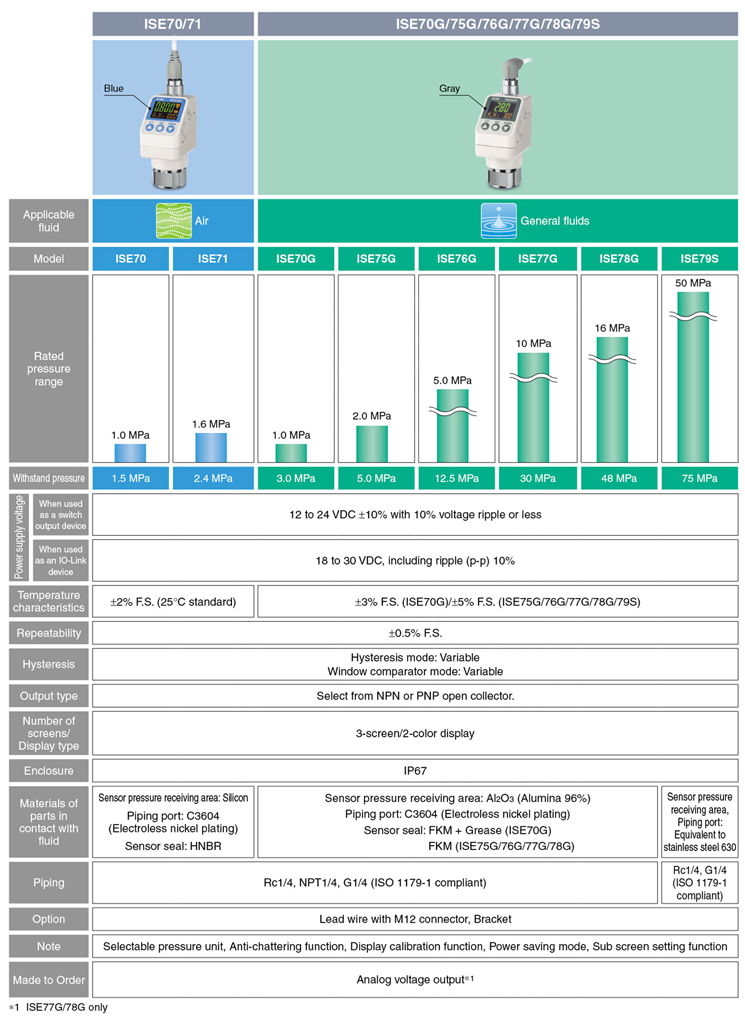

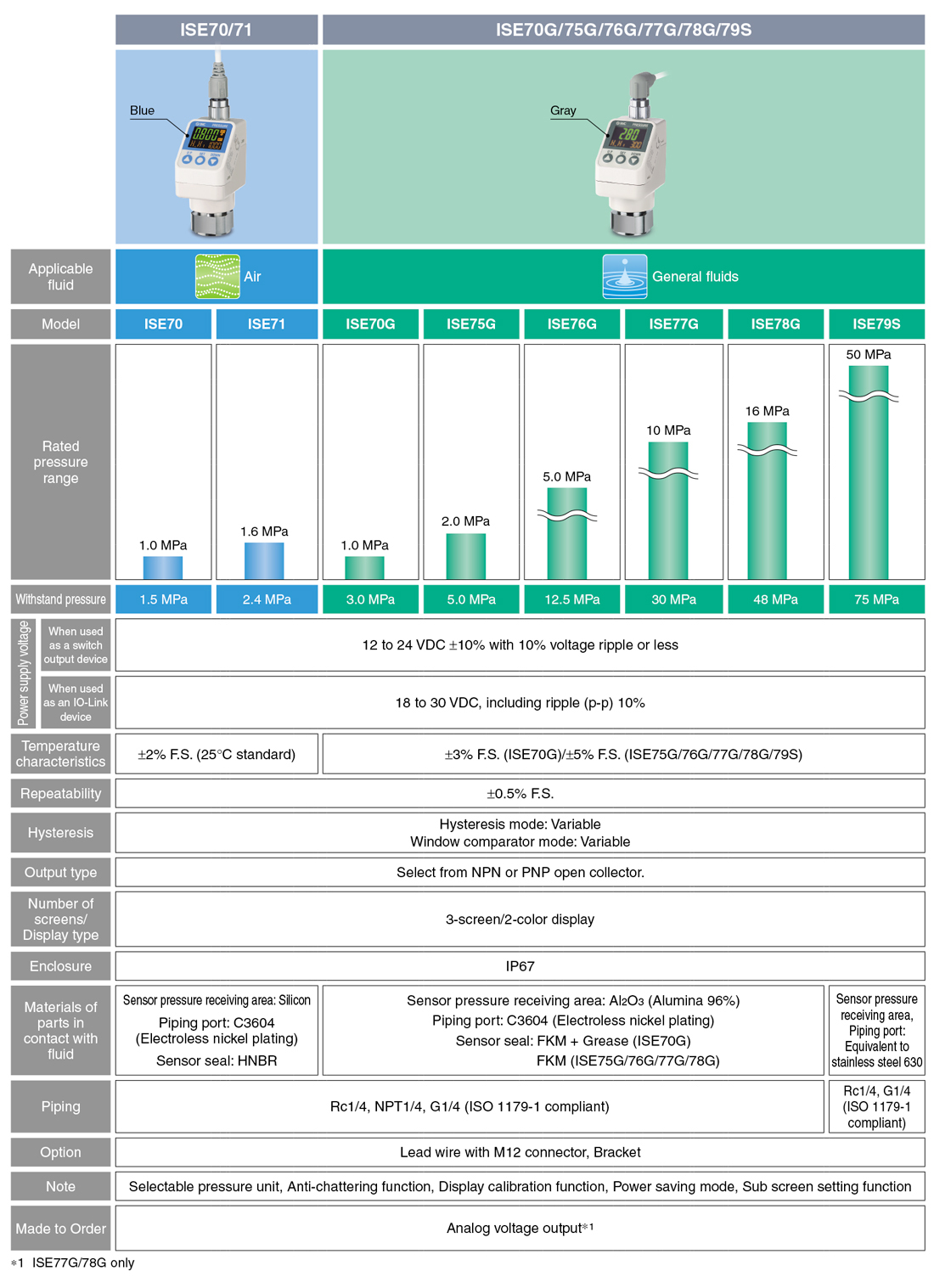

| Series | Type | Rated pressure range |
|---|---|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE71 | Positive pressure (For air) | 0 to 1.6MPa |
| ISE70G | Positive pressure (For general fluids) | 0 to 1MPa |
| ISE75G | Positive pressure (For general fluids) | 0 to 2MPa |
| ISE76G | Positive pressure (For general fluids) | 0 to 5MPa |
| ISE77G | Positive pressure (For general fluids) | 0 to 10MPa |
| ISE78G | Positive pressure (For general fluids) | 0 to 16MPa |
| ISE79S | Positive pressure (For general fluids) | 0 to 50MPa |
Features

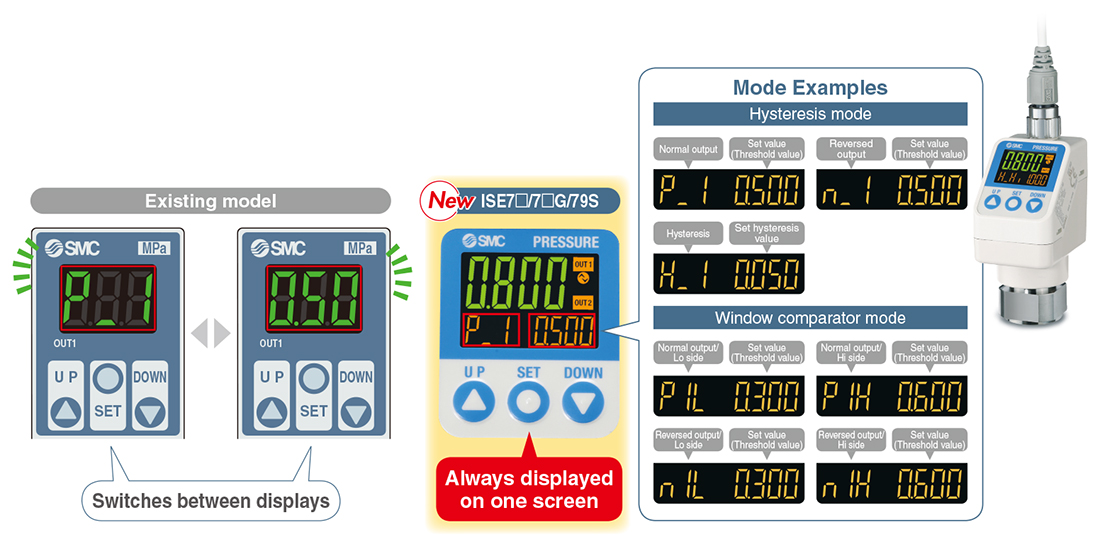

The sub screen (label) shows the item to be set.

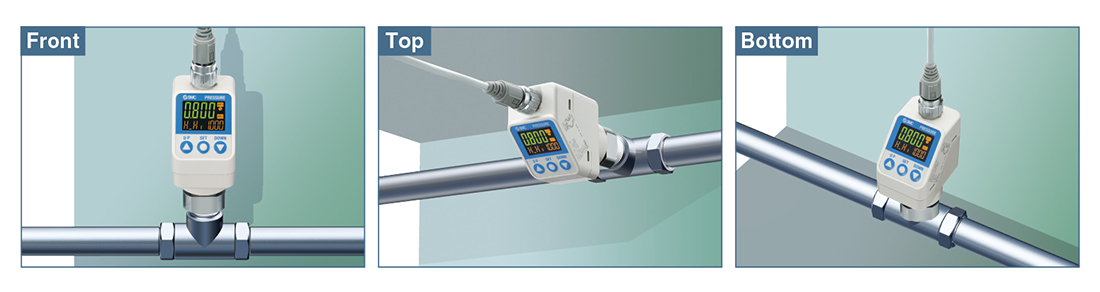

Good visibility from various mounting positions

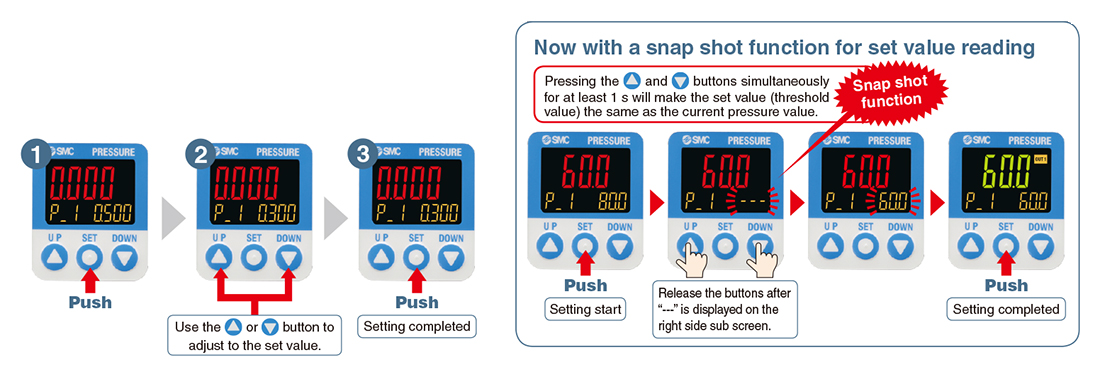

When the SET button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set. When the SET button is pressed and the hysteresis value (H_1) is being displayed, the hysteresis value can be set.

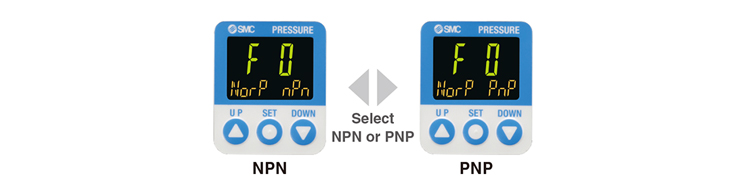

Both NPN and PNP are available. The number of stock items can be reduced.

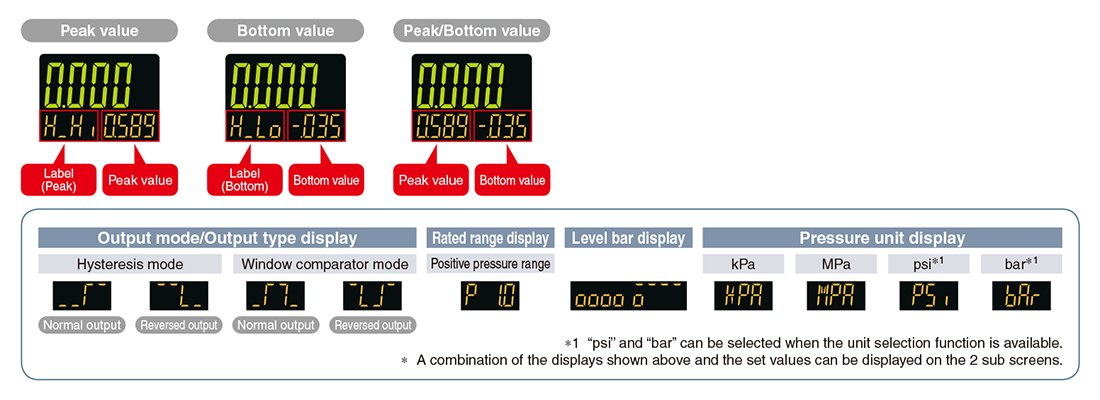

The peak value, bottom value, or both values can be displayed on one screen!
* Peak and bottom values are maintained even if the power supply is cut.

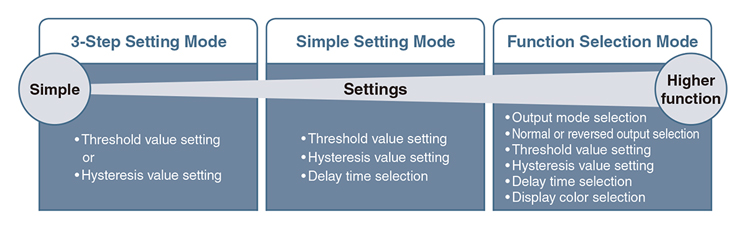

Select the setting mode that best meets your needs.

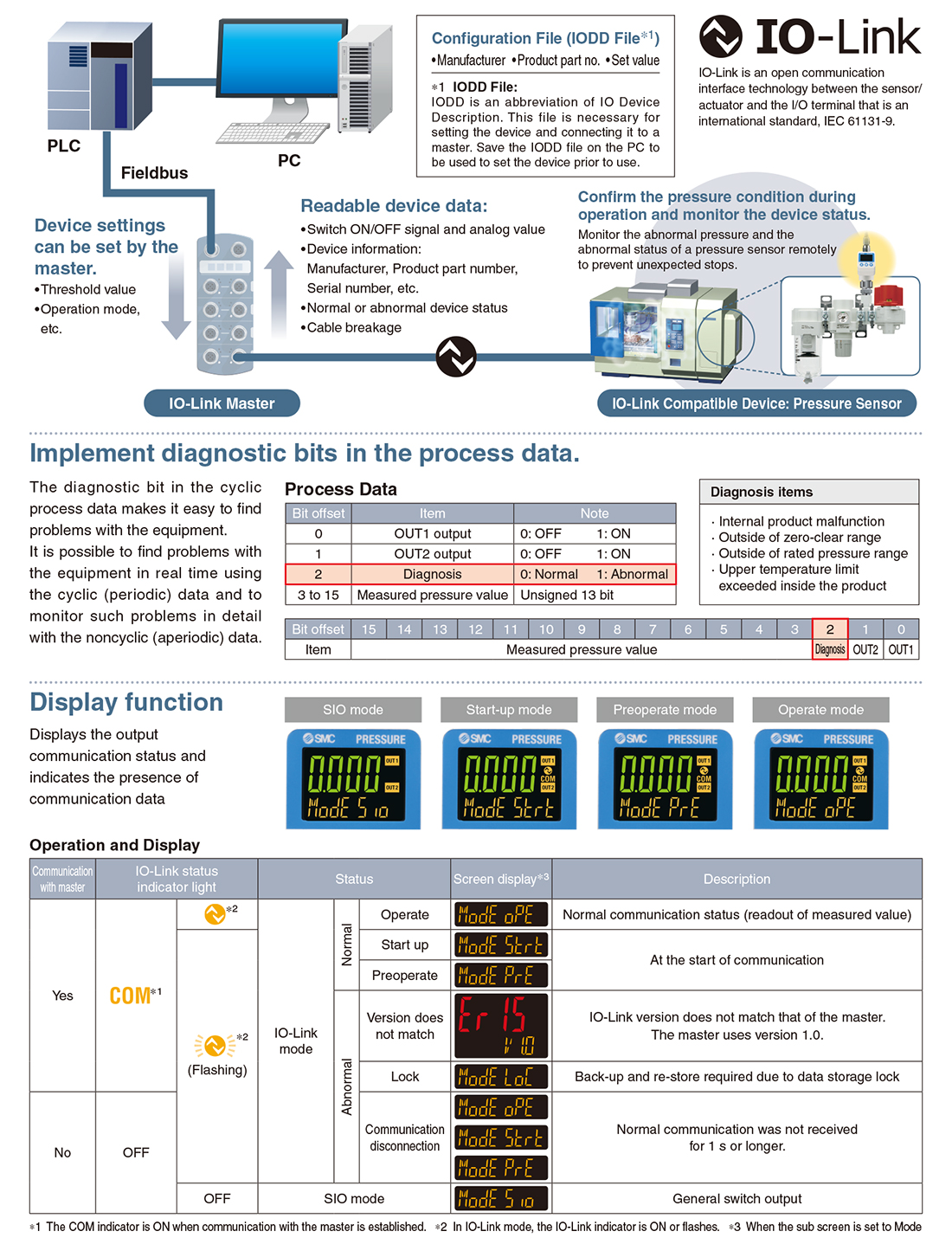

Visualization of operation and equipment status/Remote monitoring and control by communication
