Speed Controllers for Low Speed Control

Speed Controller with Compact Indicator AS-FSMA/FSCA

    ・Improvement of resolution has made it possible to make fine
    　adjustment.

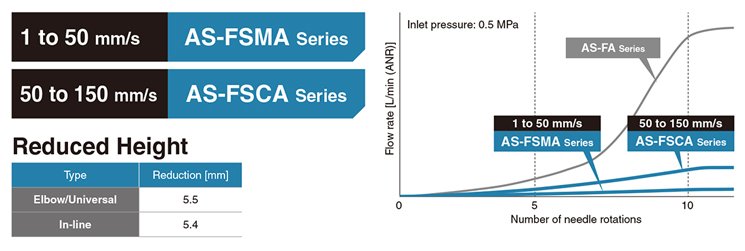

    　1 to 50 mm/s: AS-FSMA series
    　50 to 150 mm/s: AS-FSCA series

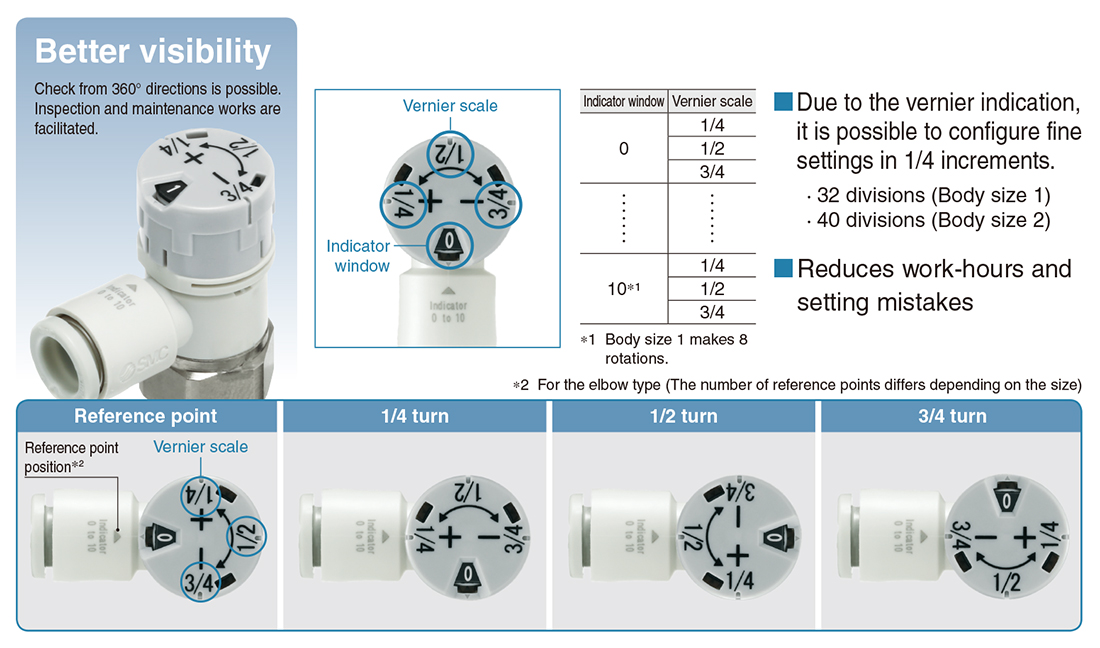

    ・Flow rate can be controlled numerically with the indicator window.
    　Due to the vernier indication, it is possible to configure fine settings in 1/4
    　increments.
    　Reduces work-hours and setting mistakes
    ・Better visibility
    　Check from 360° directions is possible.
    　Inspection and maintenance works are facilitated.
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)

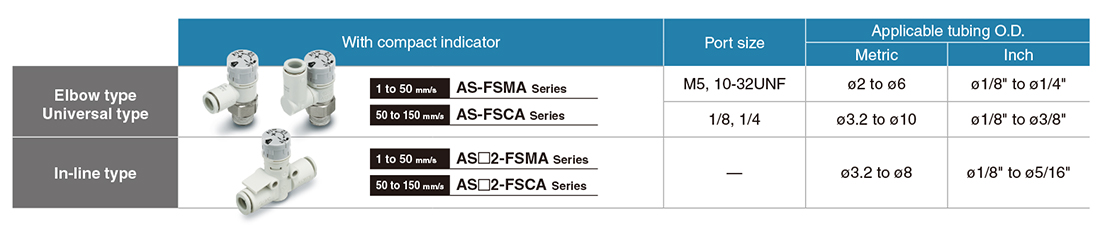

TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Speed controller with indicator
Elbow type, Universal type		AS-FSMA
AS-FSCA		M5×0.8
10-32UNF
R,NPT,G
1/8,1/4		φ2 to φ10φ1/8'' to φ3/8''
Speed controller with indicator
In-line type		AS□2-FSMA
AS□2-FSCA		-φ3.2 to φ8φ1/8'' to φ5/16''

Features

Improvement of resolution has made it possible to make fine adjustment.

Flow rate can be controlled numerically with the indicator window.

Series Variations
