Speed Controllers for General Purposes

Elbow Type/Universal Type/Push-lock Type AS

    ・Easy to lock push-lock type
    ・Larger knob

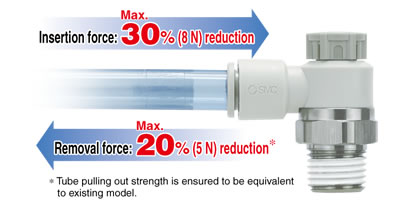

    ・Improved tube insertion/removal
     Insertion force: Max. 30% (8 N) reduction
     Removal force: Max. 20% (5 N) reduction*
     * Tube removal strength is ensured to be equivalent to the previous model.
    ・Electroless nickel plated type is standard.
    ・360° swivel piping is possible. (Universal type)
    ・Available with a restrictor (Made to order: -X214, -X21)
    ・Large flow type (-X778)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesPort size
on the
cylinder side
Applicable tubing O.D.
Metric size
Applicable tubing O.D.
Inch size
Elbow typeAS12□1F to 42□1FM5 x 0.8
R, NPT, G 1/8 to 1/2
φ2 to φ16φ1/8'' to φ1/2''
Universal typeAS13□1F to 43□1FM5 x 0.8
R, NPT, G 1/8 to 1/2
φ3.2 to φ12φ1/8'' to φ1/2''


■Reduces labor time!

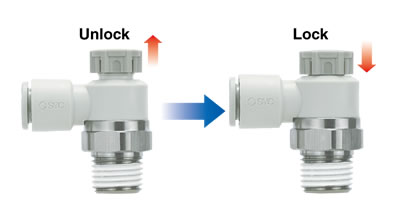

Push-lock type Easy to lock

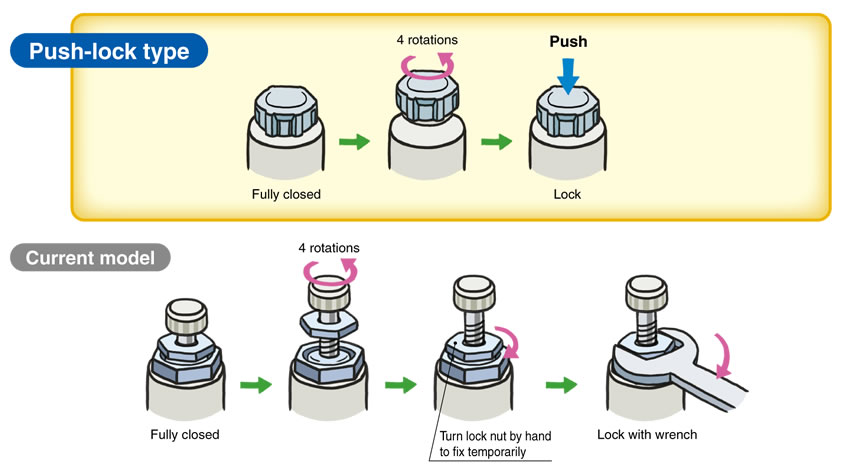

■Easy tool-less one push-lock

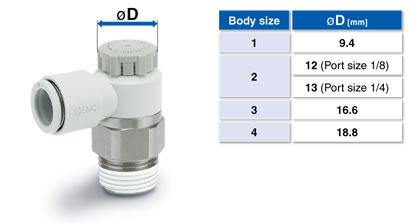

■Larger handle

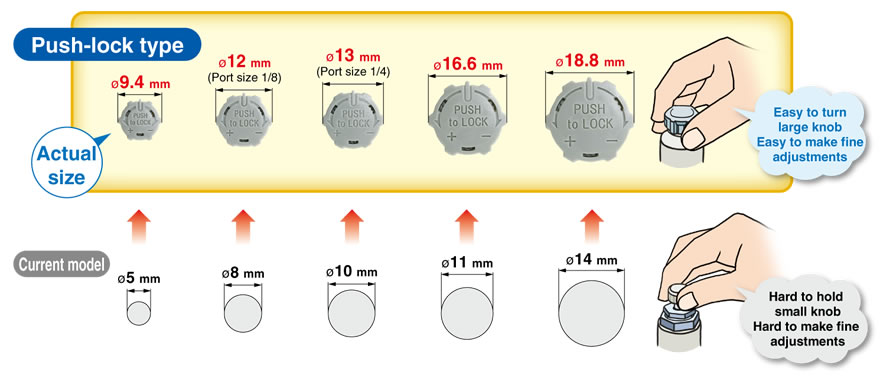

■Easy to turn large knob

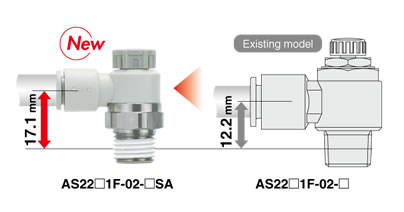

■Improved tube insertion/removal

More space beneath the tube.
Easier installation/removal of the tube.

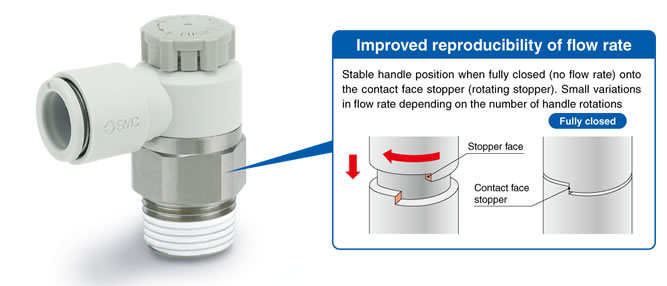

■Flow rate reproducibility

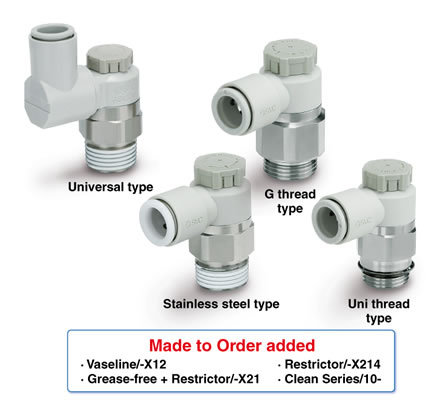

■New type added!
■Easy identification of product type

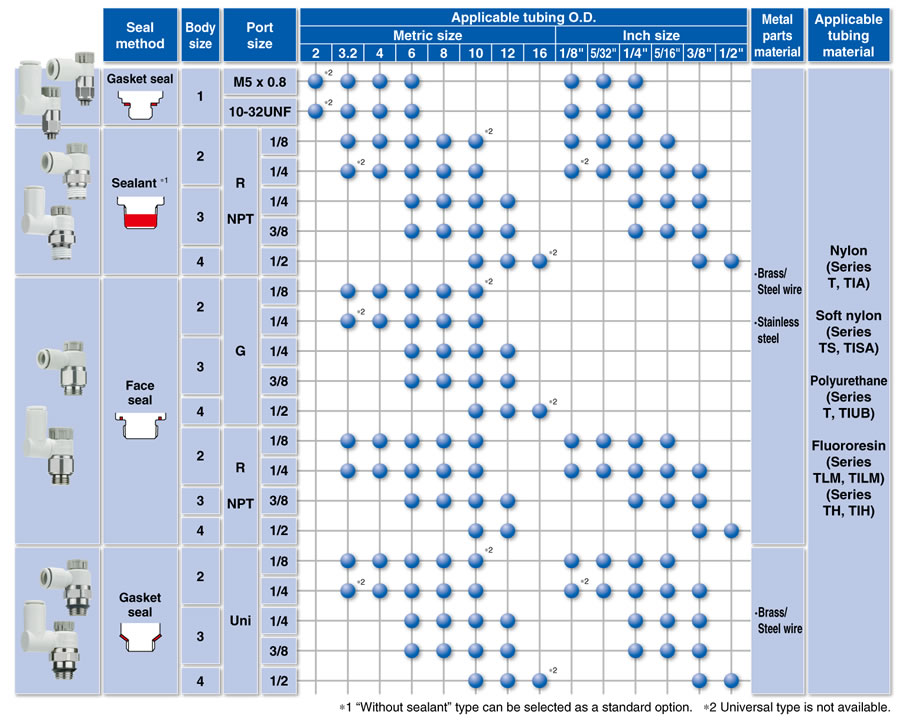

■Series Variations
■Electroless nickel plating type is standardized.
■Stainless steel type is standardized.
■G thread (face seal) is standardized.
