Rotary Clamp Cylinder MK2T-XC89/XC91

Spatter Resistant Cylinders for Arc Welding

Type	Series	Action	Bore size（mm）
Double Guide Type	MK2T	Double acting	32, 40, 50, 63

Spatter Resistant Cylinders for Arc Welding

XC88/XC89

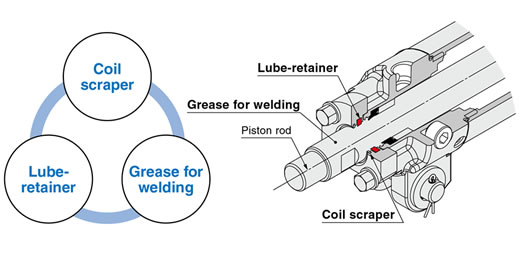

■Drastically reduces spatter adhesion by the use of three roles in one unit.

Achieves long service life by the use of the three roles of the coil scraper, Lube retainer and grease for welding in one unit for a cylinder.

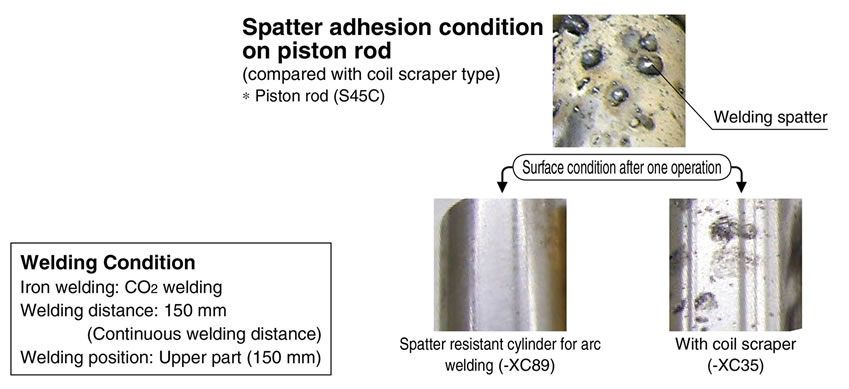

Reduces spatter adhesion.

■Improved cylinder durability

Spatter does not easily adhere to the piston rod of the spatter resistant cylinders for arc welding, which improves durability.

■Reduces cylinder maintenance labor.

Improved durability reduces the maintenance frequency, number of replacements and man hours.

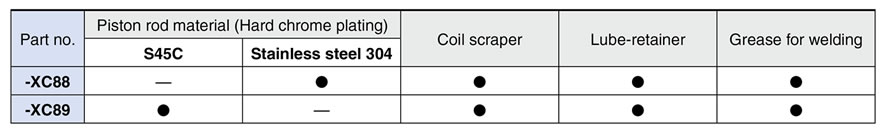

■Piston rod materials can be selected for the welding conditions and environment.

XC91

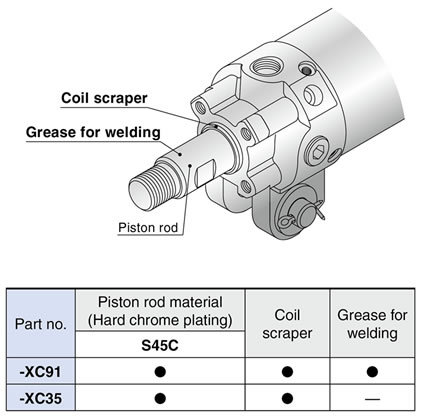

■Improved spatter resistance with coil scraper and welding grease

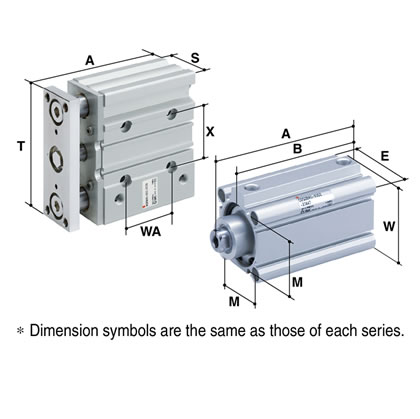

■External and mounting dimensions are compatible with coil scraper type (-XC35).

■Reduces cylinder maintenance labor.

Improved durability reduces the maintenance frequency, number of replacements and man hours.

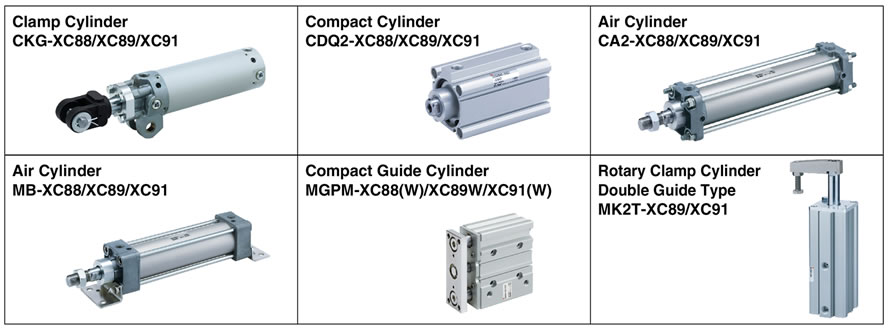

■Applicable Cylinders
