Special Pads

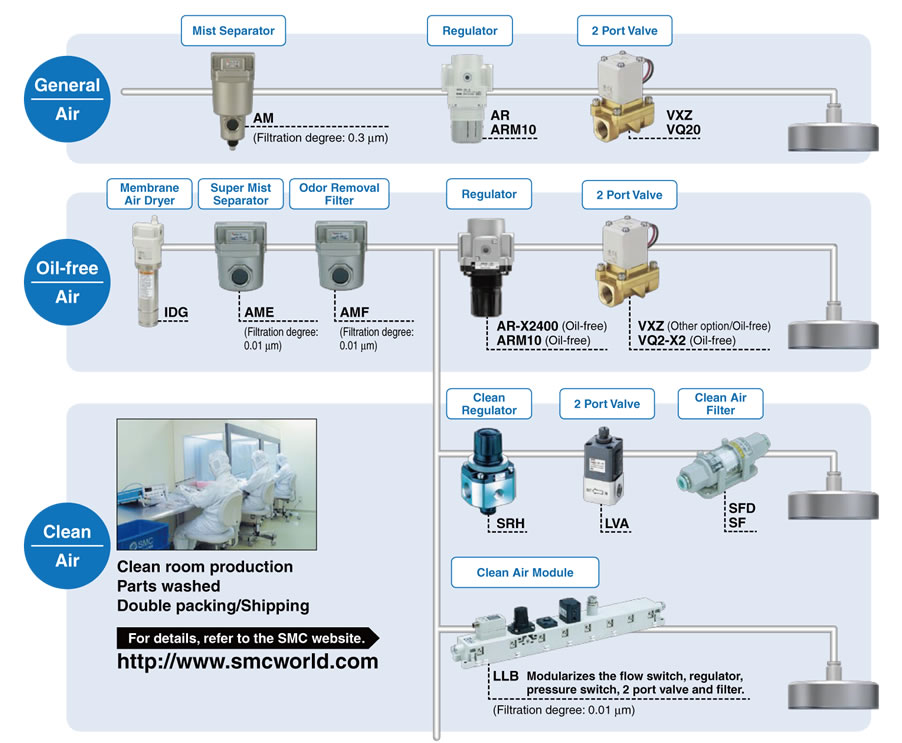

Non-contact Gripper XT661

    ・Assists in non-contact workpiece transfer
    ・Max. workpiece suction distance: 10 mm
    ・2 types are available:
     Cyclone type: High lift: Max. 44 N
     Bernoulli type: Amplitude of the workpiece during gripping: ±0.01 mm or less
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

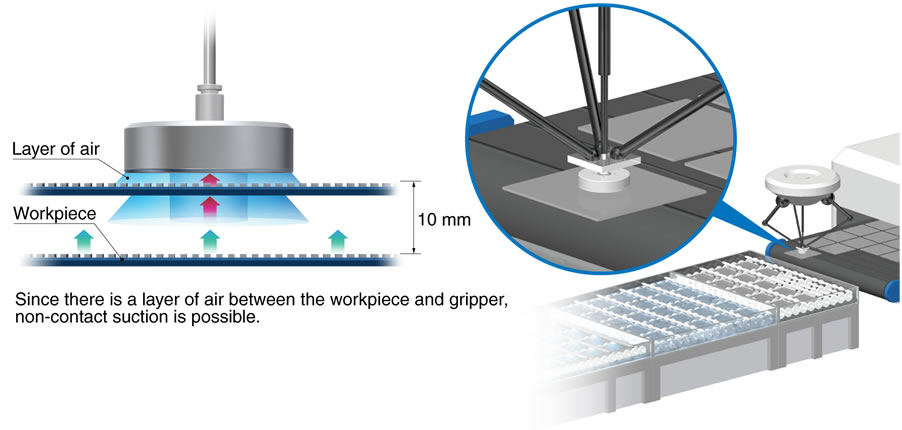

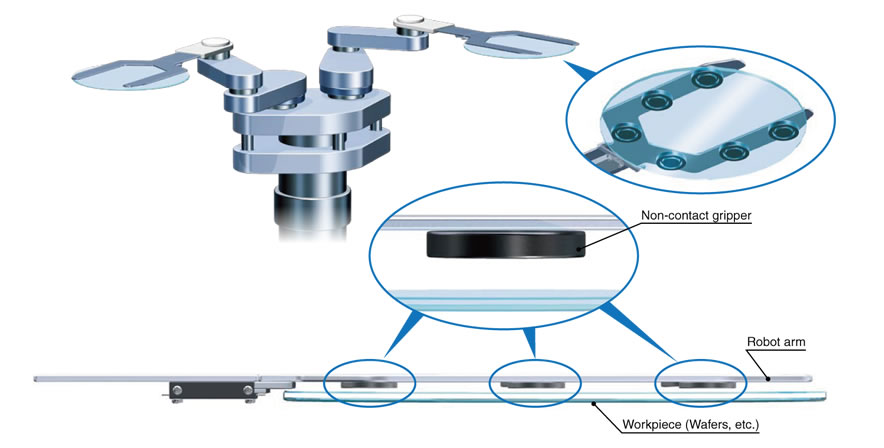

■Assist in non-contact workpiece transfer.
■Max workpiece suction distance:10 mm
■Cyclone Type:High lift, Low air consumption, Body material: Al

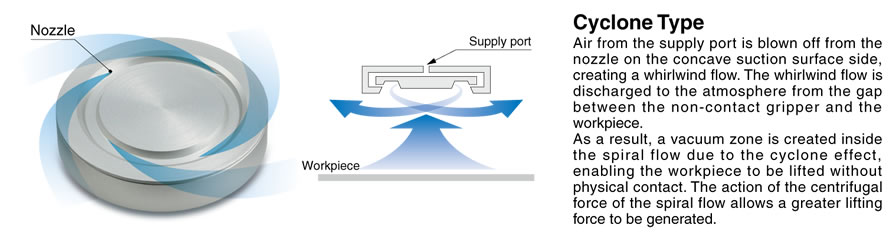

Original groove-channel design allows cyclone effect with
large suction area and even pressure dispersion!

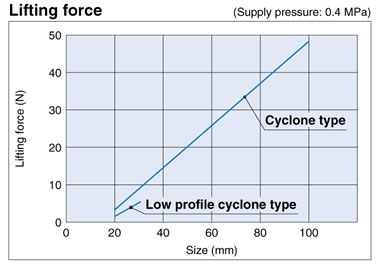

・High lifting force: Max. 44 N (Outer body diameter: ø100)
・Totaled 5 size: ø20/ø40/ø60/ø80/ø100

・Working Principle

Air is discharged in the whirling direction.

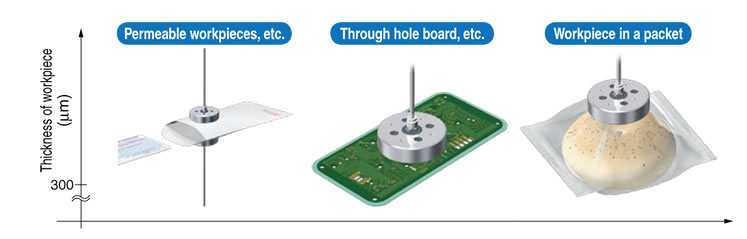

・Various workpiece suction methods are available.

・Can be disassembled and cleaned the inside.

・Made to Order

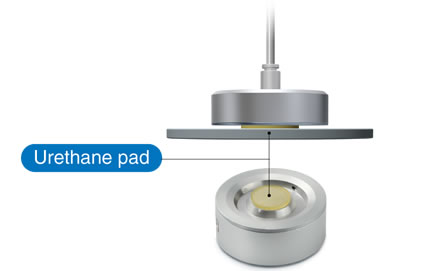

With urethane pad* (-X207)
* Except ø20
・Mitigation of impacts and prevention of damage during lifting
・No need to install a guide

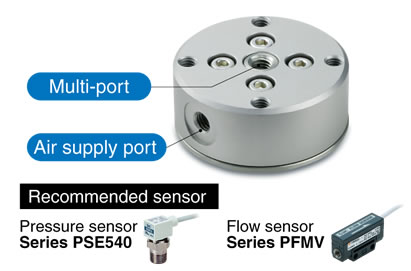

With multi-port (-X211)
The presence of a workpiece can be
checked by installing a sensor.

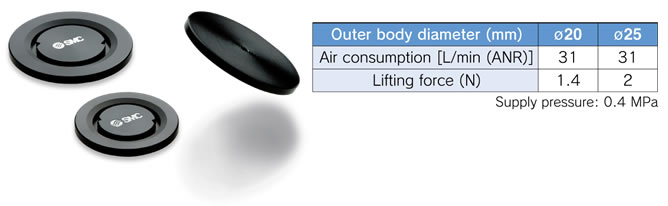

■Low Profile Cyclone Type (-X260)

Thickness: 1.8 mm Weight: Approx. 1.3 g*

* Outer body diameter: ø20

・Can be mounted on the end of the robot arm.
・Two sizes (ø20 and ø25) are available.

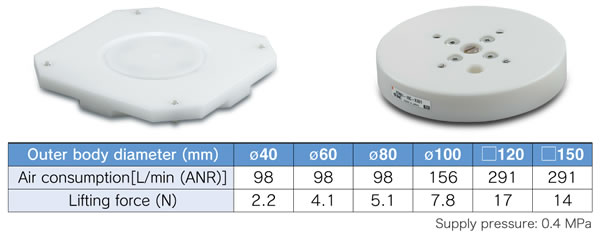

■Bernoulli Type: Vibration reducing type, Body material: Resin

Original groove-channel design allows the Bernoulli effect with suppressing the amplitude of the workpiece during gripping!
Amplitude of the workpiece during gripping: ±0.01 mm*or less

* Solar battery silicon cell(□125 mm, t = 250 μm)
* In SMC conditions



How to calculate

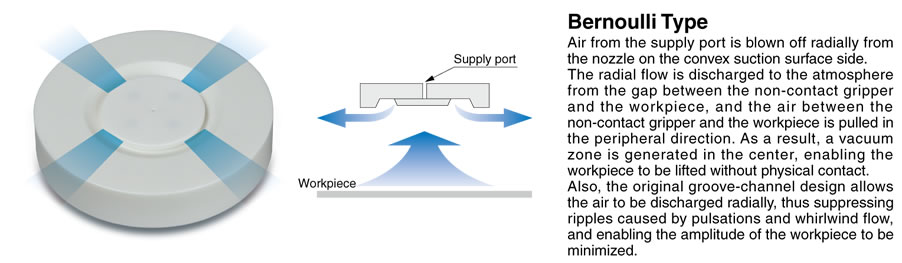

Working Principle

Air is discharged radially.

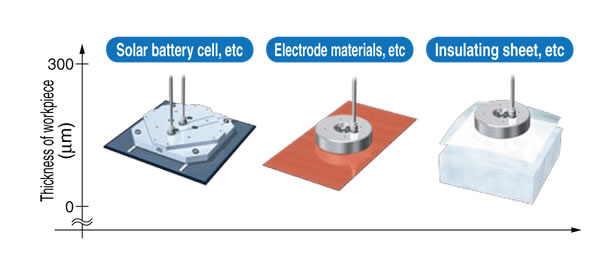

Various workpiece suction methods are available.

・Reduction of rotation load * No directionality of whirlwind air
・Standardization of multi-port* * Except ø40
・Can be disassembled and cleaned the inside.
