New products

Product Information »  New Products:In-line Air Filter ZFD Series

New Product Information

In-line Air Filter ZFD Series

New

Updated Apr-25

  • Operating pressure range: −100 kPa to 0.5 MPa
  • Able to capture foreign matter in both vacuum adsorption and vacuum release directions.
    Prevents foreign matter from scattering again
  • Space saving
    Installation area: 41% reduction
  • Check valve enclosure
    Flow order: Filter ➡ Check valve
    Prevents foreign matter from getting caught in the check valve

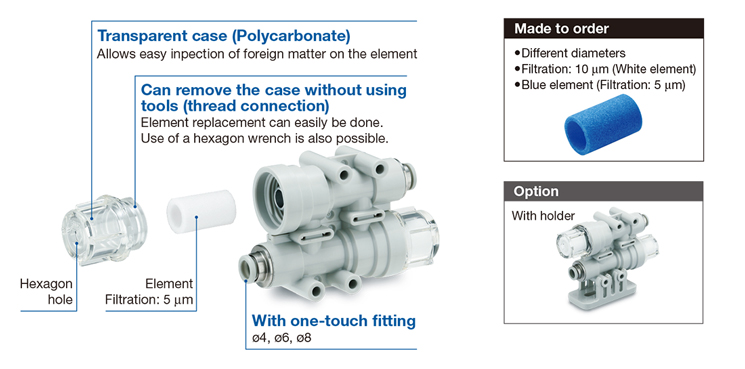

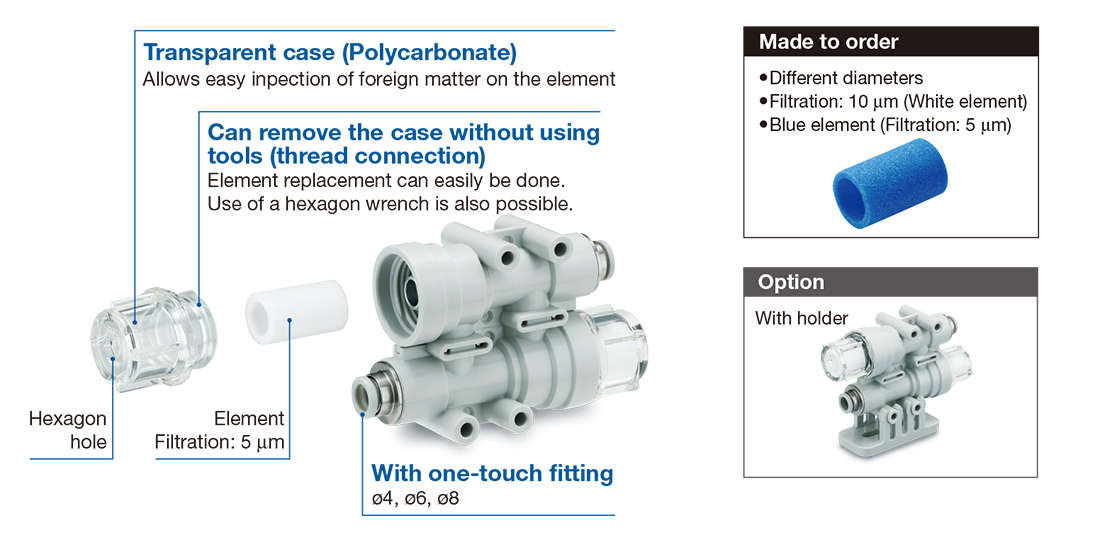

  • Applicable tubing O.D.: ø4, ø6, ø8

Product Features

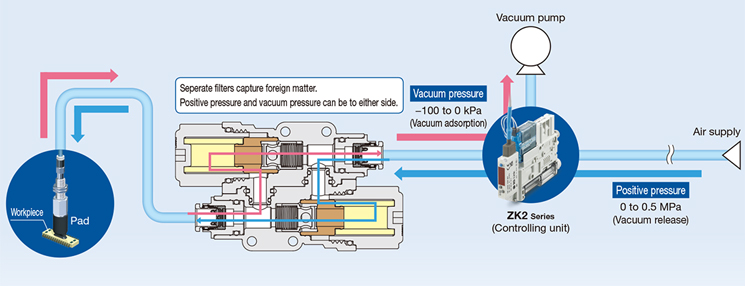

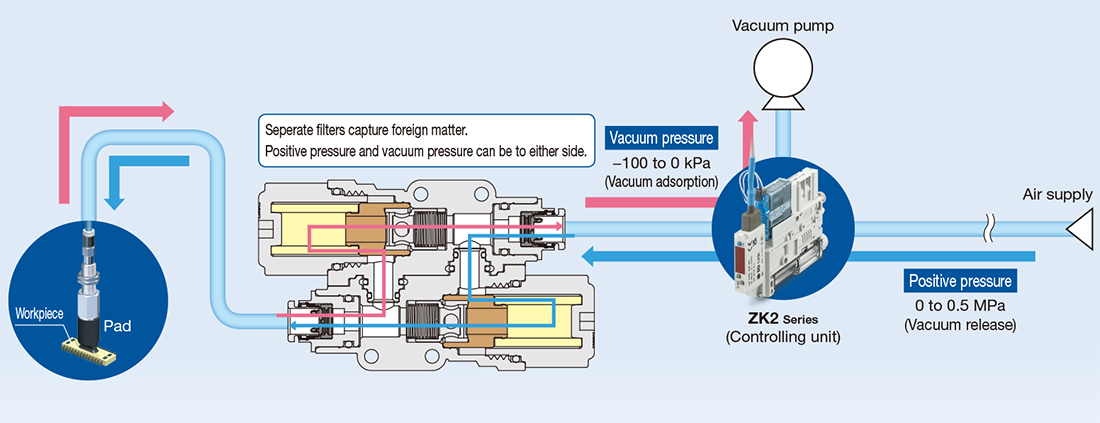

Able to capture foreign matter in both vacuum adsorption and vacuum release directions.
Prevents foreign matter from scattering again

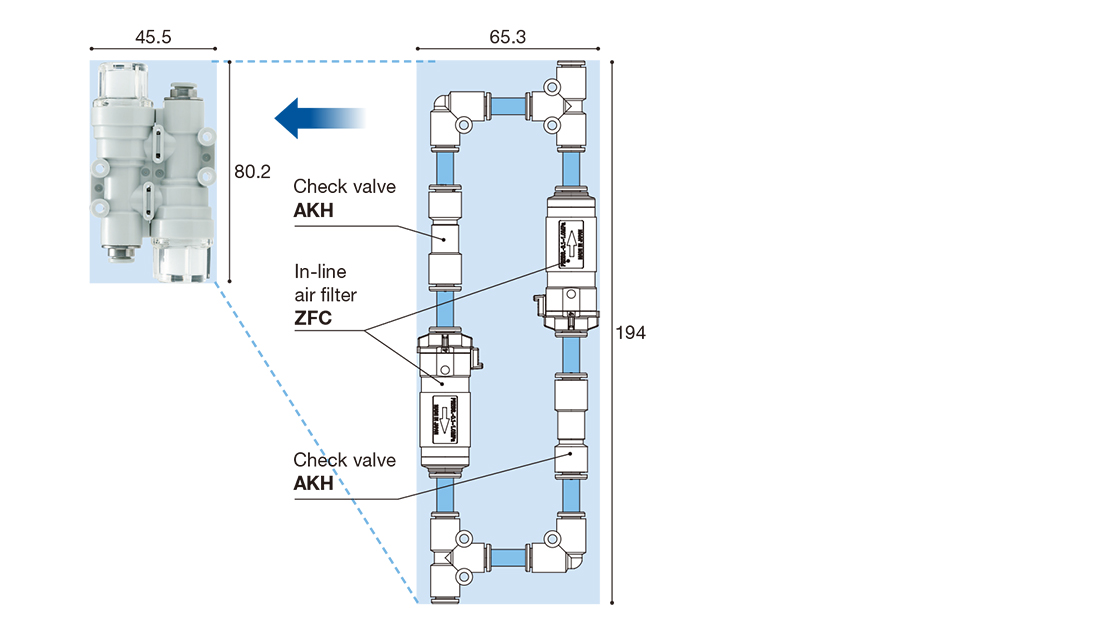

Space saving

Reduced piping work and number of parts
Installation area: 41% reduction
