New Products：Pulse Valve (Valve for Dust Collector) JSXFA Series
New Product Information
Pulse Valve Valve for Dust Collector JSXF/JSXFA Series
Updated May-22

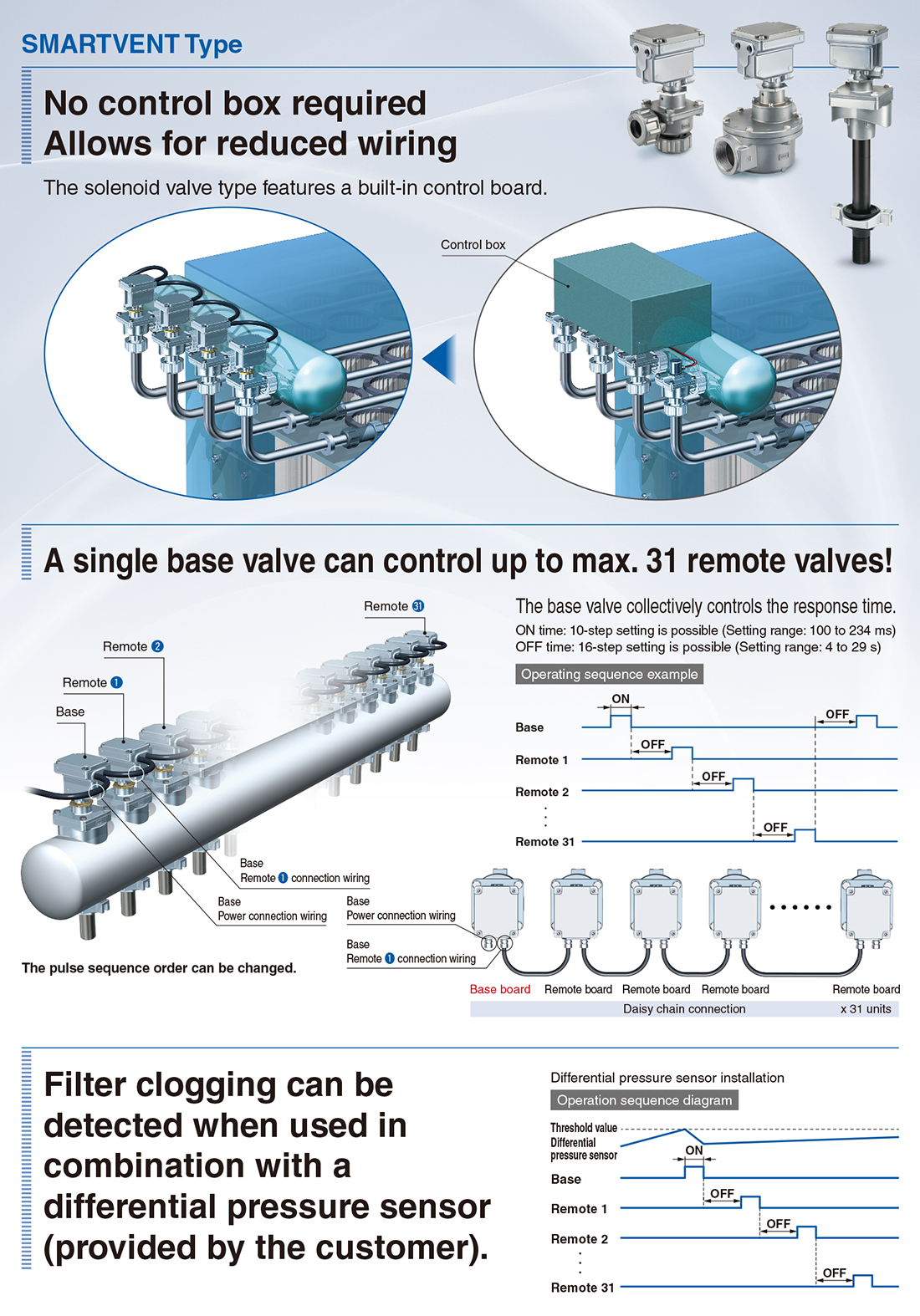

- A solenoid valve type (JSXF Series) has been added. [New]

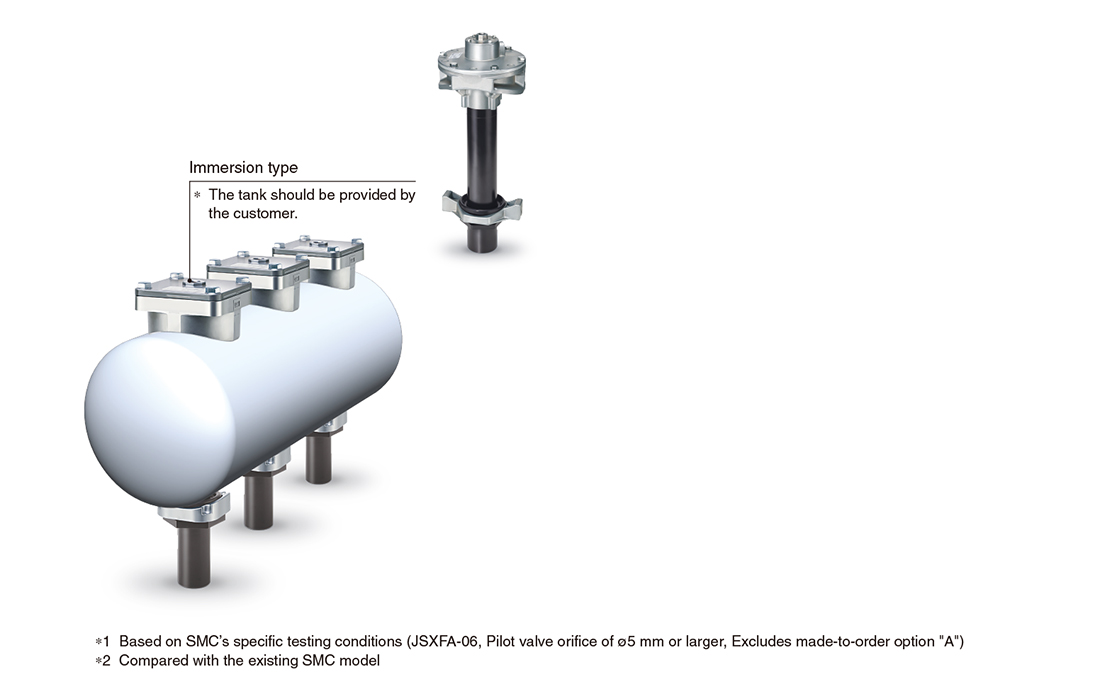

- 3/4 (20A), 1 1/2 (40A), and 2 (50A) port sizes have been added to the immersion type.
- Life: 10 million cycles or more/10 times or more

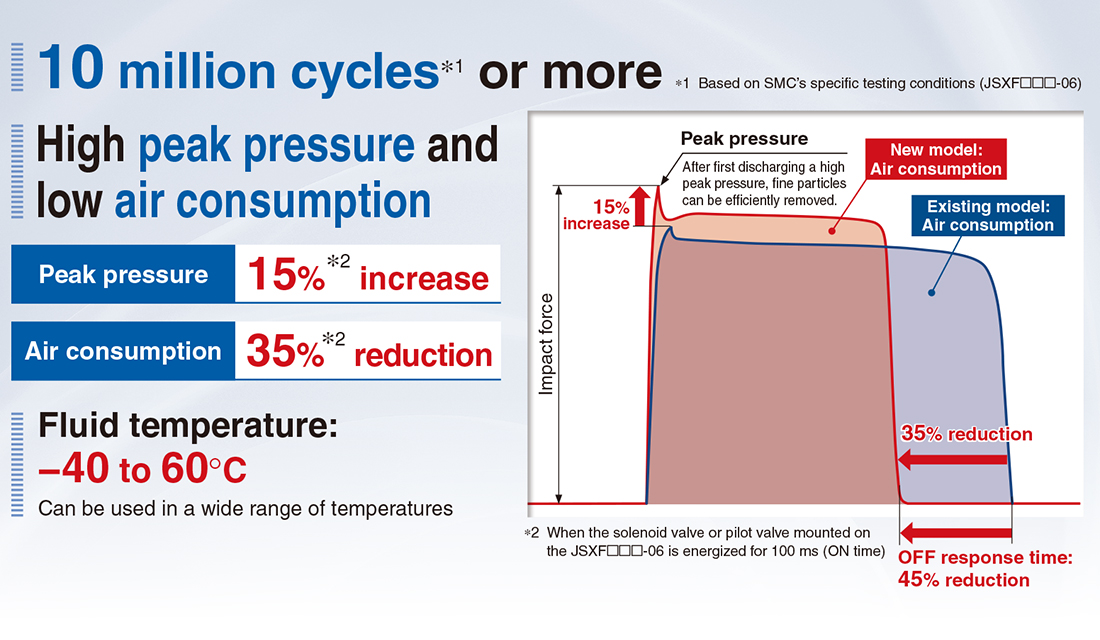

- High peak pressure and low air consumption
Peak pressure: 15% increase, Air consumption: 35% reduction - Fluid temperature: −40 to 60°C
Can be used in a wide range of temperatures
Product Features

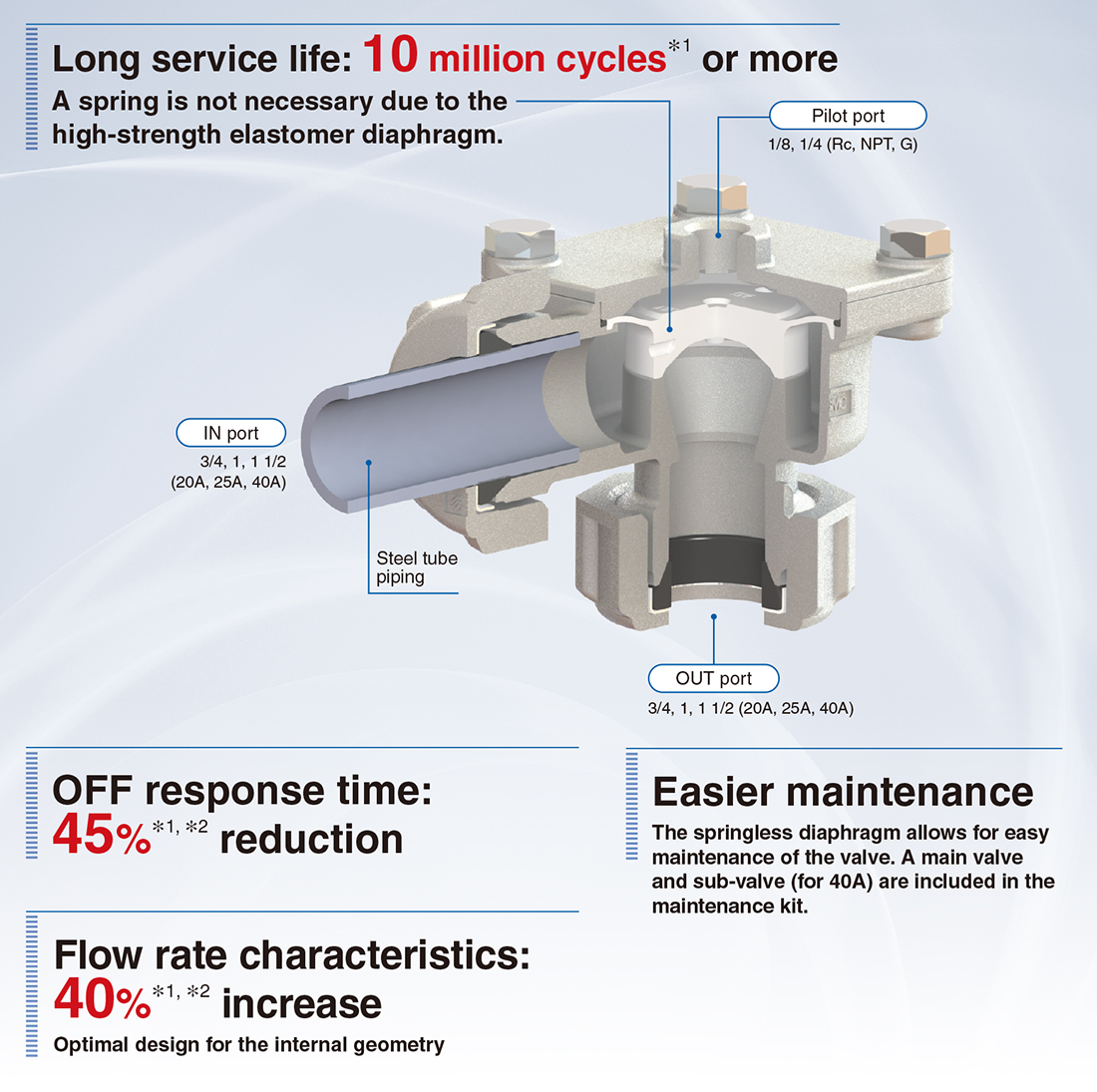

Life: 10 million cycles or more/10 times or more

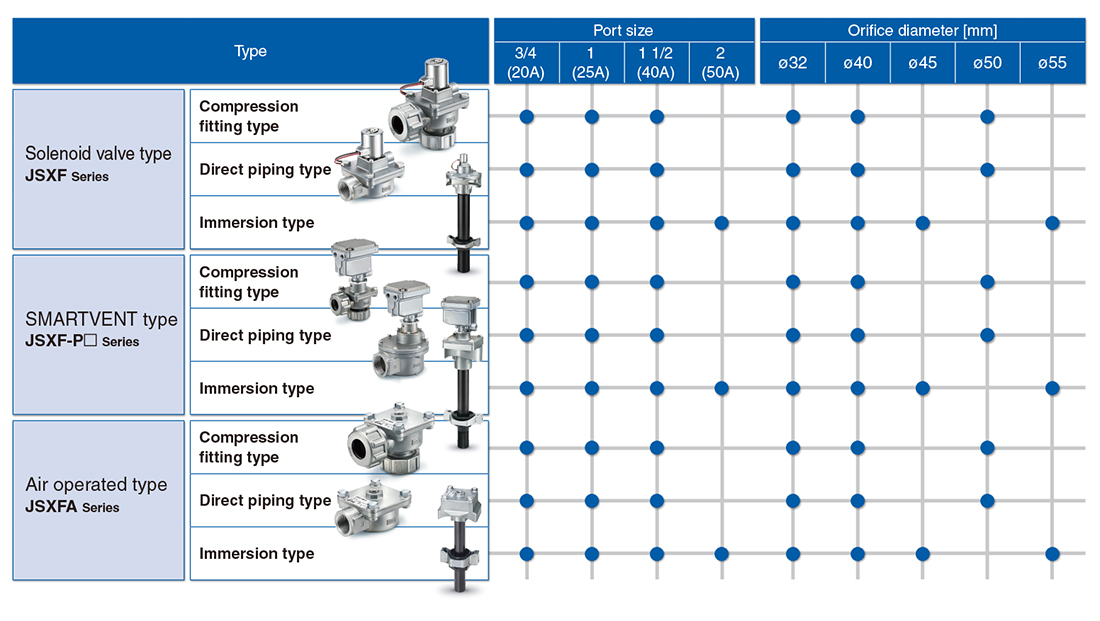

Variations
Features
No need to weld the tank piping

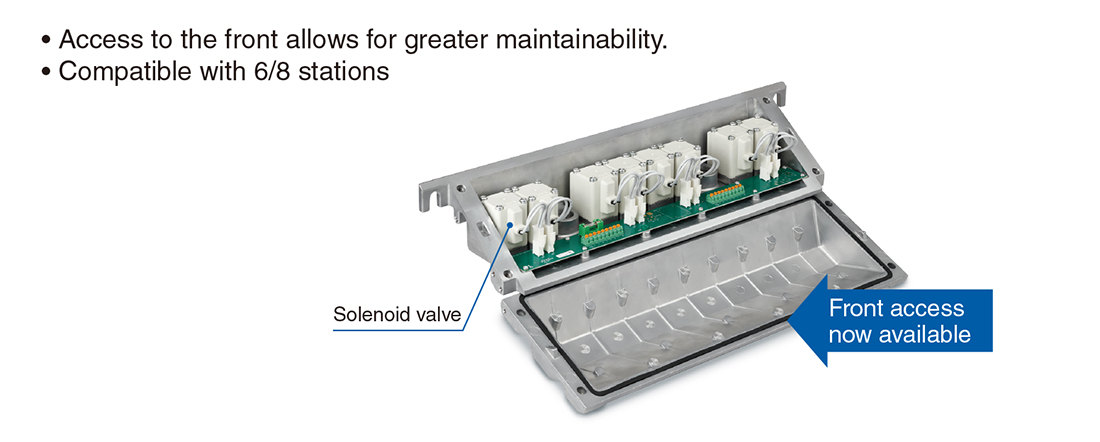

Dedicated Controller for Operation VXFC Series

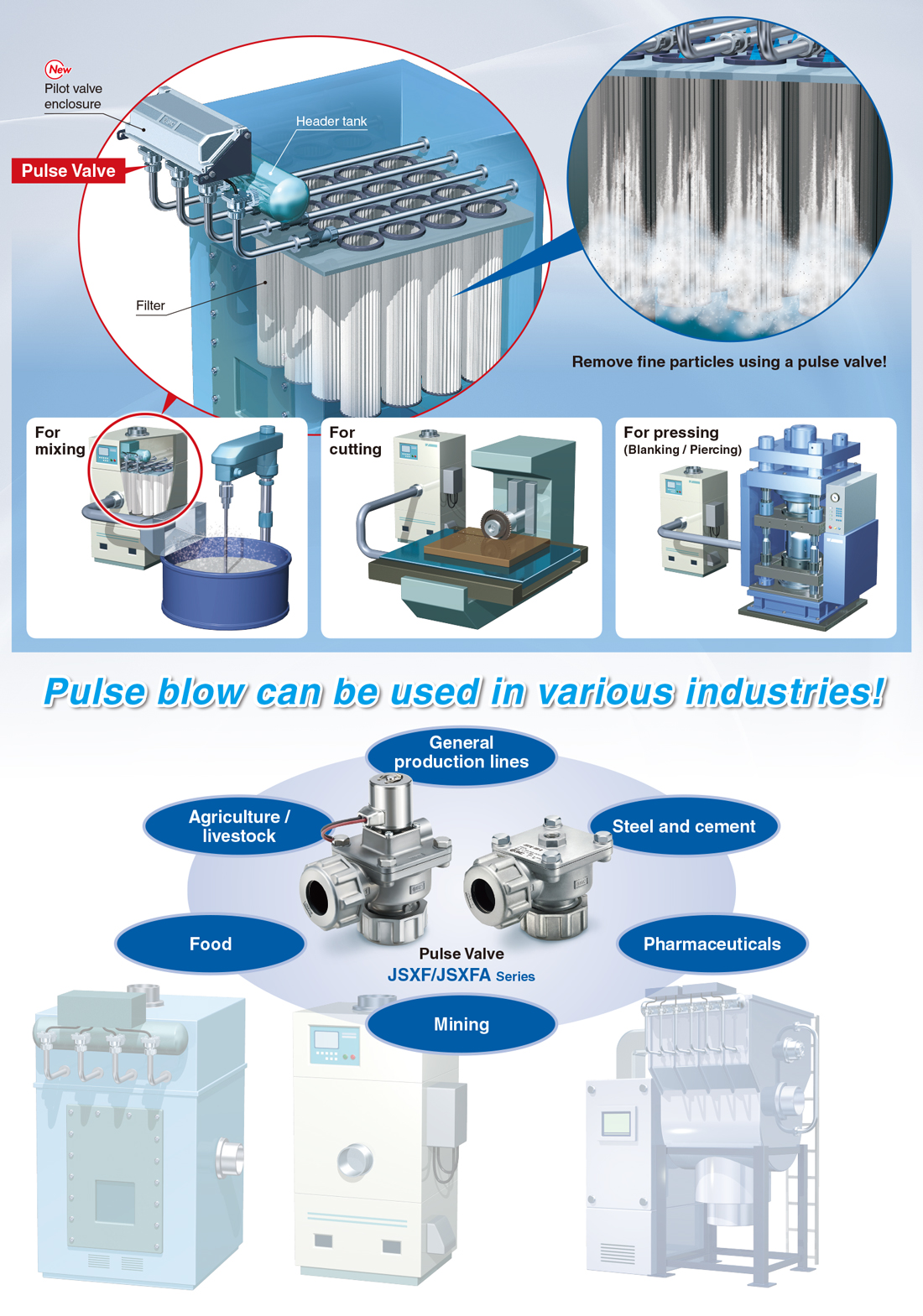

Pulse valve application examples
