Coolant Valves

Coolant Valve (2 Way Valve)/Low Power Consumption, High Flow Type SGC

    ・High flow type to control coolants (Cutting fluid) in machine tools
    ・Low power consumption: 0.35 W (at 24 VDC)
    ・Maximum operating pressure: 0.5 MPa, 1 MPa, 1.6 MPa
    ・Service life: 5 million cycles or more (Based on SMC's test conditions)
    ・CE-compliant
    ・Compatible with G threads (ISO1179-1) as standard
    ・Air operated, external pilot solenoid
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Coolant Valve (2 Way Valve)/Low Power Consumption, High Flow Type SGC
    DoC
    Series View search result
    SGCView search result
Safety Instructions　2 Port Solenoid Valves for Fluid Control Precautions
Model Selection/Flow Rate Characteristics　Series Variations/Process, Coolant Valves List
Green Procurement (RoHS)
SeriesValve typePort sizeOrifice diameter (mmø)
SGCN.C./N.O.3/8 to 29 to 51

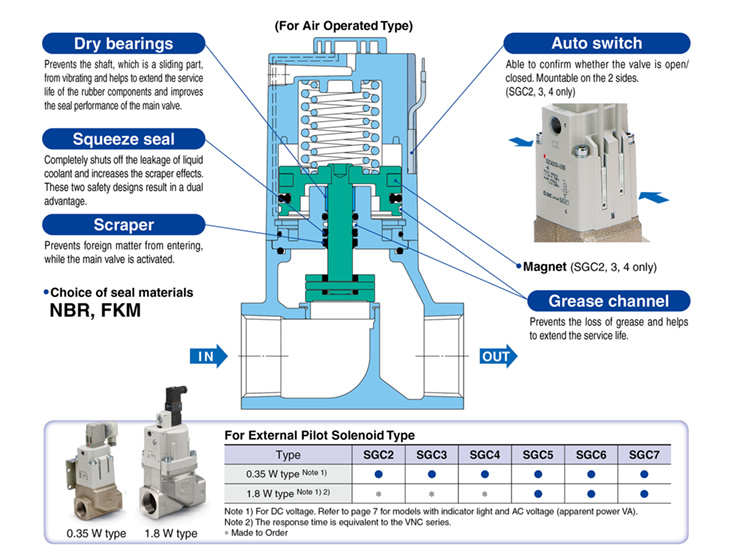

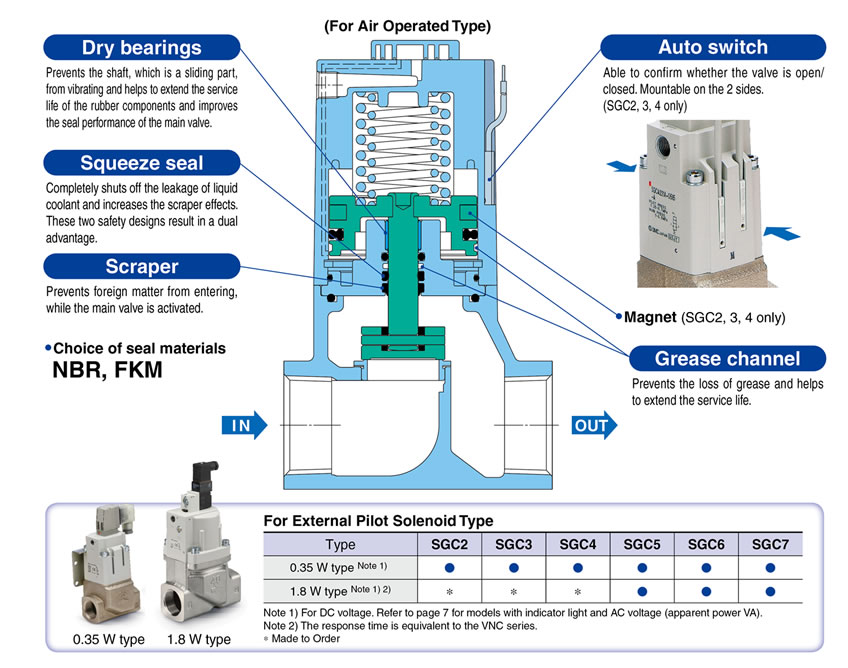

Features

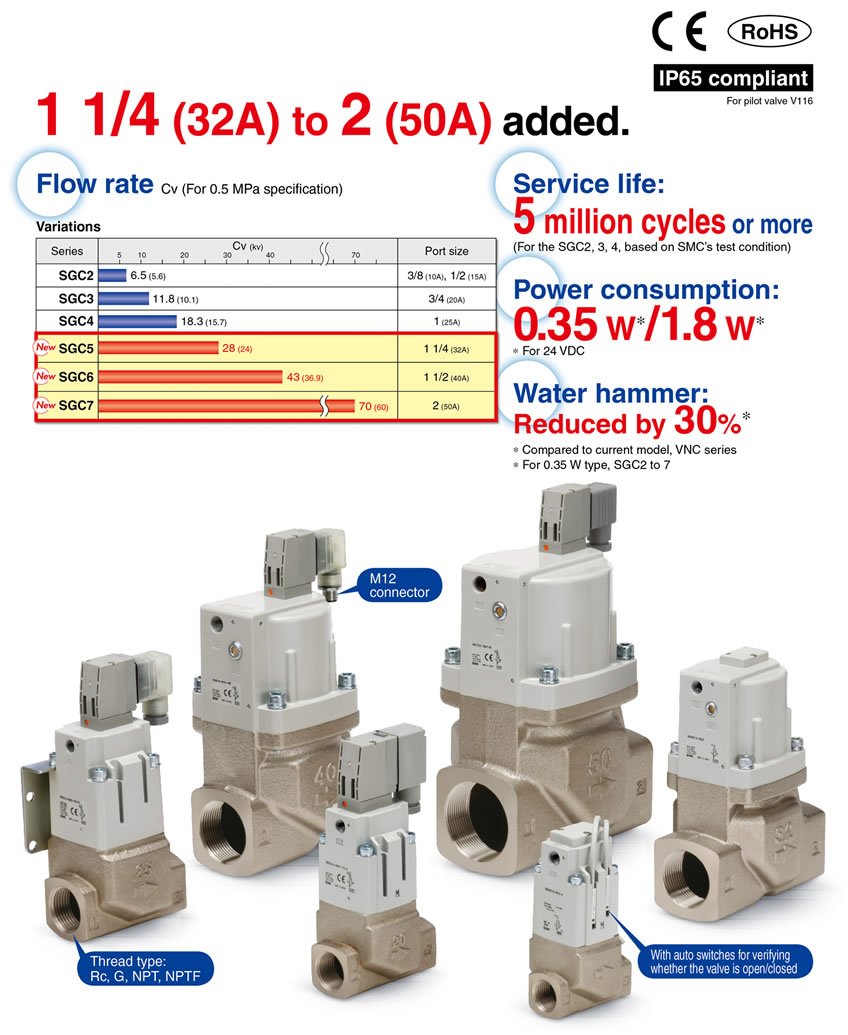

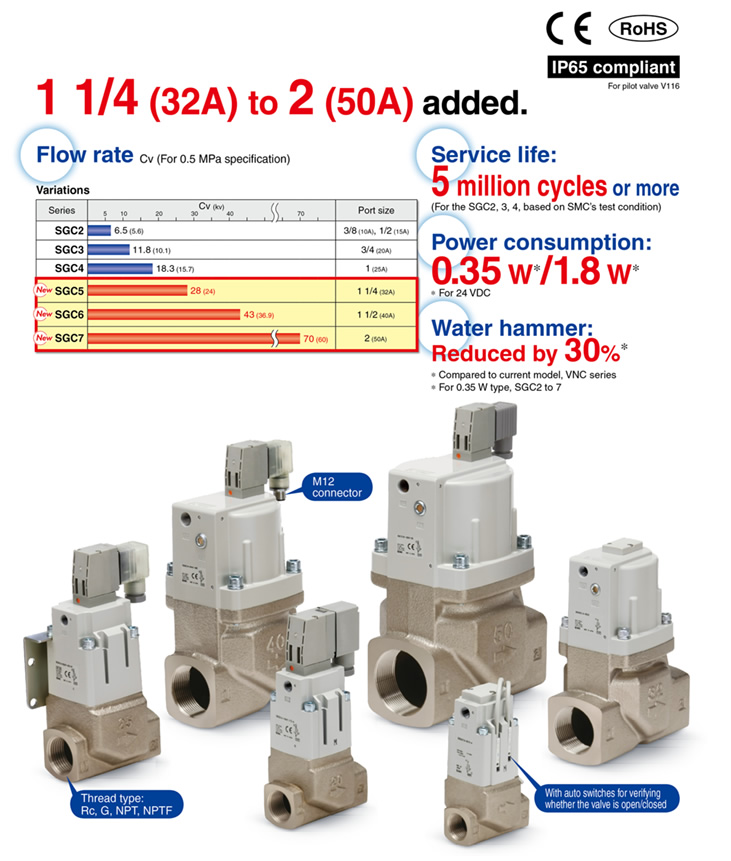

■1 1/4 (32A) to 2 (50A) added.[New]

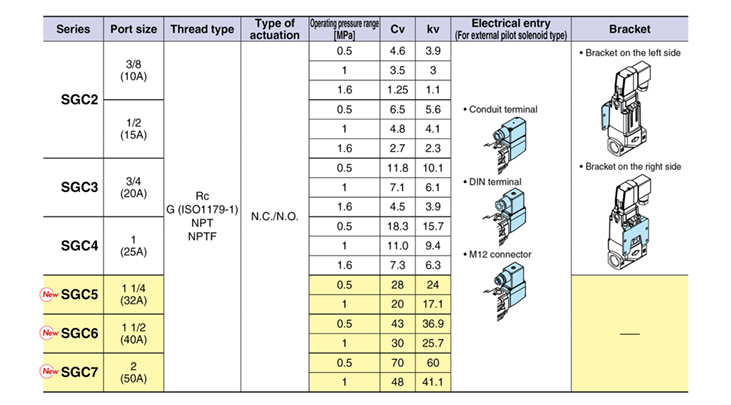

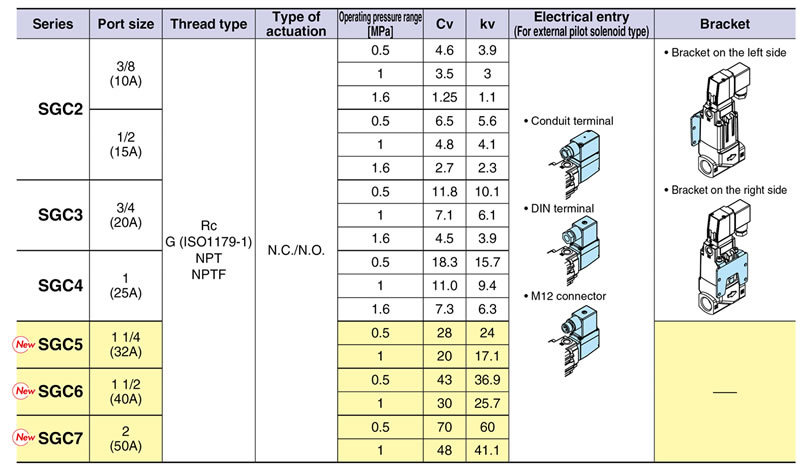

● Variations (Common specifications for external pilot solenoid type and air operated type)

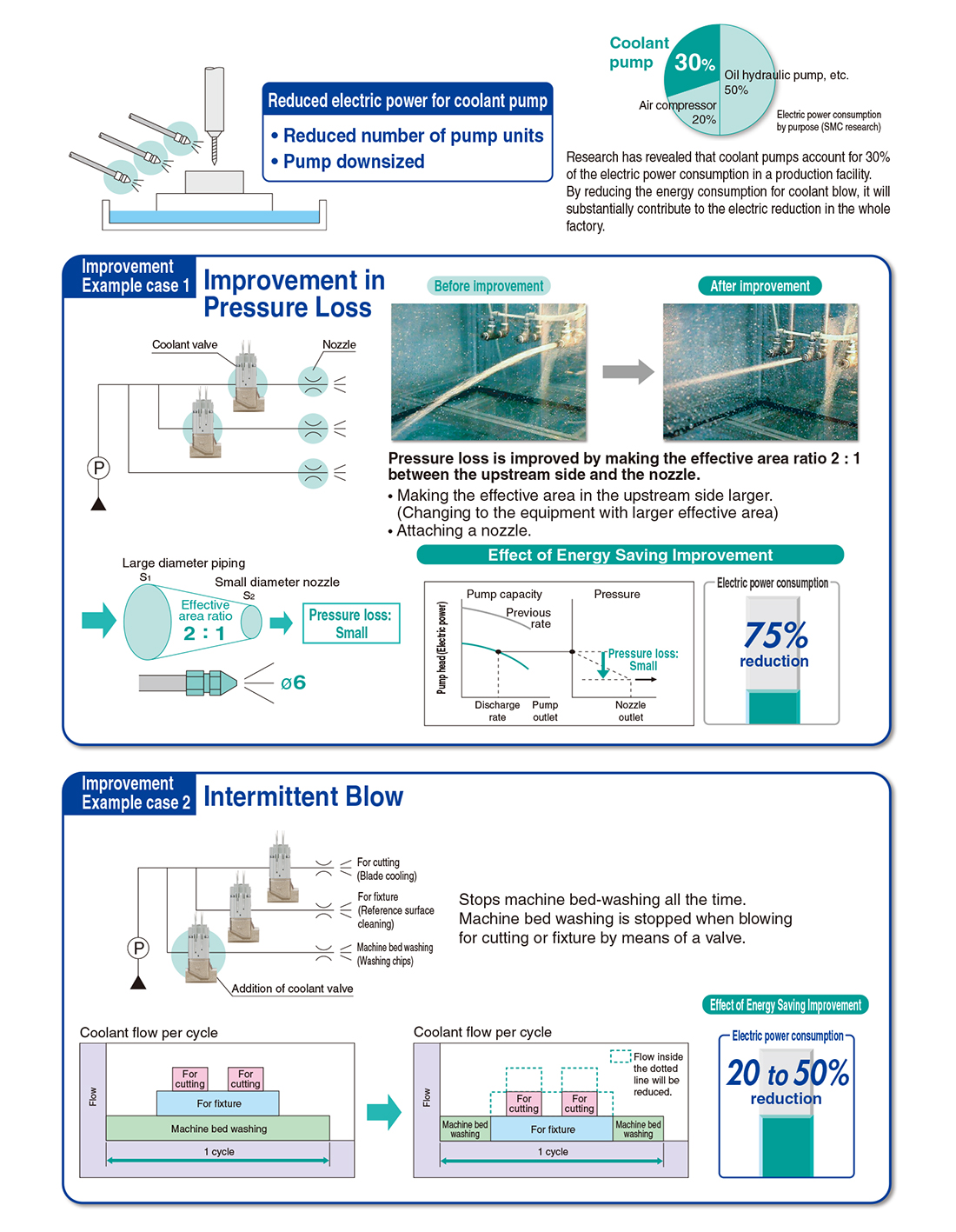

● Reduced coolant blow energy consumption

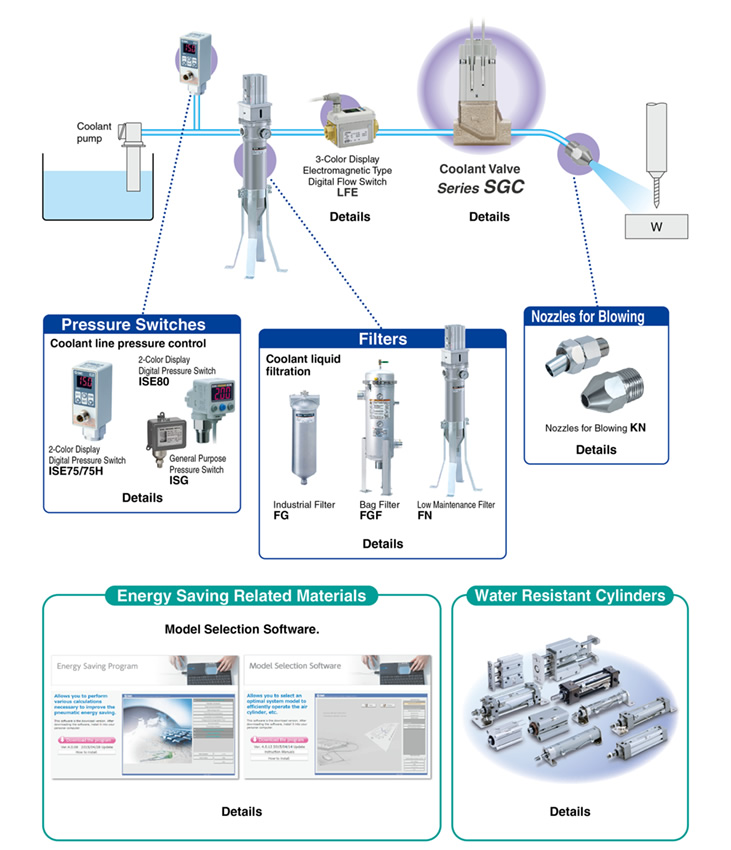

● Coolant Blow System/ Related Equipment
