Regulators
Regulator AR-B
-
∗ The AR-B series will be discontinued in March 2025.
Please select the AR-D series.▶Click here for details.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Regulator AR-B
Manual
Series View search result AR20 to 60-B View search result
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| AR20 to 60-B | 1/8，1/4，3/8，1/2，3/4，1 | 0.05 to 0.85 0.02 to 0.2 |

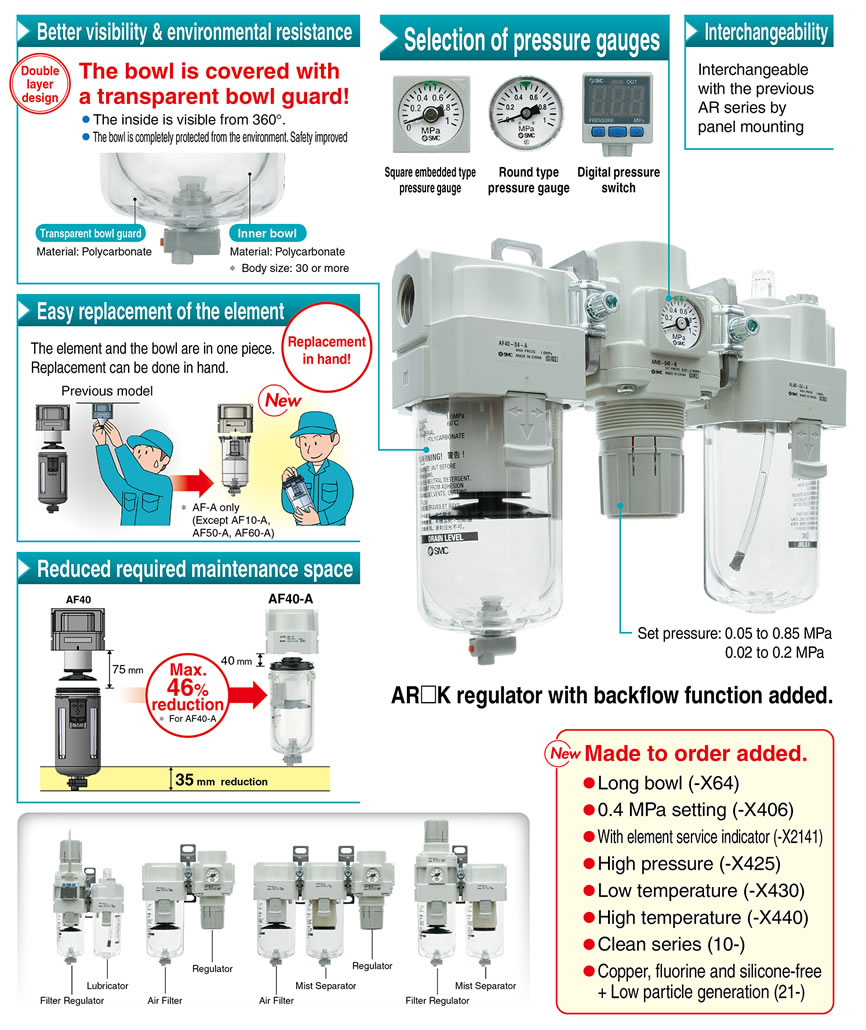

Features
Modular F.R.L. Units AC Series

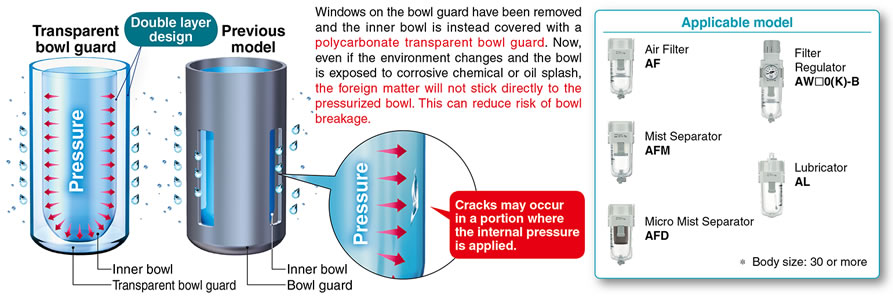

Transparent bowl guard
Better environmental resistance: Transparent bowl guard can protect the inner bowl!
Better visibility: 360°
Use of transparent bowl guard makes it possible to check the condensate inside the filter bowl and the remaining oil amount in the lubricator from the entire periphery.

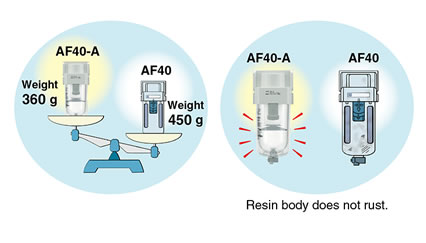

Light weight: Max. 90 g reduction
* Except AW

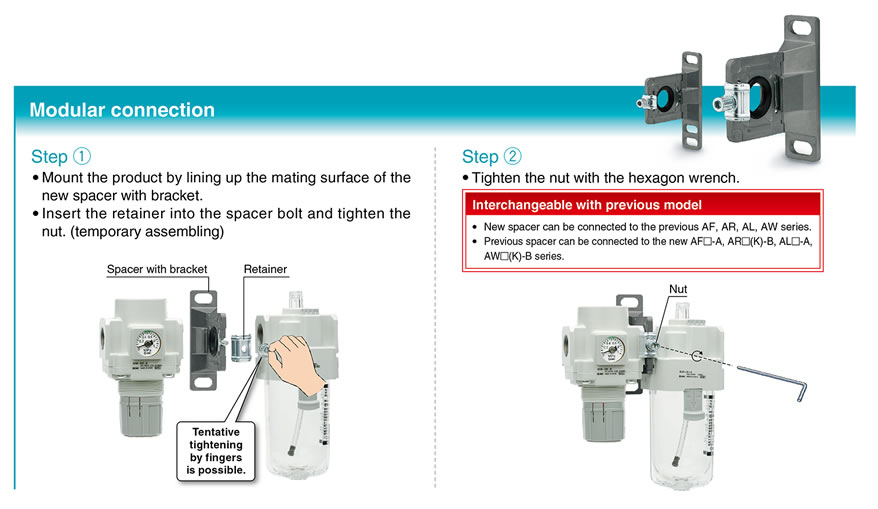

New Spacer
