Industrial Device Communication Equipment: IO-Link Compatible Products
3-Screen Display Multi-channel Digital Sensor Monitor PSE200A
-

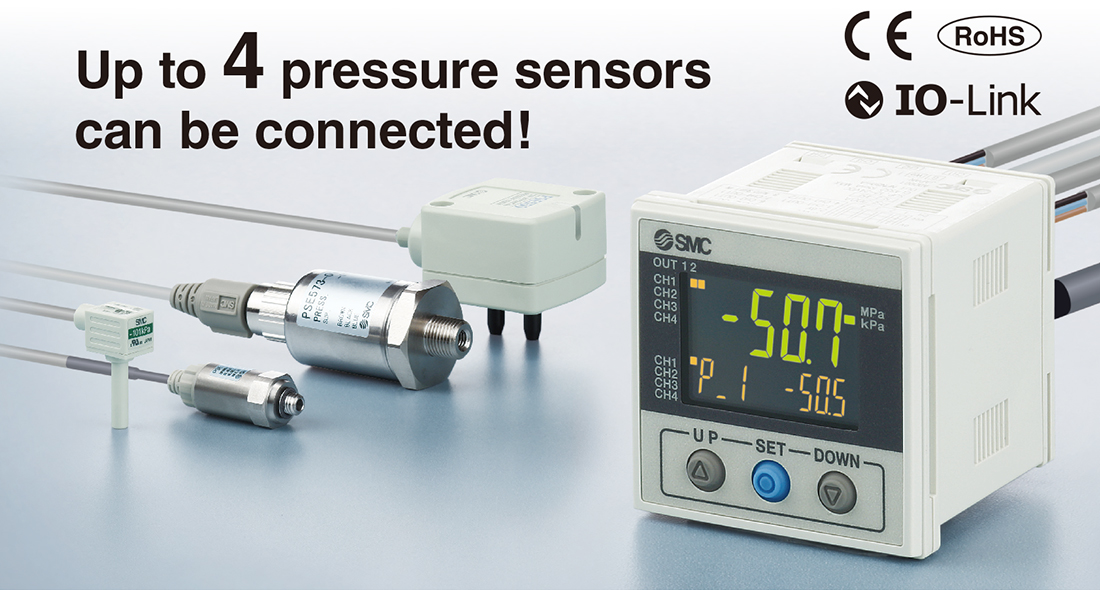

・Up to 4 pressure sensors can be connected!
Centralized control saves installation space.
A single monitor various applications

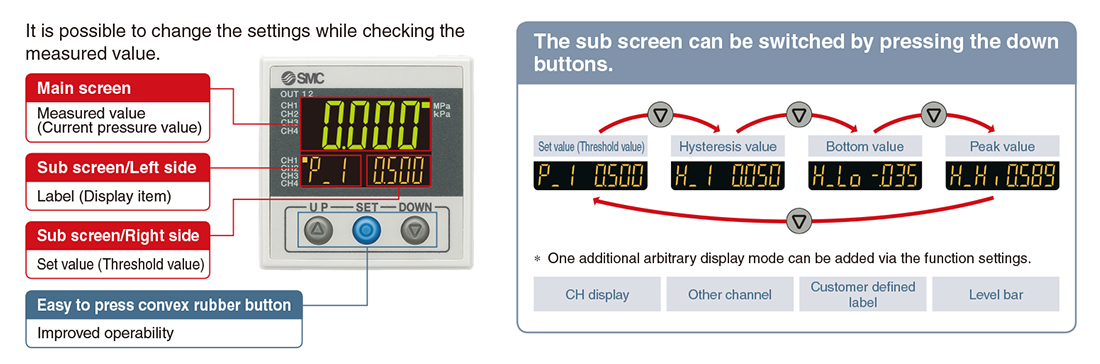

・It is possible to change the settings while checking the measured value.
・IO-Link compatible
▶IO-Link Master
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS) IO-Link Master
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS) IO-Link Master
Series | Set pressure range | Applicable pressure sensors |
---|---|---|
PSE200A | −0.2 to 2.1 kPa 10 to −105 kPa −105 to 105 kPa −10 to 105 kPa −50 to 525 kPa −0.105 to 1.05 MPa −0.105 to 2.1 MPa −0.25 to 5.25 MPa −0.5 to 10.5 MPa | PSE550 PSE531/PSE541/PSE561 PSE533/PSE543/PSE563/PSE573 PSE532 PSE564/PSE574 PSE530/PSE540/PSE560/PSE570 PSE575 PSE576 PSE577 |
Features
Up to 4 pressure sensors can be connected!

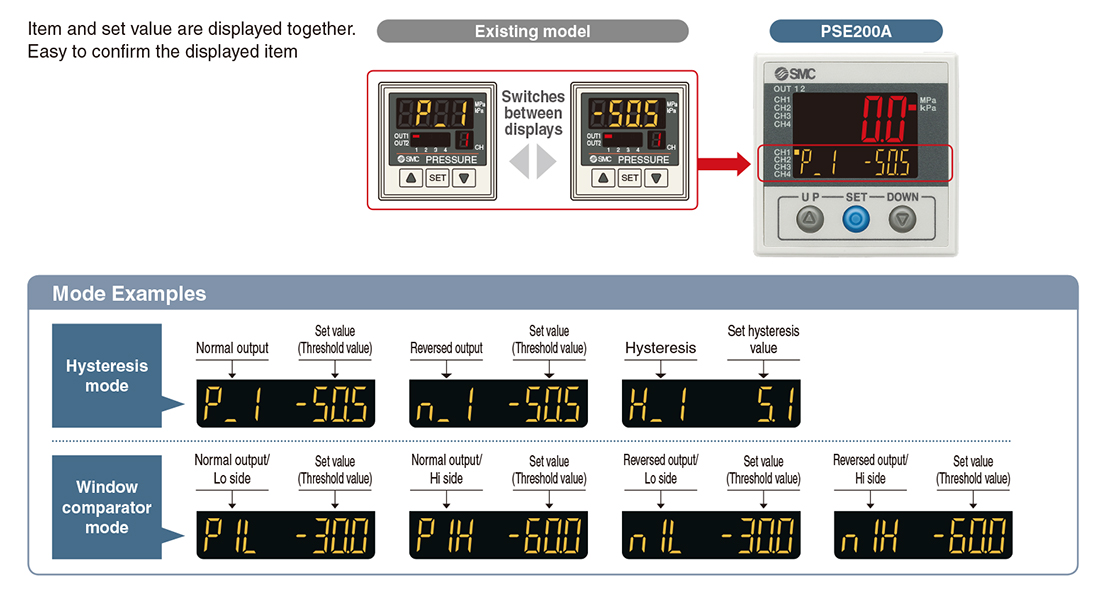

Visualization of Settings
Easy Screen Switching

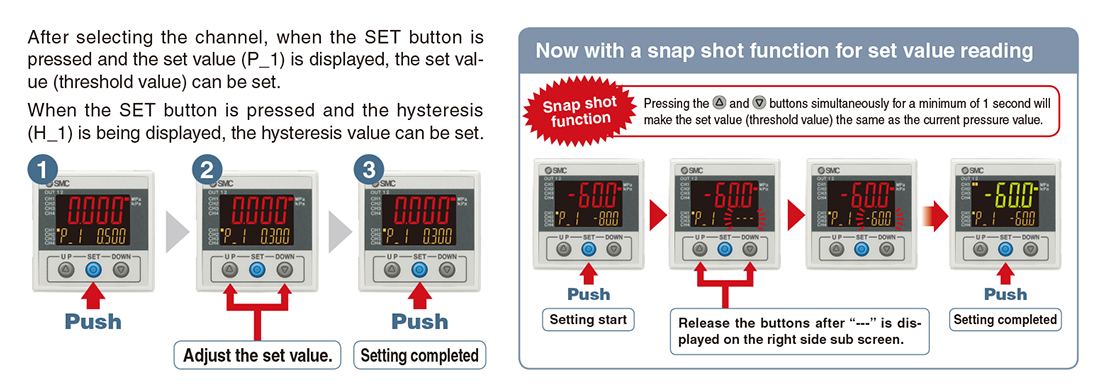

Simple 3-Step Setting

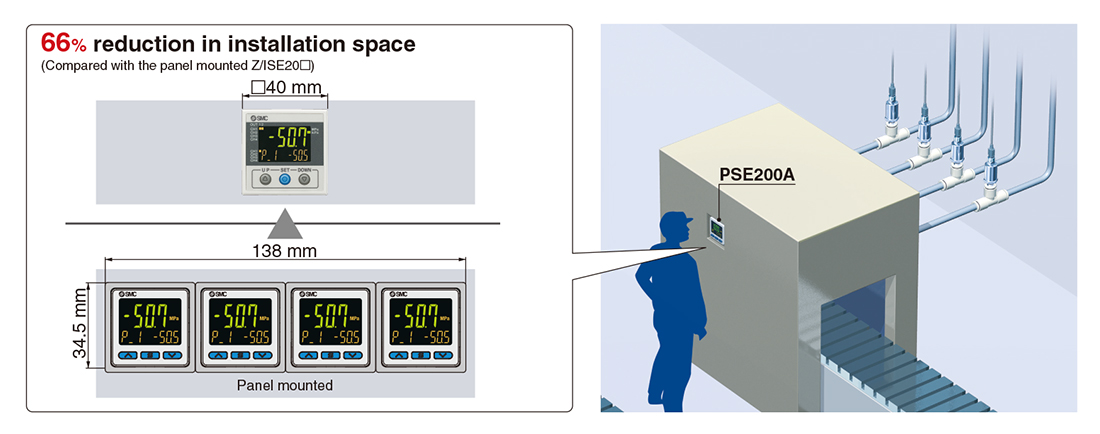

Centralized Control Saves Installation Space.

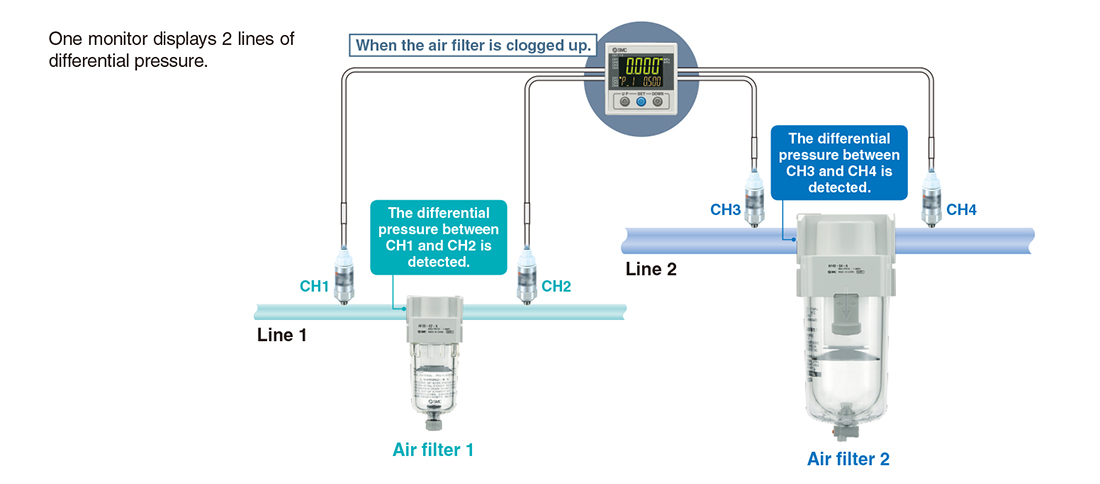

Differential Pressure Check Mode
A Single Monitor Various Applications

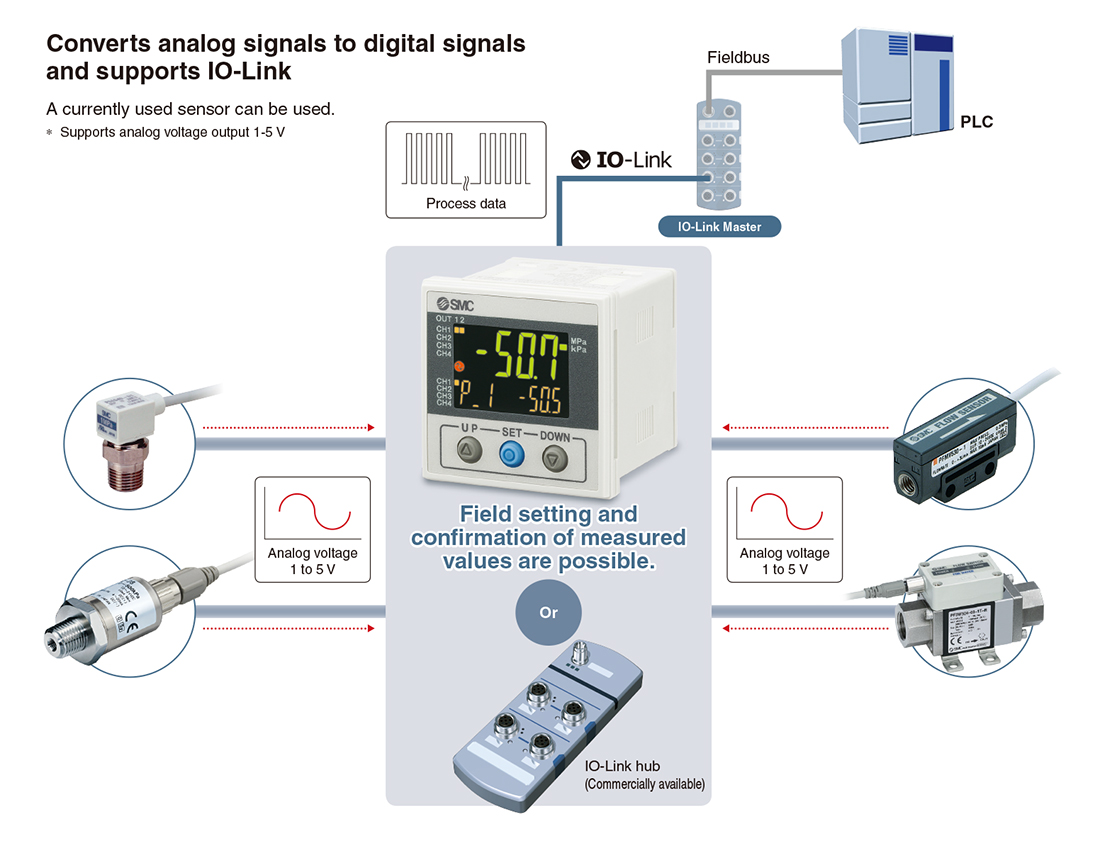

Input Range Selection (for Pressure/Flow rate)

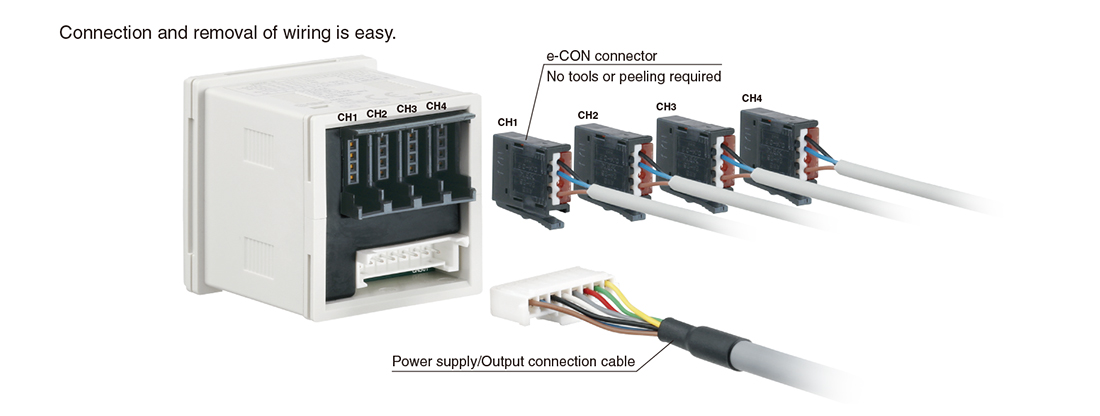

Connectors

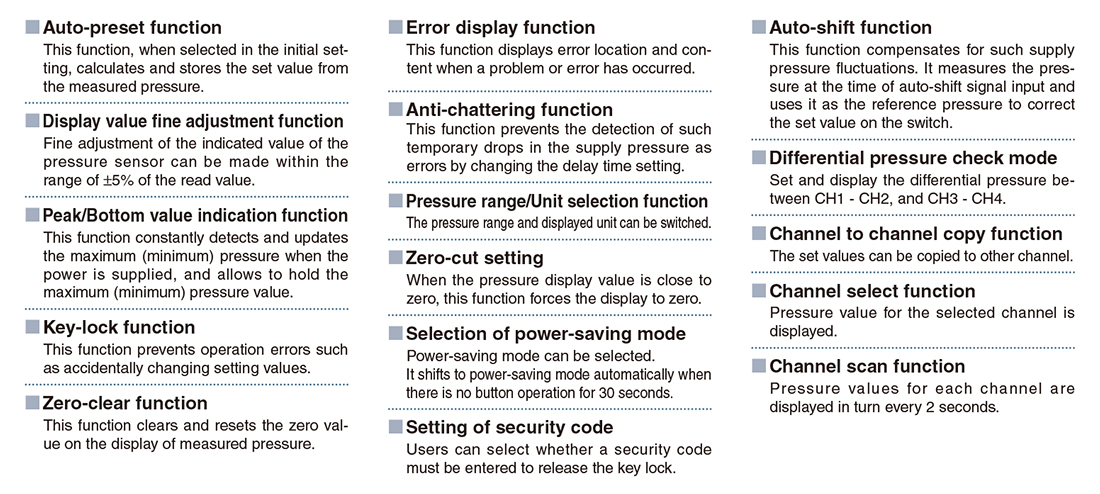

Functions
Hub Function

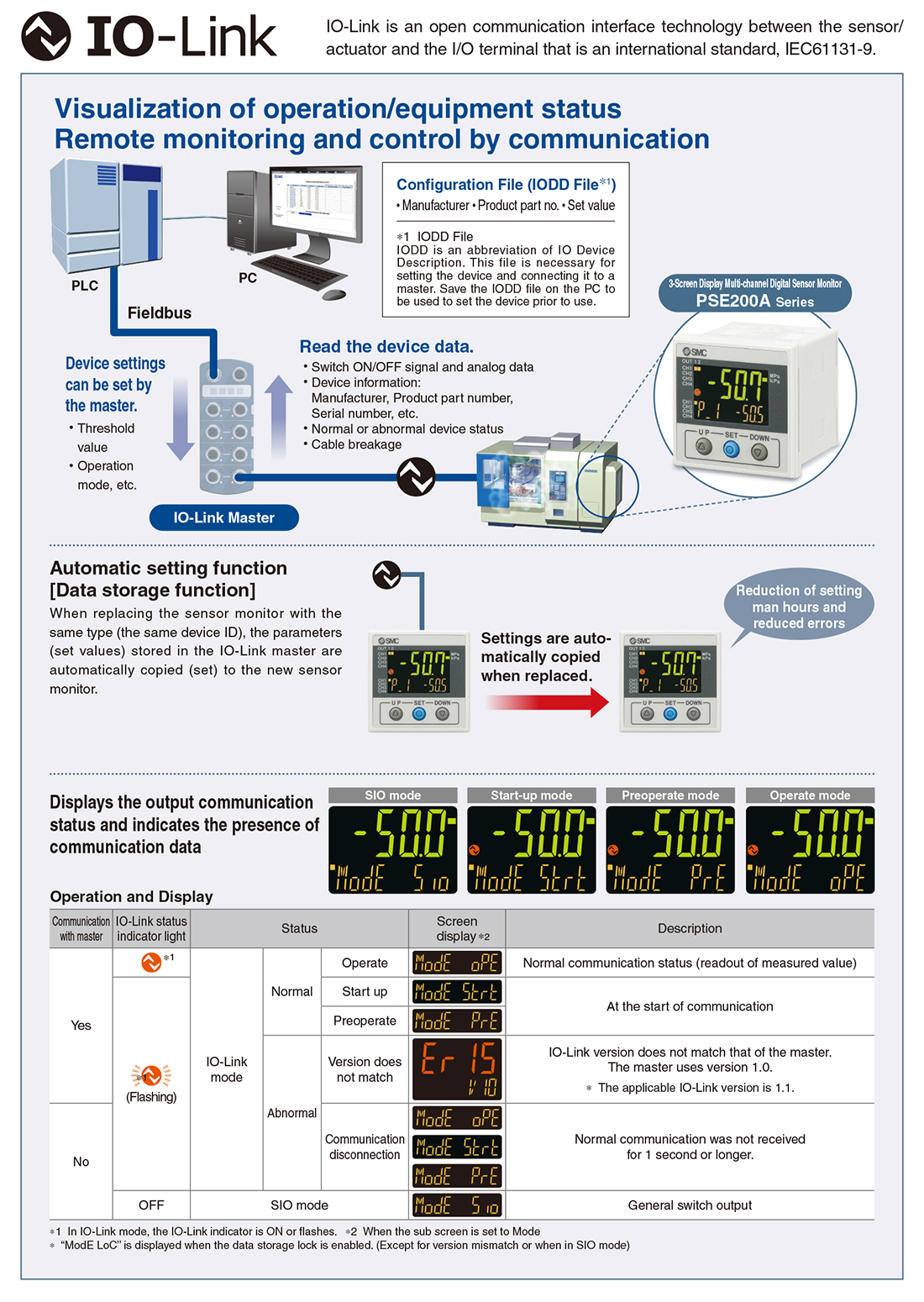

IO-Link
Visualization of operation/equipment status Remote monitoring and control by communication
