・The controller and high-voltage power supply module can be mounted separately.

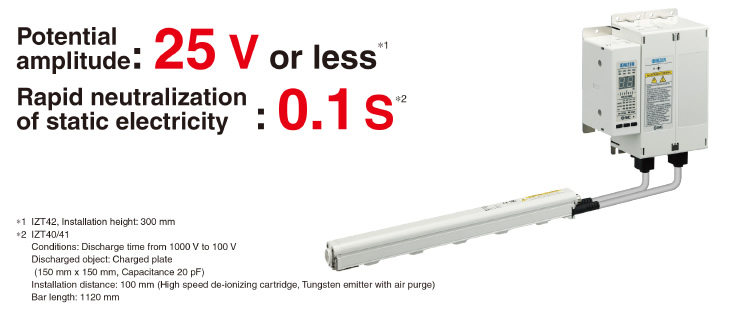

・Space saving: Height 37 mm x Width 30 mm ・One controller can control a maximum of 4 ionizers. ・Potential amplitude: 25 V or less ・Rapid neutralization of static electricity: Max. speed of 0.1 s |
|
| Other Data |
|---|
| Series | Type | Ion generation method | Ion balance |
|---|---|---|---|
| IZT42 | Dual AC Type | Corona discharge type | Within ±30 V |
| IZT41 | AC Type | Corona discharge type | Within ±30 V |
| IZT40 | Standard Type | Corona discharge type | Within ±30 V |
| Series | Type | Download |
|---|---|---|
| IZT42 | Dual AC Type |
|
| IZT41 | AC Type |
|
| IZT40 | Standard Type |
|

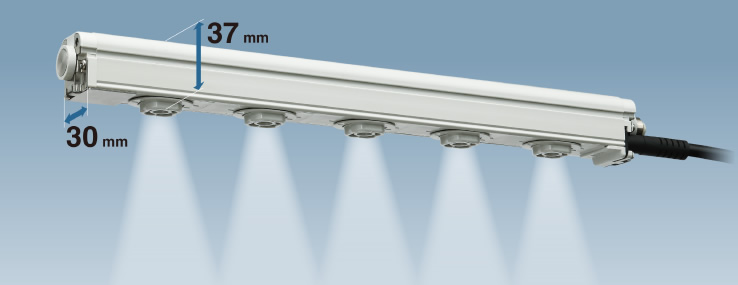

Height reduced by 57 mm(60%)
Can be mounted in a narrow space

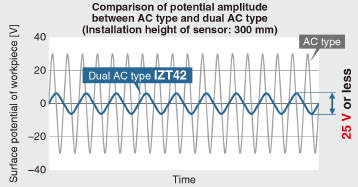

Potential amplitude is reduced with SMC independent Dual AC type sensor.
Static neutralization in consideration of damage to a device which is sensitive to electrostatic discharge (ESD) can be achieved. Potential amplitude applied to the applicable workpiece is reduced even if the workpiece is mounted within close proximity of the ionizer.
Dual AC type IZT42
Discharges + ions and − ions at the same time to allow the + and − ions to reach the workpiece evenly, thereby reducing the potential amplitude.
AC type IZT40/IZT41
+ ion and − ion layers reach the workpiece alternately, which
increases the potential amplitude.

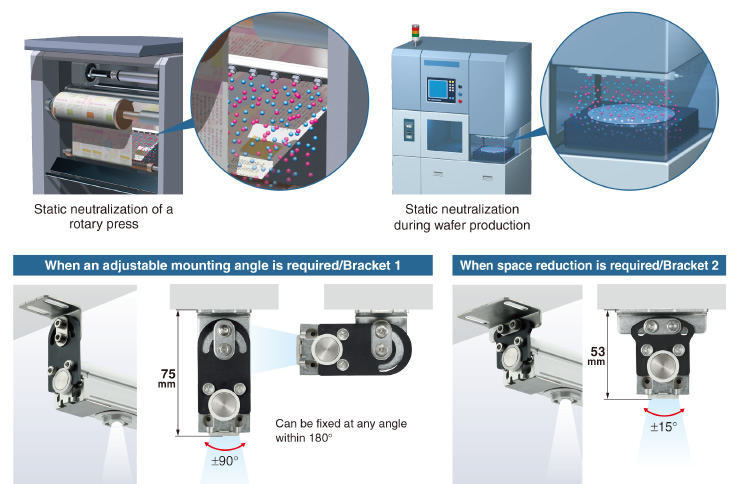

Neutralizing static electricity on a glass substrate
Prevents the breakage of glass substrates due to the static electricity which is generated when the substrate is lifted from the surface plate.
Neutralizing static electricity on an electric substrate
・Prevents element disruption due to discharge.
・Prevents adhesion of dust.
With auto balance function
Simple operation: Can be controlled by powering the ionizer ON.
AC adapter is available.
(AC adapter can only be used for 1 ionizer.)

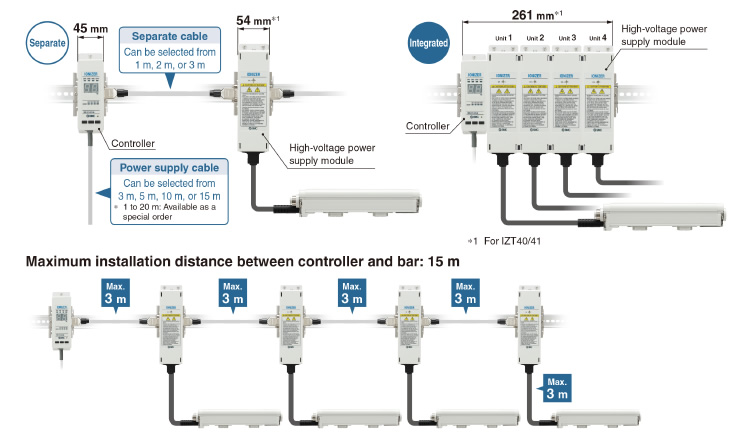

The controller and high-voltage power supply module can be mounted separately.

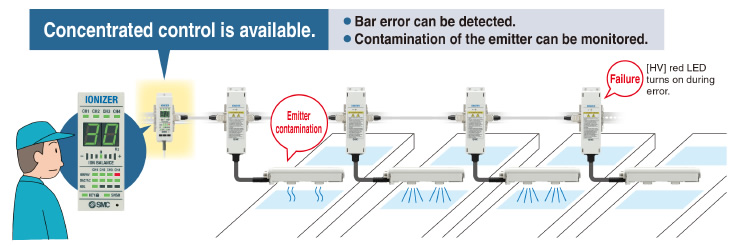

One controller can control a maximum of 4 ionizers.
Air supply port is selectable: Right side/left side/both sides
Bar and cable lengths are selectable.
Low maintenance emitter cartridges are used.

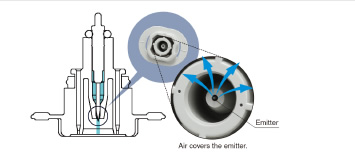

Minimizes contamination of emitters by discharging compressed air at the surface of the emitters.
2 types of emitter materials
Tungsten/Single crystal silicon (for silicon wafers)

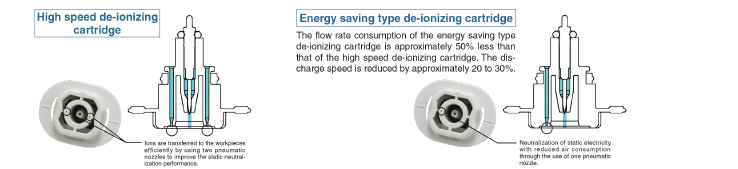

High speed de-ionizing cartridges and energy saving type de-ionizing cartridges are available.

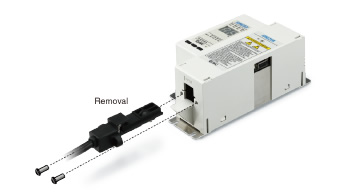

Easy mounting and removal using connector
Only the bar can be replaced.
Emitter cartridge drop prevention function
Locking by double-action
Drop prevention cover
Can even more reliably prevent emitter cartridges from dropping off.
