Thermo-chiller/Rack Mount Type HRR

Products »WEB Catalog » Temperature Control Equipment » Thermo-Chillers (Circulating Fluid Temperature Controllers)

・Operable without the need to remove the unit from the rack
・Front access: Simple to control, service, and maintain with all filters
　and drainage accessible via the front panel
・Space saving: Multiple chillers can be mounted to a 19-inch rack.
・Cooling capacity: 1.1/1.2/1.8/2.4/3.0/5.1 kW (60 Hz)
・Temperature stability: ±0.1℃
・Global power supply:
　Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz)
　Single-phase 200 to 230 VAC (50/60 Hz)

Data Download CAD Manual DoC PDF

Other Data	Safety Instructions　Temperature Control Equipment/Precautions　Features/Series Variations Technical Data　Temperature Control Equipment Warranty　Green Procurement (RoHS)

Series	Set temperature range	Cooling capacity	Temperature stability	Cooling method	Circulating liquid
HRR	5 to 35℃ 15 to 35℃	1.1 kW 1.2 kW 1.8 kW 2.4 kW 3.0 kW 5.1 kW	±0.1℃	Air-cooled refrigeration Water-cooled refrigeration	Tap water Ethylene glycol aqueous solution (15%)

Thermo-chiller/Rack Mount TypeHRR

Series	Download
HRR

■Operable without the need to remove the unit from the rack

■Front Access

■Space Saving

■Caster Adjuster-foot Kit (Optional accessory) New

Applicable for installation in locations other than 19-inch racks. This is a set of unfixed casters and adjuster feet stop.

■Temperature stability: ±0.1ºC

A precision temperature control method which utilizes expansion valves and temperature sensors allowed for the realization of a product with a high temperature stability of ±0.1°C.

■Self-diagnosis function and alarm code display

Display of 24 types of alarm codes Operation is monitored at all times by the integrated sensor.
The applicable alarm code (24 types) is displayed after self-diagnosis.

■Menu for maintenance schedule

When it is time for periodical checks of the pumps, fan motor, dustproof filter, etc.,
a maintenance code will be generated as a reminder. Helpful for facility maintenance

■Displaying screen for operating conditions

Thermo-chiller internal temperature, pressure, etc., can be displayed.

■With heating function

As the heating method uses discharged heat, a heater is unnecessary.
The heating function is effective in maintaining a constant temperature, particularly in the winter when the ambient temperature is low.

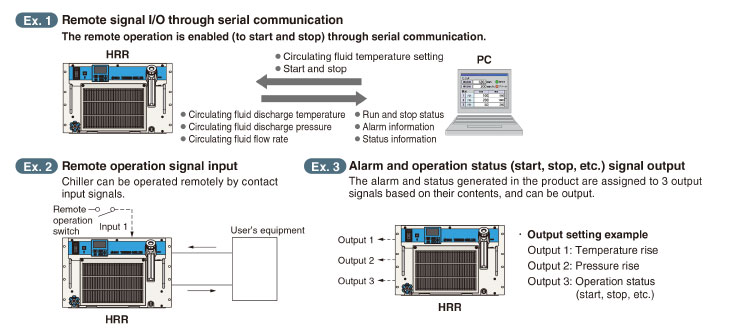

■Communication functions

Serial communication (RS-232C/RS-485) and contact input/output signals (2 inputs and 3 outputs)
are equipped as standard. This allows for communication with the user’s equipment and system construction, depending on the application.

■Inverter specification mechanical sealless pump (HRR010 option)

■Power supply (24 VDC) available

■Variations

■Application Examples

■Global Supply Network

SMC has a comprehensive network in the global market.

We now have a presence of more than 560 branch offices and distributors in 83 countries and regions worldwide. With this global network, we are able to provide a global supply of our substantial range of products and high-quality customer service. We also provide full support to local factories, foreign manufacturing companies, and Japanese companies in each country.

■Circulating Fluid/Facility Water Line Equipment
