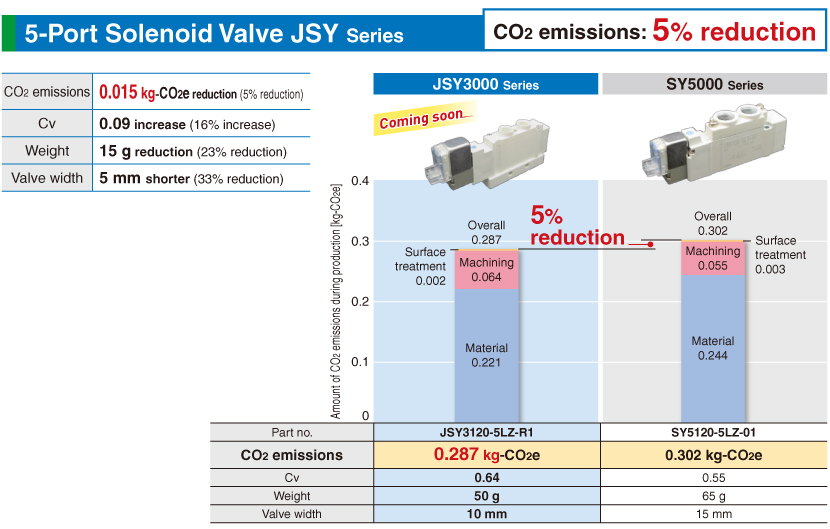

Comparison with existing products (Compact products) Example of CO2 Emissions Reduction
5-Port Solenoid Valve JSY Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information
Compact 5-Port Solenoid Valve/Non Plug-in Type
JSY1000/3000/5000


・Size reduction possible thanks to a flow increase
 This leads to space saving, weight reduction, and a large flow rate.
・Power consumption: 0.1 W (With power saving circuit*),
 0.4 W (Standard)
 *Made to Order
・4-position dual 3-port valve available
・Bottom ported is prepared (A, B port).
・Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
Data Download CAD DoC PDF
Other Data
Series Flow rate characteristics
4/2→3/5(A/B→E)
C[dm3/(s・bar)]
Flow rate ccharacteristics
4/2→3/5(A/B→E)
b
Applicable
cylinder size
Power
consumption
(W)
JSY1000 0.63 0.28 φ32 0.2(With power saving circuit)
JSY3000 1.81 0.27 φ50 0.4(Standard)
0.1(With power saving circuit*)
*Made to Order
JSY5000 3.72 0.18 φ80 0.4(Standard)
0.1(With power saving circuit*)
*Made to Order
