Sustainable Management of CO2

About SMC » Sustainable Management of CO2 » Eco-Products » During the production process CO2 Emission-Reducing Products »  Comparison with existing products (Cableless) - Example of CO2 Emissions Reduction
Comparison with existing products (Cableless) - Example of CO2 Emissions Reduction

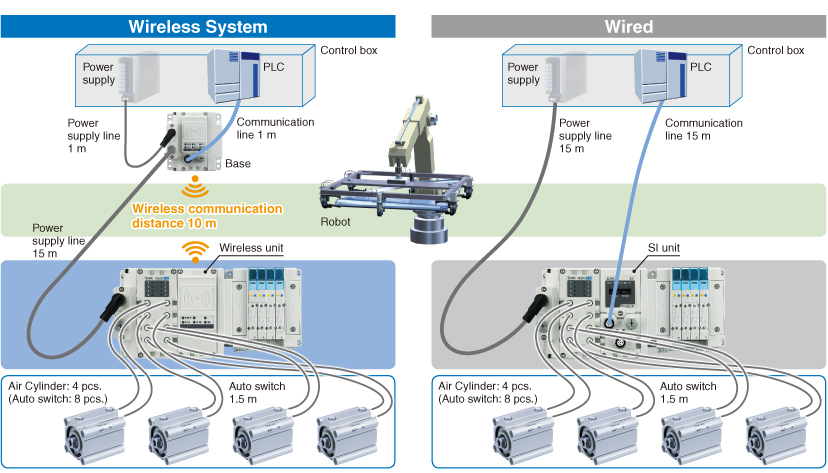

Communication cables not required
Reduced wiring labor, space savings, with minimized disconnection risk.
Reduced wiring labor, space savings, with minimized disconnection risk.

＊The communication wiring distance refers to the actual wiring distance not the wireless communication distance. (The max. wireless communication distance is 10 m.)

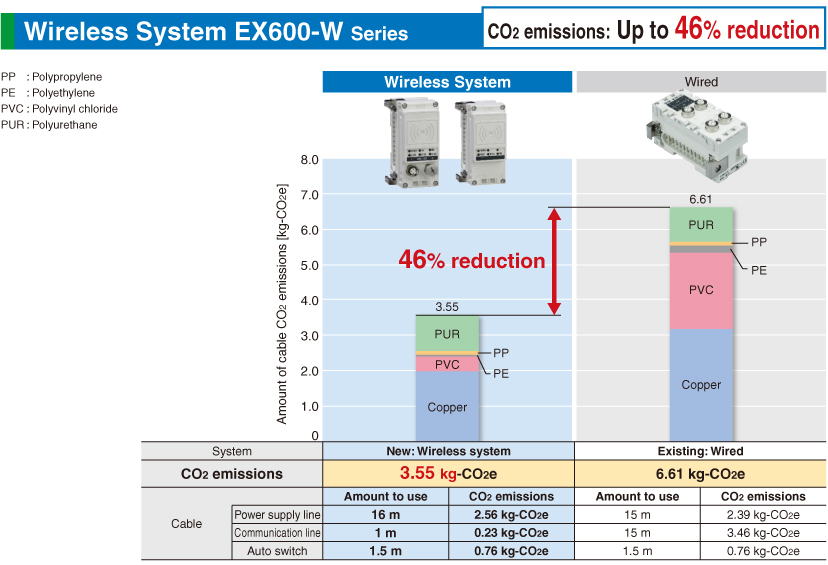

Wireless System EX600-W Series

＊For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information

Wireless System EXW1/EX600-W

Directional Control Valves » Reduced-wiring Fieldbus System (Serial Transmission System)
IO-Link Compatible Products » IO-Link Master
Industrial Device Communication Equipment/Wireless System » Wireless System: PROFINET Compatible Products
Industrial Device Communication Equipment/Wireless System » Wireless System: EtherNet/IP Compatible Products
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: PROFINET Compatible Products
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: EtherNet/IP Compatible Products
Industrial Device Communication Equipment/Wireless System » Wireless System: IO-Link Compatible Products
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: IO-Link Compatible Products
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: EtherCAT Compatible Products
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: CC-Link Compatible Products
Industrial Device Communication Equipment/Wireless System » Wireless System: CC-Link Compatible Products
Directional Control Valves » Wireless System
Industrial Device Communication Equipment/Wireless System » Wireless System: EtherCAT Compatible Products
Industrial Device Communication Equipment/Wireless System » Wireless System: DeviceNet Compatible Products
Features
    ・Analog input, digital input/output, and valve manifold have been
    　added to the compact type EXW1 series. [New]
    ・Noise resistance
    　Uses the 2.4 GHz ISM frequency band
    　Frequency hopping: Every 2 ms (Fastest)
    ・Communication cables not required
    　Reduced wiring work, space, and cost
    　Minimized disconnection risk
    ・Provides communication stability in FA environments
    ・Compact and lightweight (EXW1)
    　Volume: Approx. 81% reduction, Weight: Approx. 76% reduction

    *The EX600-WEN□ and WPN□ (EtherNet/IP and PROFINET compatible
    　bases) are to be discontinued as of the end of March 2025.
    　When designing new equipment and facilities, consider using the
    　EXW1 series instead.

    　▶IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Wireless System EXW1/EX600-W
    Manual
    Series View search result
    EXW1View search result
  • Wireless System EXW1/EX600-W
    DoC
    Series View search result
    EXW1View search result
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Fieldbus System Precautions
Industrial IoT Cybersecurity　Remote I/O, goes to “Wireless”　Glossary of Fieldbus Terms　Green Procurement (RoHS)
SeriesEnclosureCommunication protocolApplicable valve
EXW1IP20/IP67DeviceNet®
CC-Link
EtherNet/IP™
EtherCAT®
PROFINET
OPC UA		JSY1000, 3000, 5000
