Pilot Operated 4/5 Port Solenoid Valves

Compact 5-Port Solenoid Valve/Non Plug-in Type
JSY1000/3000/5000

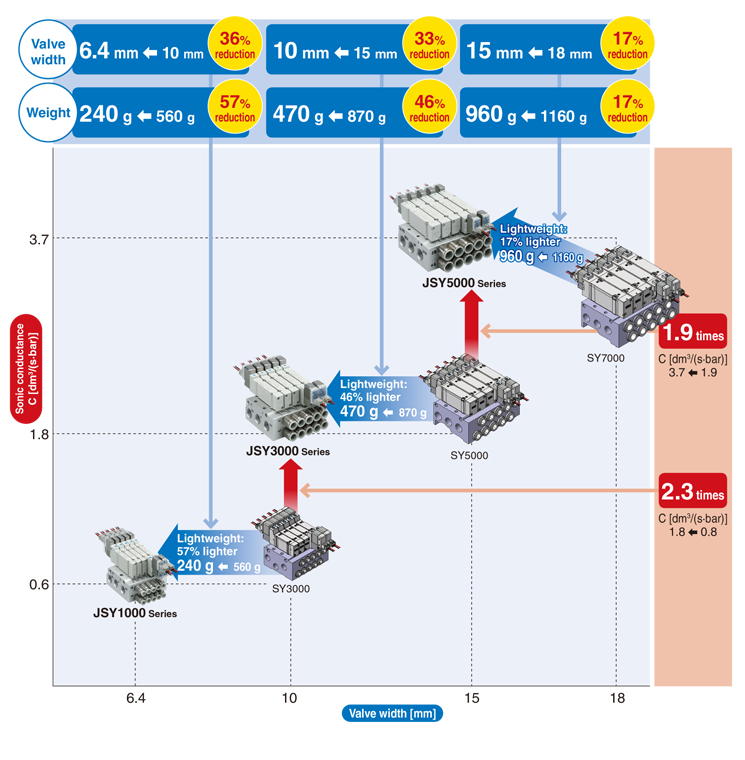

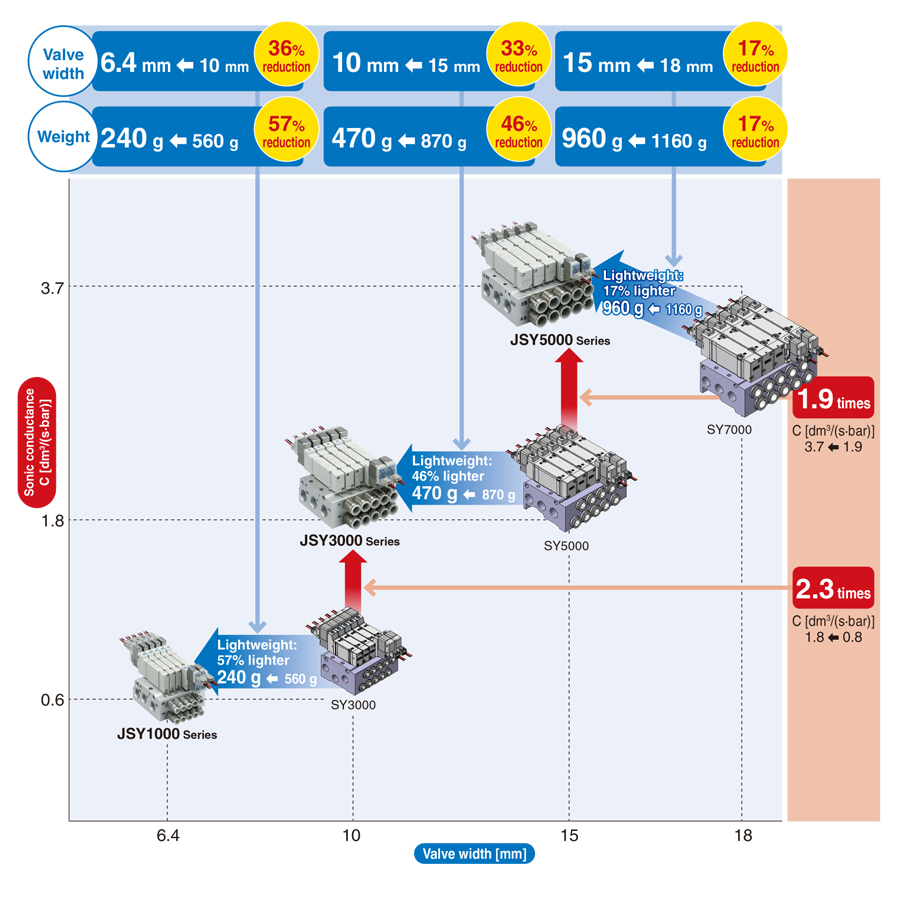

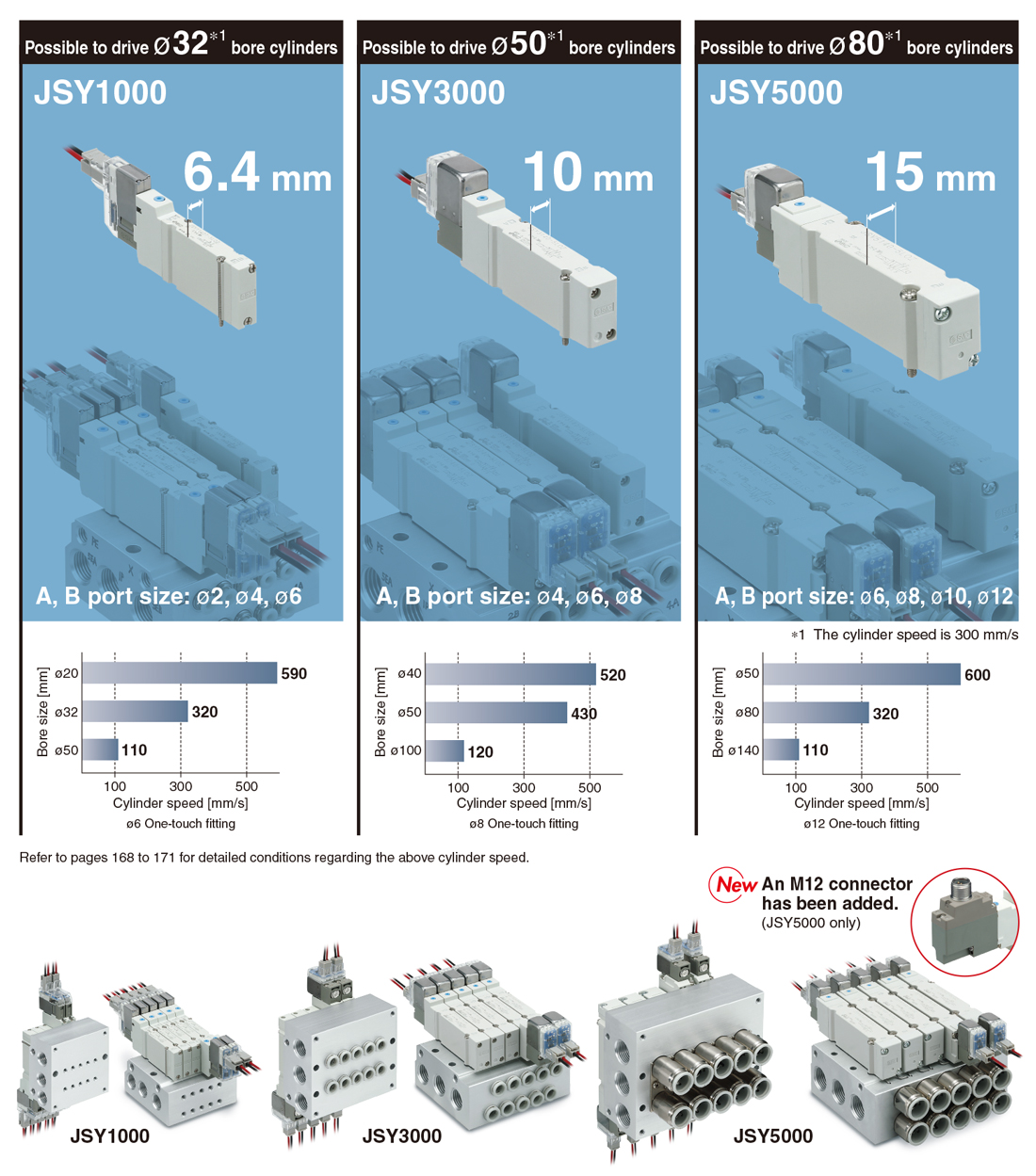

    ・Size reduction possible thanks to a flow increase
    　This leads to space saving, weight reduction, and a large flow rate.

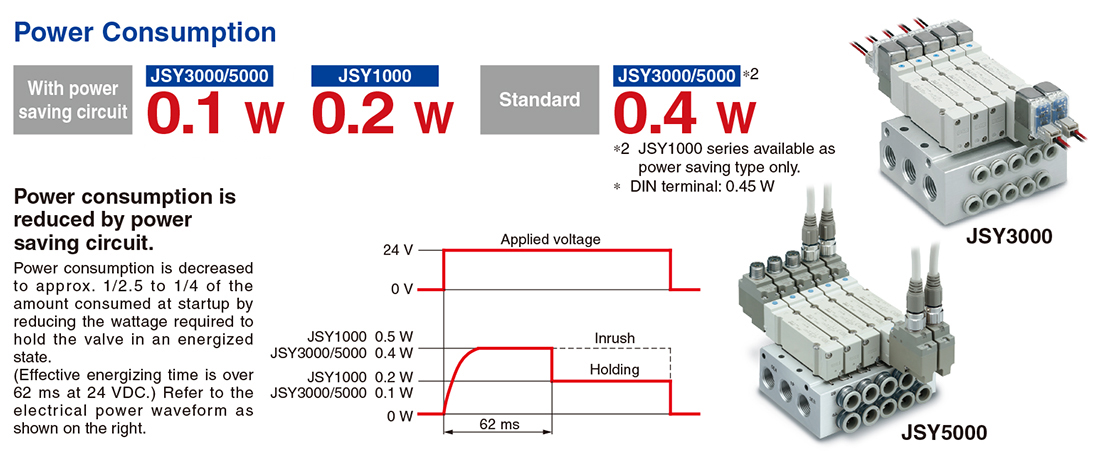

    ・Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard)
    　*Made to Order
    ・4-position dual 3-port valve available
    ・Bottom ported is prepared (A, B port).
    ・Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
    ・Body ported single unit (For mounting P.E plate)
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→3/5（A/B→E）
C［dm3/（s・bar）］		Flow rate ccharacteristics
4/2→3/5（A/B→E）
b		Applicable
cylinder size		Power
consumption
(W)
JSY10000.630.28φ320.2(With power saving circuit)
JSY30001.810.27φ500.4(Standard)
0.1(With power saving circuit*)
*Made to Order
JSY50003.720.18φ800.4(Standard)
0.1(With power saving circuit*)
*Made to Order

Features

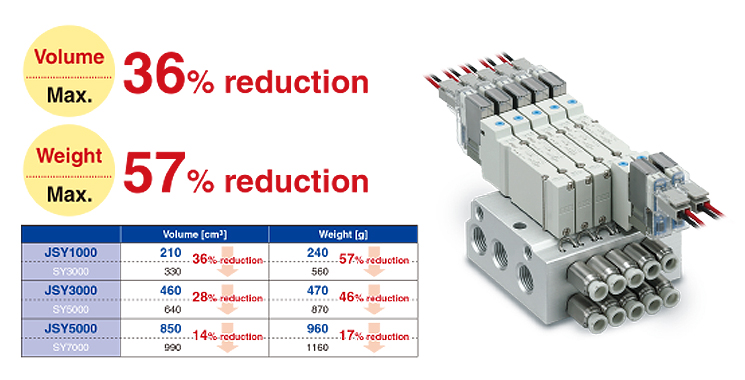

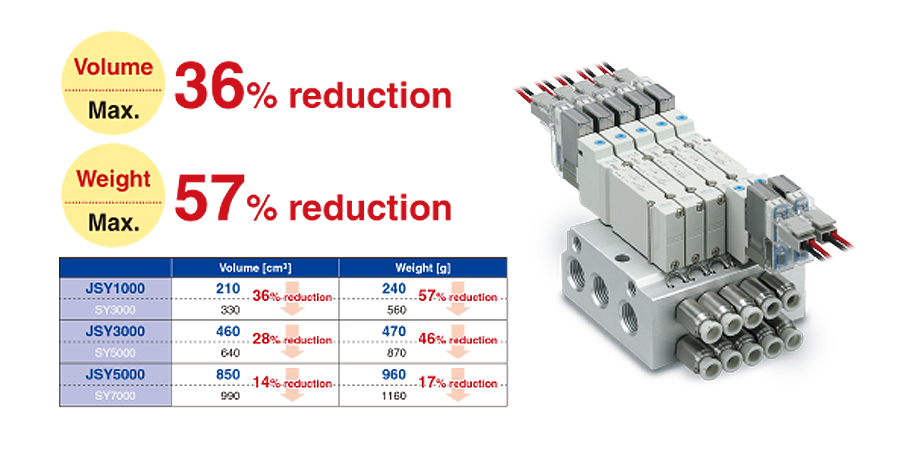

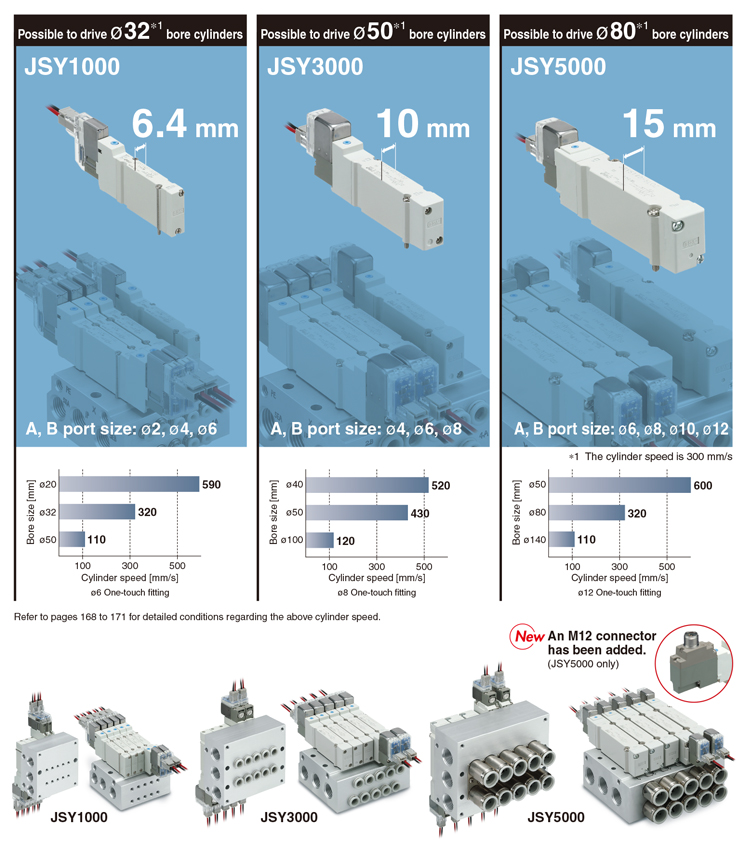

Size reduction possible thanks to a flow increace

this leads to space saving, weight reduction, and a large flow rate.

Series MAP

Power Saving

Space Saving

  • 4-Position Dual 3-Port Valve Available

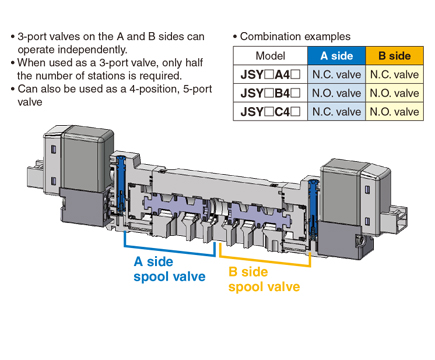

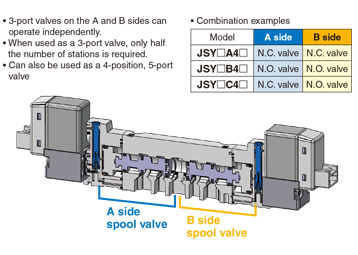

    Two 3-port valves built into one body

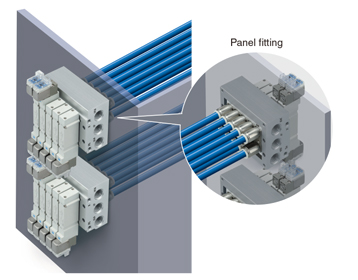

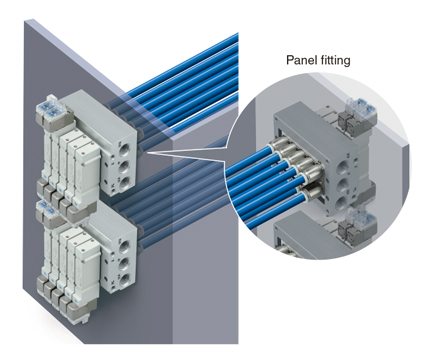

  • Bottom ported is prepared(A,B port).

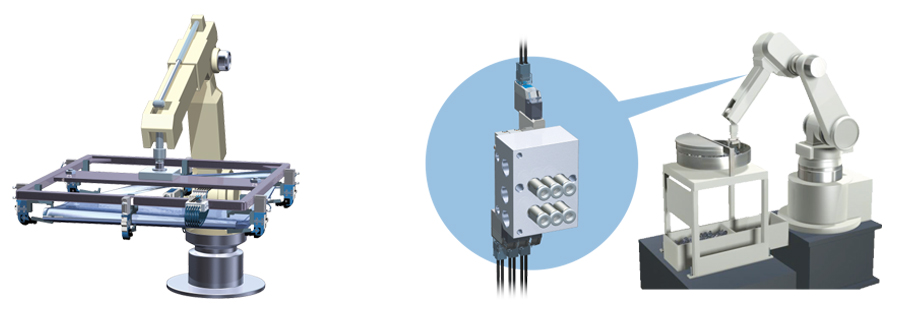

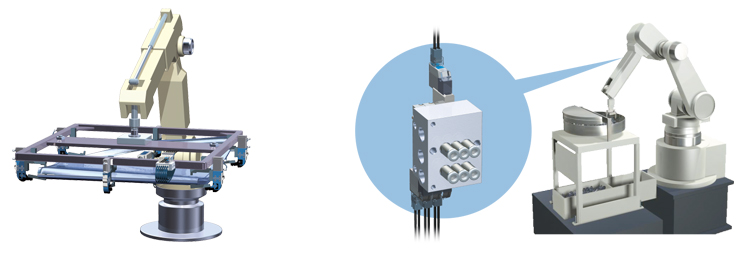

Application Examples
