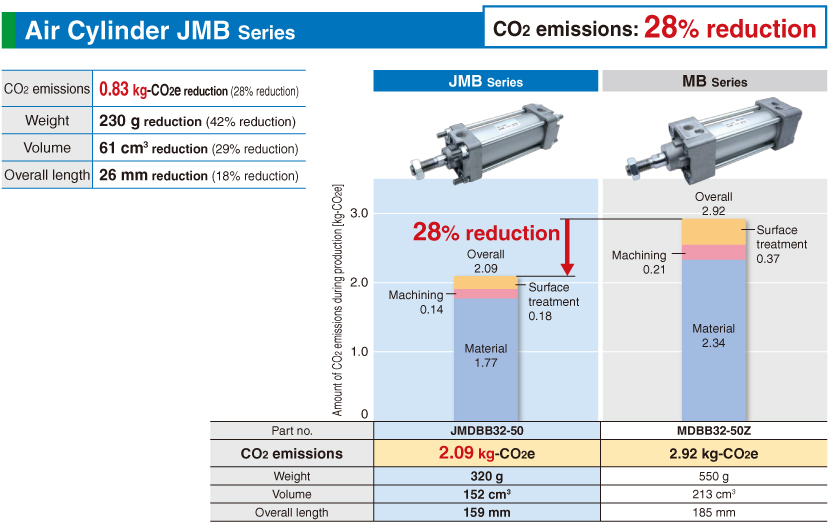

Comparison with existing products (Compact products) Example of CO2 Emissions Reduction
Air Cylinder JMB Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information


・Intermediary bore sizes: ø45, ø56, ø67, ø85
 Air saving, Space saving
・Overall length shortened by 27 mm
・Weight reduced by up to 36% (1.56 kg → 1.00 kg)
・ Air saving: Reduced by up to 29%
 Air consumption can be reduced by optimal size selection.
・Reduces labor time
 Air cushion adjustment is not required due to the non-adjustable air cushion.
・With auto switch (JMDB series: JMDB)
・A foot type and a flange type have been added. (ø32, ø40, ø50, ø63, ø80, ø100)
Data Download CAD PDF
Other Data
Type Series Action Bore size (mm)
Standard JMDB Double acting, Single rod 32, 40, 45, 50, 56, 63, 67, 80, 85, 100
