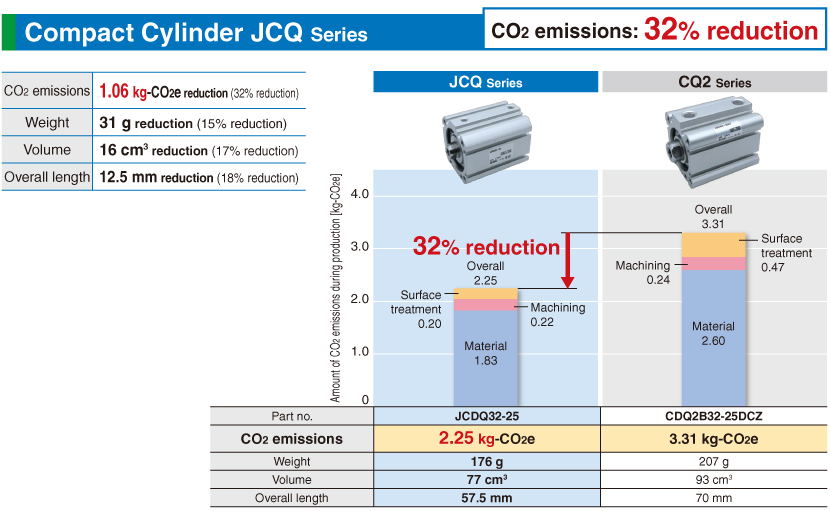

Comparison with existing products (Compact products) Example of CO2 Emissions Reduction
Compact Cylinder JCQ Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information


・Compact: Overall length shortened by 6.5 mm, Width shortened by 6 mm,
 Height shortened by 4 mm
・Weight: Max. 46% lighter (382 g → 204 g) (Flange mounting)
・Volume: Max. 40% reduction
・With auto switch (JCDQ series: JCDQ)
・An axial foot type and a flange type have been added. (ø32 to ø100)
Data Download CAD PDF
Other Data
Type Series Action Bore size (mm)
Standard JCQ Double acting, Single rod 12,16,20,25,32,40,50,63,80,100
