Slit Valves

For 300 mm Wafer: Parallel Seal Type Slit Valve XGTP

    ・Long service life: 3 million cycles (within standard temperature range)
    ・Low particle generation: Reduced by 1/5 or more
    　(compared with the existing product)
    ・Easier maintenance
    　Easy replacement of bellows
    　Gate can be replaced from above. (Made to order)
    ・Safety measures
    　A mechanical end lock mechanism has been adopted.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • For 300 mm Wafer: Parallel Seal Type Slit Valve XGTP
    Manual
    Series View search result
    XGTPView search result

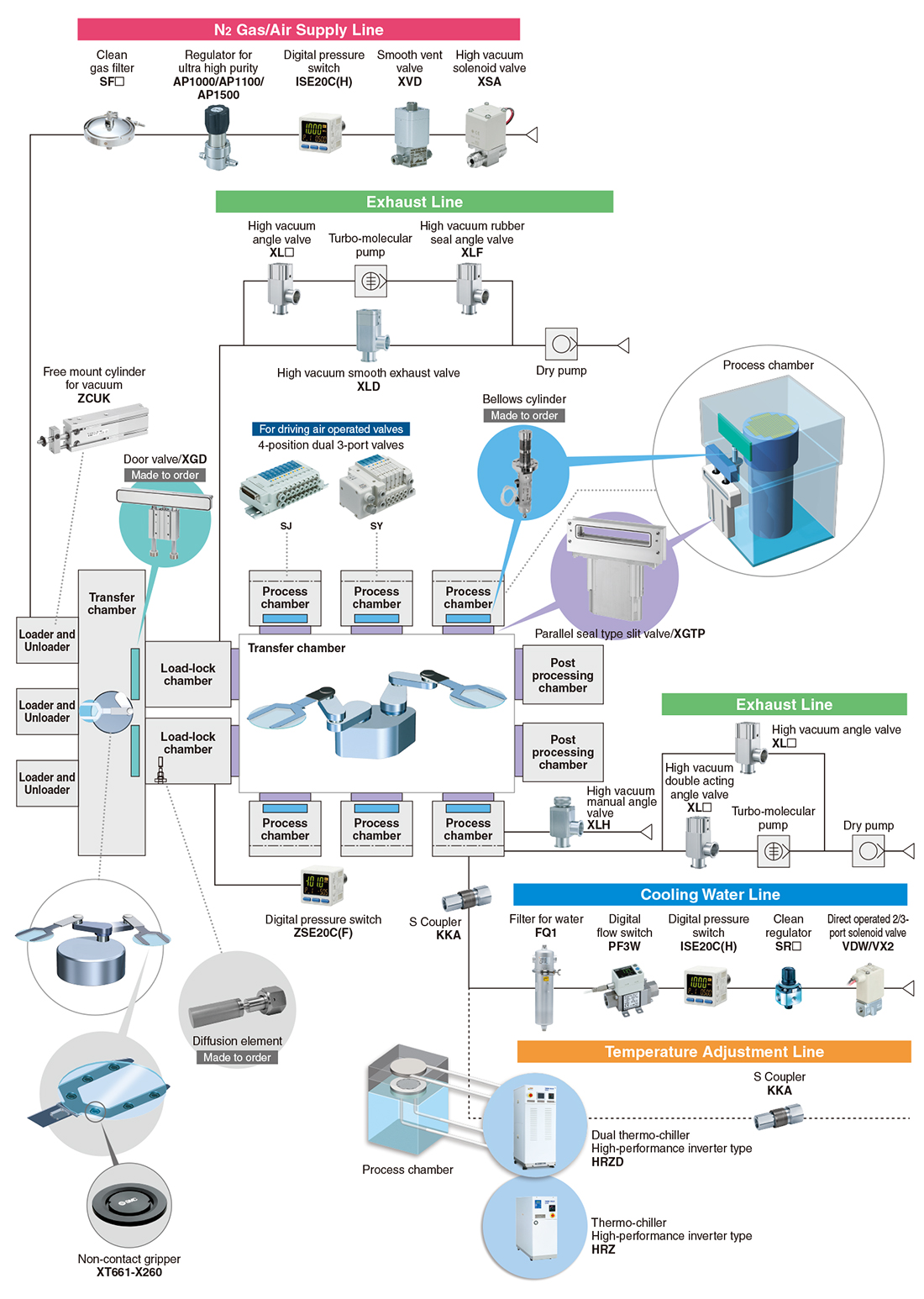

Safety Instructions　System Configuration/Series Variations　Green Procurement (RoHS)
SeriesOperating environmental
pressure (Pa)(abs)		FluidOpening window size
(Height x Width)
(mm)		Operating
pressure
(MPa)(G)
XGTPAtmospheric pressure
to 10-6		Inert gas50 x 3360.45 to 0.6

Features

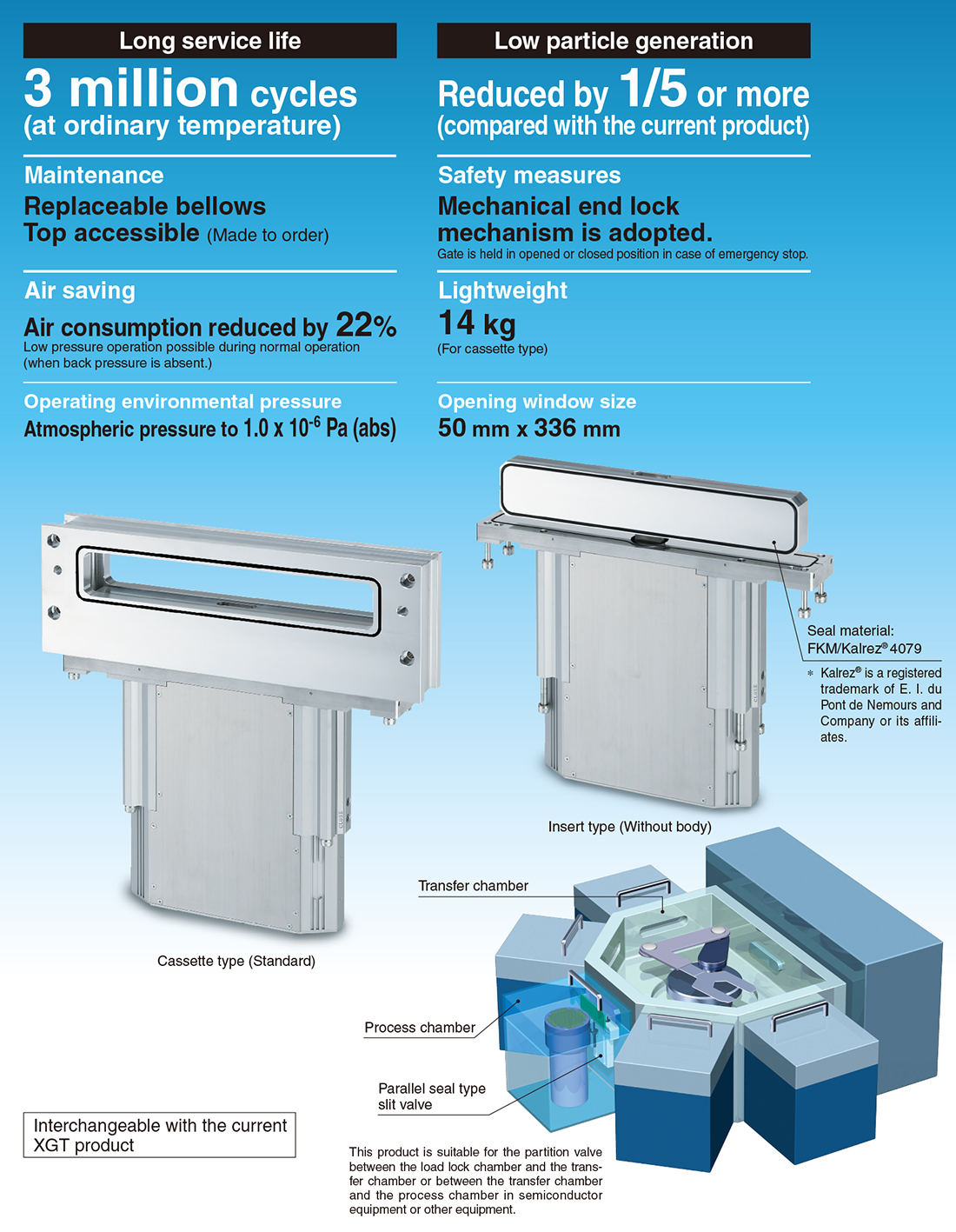

■Long service life 3 million cycles (at ordinary temperature)
　Low particle generation Reduced by 1/5 or more
■Low particle generation and longer service life through the use of
　a parallel sealing motion

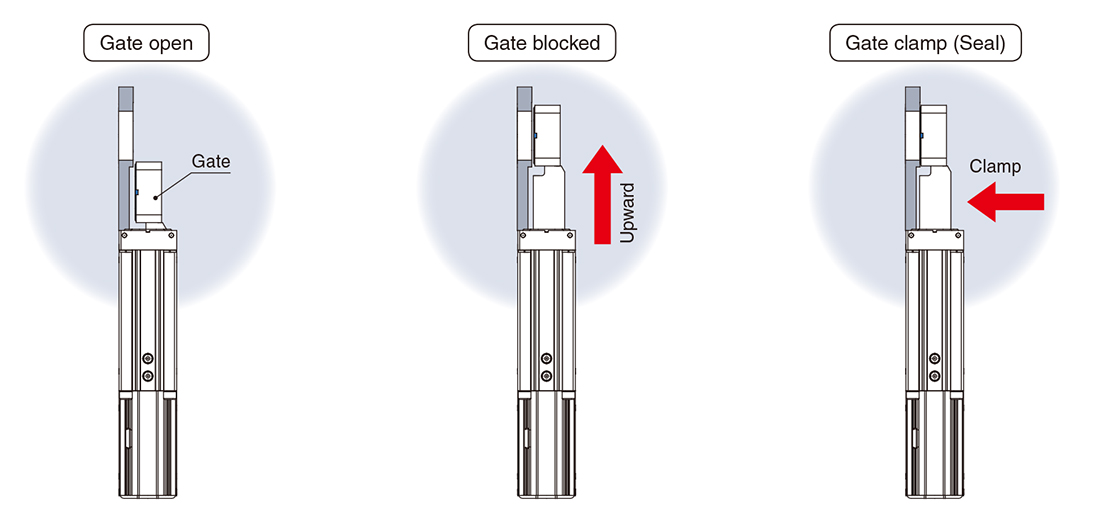

The gate moves vertically upward and downward, gate sealing/clamping is made with a parallel motion.

■Easier maintenance

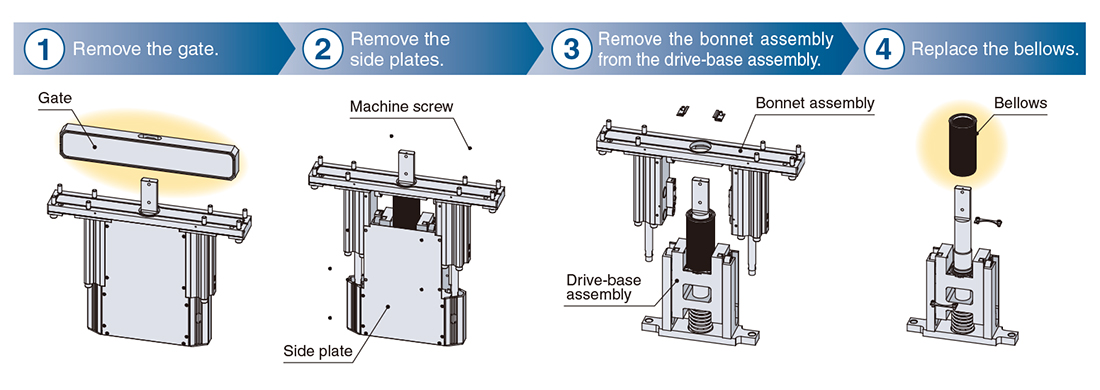

Easy replacement of bellows

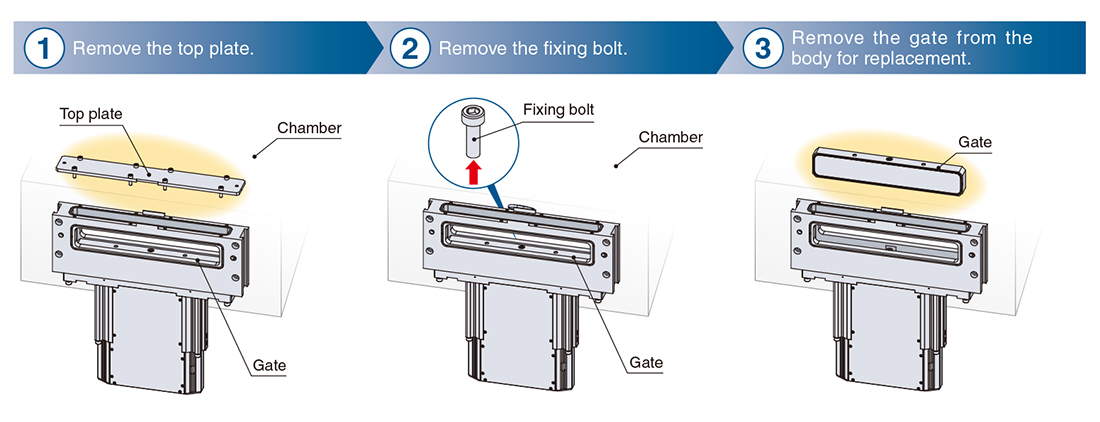

Gate can be replaced from above.(Made to order)
