Pilot Operated 4/5 Port Solenoid Valves

Valve Manifold Integrated with Ejector System JSY1000-E

    ・A vacuum release flow adjustment unit has been added. [New]
    ・Compact all-in-one manifold
    　The devices have been integrated into one for applications in which an
    　actuator and vacuum suction are used together.
    ・EtherCAT® compatible
    ・Wiring/piping saving through use of all-in-one manifold
    ・Installation area: 64% reduction
    ・Weight: 42% reduction
    ・Energy saving function
    　CO2 emissions (Air consumption): 90% reduction
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→3/5 (A/B→E)
C [dm3/(s・bar)]		Flow rate characteristics
4/2→3/5 (A/B→E)
b		Applicable
cylinder size		Power
consumption
(W)
JSY1000-E0.910.48φ400.2
(With power-saving circuit)

Features

Valve Manifold Integrated with Ejector System JSY1000-E Series

A vacuum release flow adjustment unit has been added. New

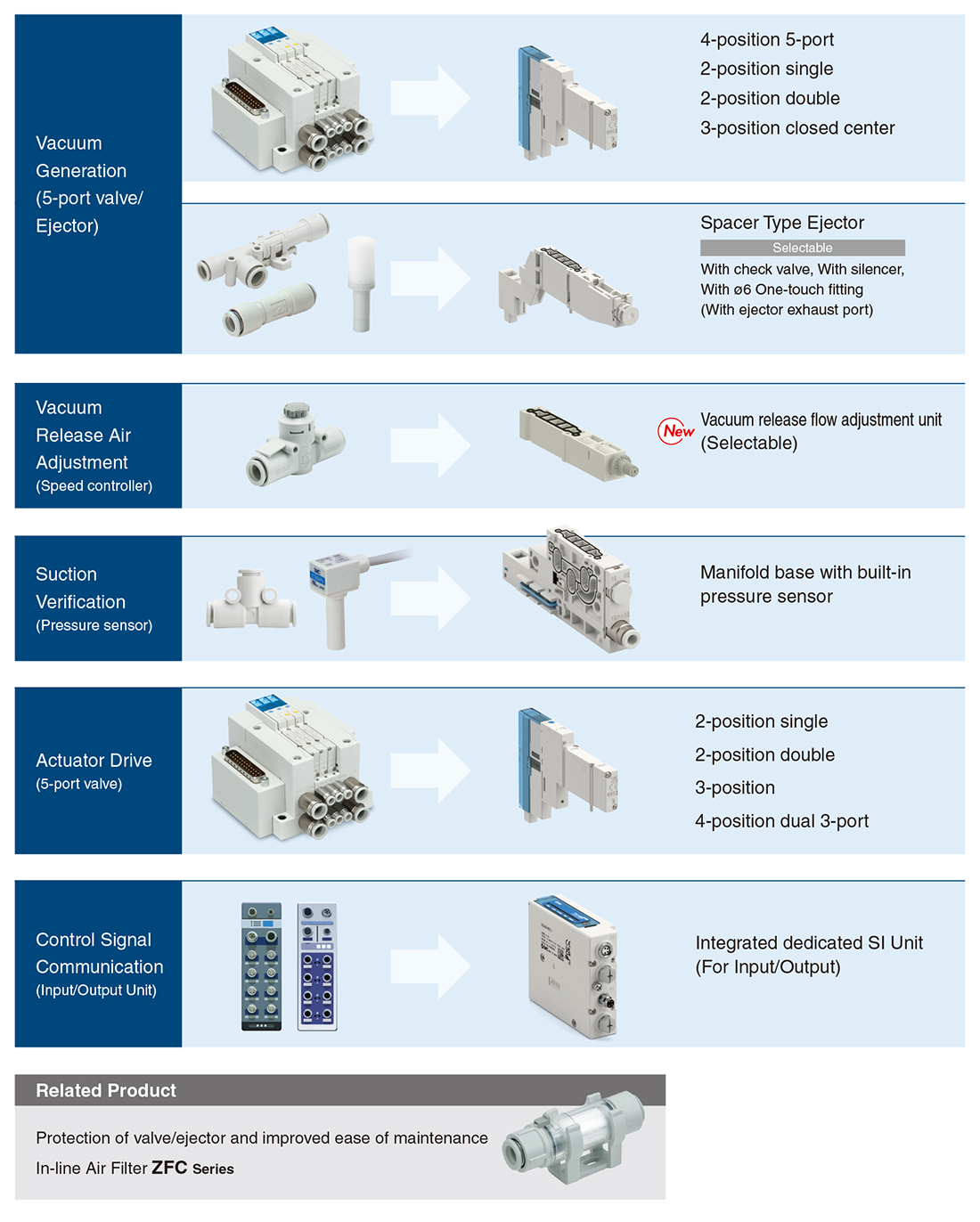

The devices for control of actuators and vacuum suction are integrated into one to reduce the wiring and piping.

▶Click here for details on the ZFC series.

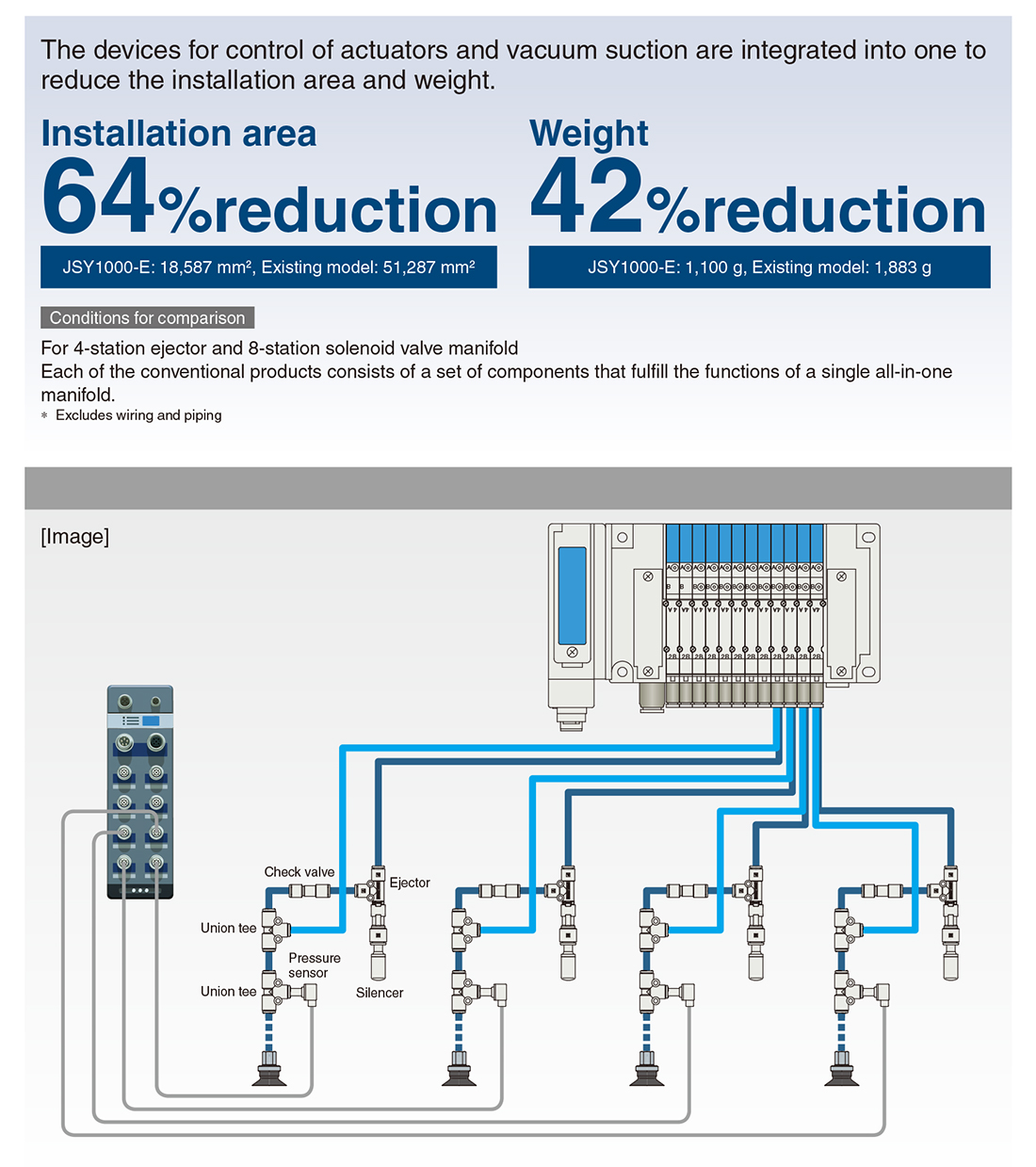

Space Saving and Weight Reduction through Use of All-in-One Manifold

■Space Saving



■Weight Reduction

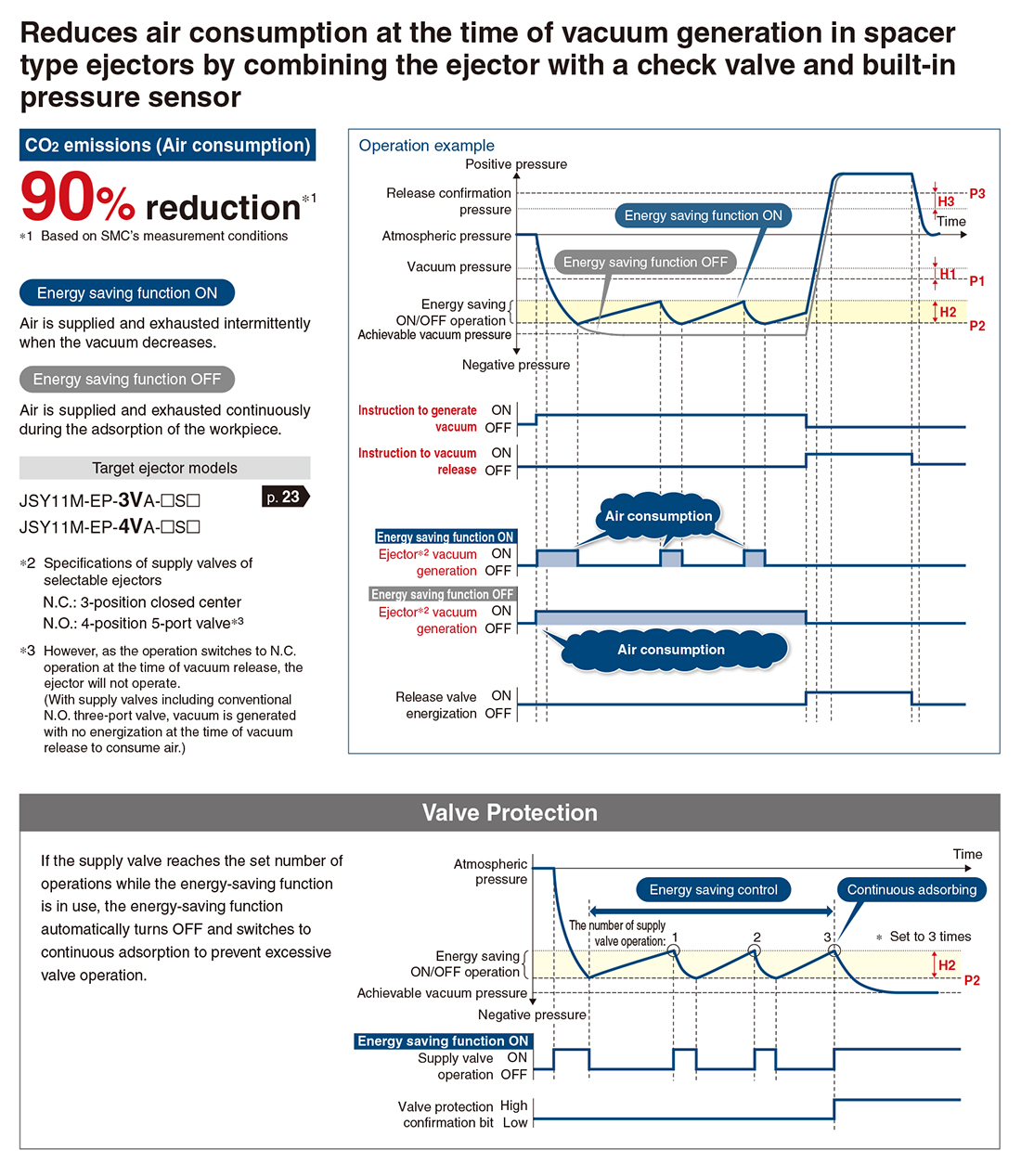

Energy Saving Function

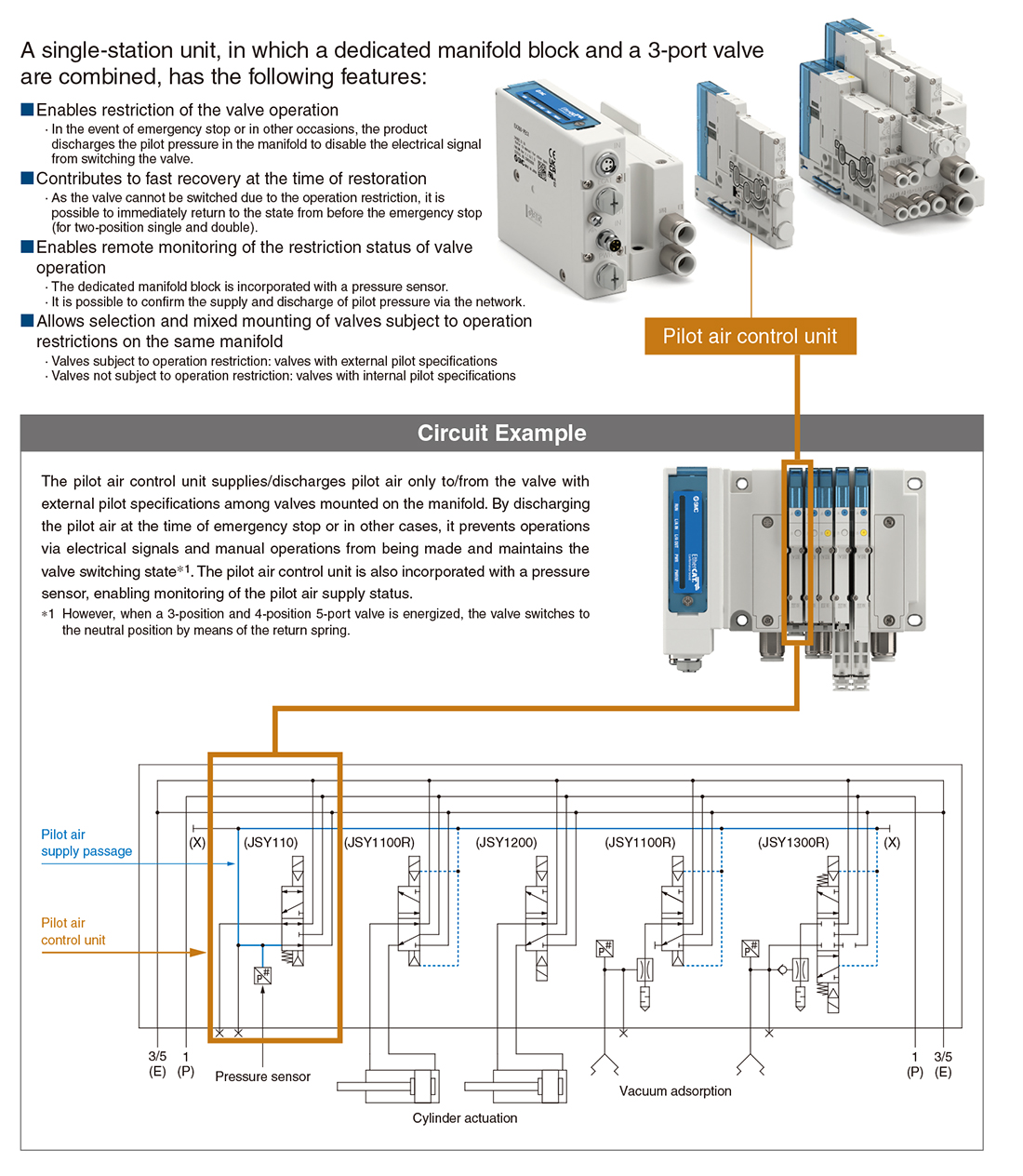

Pilot Air Control Unit

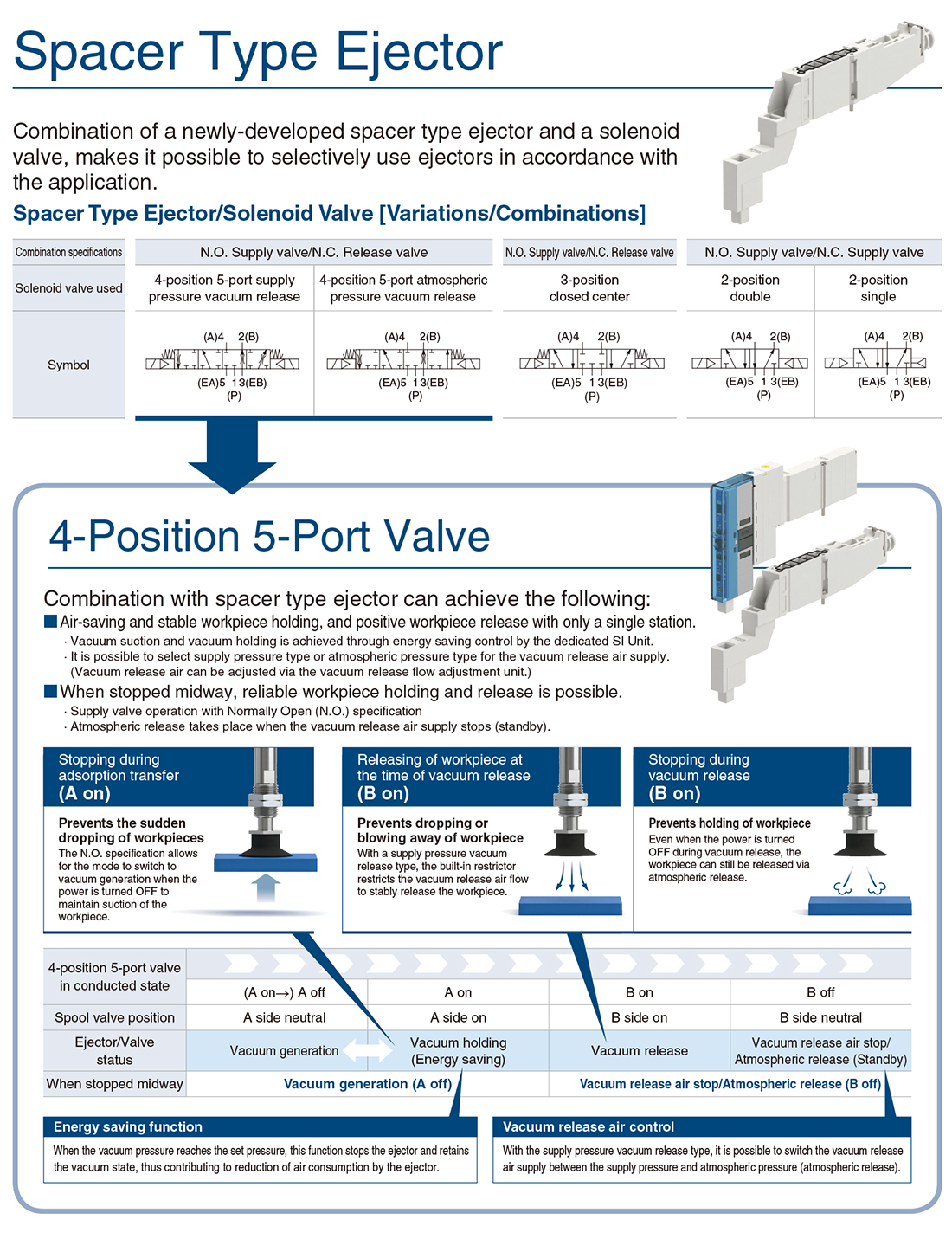

Spacer Type Ejector
