Table Cylinders

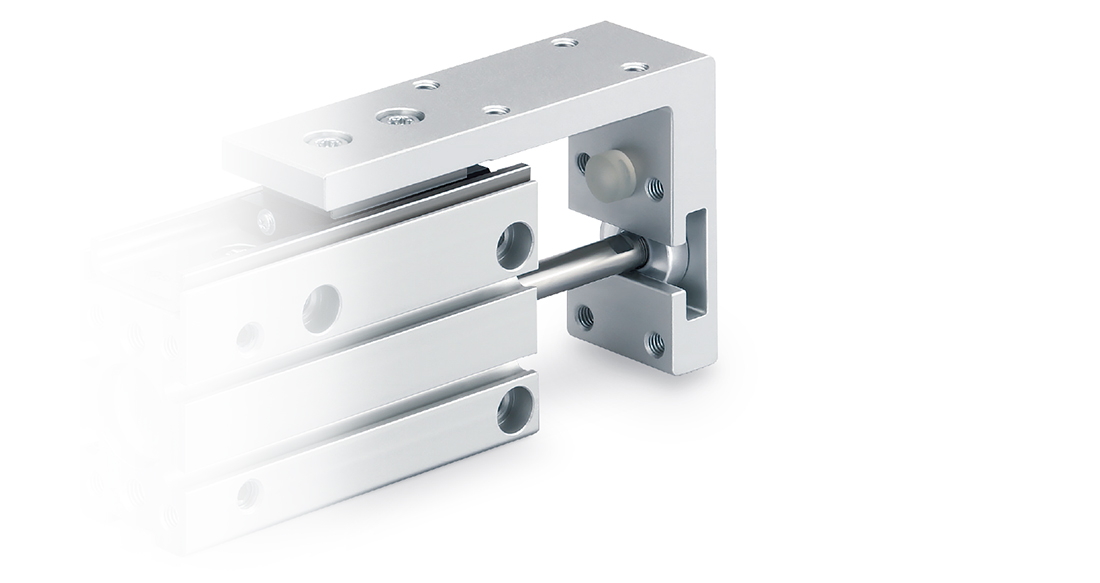

Compact Slide MXH2
-
・Size ø25 have been added.
Same width as size ø20
Allowable moment: Max. 1.4 times greater than that of size ø20

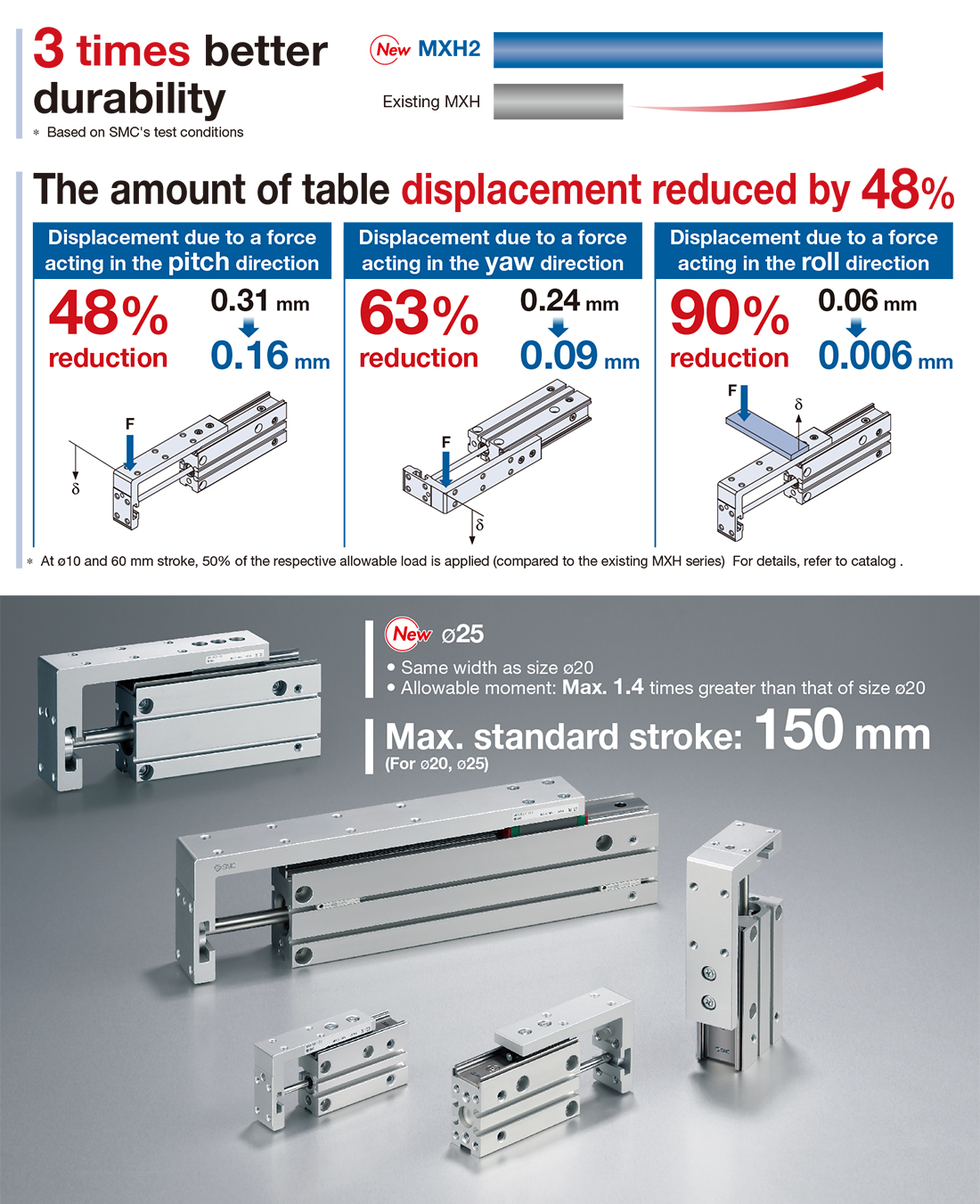

・Improved linear guide rigidity reduces the amount of table displacement
by 48%
Displacement due to a force acting in the pitch direction: 48% reduction
(0.31 mm→0.16 mm)
Displacement due to a force acting in the yaw direction: 63% reduction
(0.24 mm→0.09 mm)
Displacement due to a force acting in the roll direction: 90% reduction
(0.06 mm→0.006 mm)
・Max. standard stroke: 150 mm (For ø20, ø25)
・Weight: Max. 6% reduction (194 g→182 g)
・Dimensions for mounting and length are equivalent to the existing MXH
series.
Safety Instructions Actuators/Precautions
Auto Switches/Precautions Model Selection/Technical Data Green Procurement (RoHS)
Auto Switches/Precautions Model Selection/Technical Data Green Procurement (RoHS)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MXH2 | Double acting | 6，10，16，20，25 |
Features
Improved linear guide rigidity
High Rigidity Achieved

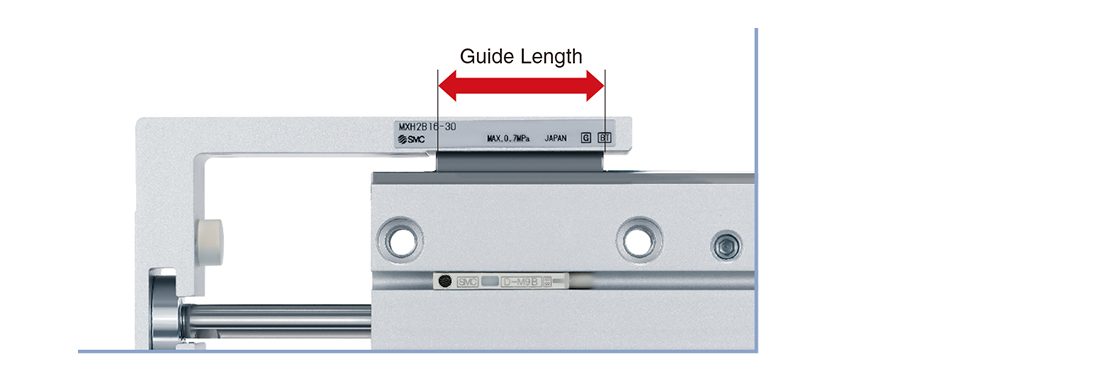

Increased rigidity by extending the guide length of the linear guide.
Significantly reduced table displacement when a moment is applied.

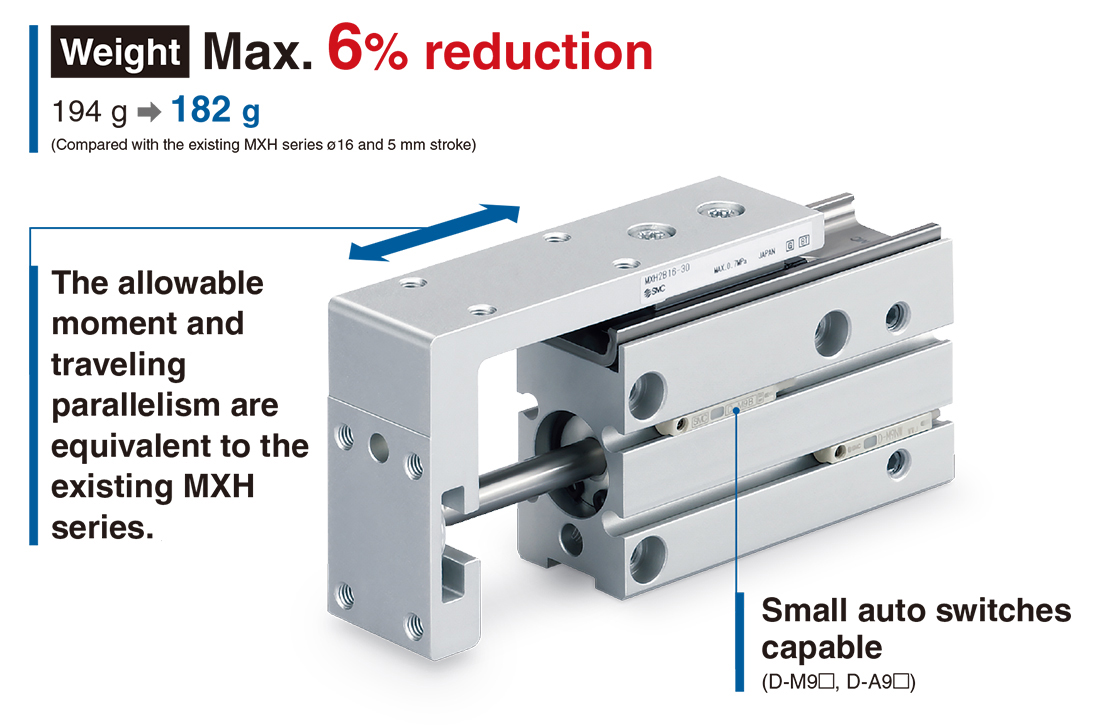

Weight: Max. 6% reduction (194 g → 182 g)

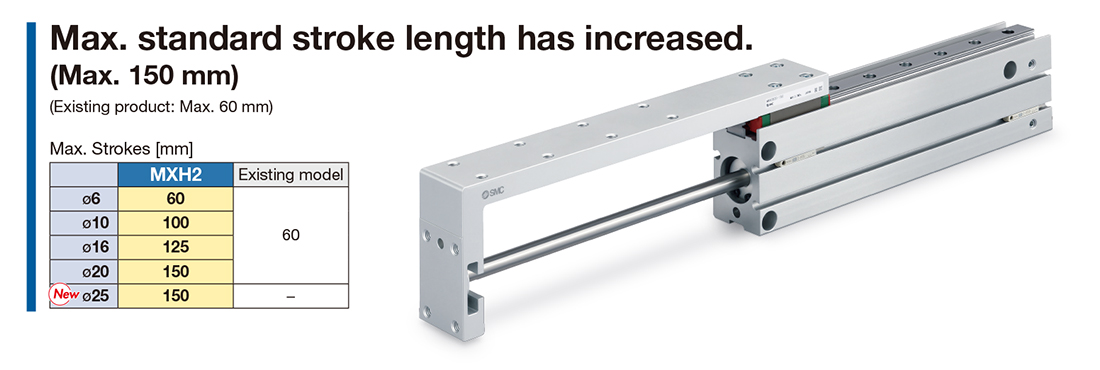

Max. standard stroke length has increased. (Max. 150 mm)
(Existing product: Max. 60 mm)

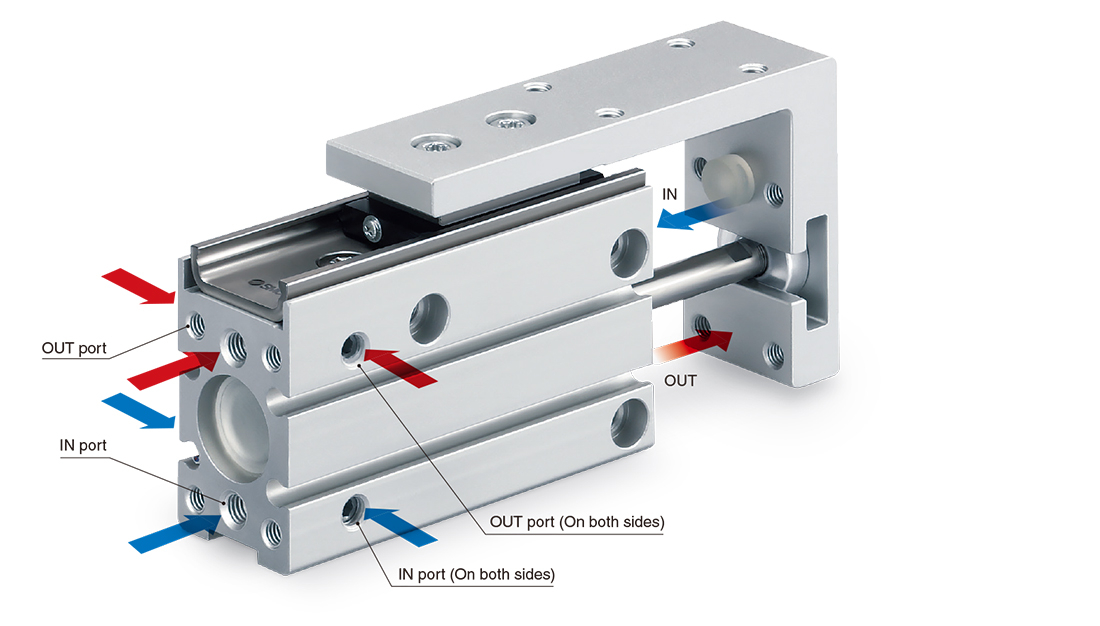

Piping is possible in 3 directions.
If changing the port location, “Made to Order” model (-XC3 □ ) is available.
Bumper

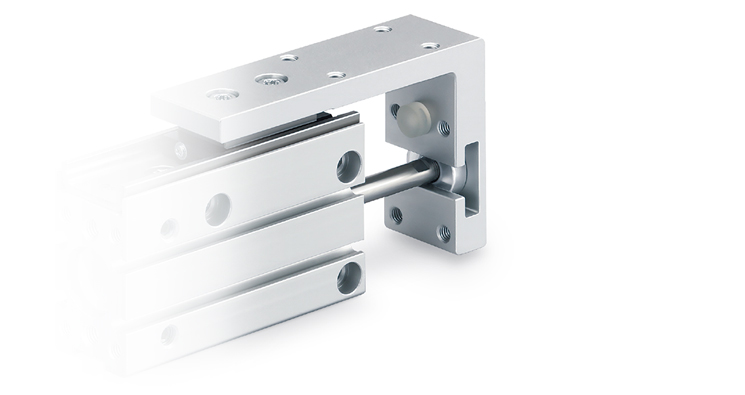

A bumper is also installed inside the cylinder.

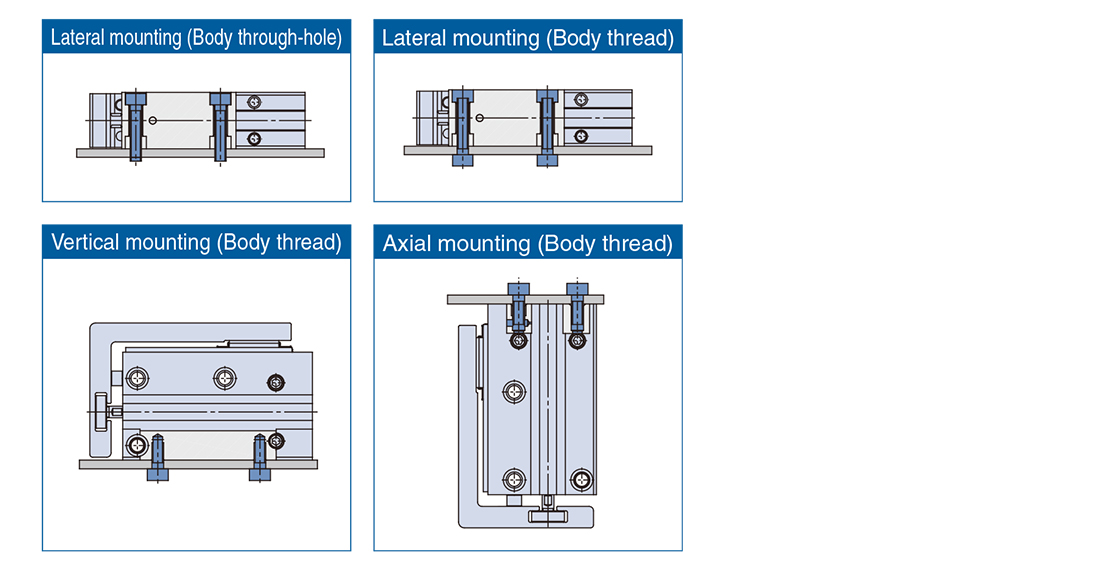

Mounting is possible in 4 directions.

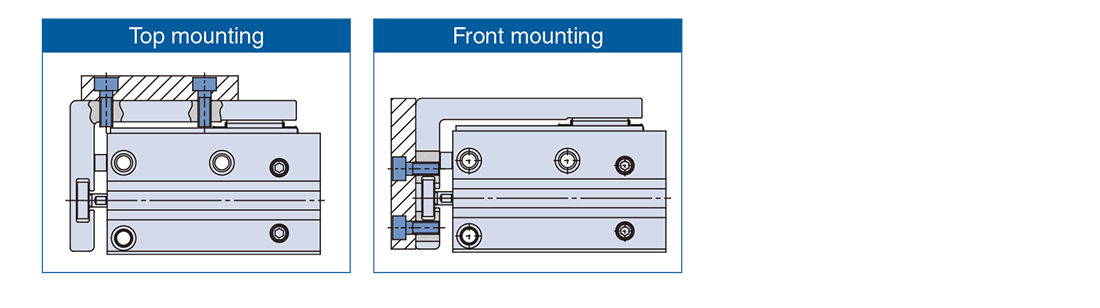

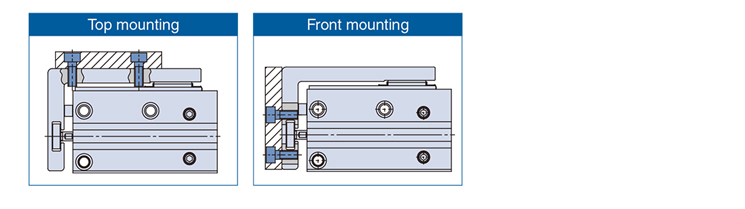

2 mounting options for workpieces are available.
Dimensions for mounting and length are equivalent to the existing MXH series.
Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.

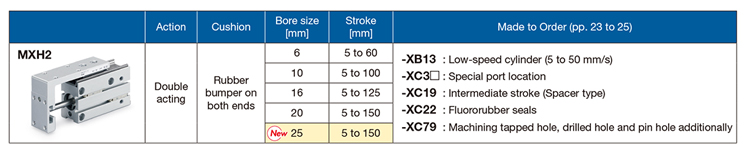

Variations
