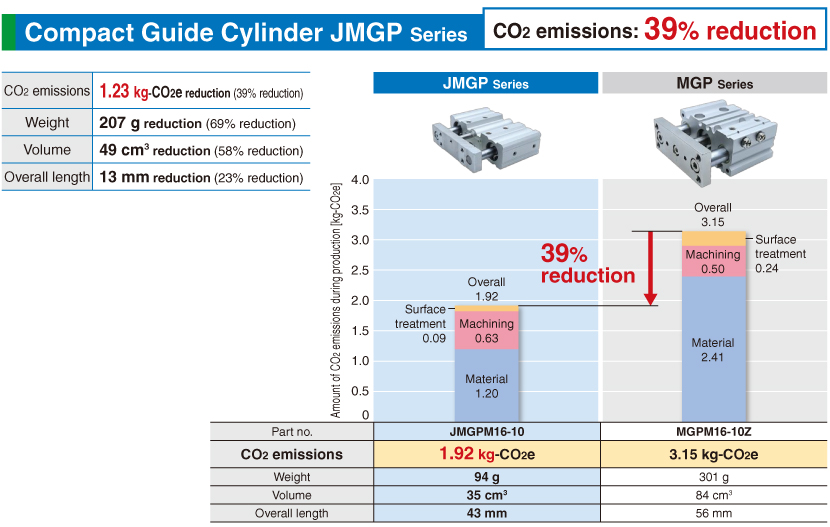

Comparison with existing products (Compact products) Example of CO2 Emissions Reduction
Compact Guide Cylinder JMGP Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information


・Compact: Overall length shortened by 30.5 mm, Height
 shortened by 16 mm
・Weight: Max. 69% lighter (0.32 kg → 0.1 kg)
・3 mounting options: Top mounting, Bottom mounting,
 Rear mounting
・Piping is possible in 4 directions.
・The solid state auto switch D-M9□ is mountable.
・Suitable for pushing, lifting, or clamping in a transport line.
Data Download CAD PDF
Other Data
Type Bearing Series Action Bore size (mm)
Basic type Slide bearing JMGPM Double acting 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
