Sustainable Management of CO2

Comparison with existing products (Compact products)Example of CO2 Emissions Reduction

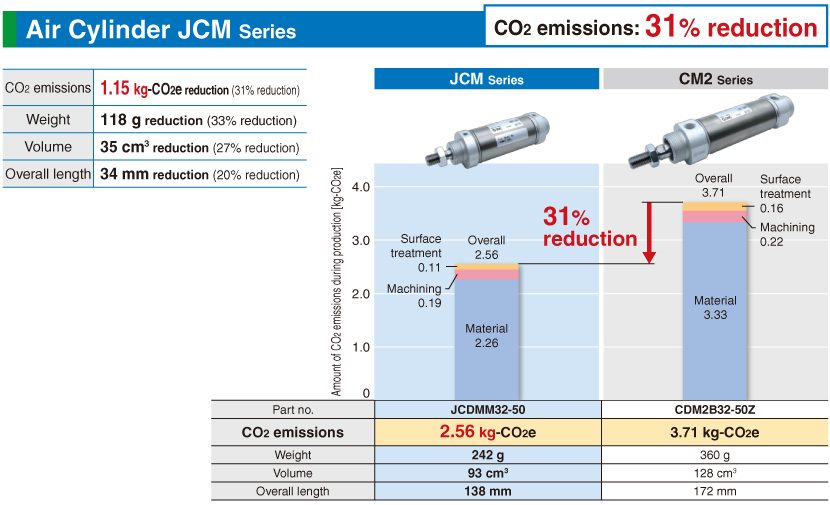

Air Cylinder JCM Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

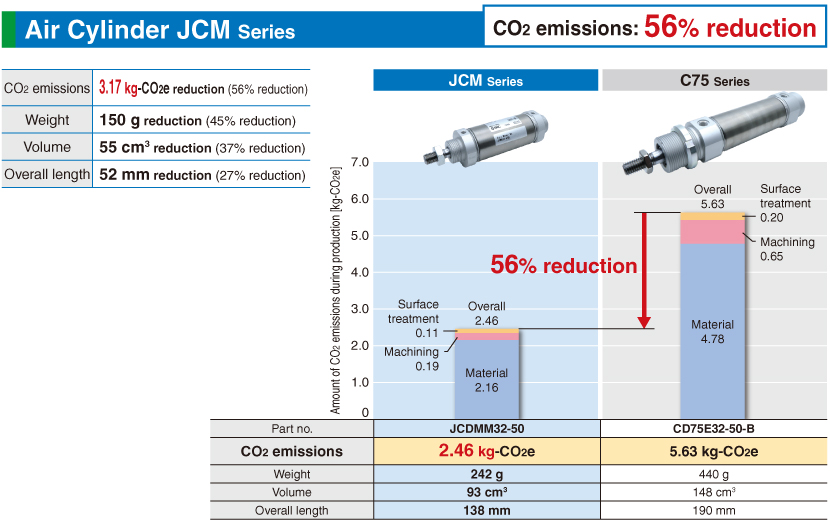

Air Cylinder JCM Series

*For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information


・A foot type and a flange type have been added. [New]
・Overall length shortened by up to 97 mm
・Weight: Max. 54% lighter (0.69 kg→0.32 kg)
・Various cover types available
・Port size: M5, Rc1/8, and NPT1/8 available
・Male and female rod ends available
・With auto switch (JCDM series: JCDM)
Data Download CAD PDF
Other Data
Type Series Action Bore size (mm)
Standard JCM Double acting, Single rod 20,25,32,40
