真空吸盤

Vacuum Pad ZP3C

    ・Suitable for the adsorption transfer of corrugated cardboard, etc.,
    　requiring abrasion resistance
    ・Material: FS61 (Fluoro-based rubber) improves abrasion resistance
    　∗ More than twice the abrasion resistance of SMC’s urethane pads
    ・Easier maintenance
    　Compatible with 2 types of mounting tools
    ・Reduced suction of foreign matter due to mesh filter
    　Reduced suction of foreign matter into the vacuum pump and ejector
    　The pad and mesh filter can be replaced without tools.
    　The separation and disposal of the metal and rubber parts is possible.
Safety Instructions　Vacuum Equipment/Precautions　Vacuum Pads/Precautions
Series Variations/Model Selection　Green Procurement (RoHS)
SeriesPad formPad diameter(mm)
ZP3CFlat type with ribφ32, φ40, φ50
ZP3CBellows typeφ32, φ40, φ50

產品特點

Suitable for the adsorption transfer of corrugated cardboard, etc., requiring abrasion resistance

Material: FS61 (Fluoro-based rubber) improves abrasion resistance

∗ More than twice the abrasion resistance of SMC’s urethane pads

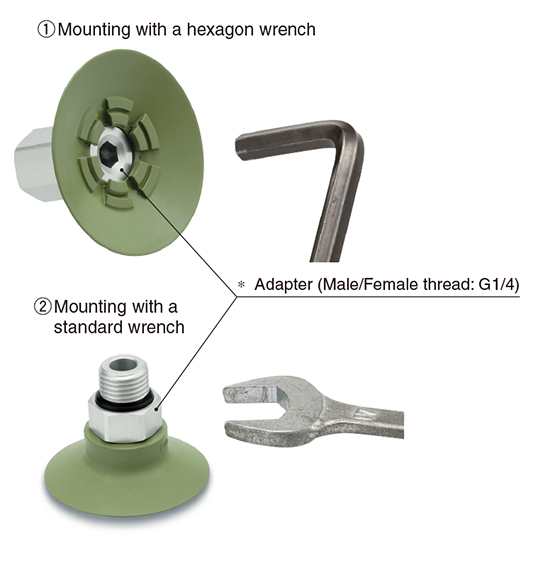

  • Easier maintenance

    Compatible with 2 types of mounting tools

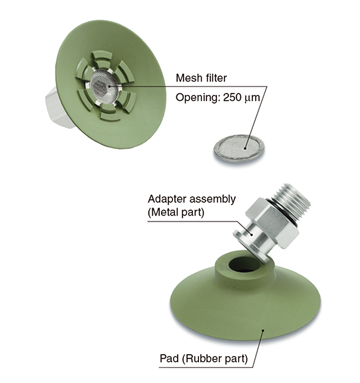

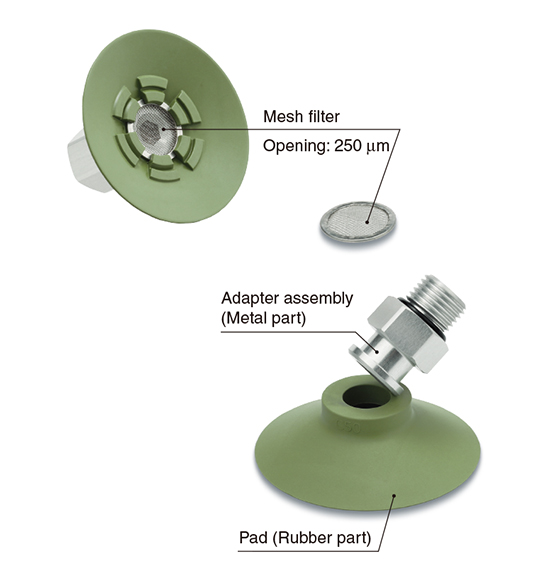

  • Reduced suction of foreign matter due to mesh filter

    Reduced suction of foreign matter into the vacuum pump and ejector
    　The pad and mesh filter can be replaced without tools.
    The separation and disposal of the metal and rubber parts is possible.

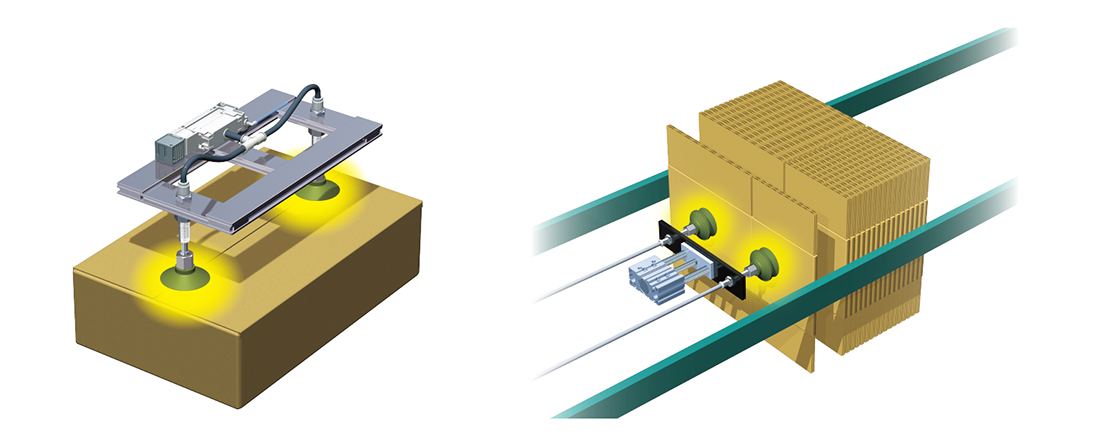

Application example

For the transfer of corrugated cardboard
