協作機械手臂用 真空夾取單元

Vacuum Gripper for Collaborative Robots ZXP7□41-X1
for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series

    ・Plug and Play configuration for immediate use
    　TMComponent: Easy programming
    ・Operate by simply connecting 1 air supply tube and two electrical wiring M8 connectors.
    ・Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
    ・Standards: Conforming to ISO 9409-1-50-4-M6
  • 2D/3D CAD

    能以各種數據格式輸出支持所有型號的2D/3D CAD數據。
    能在安裝了選購件、歧管的狀態下輸出。

    查看 2D/3D CAD
  • Vacuum Gripper for Collaborative Robots ZXP7□41-X1
    for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
    說明書
    Series 查看搜尋結果
    ZXP7□41-X1查看搜尋結果
Safety Instructions　Vacuum Equipment/Precautions　Series Variations/Model Selection
Green Procurement (RoHS)
SeriesCup formCup diameterSuction flow rate
[L/min(ANR)]		Air consumption
[L/min(ANR)]
ZXP7□41-X1Flat
Flat with rib
Bellows
Thin flat
Multistage bellows
2.5-stage bellows
5.5-stage bellows		φ8 to φ321757

產品特點

■Vacuum Gripper for Collaborative Robots
■Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
■Integrated vacuum ejector, air supply valve, pressure switch, and cups
■Standards: Conforming to ISO9409-1-50-4-M6
■TMComponent
■Specifications

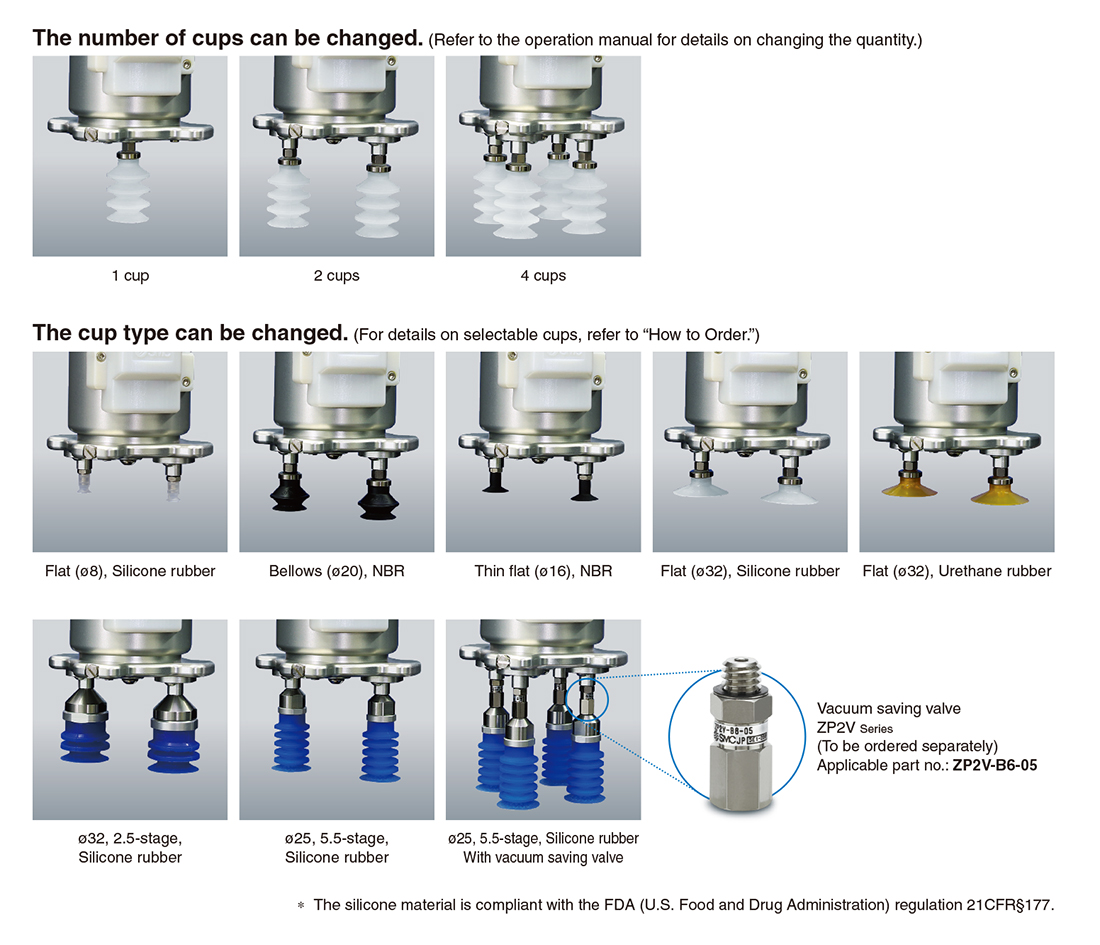

■Cup Variations

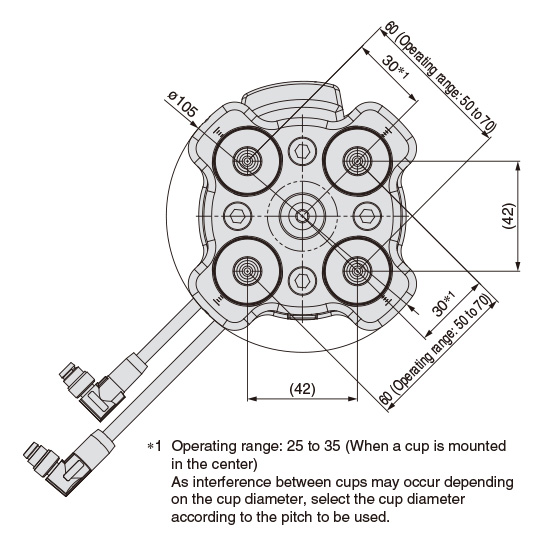

■The cup pitch can be changed.

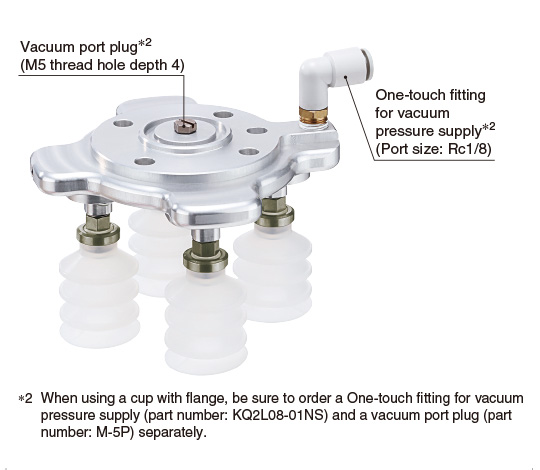

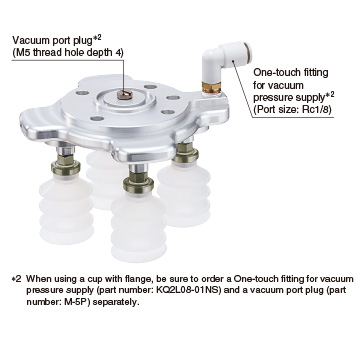

■The cup with flange can be used separately

(if using an external vacuum source).

■Model Selection

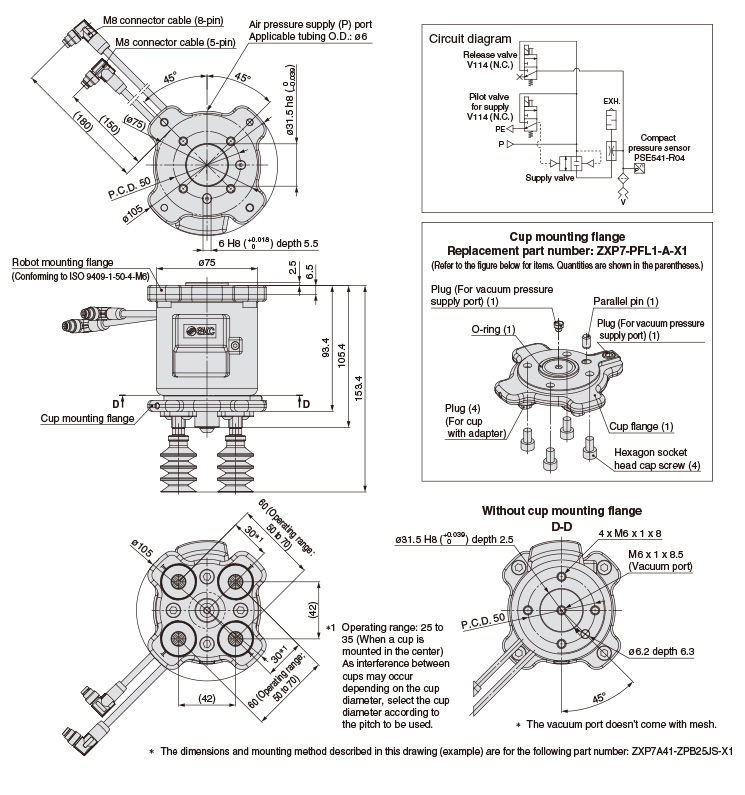

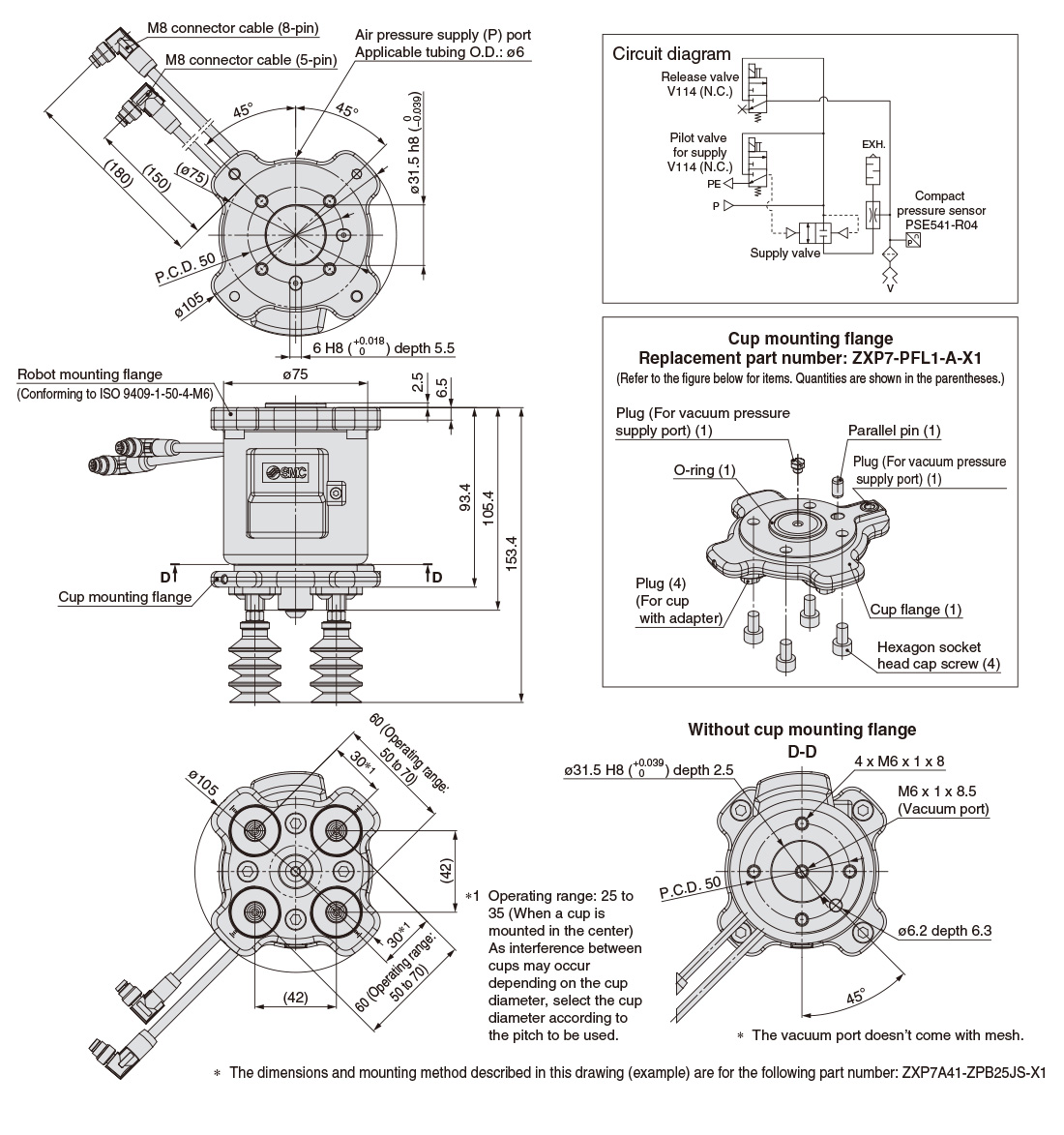

■Dimensions
■TMComponent

Easy programming

Using the certified software TMComponent of OMRON Corporation and TECHMAN ROBOT Inc., various operations of SMC grippers and sensor signals can be easily programmed by using a control box equipped with the dedicated software tool “TMflow” or by using graphical flowcharts on a Windows computer.
You can easily install the software by inserting a USB with the TMComponent software package into a control box or Windows computer.
* Please download the TMComponent software package from the SMC website, and save it to a USB memory.
