壓力開關

3畫面數位式位置確認感測器/ IO-Link對應 ISA3-L

    ・定位狀態的監視・預測・異常
    ・採用雙感測器,對預防・預知保養(IoT)有所貢獻
     用流程數據,提供顯示值、2次側壓力值、供給壓力值
    ・NPN/PNP切換功能
    ・3畫面顯示 (設定時)
    ・對應設定區間模式
    ・零捨去範圍 變更功能
系列額定距離範圍配管規格供給側配管規格檢出側
ISA3-F□L0.01 ~ 0.03 mmRc, G 1/8φ4, φ6快速接頭, G 1/8
ISA3-G□L0.02 ~ 0.15 mmRc, G 1/8φ4, φ6快速接頭, G 1/8
ISA3-H□L0.05 ~ 0.30 mmRc, G 1/8φ4, φ6快速接頭, G 1/8

產品特點

■Monitoring the placement condition of the workpiece Indic ate s failure / abnormality
■Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link



Process data provides Displayed value , Outlet pressure and Supply pressure value .


Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time.

■IO-Link

IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.

■NPN/PNP Switch Function

Both NPN and PNP are available.

■3-Screen Display (Setting)
■Window Comparator Type

The gap range is adjustable.

■Zero cut-off range can be changed.

The lower limit of the display/setting range has been extended.

■Sub display improved for ease of use
■3-Step Setting (Switch Point Change Mode)
■3-Screen Digital Display
■Rated Distance Range: 3 types are available.
■3 Setting Modes

Select the setting mode that best meets your needs.

■2 Outputs Type
■Improved Environmental Resistance
■Noise reduction, Energy saving, Measures against clogging
■Compact & Lightweight
■Space saving and man-hour reduction by centralized lead wires
■Keylock Function
■Piping Variations
■Mounting

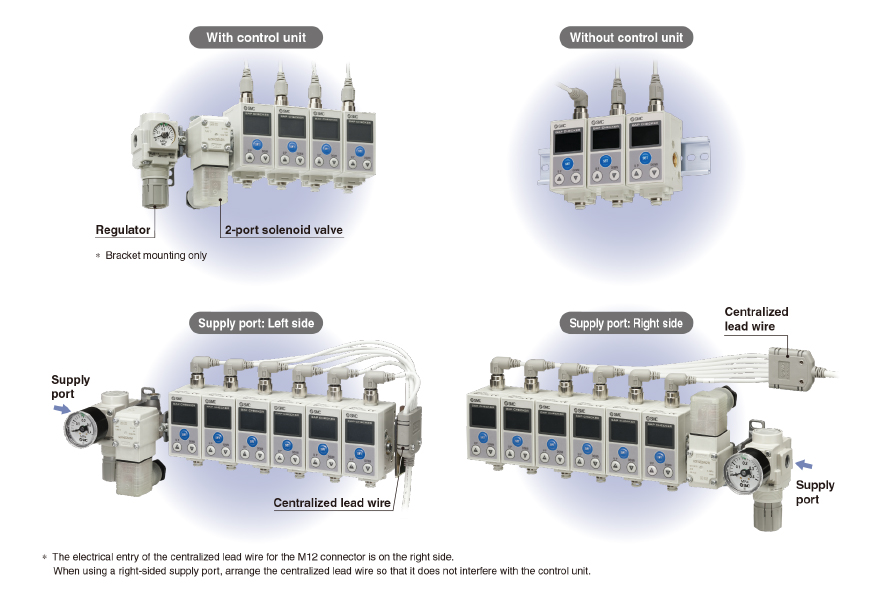

■Manifold
■Application Examples

Detection of the table and pallet seating



Workpiece clamp detection

■Main Functions
