Electronic Pressure Switches/Sensors (Self-contained Type)

2-Color Display High-Precision Digital Pressure Switch (for Low Pressure) ZSE30AF-X576 to X580

    ・Able to detect and display pressures of 10 kPa or less
    ・Can copy to up to 10 switches simultaneously
    　Reduced setting time, Minimized risk of setting mistakes
    ・3-step setting
    ・With display low-cut function (zero-cut function)
    　“0” is displayed within the effective range.

    The ZSE30AF-X576 to X580 series high-precision digital
    pressure switch (for low pressure) is to be discontinued.
    Consider selecting a ZSE20AF-X576 to X580 as a substitute.
    Discontinuation date
    ZSE30AF-□-X576 March 31, 2023
    ZSE30AF-□-X577, X578, X579 September 30, 2023
    ZSE30AF-□-X580 June 30, 2023
Safety Instructions　Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example　Glossary of Terms/Technical Information
Green Procurement (RoHS)

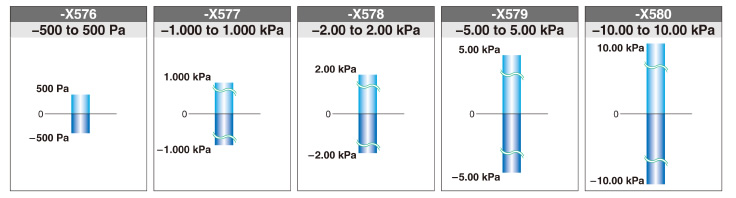

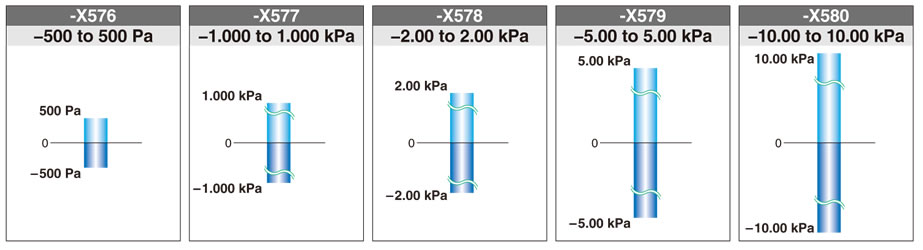

SeriesTypeRated pressure range
ZSE30AF-X576Compound pressure–500 to 500 Pa
ZSE30AF-X577Compound pressure–1.000 to 1.000 kPa
ZSE30AF-X578Compound pressure–2.00 to 2.00 kPa
ZSE30AF-X579Compound pressure–5.00 to 5.00 kPa
ZSE30AF-X580Compound pressure–10.00 to 10.00 kPa

Features

■ Able to detect and display pressures of 10 kPa or less

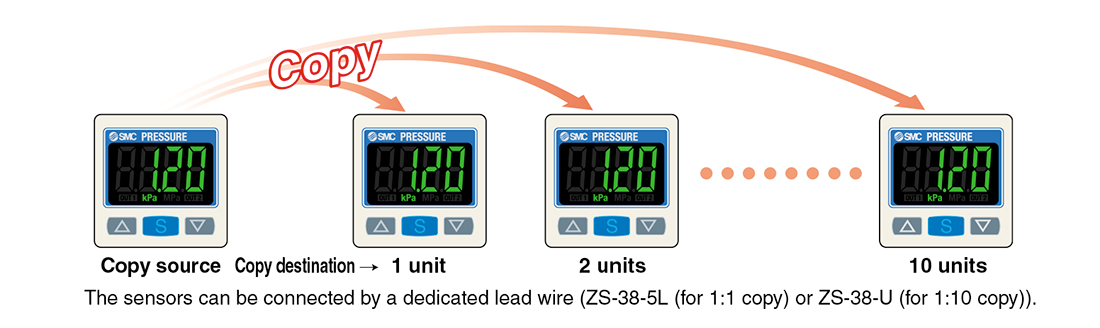

Can copy to up to 10 switches simultaneously

The set values of the sensor can be copied.
●Reduced setting time ●Minimized risk of setting mistakes

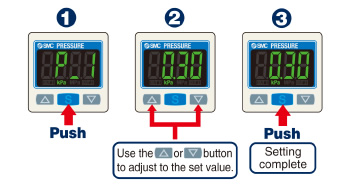

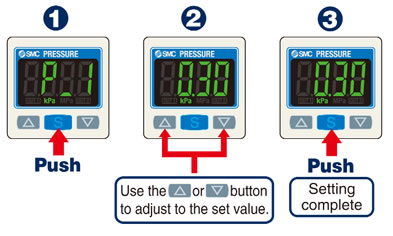

3-step setting

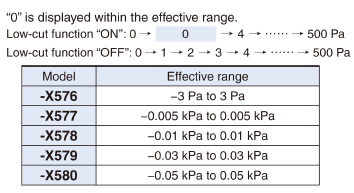

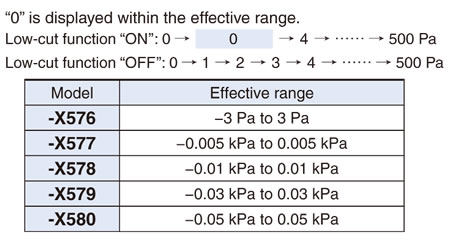

With display low-cut function (zero-cut function)

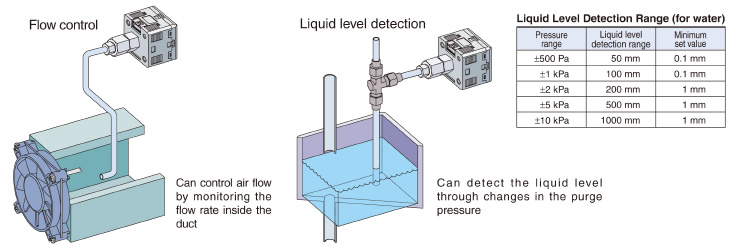

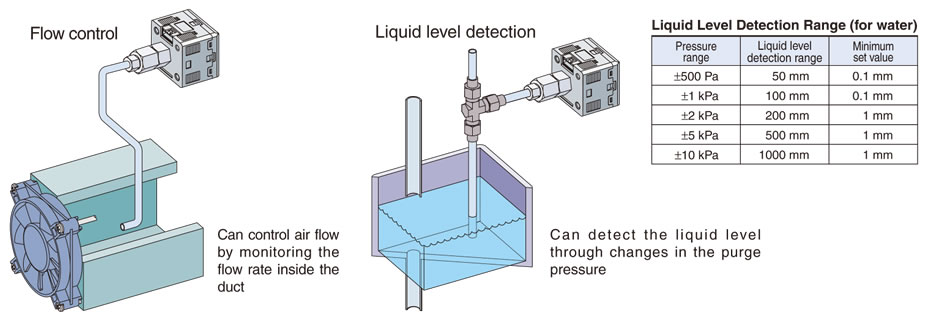

Application Examples
