Fan Type/Ionizer Series IZF10

|Specifications

Model		IZF21-□ NPN	IZF21-P PNP	IZF31-□ NPN	IZF31-P PNP
Max. air flow		1.8m³/min		4.4m³/min
Ion generation method		Corona discharge type
Offset voltage (Ion balance)^Note)		±5V
Power supply voltage		24 VDC±10%
Current consumption		0.9 A or less		1.3 A or less
Ambient temperature		Operating: 0 to 50℃ Stored: ‒10 to 60℃
Ambient humidity		Operating, Stored: 35 to 80%RH (No condensation)
Weight	Body	430 g( With bracket: 576 g)		605 g( With bracket: 825 g)
Weight	Bracket	146 g		220 g

Note): Based on ANSI/ESD-STM3.1-2006 standards

Model	IZF10-□□	IZF10-L-□□	IZF10R-□□	IZF10-P-□□	ZF10-LP-□□	ZF10R-P-□□
Maximum air flow	0.66 m³/min	0.46 m³/min	0.80 m³/min(Max.)	0.66 m³/min	0.46 m³/min	0.80 m³/min(Max.)
Ion generation method	Corona discharge type
Offset voltage (Ion balance) ^Note)	Within ±13 V
Power supply voltage	24 VDC ±10%
Power consumption	220 mA or less	140 mA or less	270 mA or less	250 mA or less	170 mA or less	270 mA or less
Switch output	NPN open collector output		NPN open collector output	PNP open collector output		PNP open collector output
Ambient temperature	Operating: 0 to 50°C, Stored: ‒10 to 60 ℃
Ambient humidity	Operating, Stored: 35 to 80%RH (No condensation)
Weight	280 g (With bracket: 360 g)		260 g (With bracket: 340 g)	280 g (With bracket: 360 g)		260 g (With bracket: 340 g)

Note): Based on ANSI/ESD-STM3.1-2006 standards

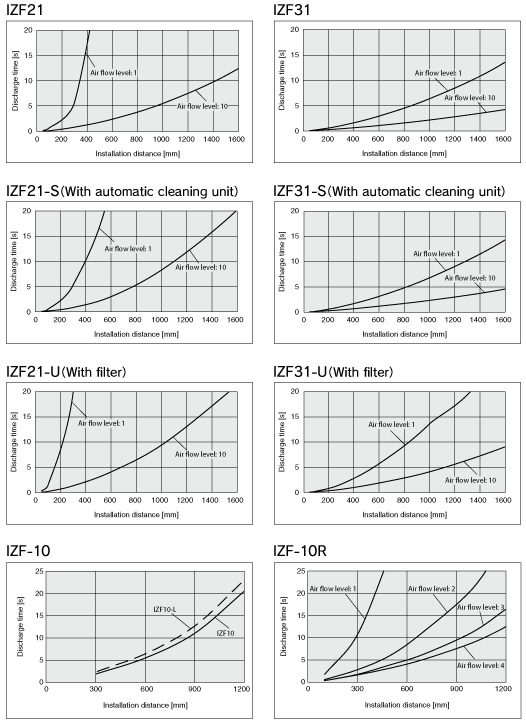

|Installation distance and discharge time (Discharge time from 1000 V to 100 V)

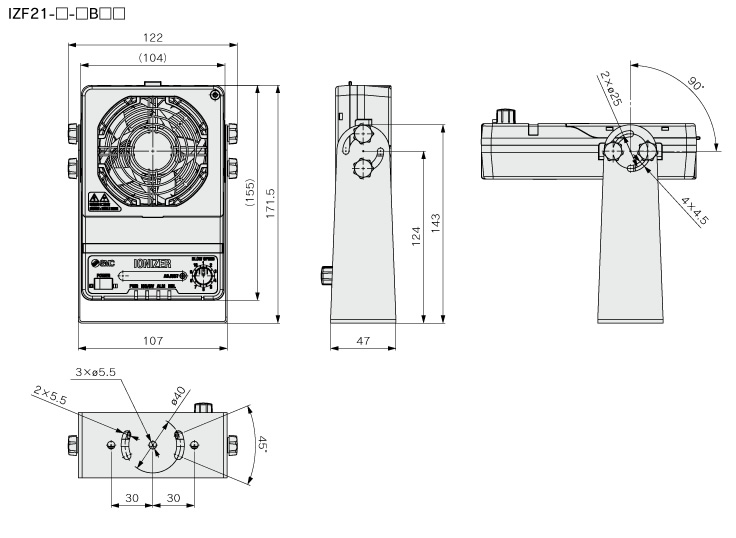

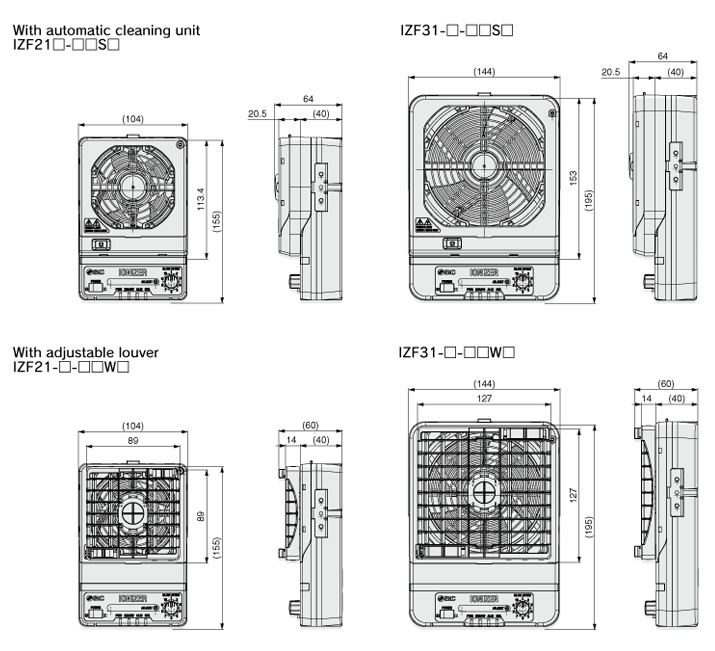

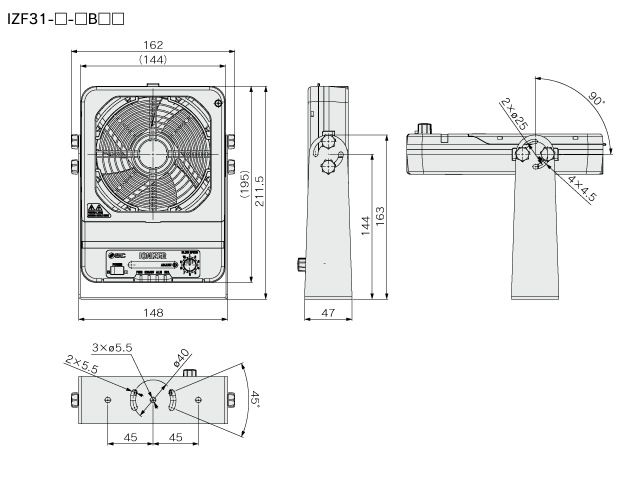

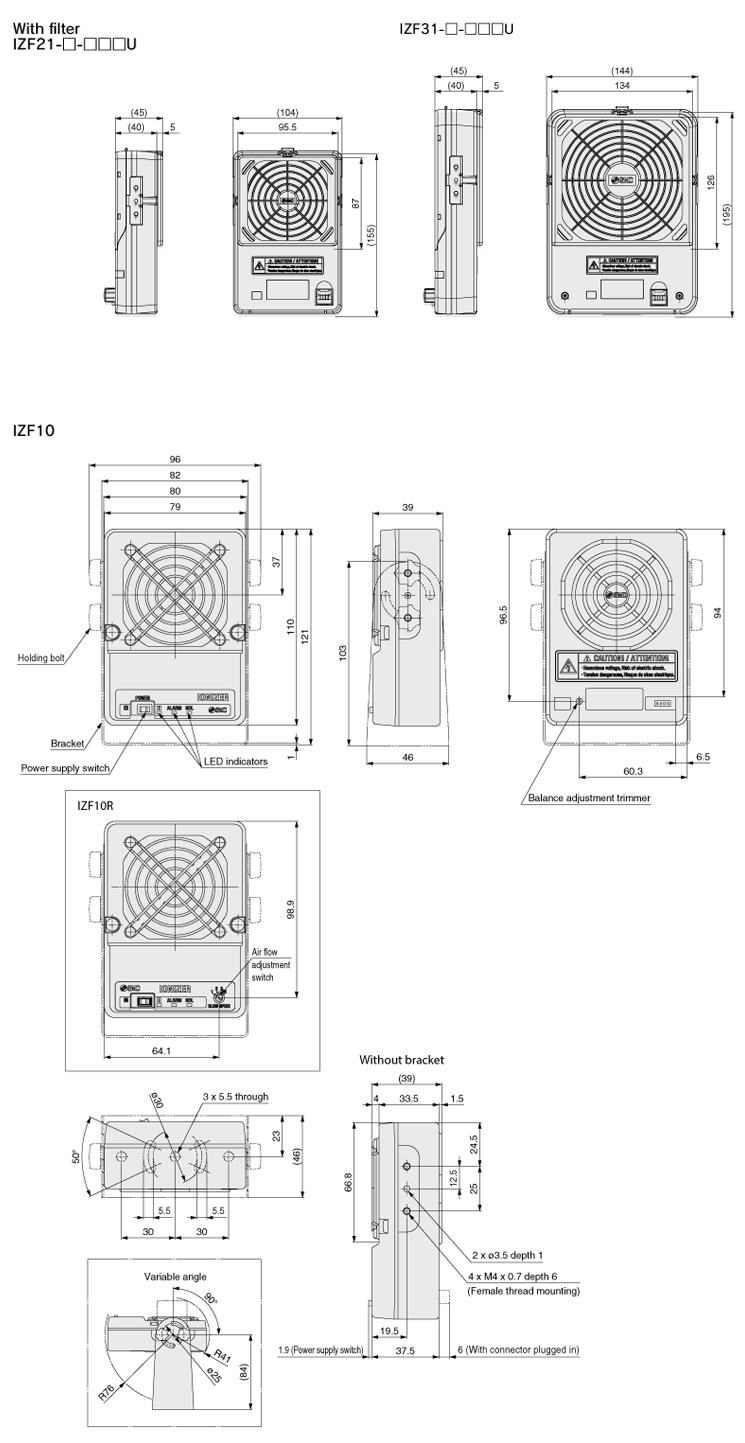

|Dimensions
