Static Neutralization Equipment
» Electrostatic Sensor Series IZD10/IZE11 - Catalogs/CAD/Instruction Manuals

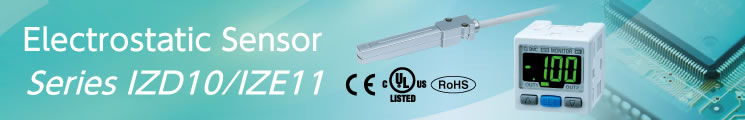

Electrostatic Sensor IZD10
Static Neutralization Equipment » Static Neutralization Equipment Electrostatic Sensor/Sensor Monitor/Meter
-
・Detects the electrostatic potential and outputs in an analog voltage
Variations/Application Examples Antistatic Equipment Glossary
Safety Instructions Green Procurement (RoHS)
Safety Instructions Green Procurement (RoHS)
| Series | Potential measurement | Output voltage | Effective detection distance |
|---|---|---|---|
| IZD10-110 | ±0.4 kV (Detected at a 25 mm distance) | 1 to 5 V (Output impedance: Approx. 100 Ω) | 10 to 50 mm |
| IZD10-510 | ±20 kV (Detected at a 50 mm distance) | 1 to 5 V (Output impedance: Approx. 100 Ω) | 25 to 75 mm |
Electrostatic Sensor Monitor IZE11
Static Neutralization Equipment » Static Neutralization Equipment Electrostatic Sensor/Sensor Monitor/Meter
-
・Displays the electrostatic potential with the connected electrostatic sensor (IZD10), and is capable of switch output, analog output, or output of current
Variations/Application Examples Antistatic Equipment Glossary
Safety Instructions Green Procurement (RoHS)
Safety Instructions Green Procurement (RoHS)
| Series | Rated measurement range | Minimum unit setting | Output |
|---|---|---|---|
| IZE11 | －0.4 kV to ＋0.4 kV －20 kV to ＋20 kV | 0.001 kV（at ±0.4 kV） 0.1 kV（at ±20 kV） | Switch output x 2 + Analog output （1 to 5 V, 4 to 20 mA） |
