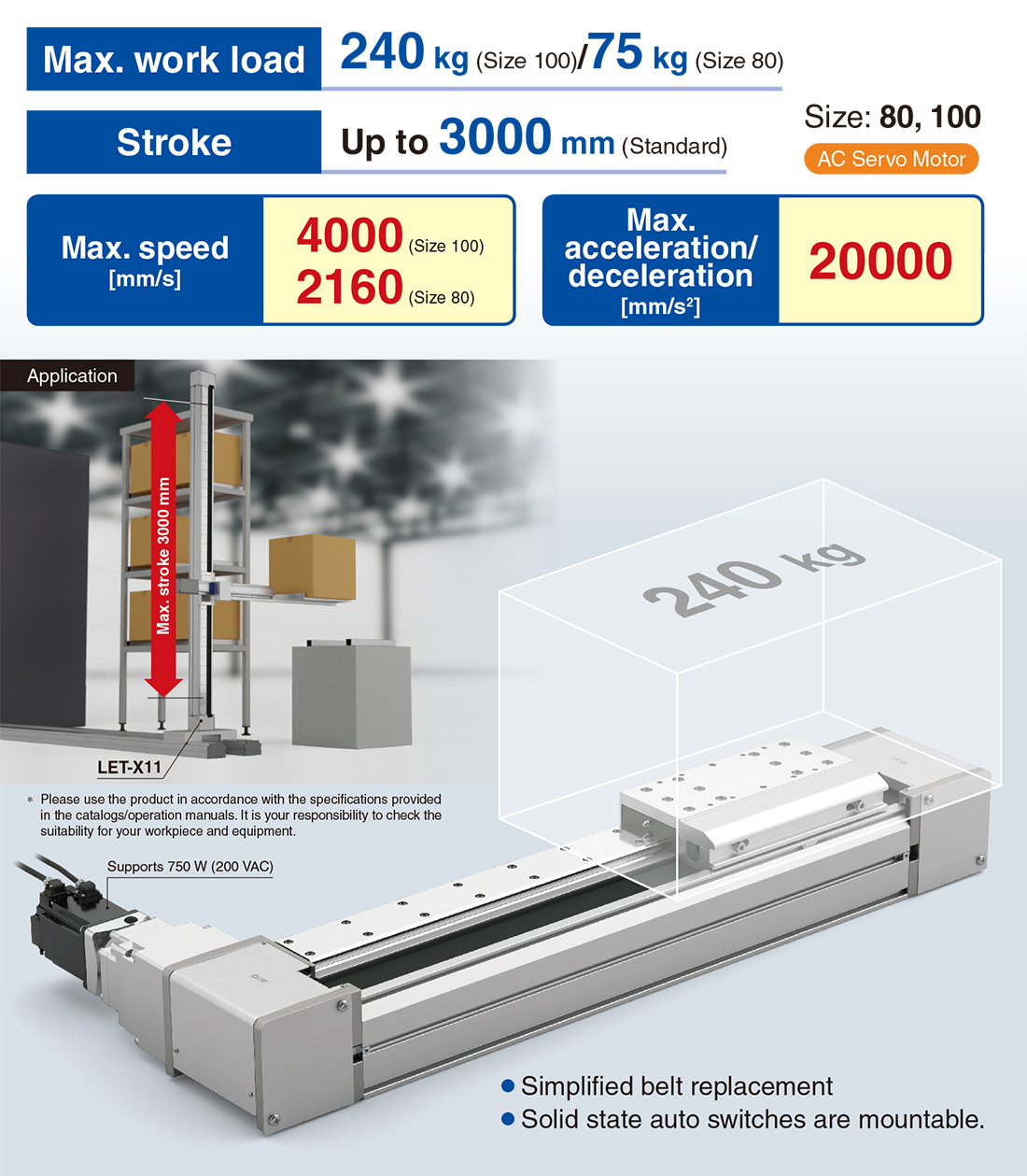

Electric Actuator/Large Slider Type, Belt Drive LET-X11

    ・Max. work load: 240 kg (Size 100)/75 kg (Size 80)
    ・Stroke: Up to 3000 mm (Standard)
    ・Max. speed [mm/s]: 4000 (Size 100), 2160 (Size 80)
    ・Max. acceleration/deceleration [mm/s2]: 20000
    ・Simplified belt replacement
    ・Solid state auto switches are mountable.
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions　Features　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Work load
(kg)
Horizontal		Speed
(mm/s)		Equivalent lead
(mm)
AC servo motorLET80-X11300 to 300075216043.33, 26, 14.44
AC servo motorLET100-X11300 to 3000240400080, 48, 26.67, 16

Features

Max. work load: 240 kg (Size 100)/75 kg (Size 80)

Stroke: Up to 3000 mm (Standard)

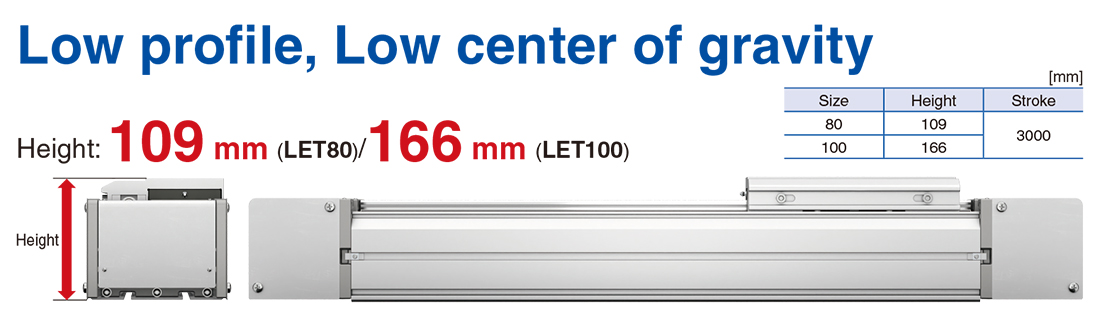

Low profile, Low center of gravity

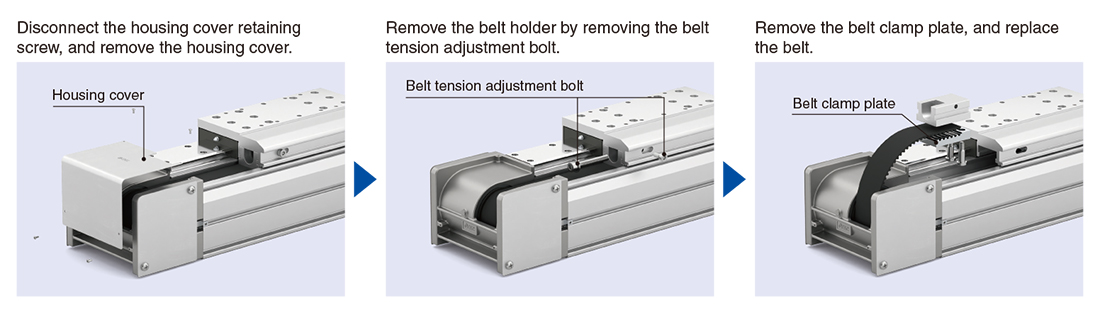

Easy replacement of the timing belt

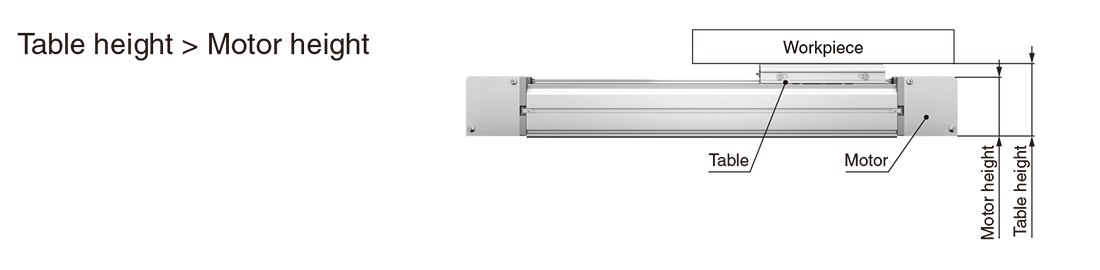

Workpiece does not interfere with the motor.

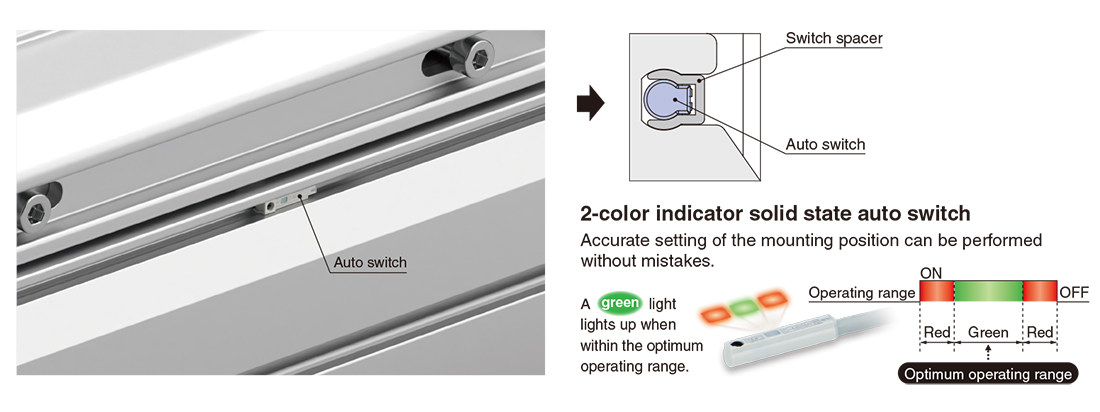

Solid state auto switches are mountable.
(For checking the limit and the intermediate signal)

・A contact and B contact types available
・D-M9 □ W (2-color indicator), D-M9 □ , D-M9 □ E (B contact type)
