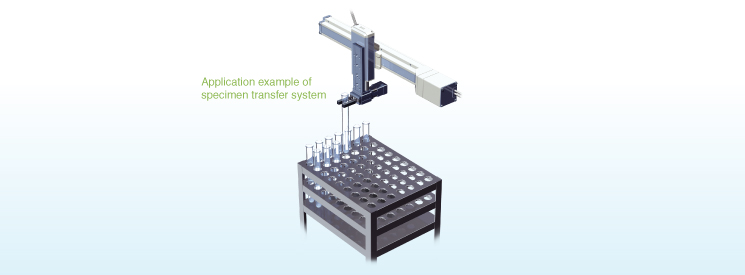

|Test-tube
Electric Actuators
Card Motor LAT3
Electric Actuators/Cylinders » Card Motor
-
・The transportation, pushing, and length measurement systems have beenminiaturized through the use of a linear motor.
・Thickness 9 mm, Weight 130 g (At a stroke of 10 mm)
・Linear motor type: Moving magnet type linear motor
・Max. pushing force: 6 N
・Positioning repeatability: ±5 μm
・Pushing measurement accuracy: ±10 μm
・Max. operating frequency: 500 cpm
Safety Instructions Electric Actuators/Precautions Features
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
| Model | Stroke (mm) | Sensor (Optical linear encoder) Resolution | Pushing Maximum Instantaneous thrust | Positioning repeatability | Pushing measurement accuracy | Maximum speed |
|---|---|---|---|---|---|---|
| LAT3F | 10, 20, 30, 50 | 1.25μm | Up to 6 N | ±5μm | ±10μm | 400 mm/s |
| LAT3M | 50 | 5μm | Up to 6 N | ±20μm | ±40μm | 400 mm/s |
| LAT3 | 10, 20, 30 | 30μm | Up to 6 N | ±90μm | ±100μm | 400 mm/s |
Card Motor Controller LATCA
Electric Actuators/Cylinders » Card Motor
-
・Easy programming (Cycle time entry)
Just input 3 parameters: Positioning time, Target position, Load mass
Safety Instructions Electric Actuators/Precautions Features
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
| Type | Series | Power supply voltage | Parallel input Input | Parallel input Output |
|---|---|---|---|---|
| Step date input type Pulse input type | LATCA | 24 VDC±10% | 6 inputs (Optically isolated) | 4 outputs (Optically isolated, open collector output) |
Electric Actuator/Slider Type, Ball Screw Drive LEFS
Electric Actuators/Cylinders » Slider Type
-
LEFS Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
・Max. work load: 65 kg
・Positioning repeatability: ±0.015 mm (High precision type)
・Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS)
LEFS Series AC Servo Motor
・High output motor (100/200/400 W)
・Improved high speed transfer ability
・High acceleration/deceleration (20,000 mm/s2)
・Pulse input type
・With internal absolute encoder
・Positioning repeatability: ±0.01 mm (High precision type)
・Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS)
・Motorless specification is available. Click here for details
・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions
Features Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
CE/UL-compliance List
Features Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
CE/UL-compliance List
| Specification | Model | Stroke (mm) | Work load (kg) Horizontal | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) | LEFS16 | 50 to 500 | Max. 15 | Max. 700 | 5，10 |
| Step motor (Servo/24 VDC) | LEFS25 | 50 to 800 | Max. 30 | Max. 1100 | 6，12，20 |
| Step motor (Servo/24 VDC) | LEFS32 | 50 to 1000 | Max. 50 | Max. 1200 | 8，16，24 |
| Step motor (Servo/24 VDC) | LEFS40 | 150 to 1200 | Max. 65 | Max. 1200 | 10，20，30 |
| Servo motor (24 VDC) | LEFS16A | 50 to 500 | Max. 10 | Max. 500 | 5，10 |
| Servo motor (24 VDC) | LEFS25A | 50 to 800 | Max. 18 | Max. 800 | 6，12，20 |
| AC servo motor | LEFS25S | 50 to 800 | Max. 20 | Max. 1500 | 6，12，20 |
| AC servo motor | LEFS32S | 50 to 1000 | Max. 45 | Max. 1500 | 8，16，24 |
| AC servo motor | LEFS40S | 150 to 1200 | Max. 60 | Max. 1500 | 10，20，30 |
Electric Actuator/Slider Type, Belt Drive LEFB
Electric Actuators/Cylinders » Slider Type
-
LEFB Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
・Max. stroke: 2000 mm
・Max. speed: 2000 mm/s
・Positioning repeatability: ±0.08 mm
LEFB Series AC Servo Motor
・Max. speed: 2000 mm/s
・Max. stroke: 3000 mm
・Max. acceleration/deceleration: 20000 mm/s2
・Pulse input type/With internal absolute encoder
・Positioning repeatability: ±0.06 mm
・Motorless specification is available. Click here for details
・Compatible drivers: Click here for LECSS-T，LECY□
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions
Features Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
CE/UL-compliance List
Features Series Variations Simplified Selection Flow Chart Green Procurement (RoHS)
CE/UL-compliance List
| Specification | Model | Stroke (mm) | Work load (kg) Horizontal | Speed (mm/s) | Equivalent lead (mm) |
|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) | LEFB16 | 300 to 1000 | 1 | 48 to 1100 | 48 |
| Step motor (Servo/24 VDC) | LEFB25 | 300 to 2000 | 10 | 48 to 1400 | 48 |
| Step motor (Servo/24 VDC) | LEFB32 | 300 to 2000 | 19 | 48 to 1500 | 48 |
| Servo motor (24 VDC) | LEFB16A | 300 to 1000 | 1 | 5 to 2000 | 48 |
| Servo motor (24 VDC) | LEFB25A | 300 to 2000 | 2 | 5 to 2000 | 48 |
| AC servo motor | LEFB25S | 300 to 2000 | 5 | Max. 2000 | 54 |
| AC servo motor | LEFB32S | 300 to 2500 | 15 | Max. 2000 | 54 |
| AC servo motor | LEFB40S | 300 to 3000 | 25 | Max. 2000 | 54 |
Electric Slide Table/Compact Type LES
Electric Actuators/Cylinders » Slide Tables
-
・Compact: Workpiece mounting surface height reduced by up to 12% compared with the LESH
・Vertical work load: Increased by up to 50%
・Lightweight: Reduced by up to 29%
・Max. pushing force: 180 N
・Positioning repeatability: ±0.05 mm
・Cycle time can be reduced.
Max. acceleration/deceleration: 5,000 mm/s2
Max. speed: 400 mm/s
Safety Instructions Electric Actuators/Precautions Features Series Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Specification | Model | Stroke (mm) | Work load (kg) Horizontal | Work load (kg) Vertical | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) | LES8□ | 30，50，75 | Max. 1 | Max. 0.5 | Max. 400 | 4 ，8 |
| Step motor (Servo/24 VDC) | LES16□ | 30，50，75，100 | Max. 3 | Max. 3 | Max. 400 | 5，10 |
| Step motor (Servo/24 VDC) | LES25□ | 30，50，75，100，125，150 | Max. 5 | Max. 5 | Max. 400 | 8，16 |
| Servo motor (24 VDC) | LES8□A | 30，50，75 | Max. 1 | Max. 1 | Max. 400 | 4，8 |
| Servo motor (24 VDC) | LES16□A | 30，50，75，100 | Max. 3 | Max. 3 | Max. 400 | 5，10 |
| Servo motor (24 VDC) | LES25□A | 30，50，75，100，125，150 | Max. 5 | Max. 4 | Max. 400 | 8，16 |
Electric Slide Table/High Rigidity Type LESH
Electric Actuators/Cylinders » Slide Tables
-
・Easy setting: Data can be set with only 2 items, position and speed.
The controller is already set with the data of the actuator.
(The actuator and controller are provided as a set.)
・Integrated guide rail and table
Uses a recirculating linear guide for high rigidity and high precision
・Reduced cycle time
Max. acceleration/deceleration: 5000 mm/s2
Max. speed: 400 mm/s
・Max. pushing force: 180 N
・Positioning repeatability: ±0.05 mm
Safety Instructions Electric Actuators/Precautions Features Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Specification | Model | Stroke (mm) | Work load (kg) Horizontal | Work load (kg) Vertical | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) | LESH8□ | 50，75 | Max. 2 | Max. 0.5 | Max. 400 | 4，8 |
| Step motor (Servo/24 VDC) | LESH16□ | 50，100 | Max. 8 | Max. 2 | Max. 400 | 5，10 |
| Step motor (Servo/24 VDC) | LESH25□ | 50，100，150 | Max. 12 | Max. 4 | Max. 400 | 8，16 |
| Servo motor (24 VDC) | LESH8□A | 50，75 | Max. 2 | Max. 0.5 | Max. 400 | 4，8 |
| Servo motor (24 VDC) | LESH16□A | 50，100 | Max. 5 | Max. 2 | Max. 400 | 5，10 |
| Servo motor (24 VDC) | LESH25□A | 50，100，150 | Max. 6 | Max. 2.5 | Max. 400 | 8，16 |
Electric Gripper 2-Finger Type (Z Type) LEHZ
Electric Actuators/Cylinders » Grippers
-
・Easy setting: Data can be set with only 2 items, position and force.
The controller is already set with the data of the actuator.
(The actuator and controller are provided as a set.)
・Equipped with a drop prevention function
(All series come equipped with a self-lock mechanism.)
・The self-lock mechanism reduces power consumption.
・Equipped with a gripping check function
・It is possible to set the position, speed, and force. (64 points)
Safety Instructions Electric Actuators/Precautions Features Series Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Series | Body size | Open and close stroke/ both sides (mm) | Gripping force [N] Basic | Gripping force [N] Compact | Opening and closing speed (mm/s) |
|---|---|---|---|---|---|
| LEHZ | 10 | 4 | 6 to 14 | 2 to 6 | 5 to 80 |
| LEHZ | 16 | 6 | 6 to 14 | 3 to 8 | 5 to 80 |
| LEHZ | 20 | 10 | 16 to 40 | 11 to 28 | 5 to 100 |
| LEHZ | 25 | 14 | 16 to 40 | 11 to 28 | 5 to 100 |
| LEHZ | 32 | 22 | 52 to 130 | ― | 5 to 120 |
| LEHZ | 40 | 30 | 84 to 210 | ― | 5 to 120 |
Electric Gripper 2-Finger Type/With Dust Cover (ZJ Type) LEHZJ
Electric Actuators/Cylinders » Grippers
-
・Easy setting: Data can be set with only 2 items, position and force.
The controller is already set with the data of the actuator.
(The actuator and controller are provided as a set.)
・Equipped with a drop prevention function
(All series come equipped with a self-lock mechanism.)
・The self-lock mechanism reduces power consumption.
・Equipped with a gripping check function
・It is possible to set the position, speed, and force. (64 points)
Safety Instructions Electric Actuators/Precautions Features Series Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Series | Body size | Open and close stroke/ both sides (mm) | Gripping force [N] Basic | Gripping force [N] Compact | Opening and closing speed (mm/s) |
|---|---|---|---|---|---|
| LEHZJ | 10 | 4 | 6 to 14 | 3 to 6 | 5 to 80 |
| LEHZJ | 16 | 6 | 6 to 14 | 4 to 8 | 5 to 80 |
| LEHZJ | 20 | 10 | 16 to 40 | 11 to 28 | 5 to 100 |
| LEHZJ | 25 | 14 | 16 to 40 | 11 to 28 | 5 to 100 |
Electric Gripper 2-Finger Type (F Type) LEHF
Electric Actuators/Cylinders » Grippers
-
・Easy setting: Data can be set with only 2 items, position and force.
The controller is already set with the data of the actuator.
(The actuator and controller are provided as a set.)
・Equipped with a drop prevention function
(All series come equipped with a self-lock mechanism.)
・The self-lock mechanism reduces power consumption.
・Equipped with a gripping check function
・It is possible to set the position, speed, and force. (64 points)
Note) ( ): For long strokes
Safety Instructions Electric Actuators/Precautions Features Series Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Series | Body size | Open and close stroke/ both sides (mm) | Gripping force [N] Basic | Gripping force [N] Compact | Opening and closing speed (mm/s) |
|---|---|---|---|---|---|
| LEHF | 10 | 16（32）Note) | 3 to 7 | 3 to 7 | 5 to 80 |
| LEHF | 20 | 24（48）Note) | 11 to 28 | 11 to 28 | 5 to 100 |
| LEHF | 32 | 32（64）Note) | 48 to 120 | 48 to 120 | 5 to 100 |
| LEHF | 40 | 40（80）Note) | 72 to 180 | 72 to 180 | 5 to 100 |
Electric Gripper 3-Finger Type (S Type) LEHS
Electric Actuators/Cylinders » Grippers
-
・Easy setting: Data can be set with only 2 items, position and force.
The controller is already set with the data of the actuator.
(The actuator and controller are provided as a set.)
・Equipped with a drop prevention function
(All series come equipped with a self-lock mechanism.)
・The self-lock mechanism reduces power consumption.
・Equipped with a gripping check function
・It is possible to set the position, speed, and force. (64 points)
Safety Instructions Electric Actuators/Precautions Features Series Variations
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
Simplified Selection Flow Chart Green Procurement (RoHS) CE/UL-compliance List
| Series | Body size | Open and close stroke/ both sides (mm) | Gripping force [N] Basic | Gripping force [N] Compact | Opening and closing speed (mm/s) |
|---|---|---|---|---|---|
| LEHS | 10 | 4 | 2.2 to 5.5 | 1.4 to 3.5 | 5 to 70 |
| LEHS | 20 | 6 | 9 to 22 | 7 to 17 | 5 to 80 |
| LEHS | 32 | 8 | 36 to 90 | ― | 5 to 100 |
| LEHS | 40 | 12 | 52 to 130 | ― | 5 to 120 |
