3-Color Display Digital Flow Switch for Large Flow PF3A7□H（-L）

Products »WEB Catalog » Switches/Sensors/Controller » Electronic Flow Switches/Sensors

Products »WEB Catalog » IO-Link Compatible Products » Digital Flow Switch

	・Applicable fluid: Air, N₂ ・Flow range: Max. 12000 L/min ・Flow ratio 100:1 　A wide range of flow measurement is possible with 1 product. ・Improved drainage and resistance to foreign matter ・Pressure loss: 75% reduction (20 kPa → 5 kPa) ・Through bore construction ・IO-Link compatible ・Can be connected to the air combination (Modular type)

Data Download CAD Manual DoC PDF

Other Data	Safety Instructions　Pressure Switches/Flow Switches/Precautions Green Procurement (RoHS)

Series	Rated flow range (L/min)

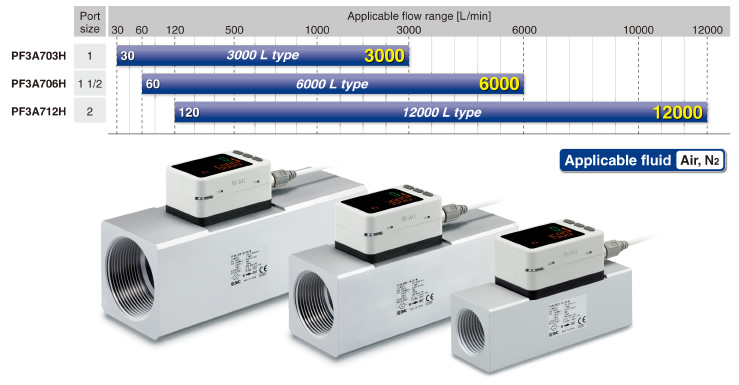

PF3A7□H	10 to 1000 20 to 2000 30 to 3000 60 to 6000 120 to 12000

3-Color Display Digital Flow Switch for Large FlowPF3A7□H（-L）

Series	Download
PF3A7□H

■Flow ratio^＊ 100:1　A wide range of flow measurement is possible with 1 product.

＊ The flow ratio is 20 : 1 for the existing model (PF2A7□H/Large flow type).

■Improved resistance to moisture and foreign matter

The bypass construction reduces the moist air or foreign matter in contact with the sensor, reducing sensor accuracy deterioration and damage.

■Through bore construction

■3-color/2-screen display

＊ 2-screen display: 2-row display of main screen and sub screen

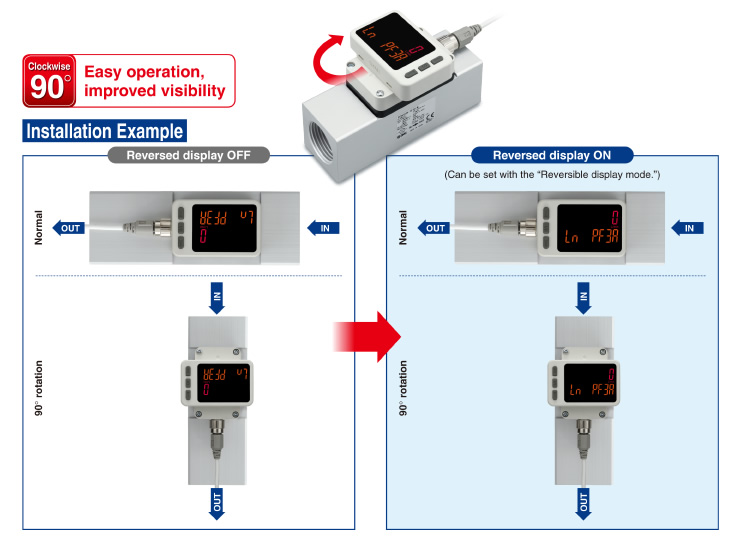

■Display rotates 90° and can be reversed.

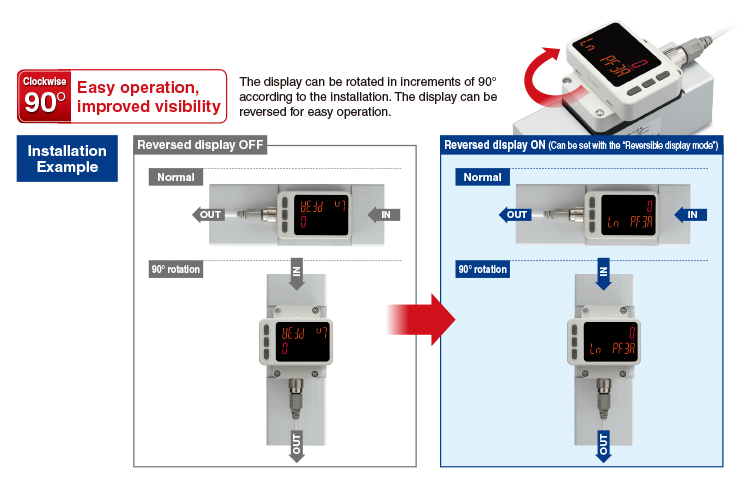

The display can be rotated in increments of 90° according to the installation. The display can be reversed for easy operation.

■Smallest settable increment: 2 L/min

＊ For the PF3A703H
＊ 5 L/min for the existing model (PF2A703H/Large flow type)

■Grease-free

■Functions

・ Output operation
・ Simple setting mode
・ Display color
・ Reference condition
・ Response time
・ FUNC output switching function
　(Analog output ⇔ External input)

・ Selectable analog output function
・ External input function
・ Forced output function
・ Accumulated value hold
・ Peak/Bottom value display
・ Display OFF mode
・ Setting of security code

・ Key-lock function
・ Reset to the default settings
・ Reversible display mode
・ Zero cut-off function
・ Selection of display on sub screen
・ Analog output free range function
・ Error display function

■Application

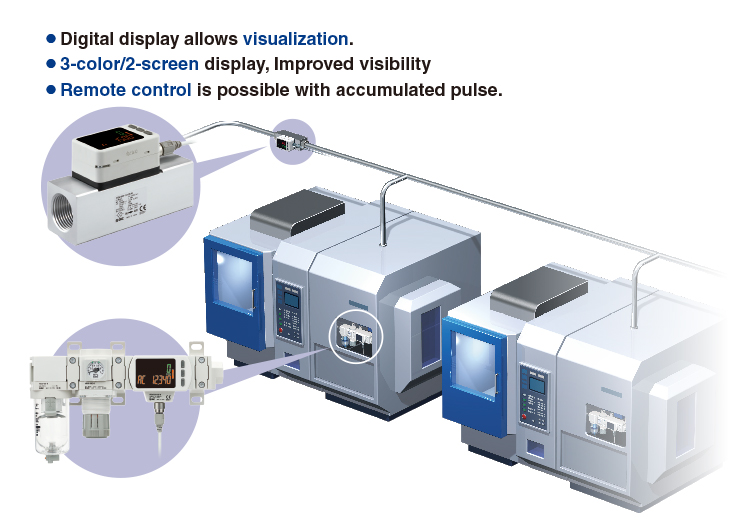

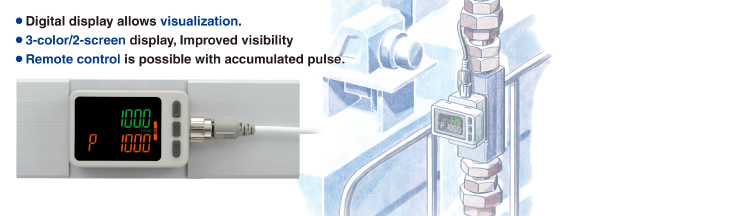

■Select a digital flow switch to increase energy savings!

Flow control is necessary for promoting energy saving in any application. Saving energy starts from numerical control of the flow consumption of equipment and lines and clarification of the purpose and effect.

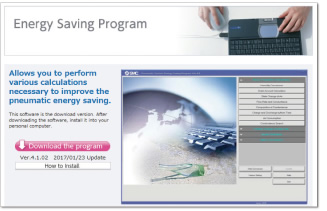

■Energy Saving Program

For details on the energy saving program, click here.

■IO-Link Compatible PF3A7□H-□□-L□-□□

■3-Color Display Modular Type Digital Flow Switch PF3A701H/702H(-L) Series

■3-Screen Display Digital Flow Monitor PFG300 Series

■Flow Switch Flow Rate Variations

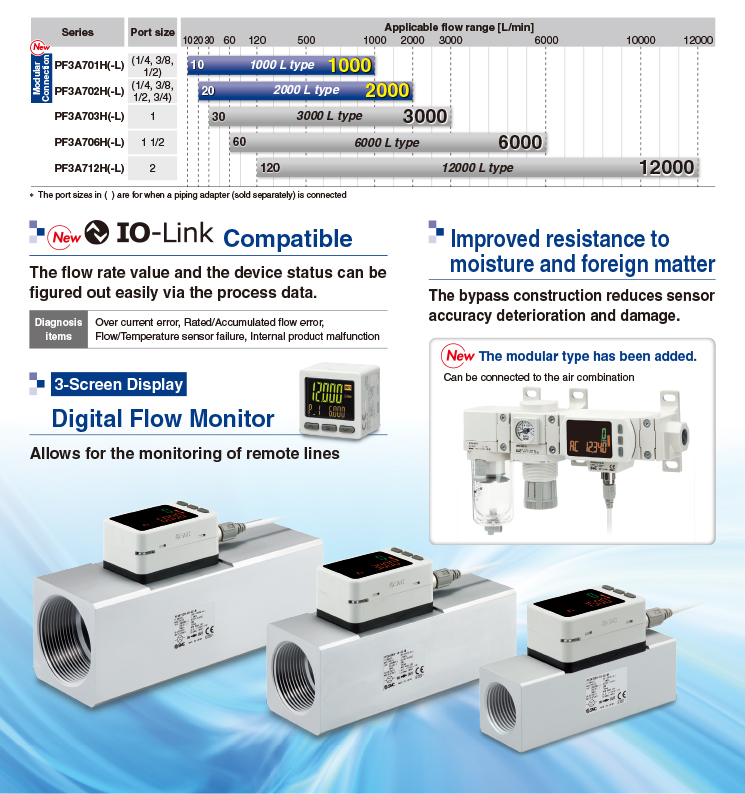

■Flow Switch Variations / Basic Performance Table
